Digital Data Bus (D2B) PE82.00-U-2700RA (As of 3/1/00)
Digital Data Bus (D2B) PE82.00-U-2700RA (As of 3/1/00)
Digital Data Bus (D2B) From Mar 1, 2000

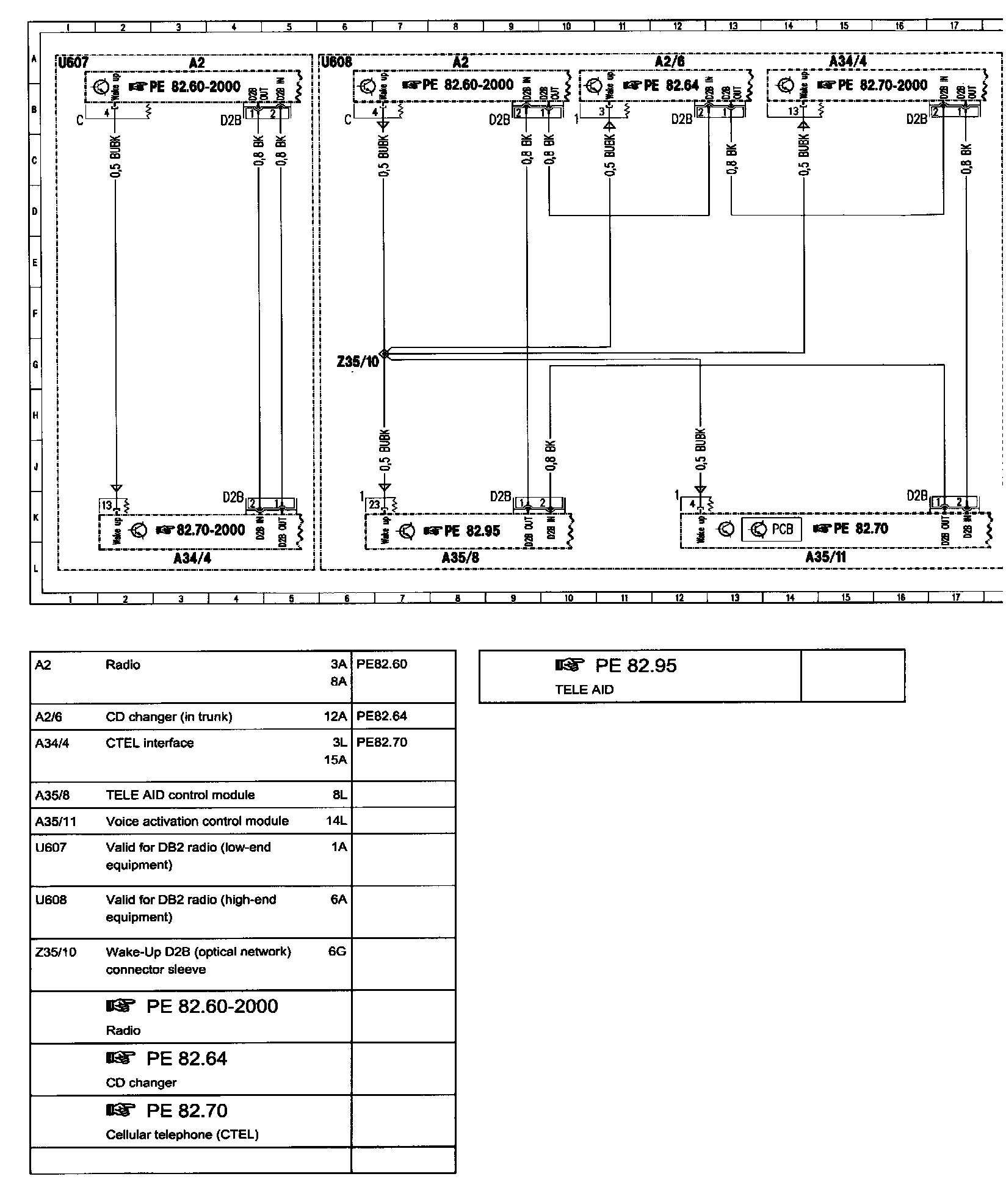

&�oWiring Diagram:

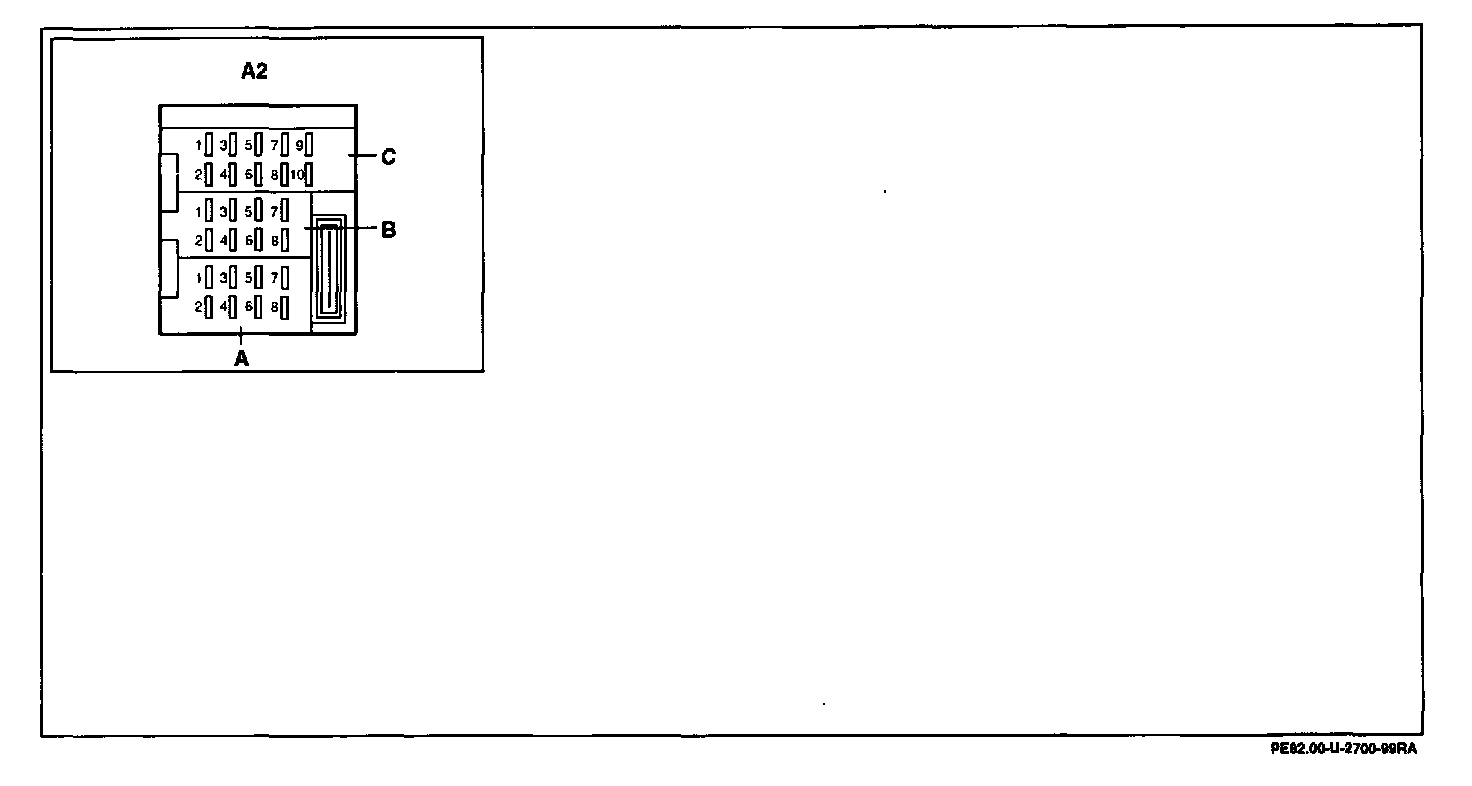

Connector Assignment:

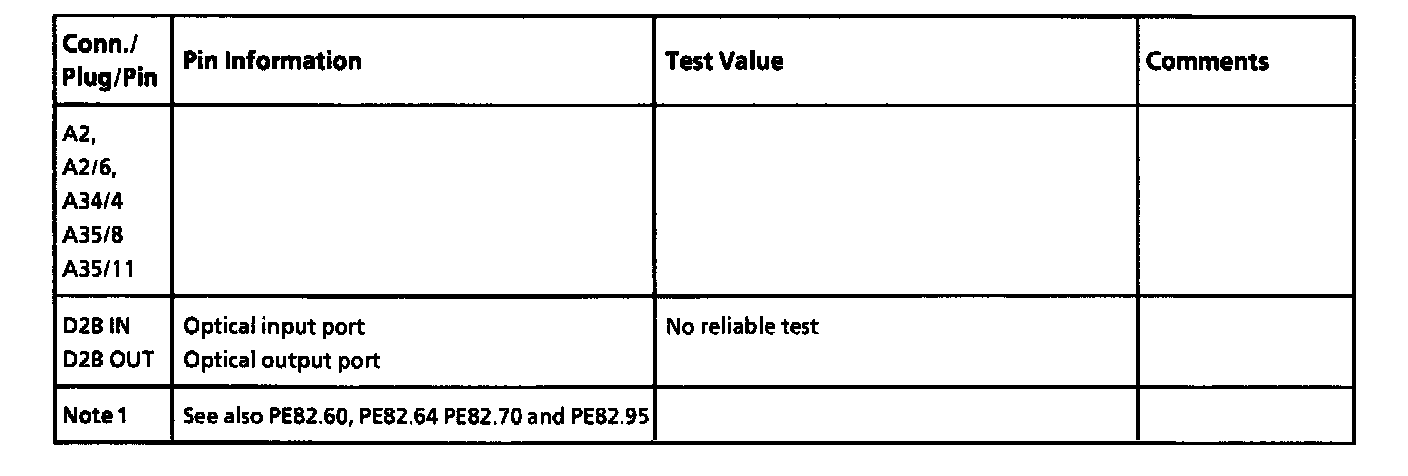

Pin Information:
