Digital Data Bus (D2B) PE82.00-U-2700A (Up to 2/28/00)
Digital Data Bus (D2B) Up to Feb 28, 2000

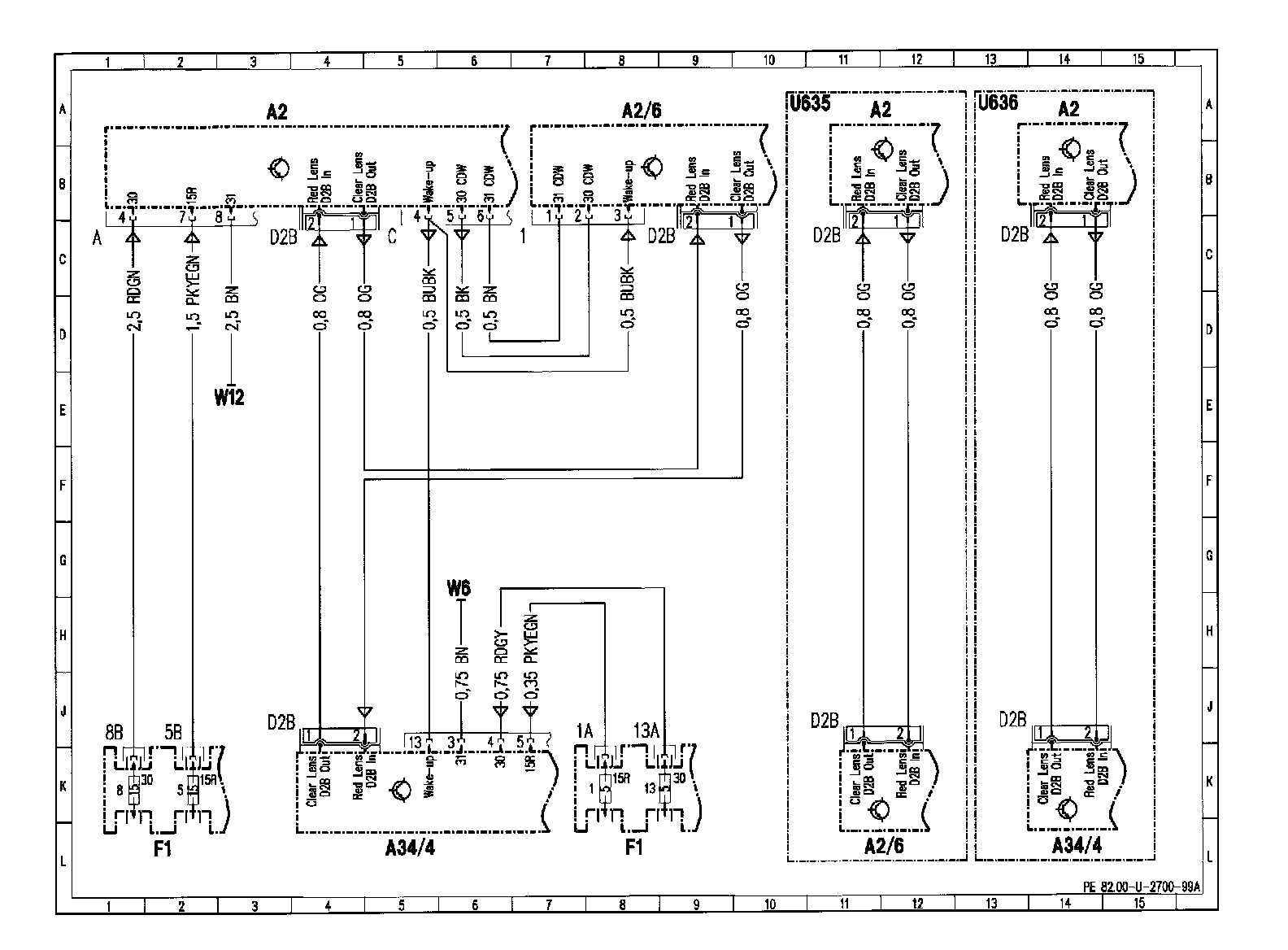

Wiring Diagram

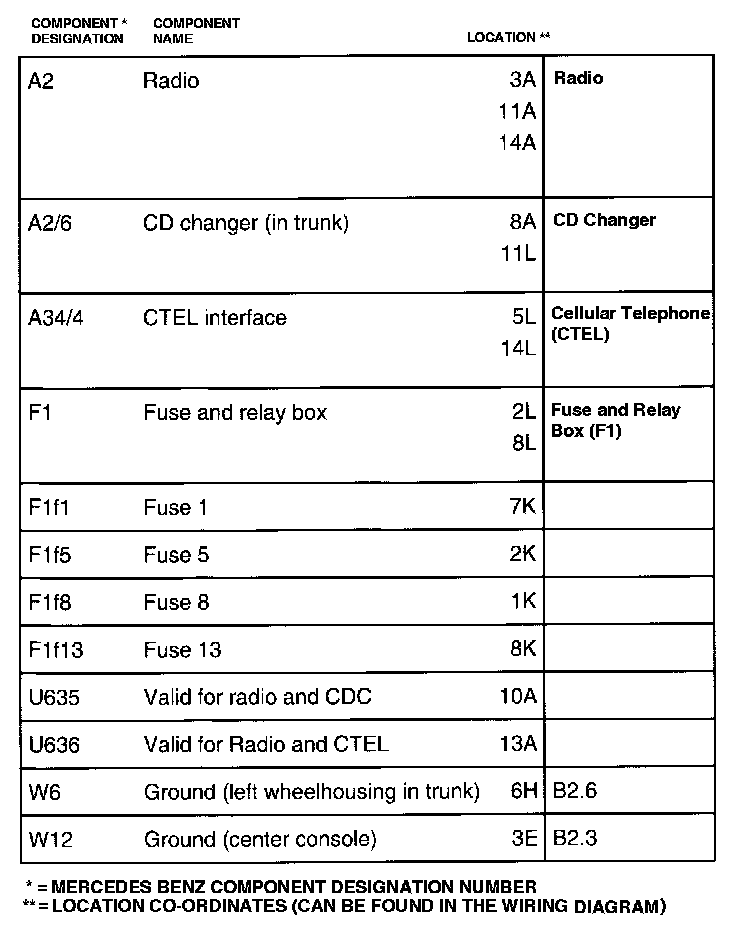

Component Grid Location
A2 - W12:

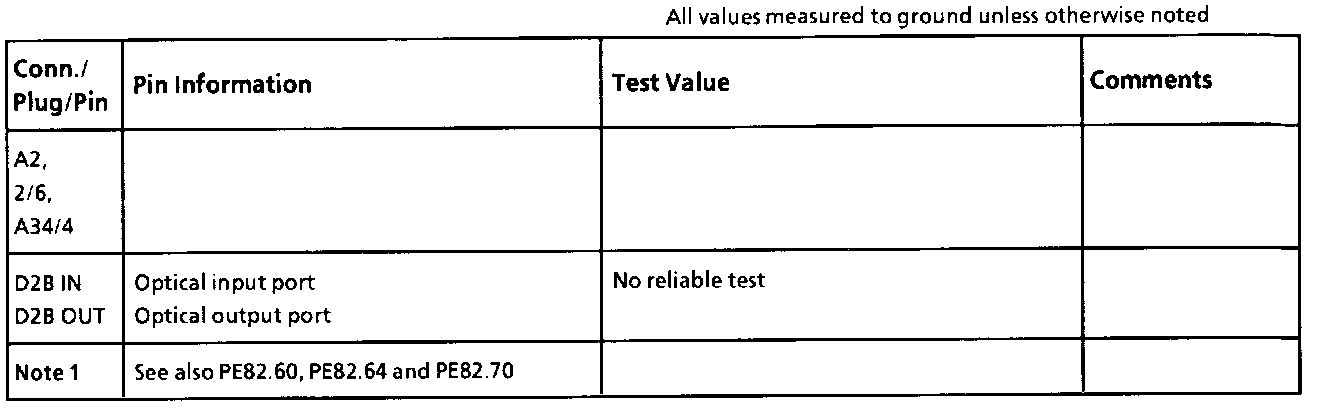

Pin-Out Testing - Component: Z37/2, Z37/3
Data:

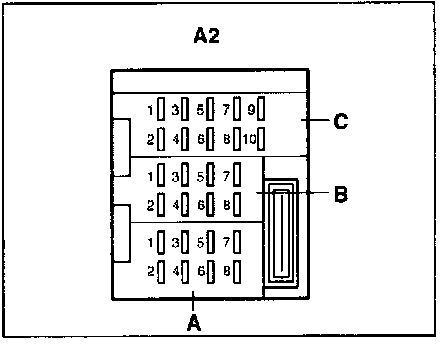

Connector View:
Digital Data Bus (D2B) Up to Feb 28, 2000
Wiring Diagram
Component Grid Location
Pin-Out Testing - Component: Z37/2, Z37/3
