CAN Bus - Engine Compartment PE00.19-U-2200RB (As of 3/1/00)



CAN Bus - Engine Compartment With Automatic Transmission
(From Mar 1, 2000)

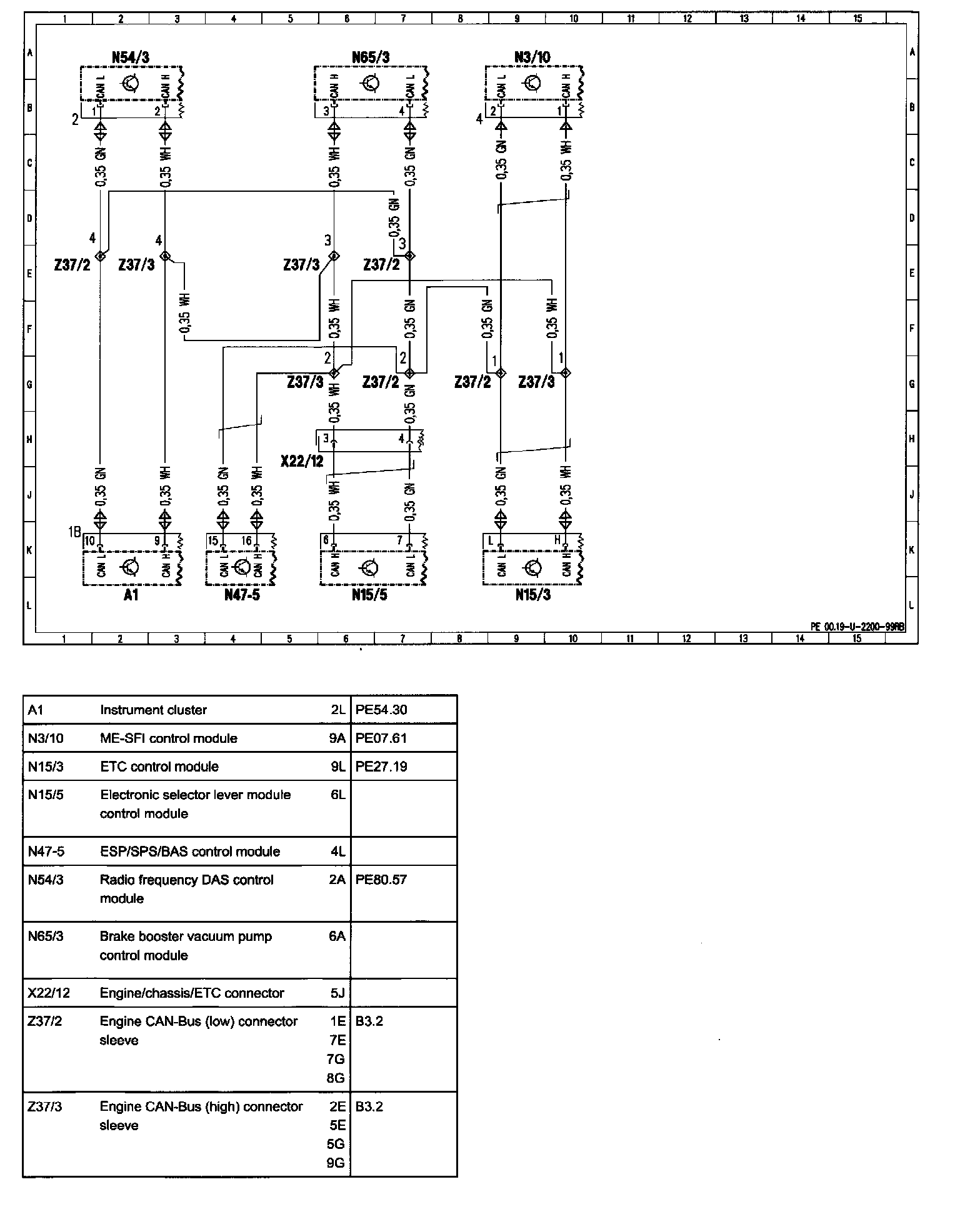

Wiring Diagram:

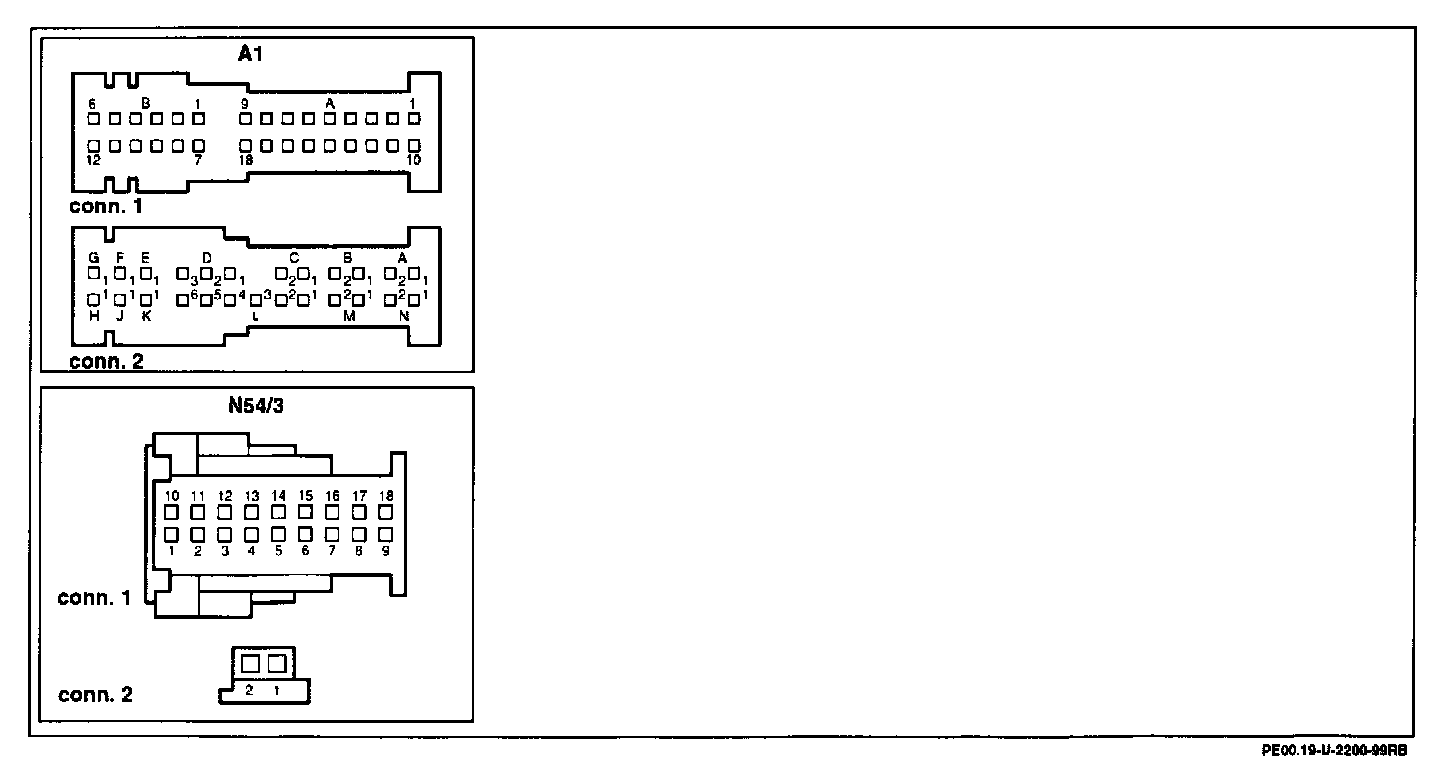

Connector Assignment:

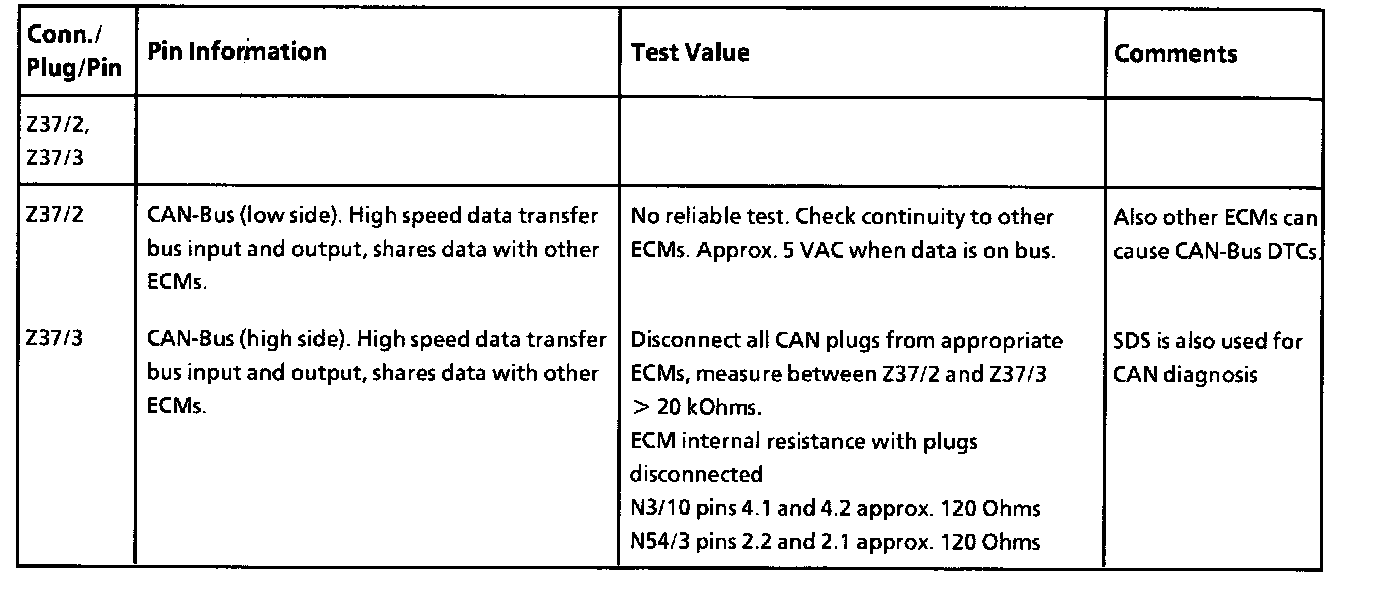

Pin Information:
