CAN Bus - Engine Compartment PE00.19-U-2200F (Up to 2/28/00)



CAN Bus - Engine Compartment (Up to Feb 28, 2000)

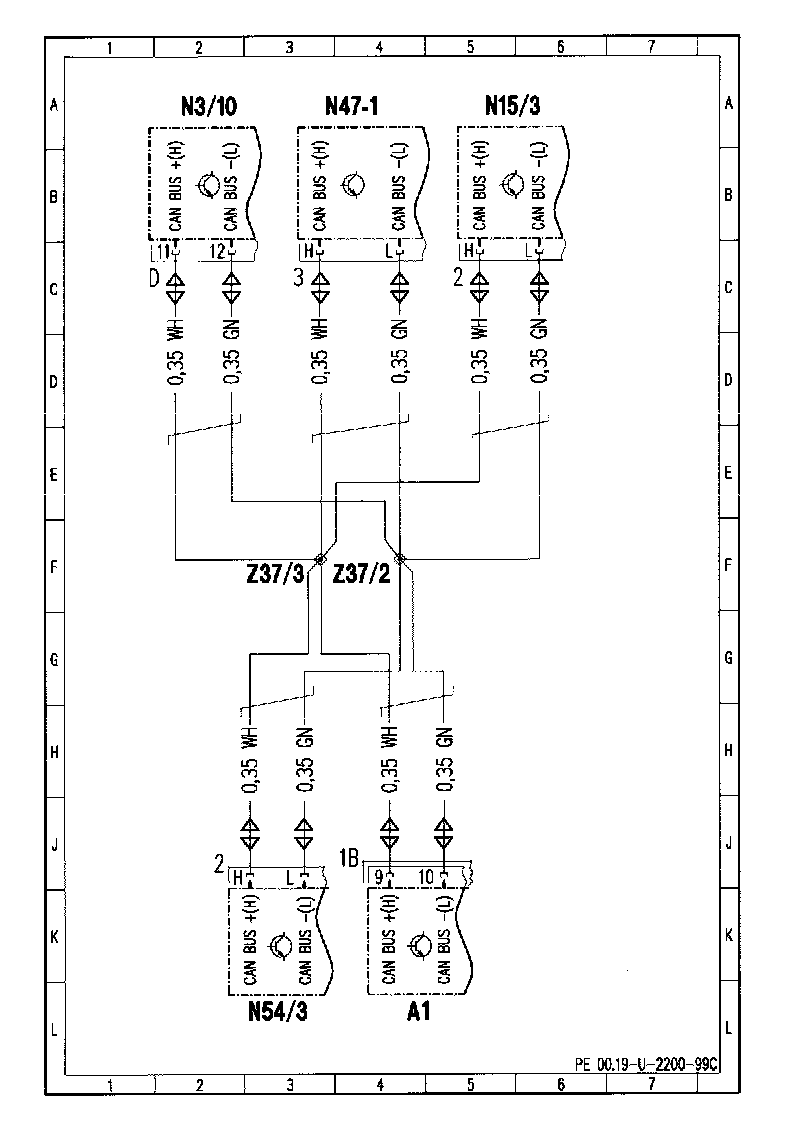

Wiring Diagram

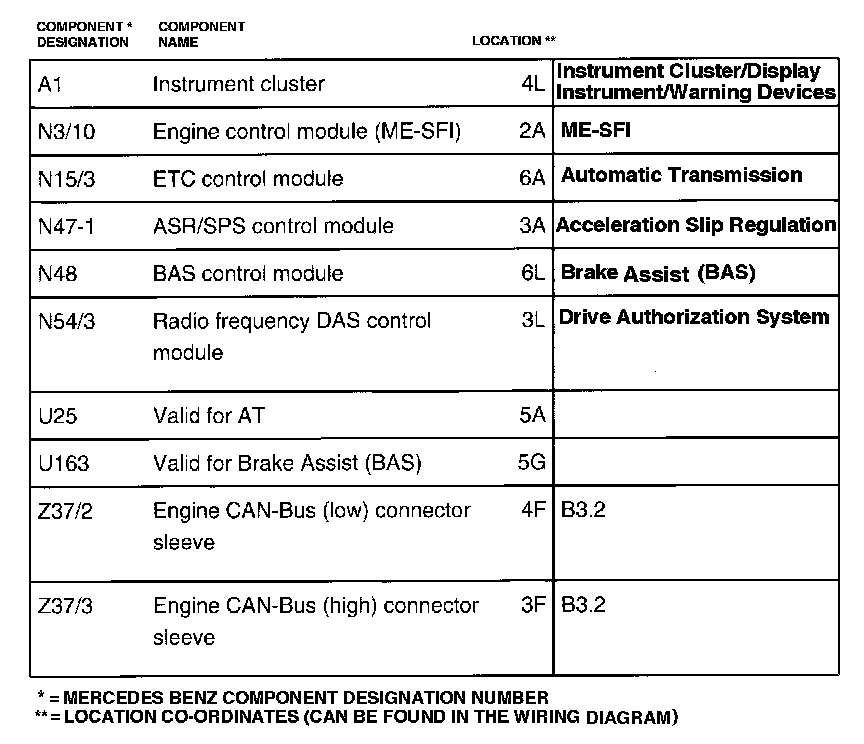

Component Grid Location

A1 - Z37/3:

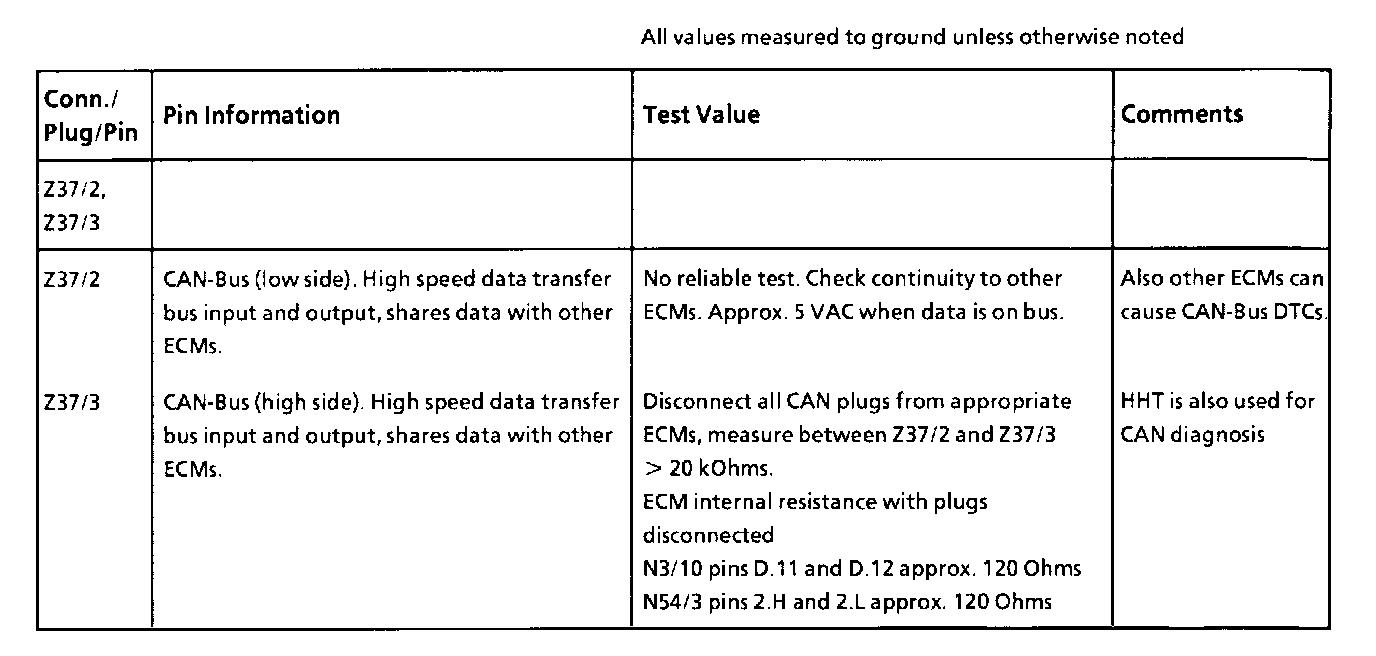

Pin-Out Testing - Component: Z37/2, Z37/3

Connector Z - Pin 37/2 through Z - Pin 37/3:

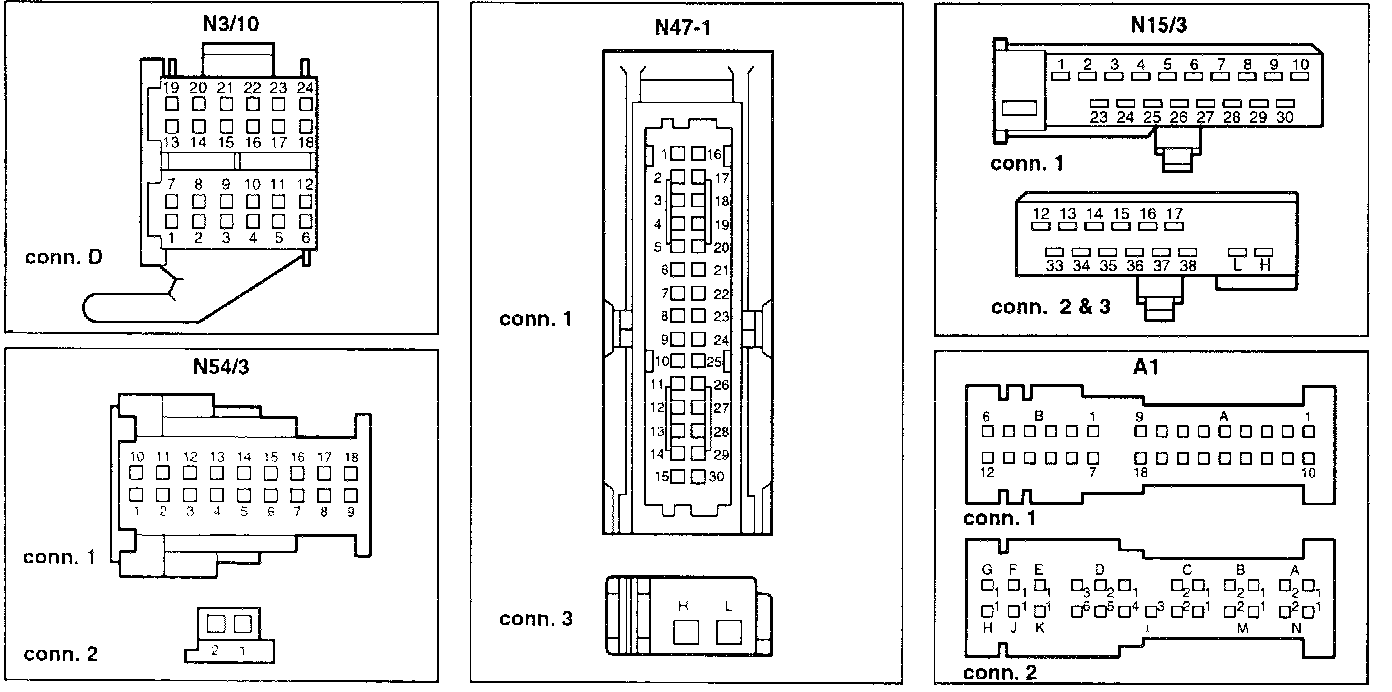

Connector Views:
