Mercedes Benz
>>
2000
>>
SLK 230 (170.447) L4-2.3L SC (111.973)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Datalink Connector/Diagnostic Socket PE54.22-U-2000RA (As of 3/1/00)
Datalink Connector/Diagnostic Socket PE54.22-U-2000RA (As of 3/1/00)
Data Link Connector From Mar 1, 2000

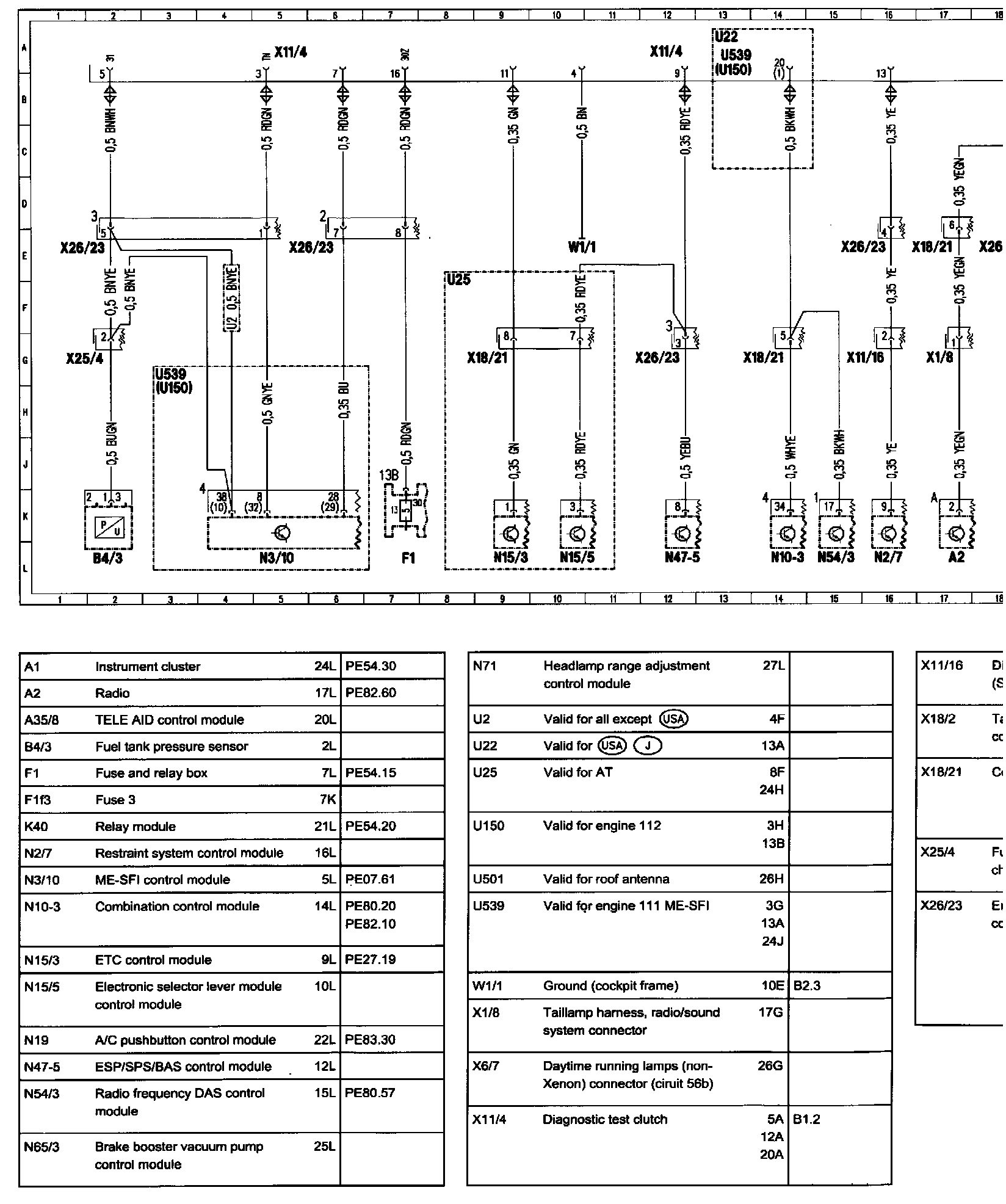

d�:Wiring Diagram:

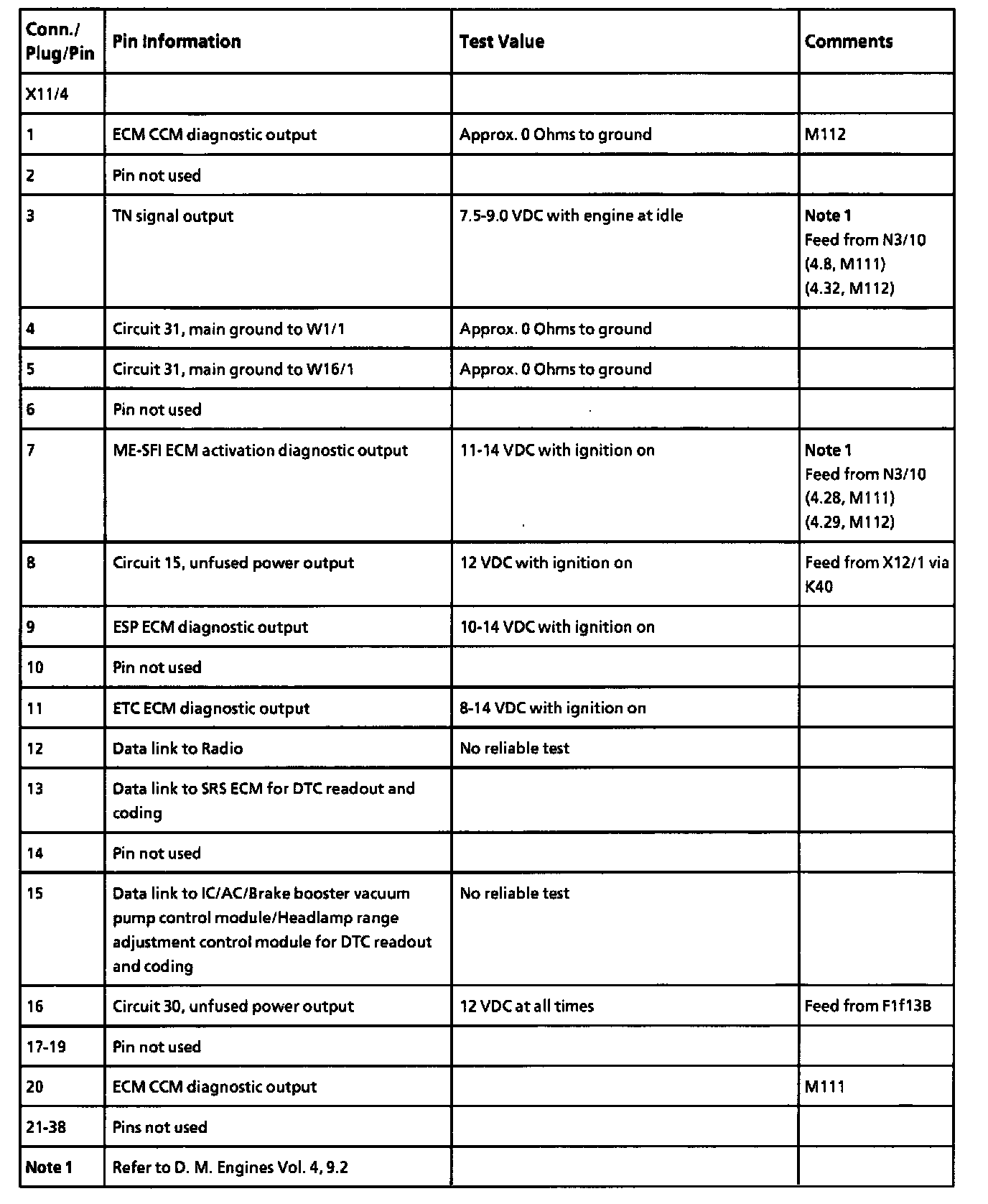

Connector Assignment:
Pin Information:
