Manual Transmission (MT) PE26.19-U-2000RA (As of 3/1/00)
Manual Transmission (MT) PE26.19-U-2000RA (As of 3/1/00)
Manual Transmission (716.6) From Mar 1, 2000

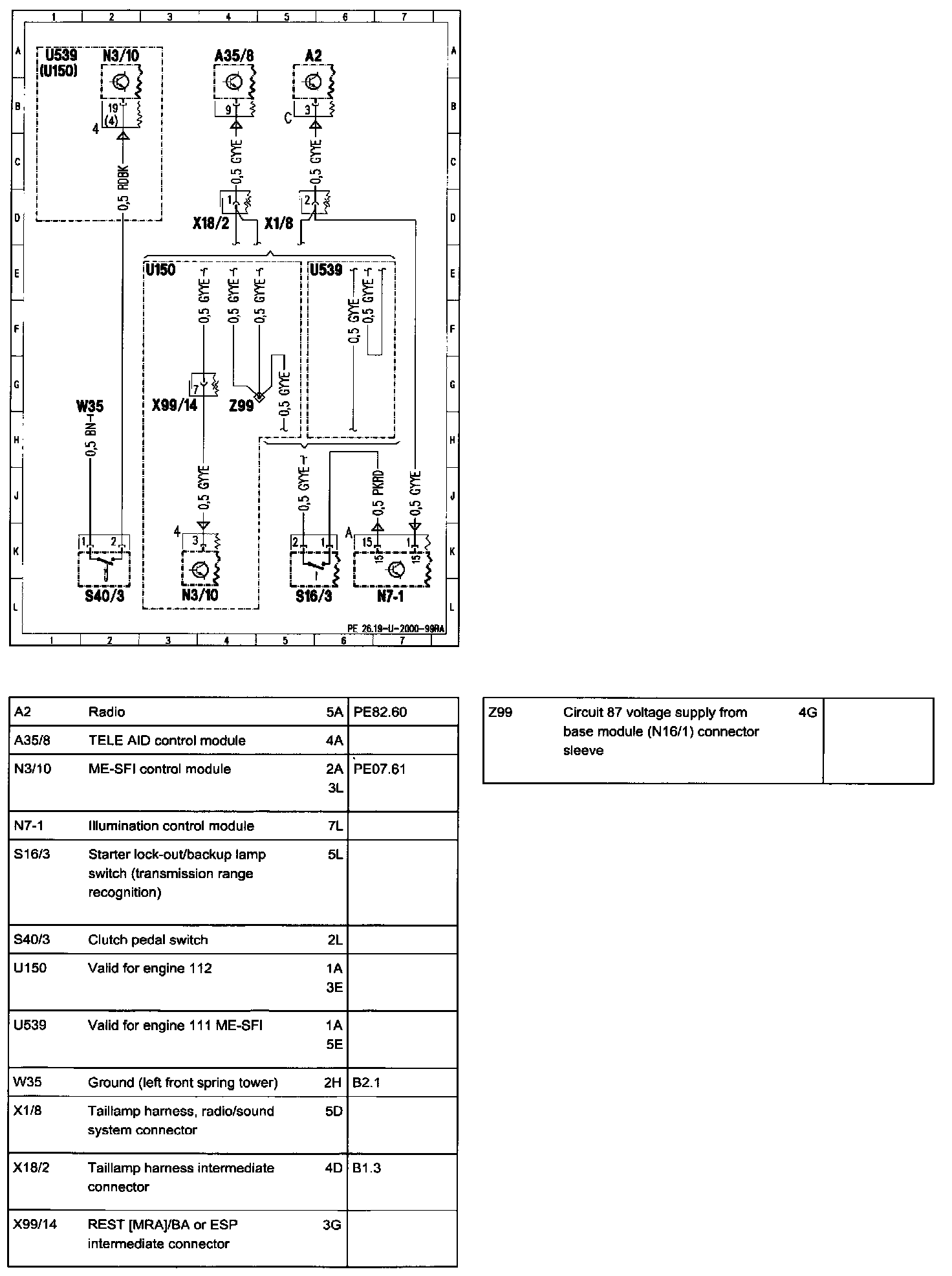

Wiring Diagram:

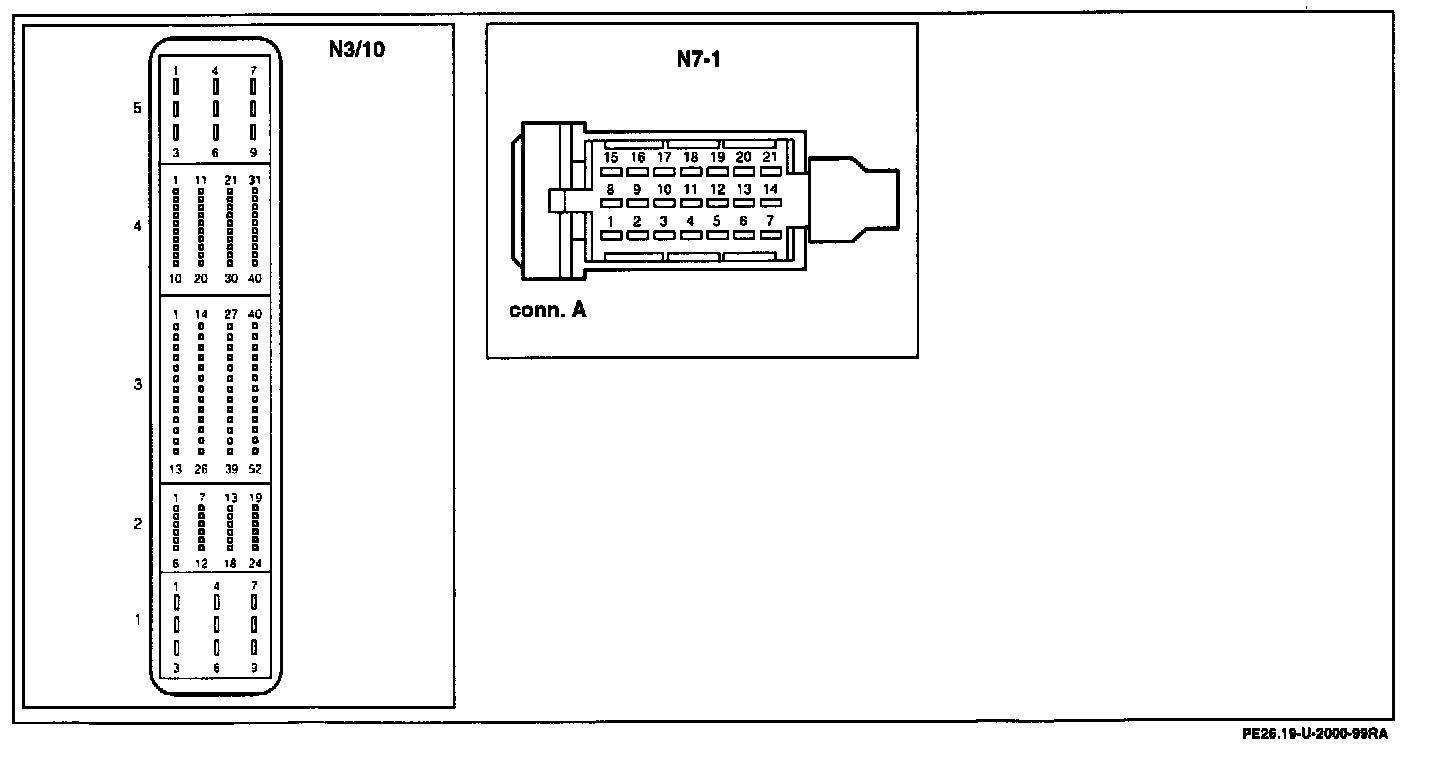

Connector Assignment:

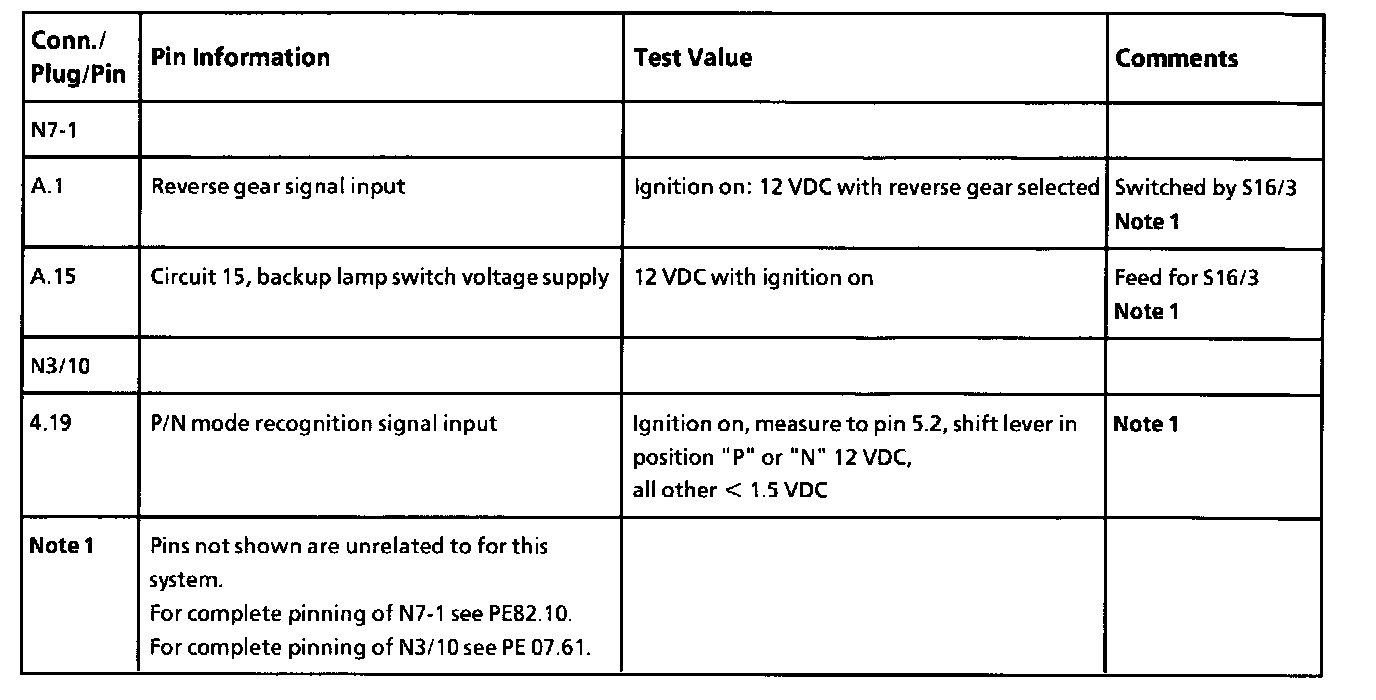

Pin Information:
