Manual Transmission (717.4) Up to Feb 28, 2000

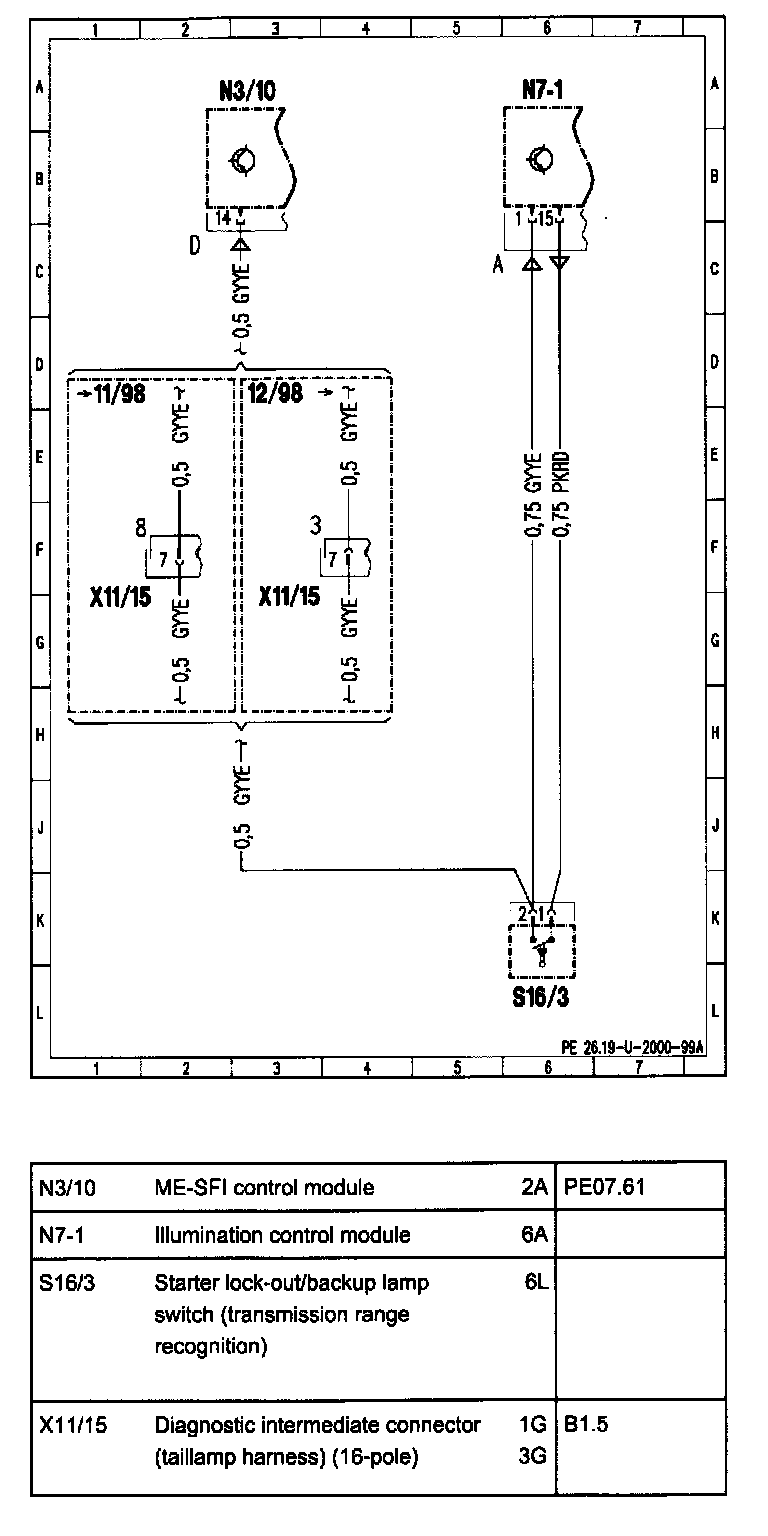

Wiring Diagram:

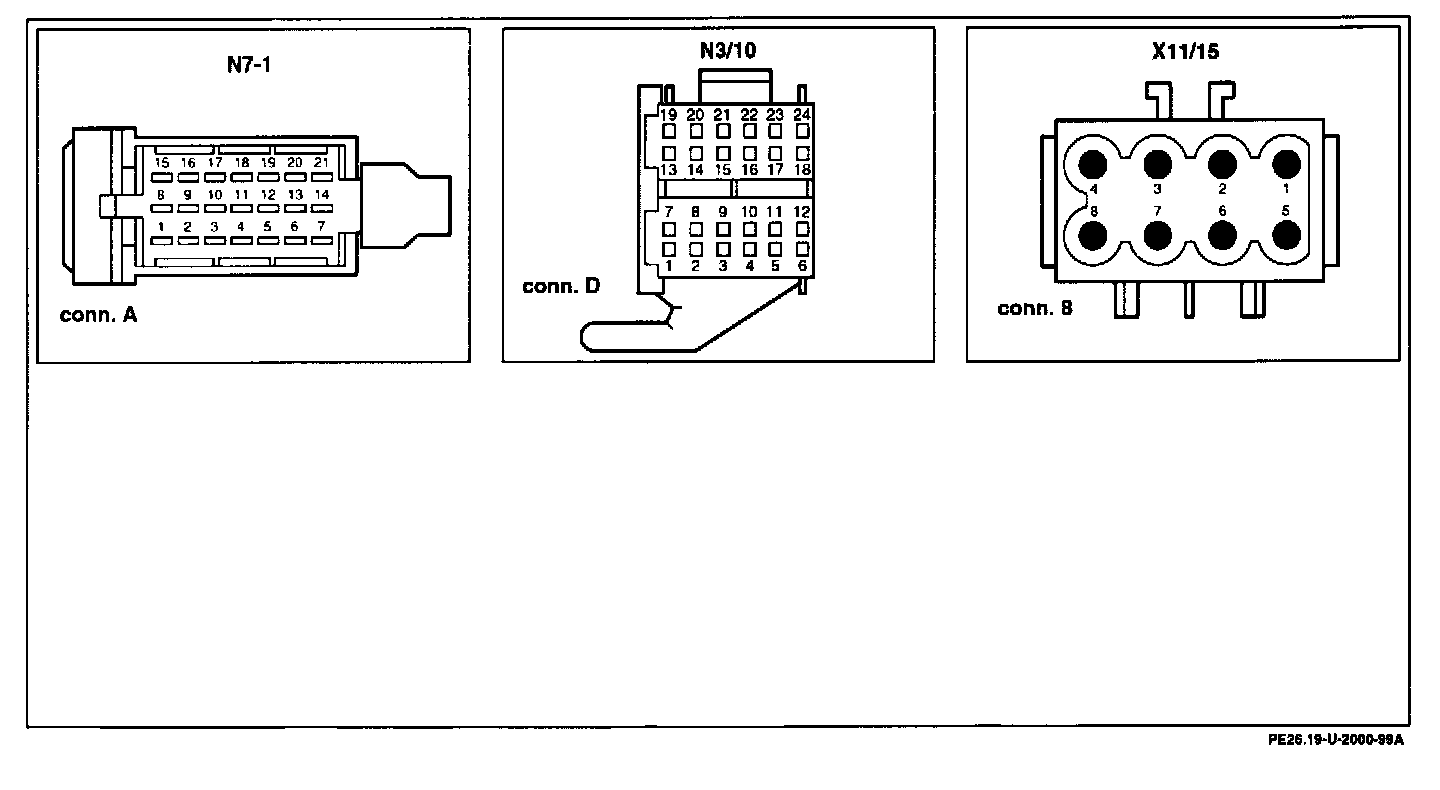

Connector Assignment:

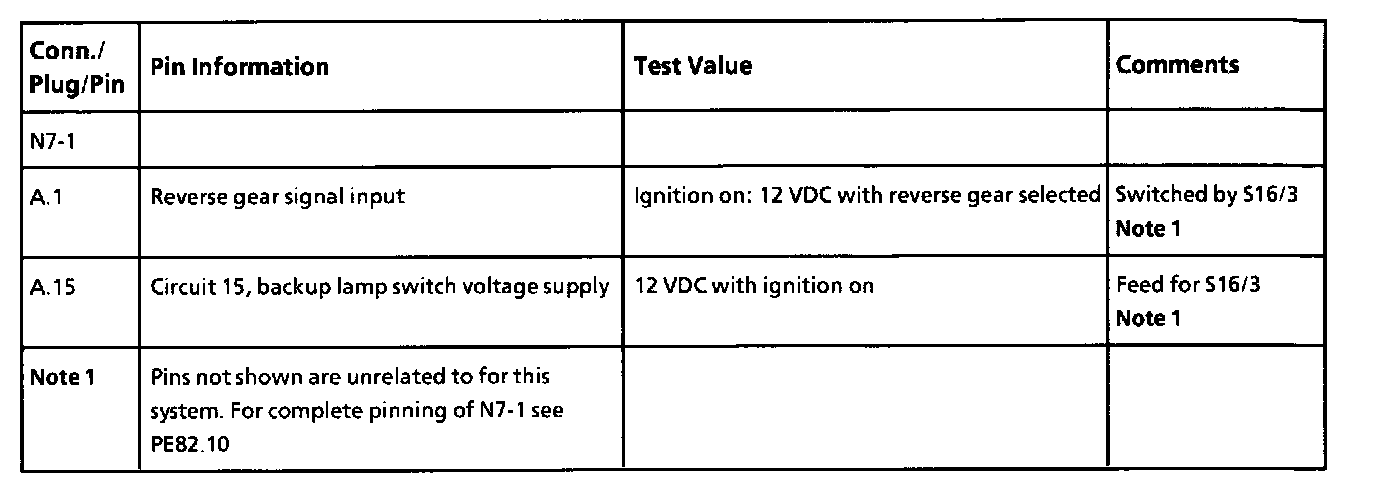

Pin Information:
