Interior Lights PE82.20-U-2000B
Interior Lights PE82.20-U-2000B
Interior Lights

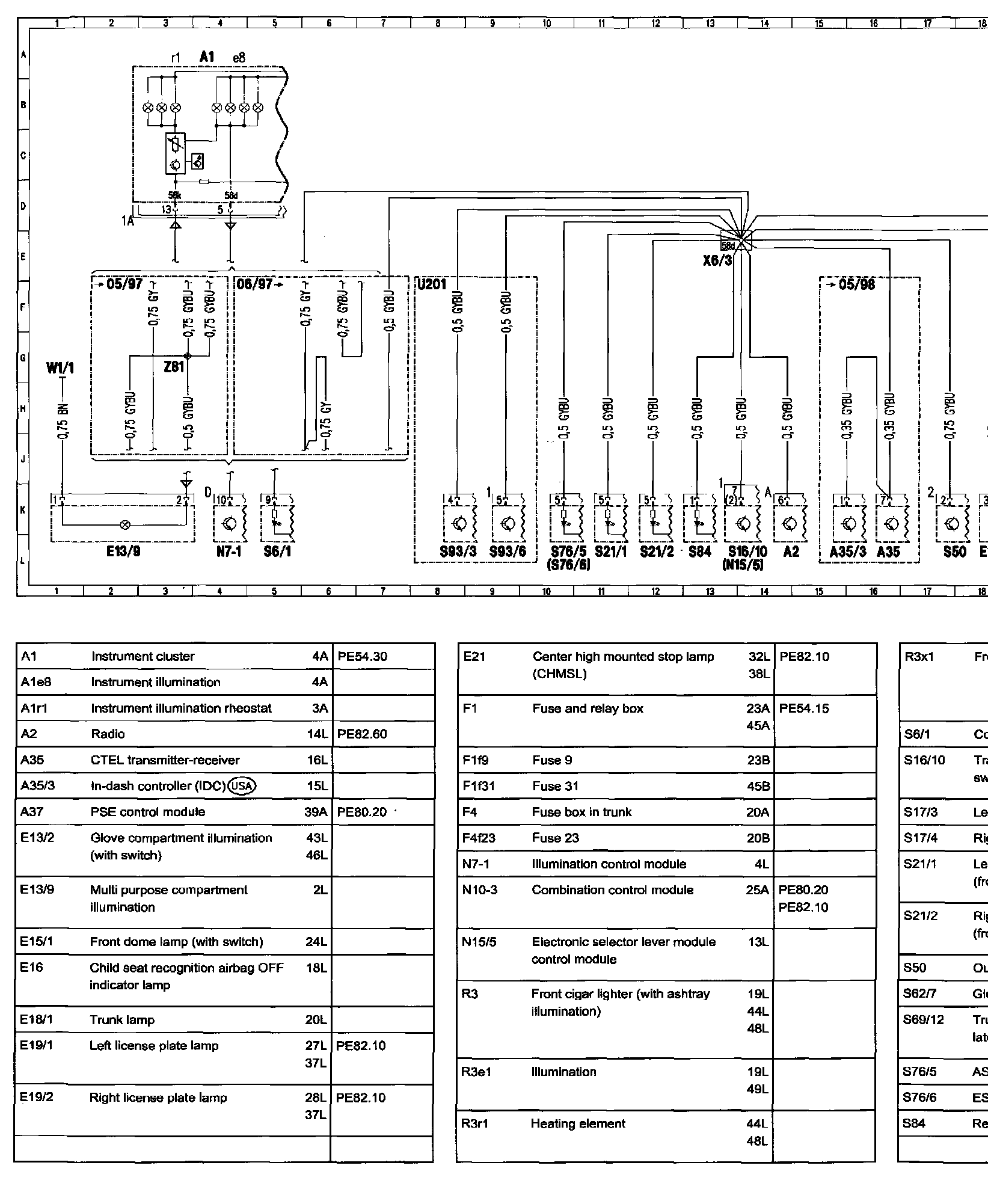

'�pZ;-qZ�`qZWiring Diagram:
Connector Assignment:

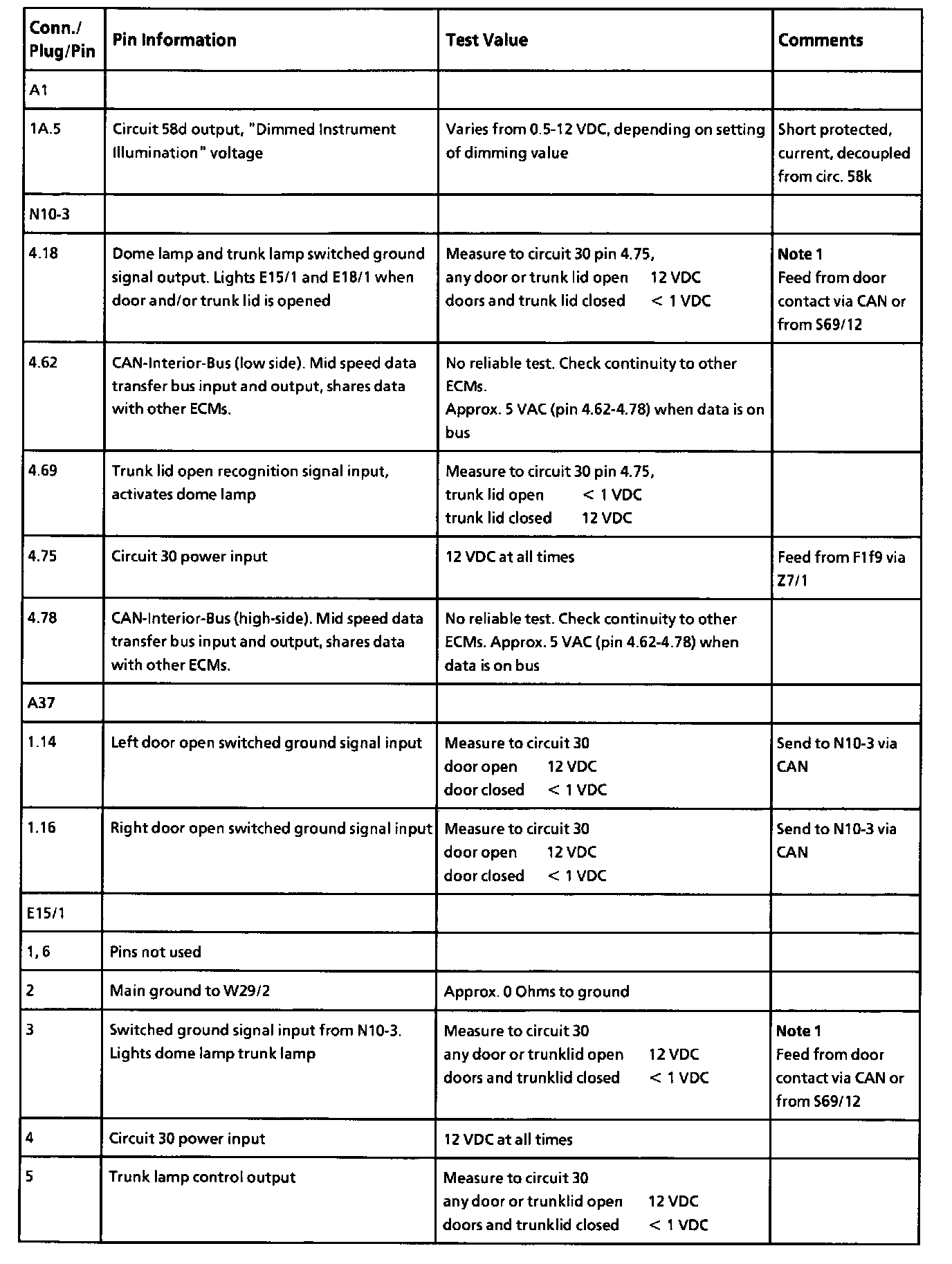

Pin Information, Part 1:

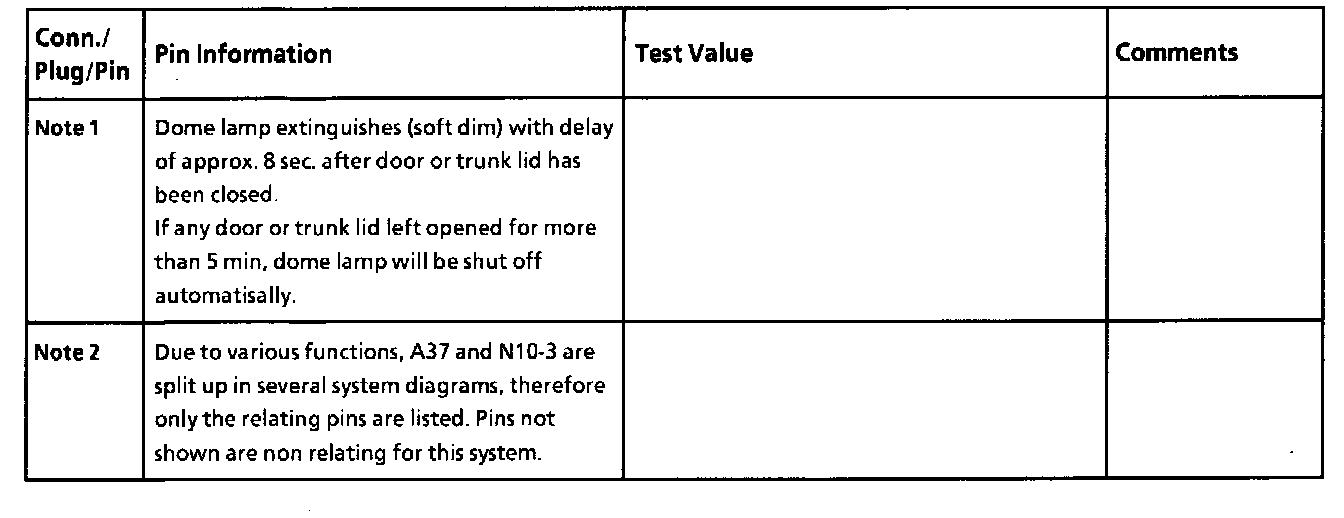

Pin Information, Part 2:
