Exterior Lights With Xenon PE82.10-U-2000RA (As of Mar 1, 2000)



Exterior Lights From 3/1/00 With CODE (612b) Xenon Headlamp Unit

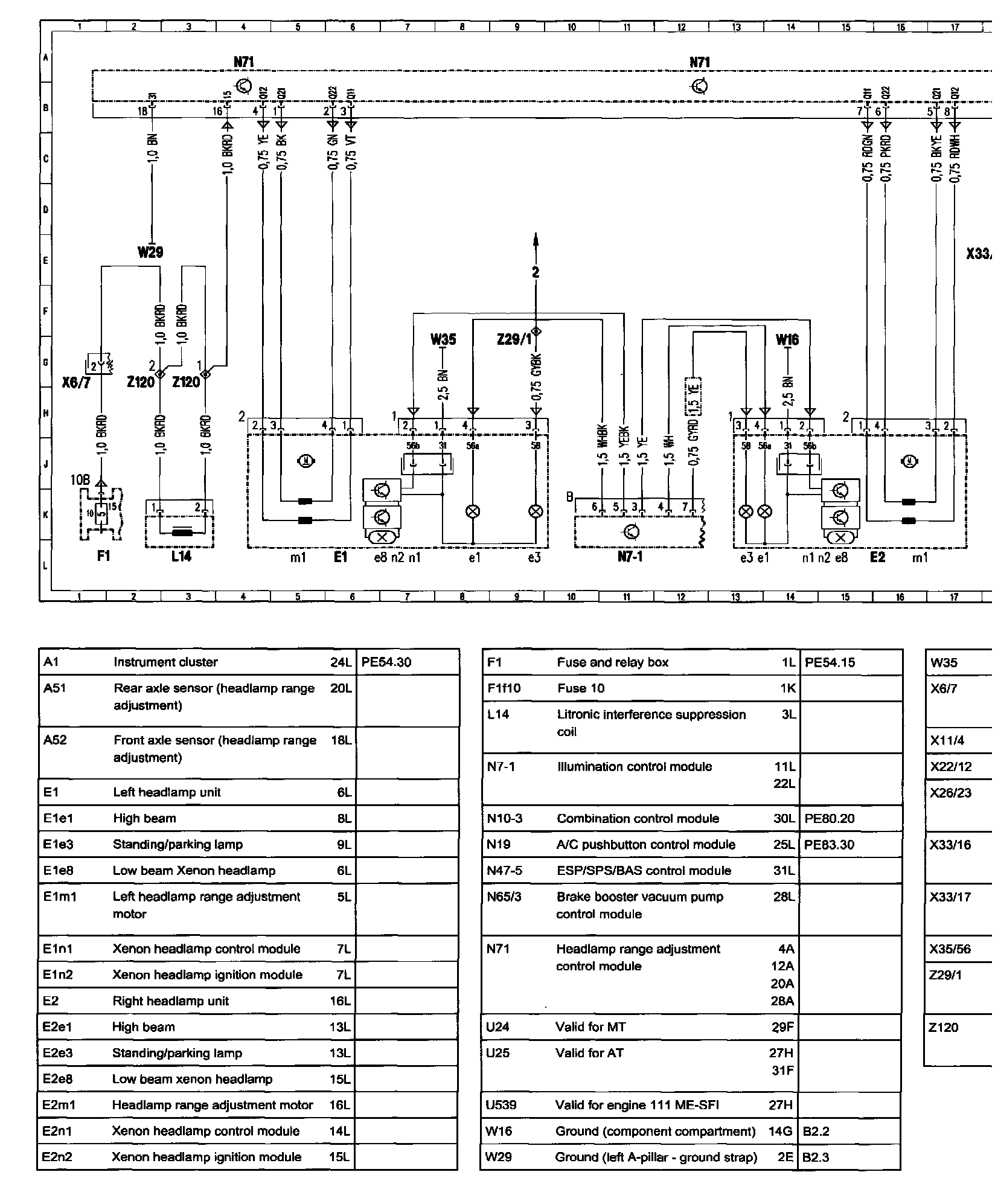

��oZ߿oZWiring Diagram:

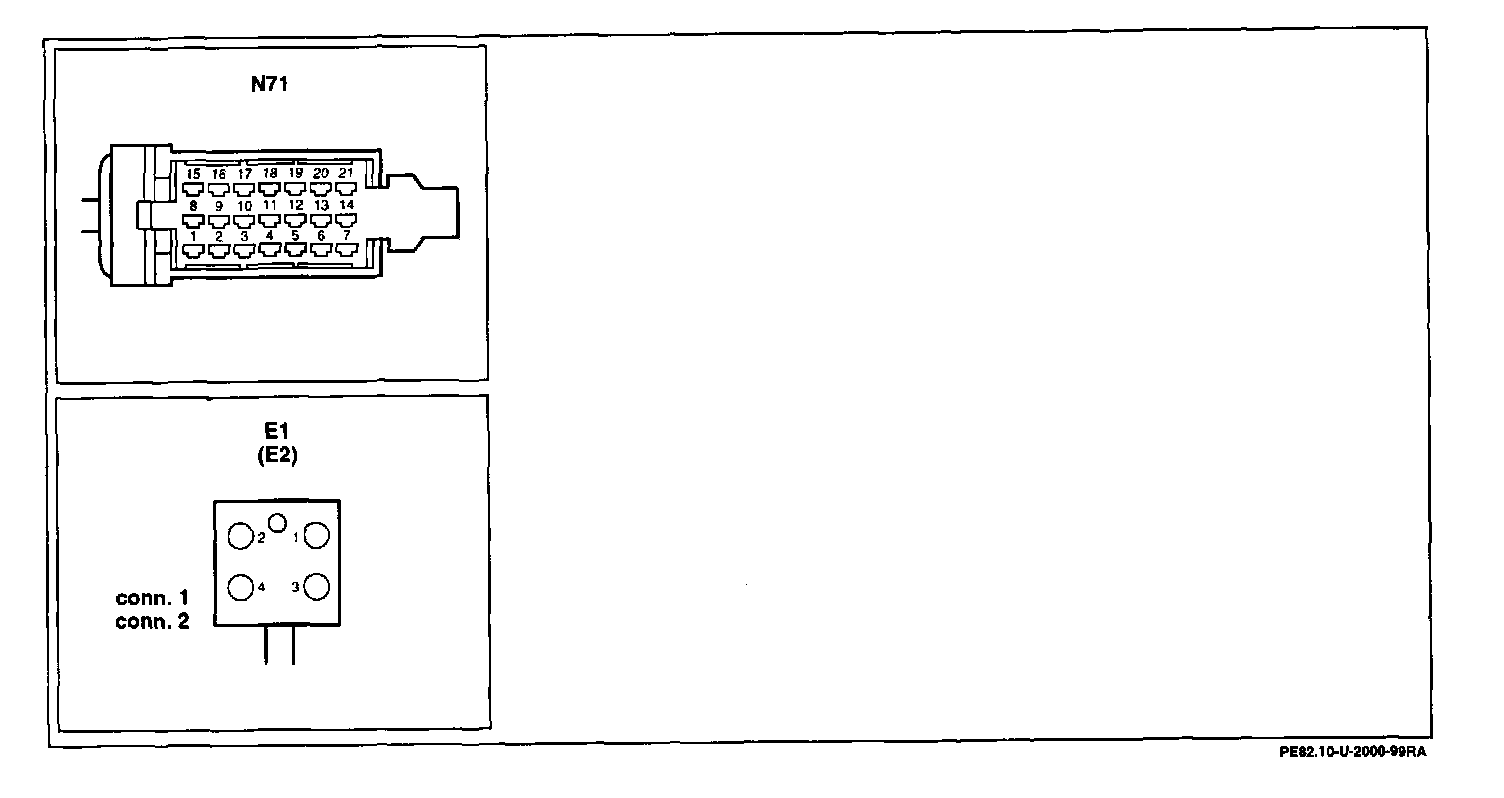

Connector Assignment:

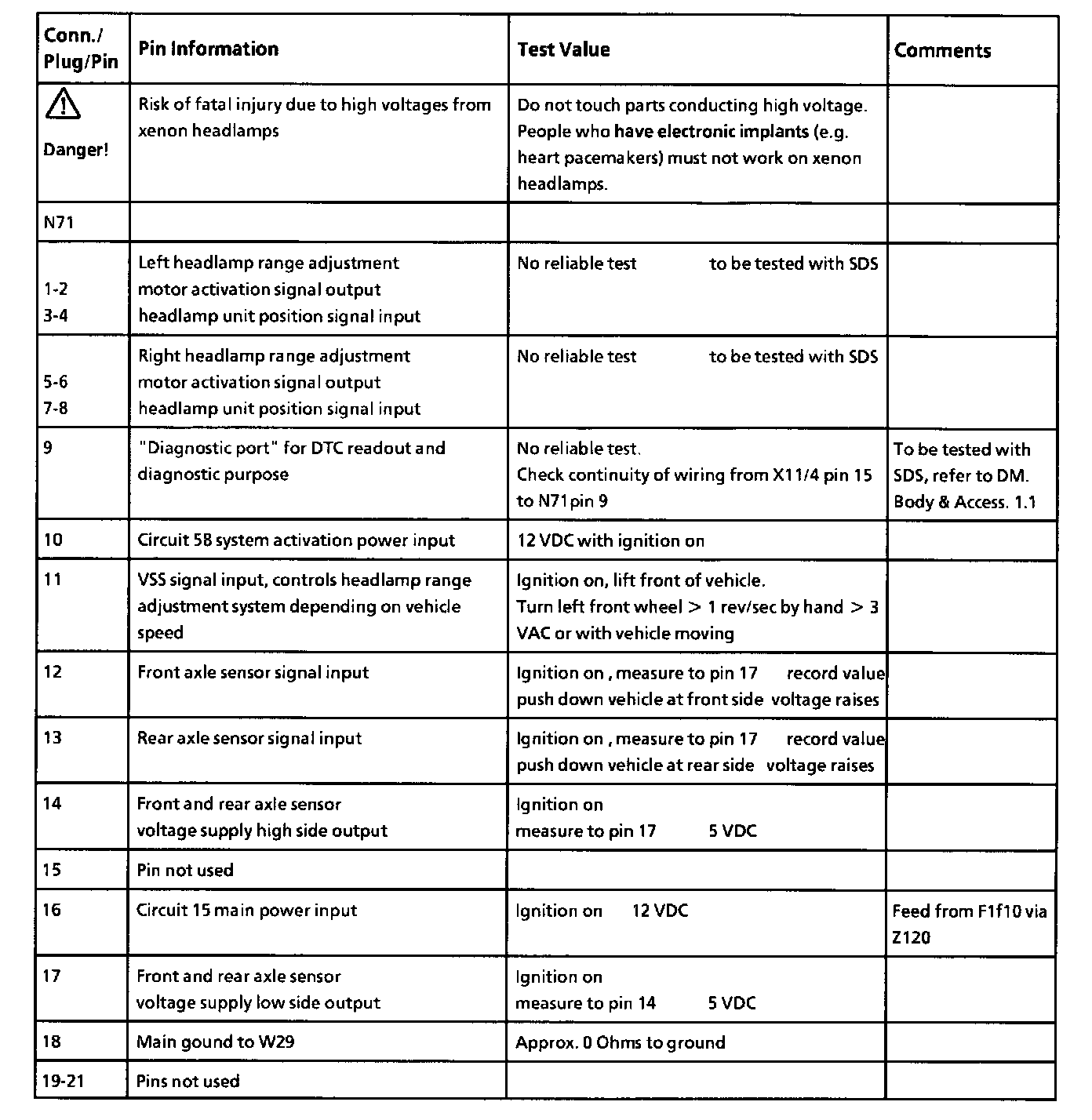

Pin Information:
