Exterior Lights W/O Xenon PE82.10-U-2000RC (As of Mar 1, 2000)
Exterior Lights From 3/1/00 Without CODE (612b) Xenon Headlamp Unit

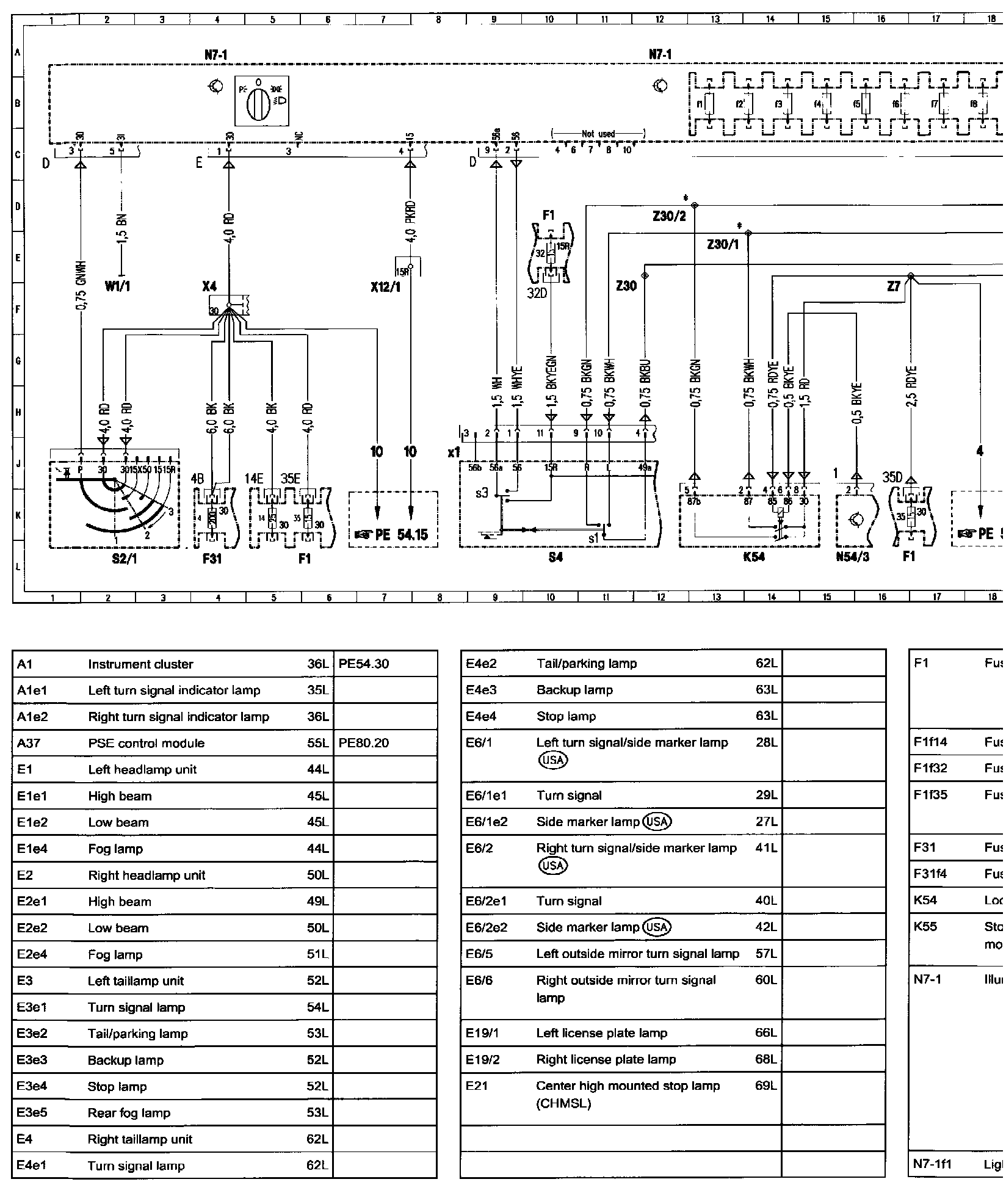

<<mZ �mZ �mZ 0nZWiring Diagram:

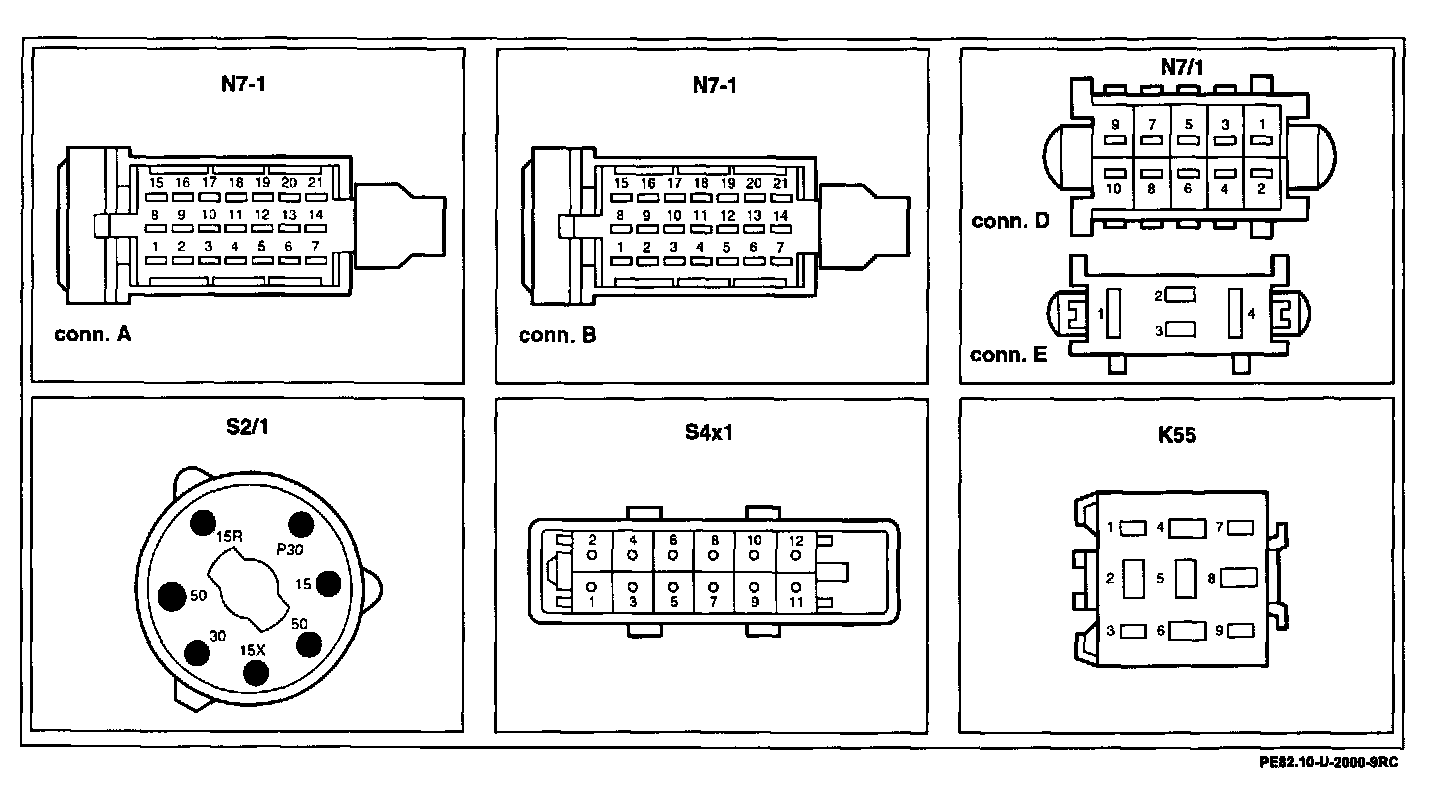

Connector Assignment:

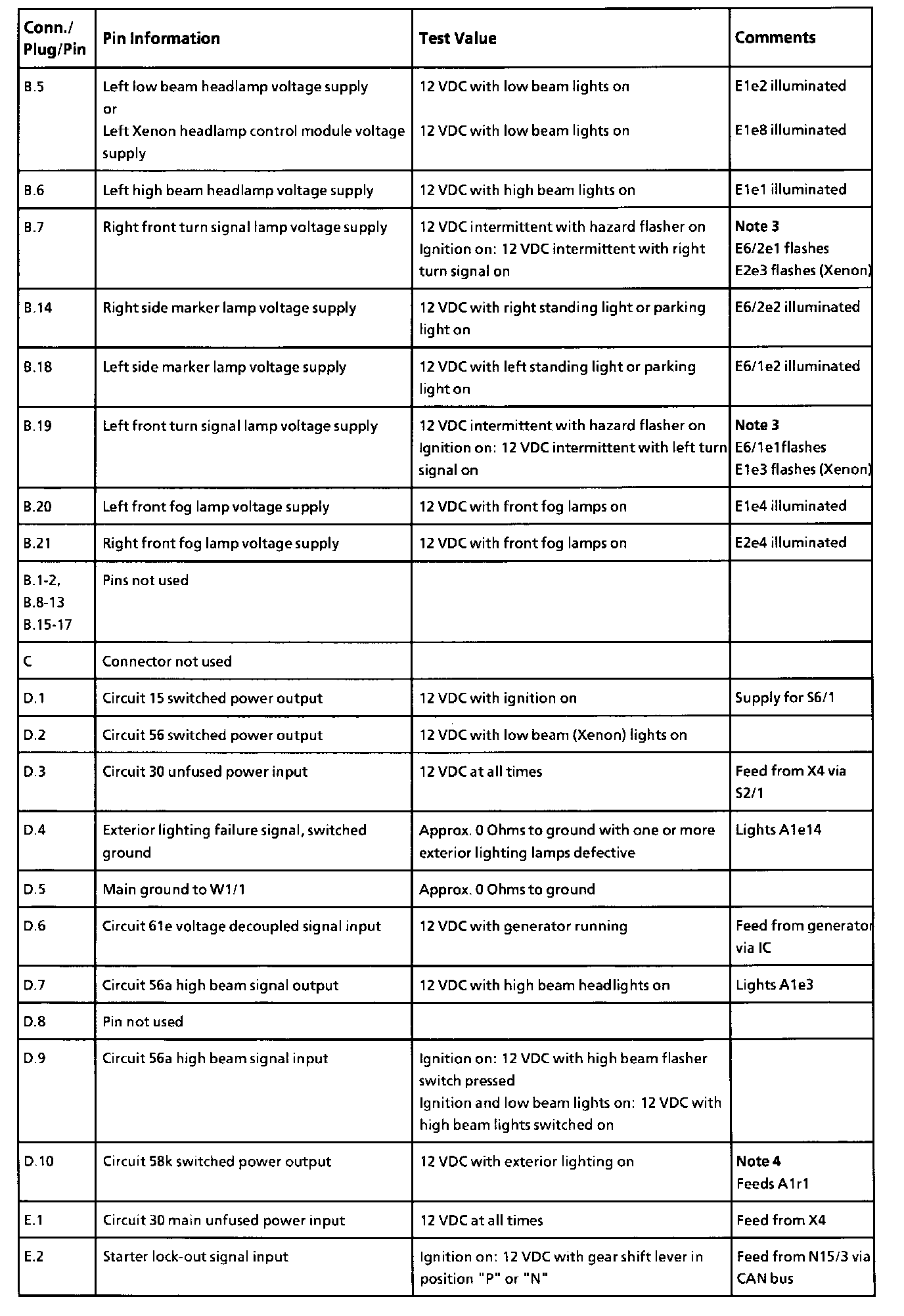

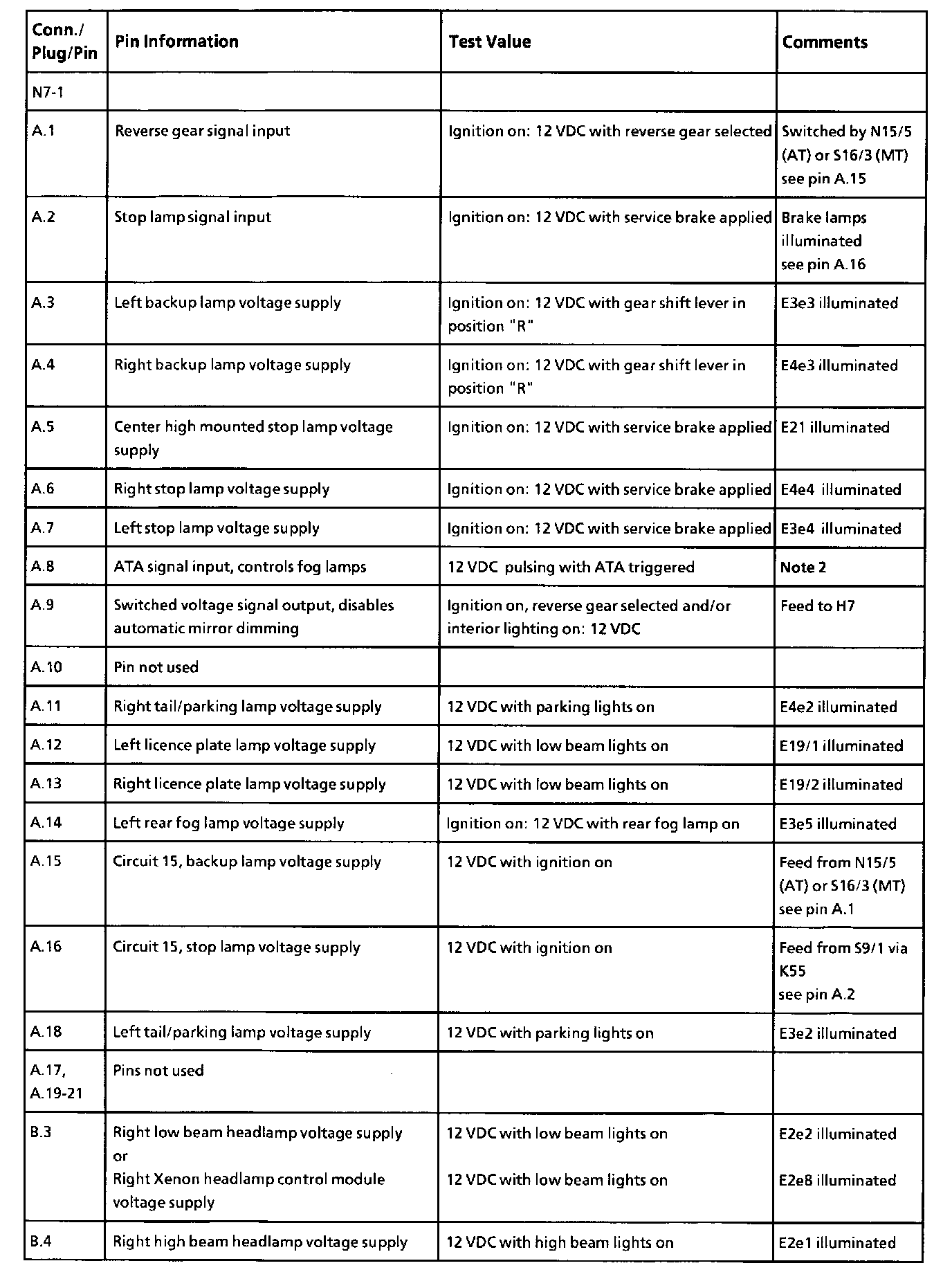

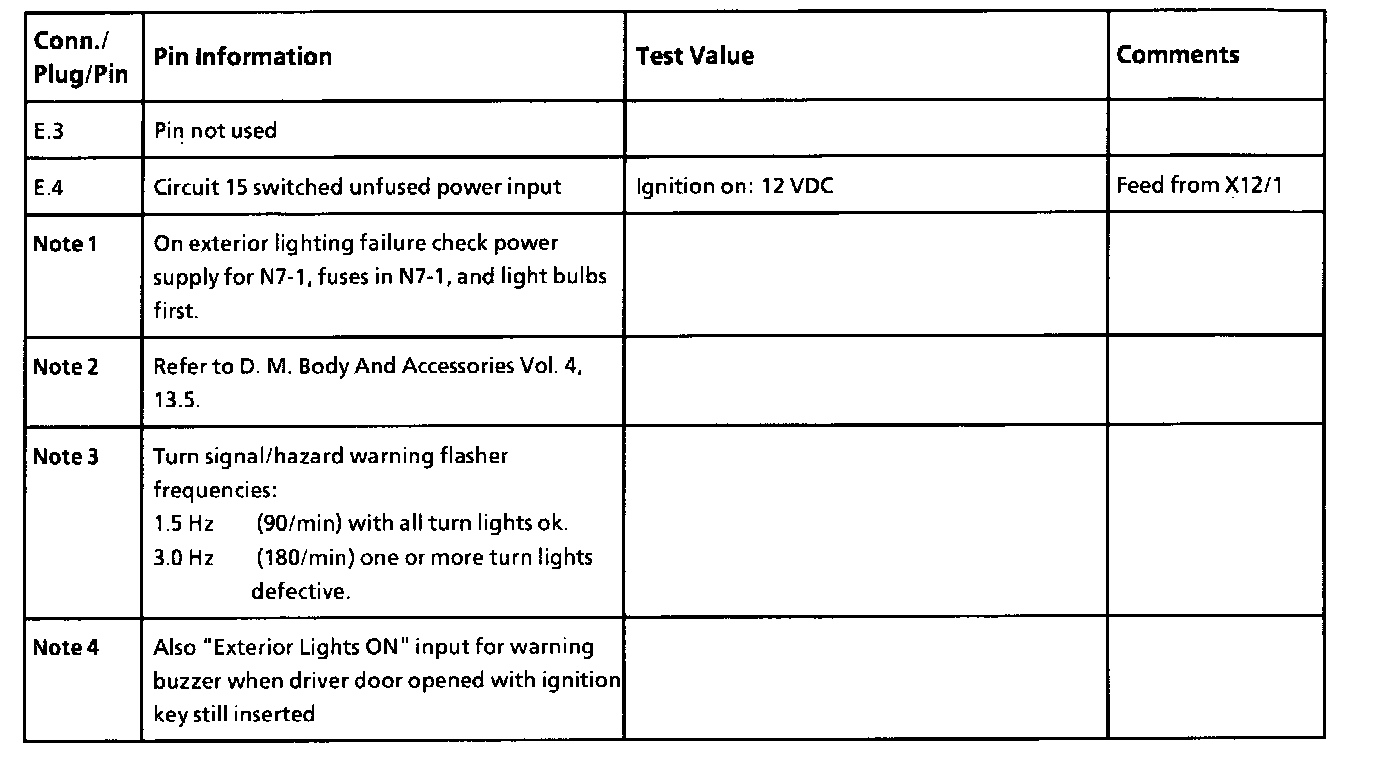

Pin Information, Part 1:
Pin Information, Part 2:
Pin Information, Part 3:
