Drive Authorization System (DAS) PE80.57-U-2000D (Up to 02/00)
Drive Authorization System (DAS) Up to 2/28/00

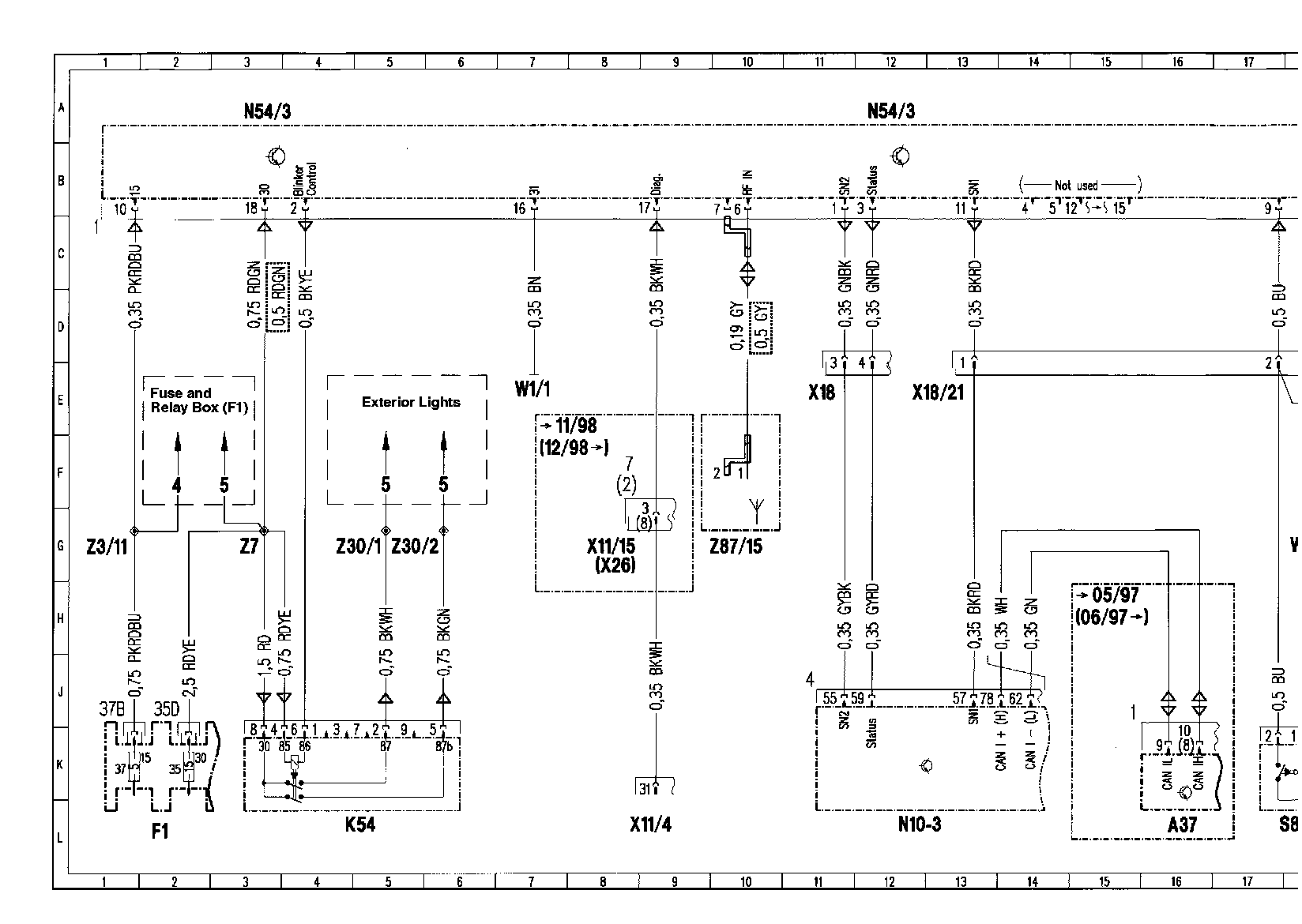

Wiring Diagram
�f(8J�(8:
Component Grid Location

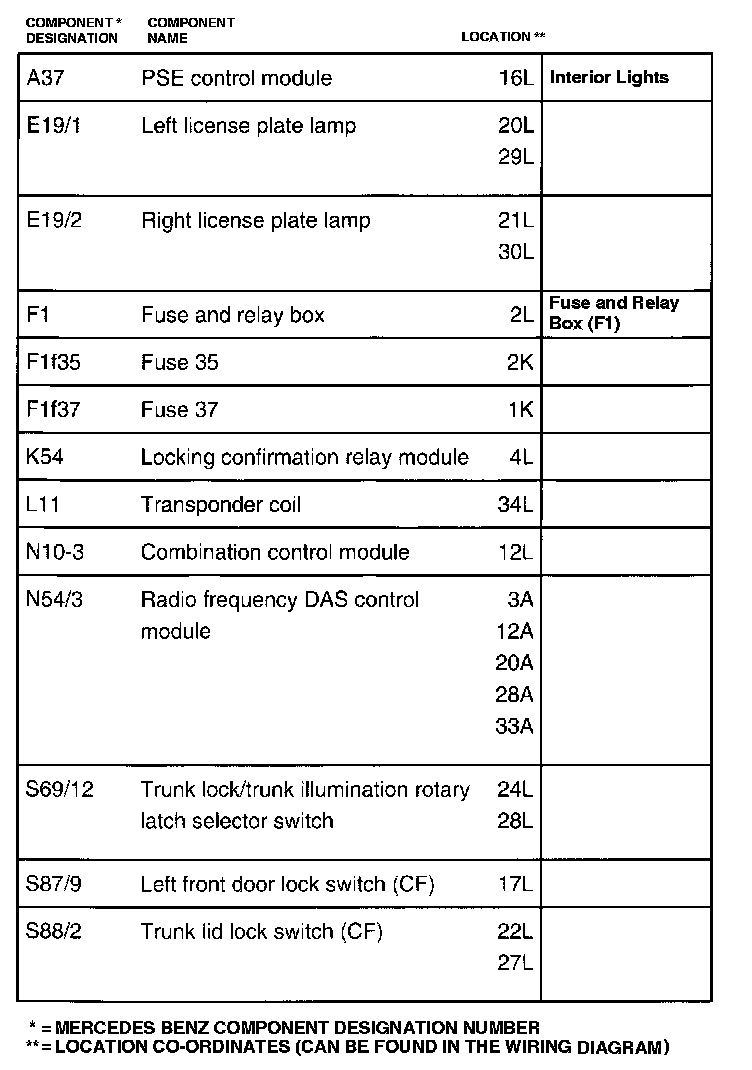

A37 - S88/2:

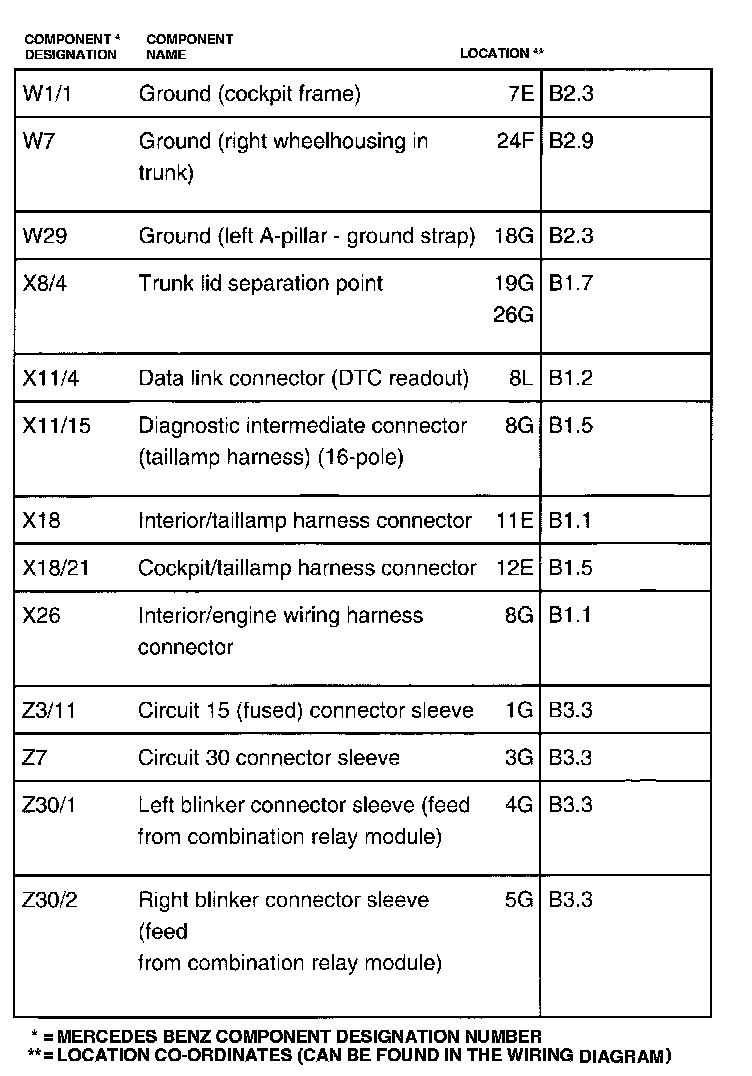

W1/1 - Z30/2:

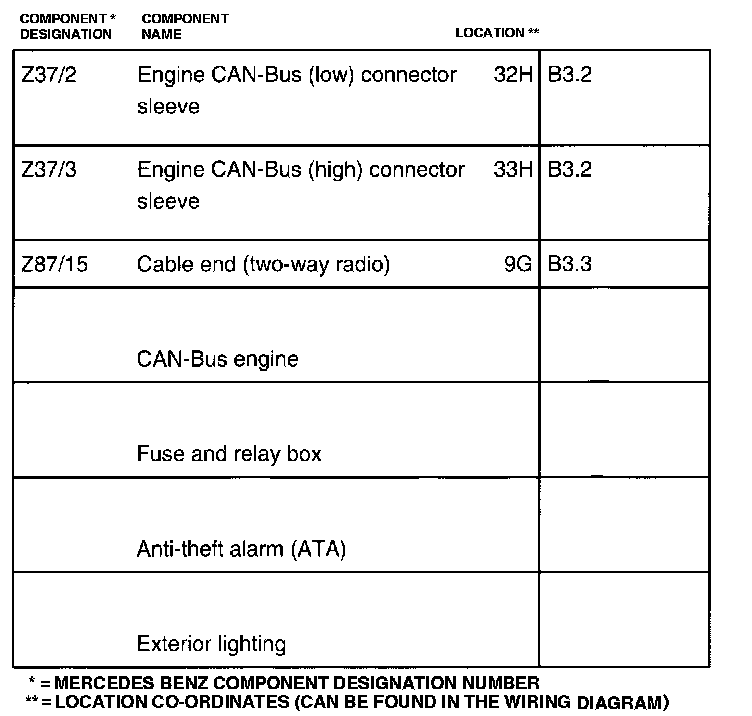

Z37/2 - Z87/15:

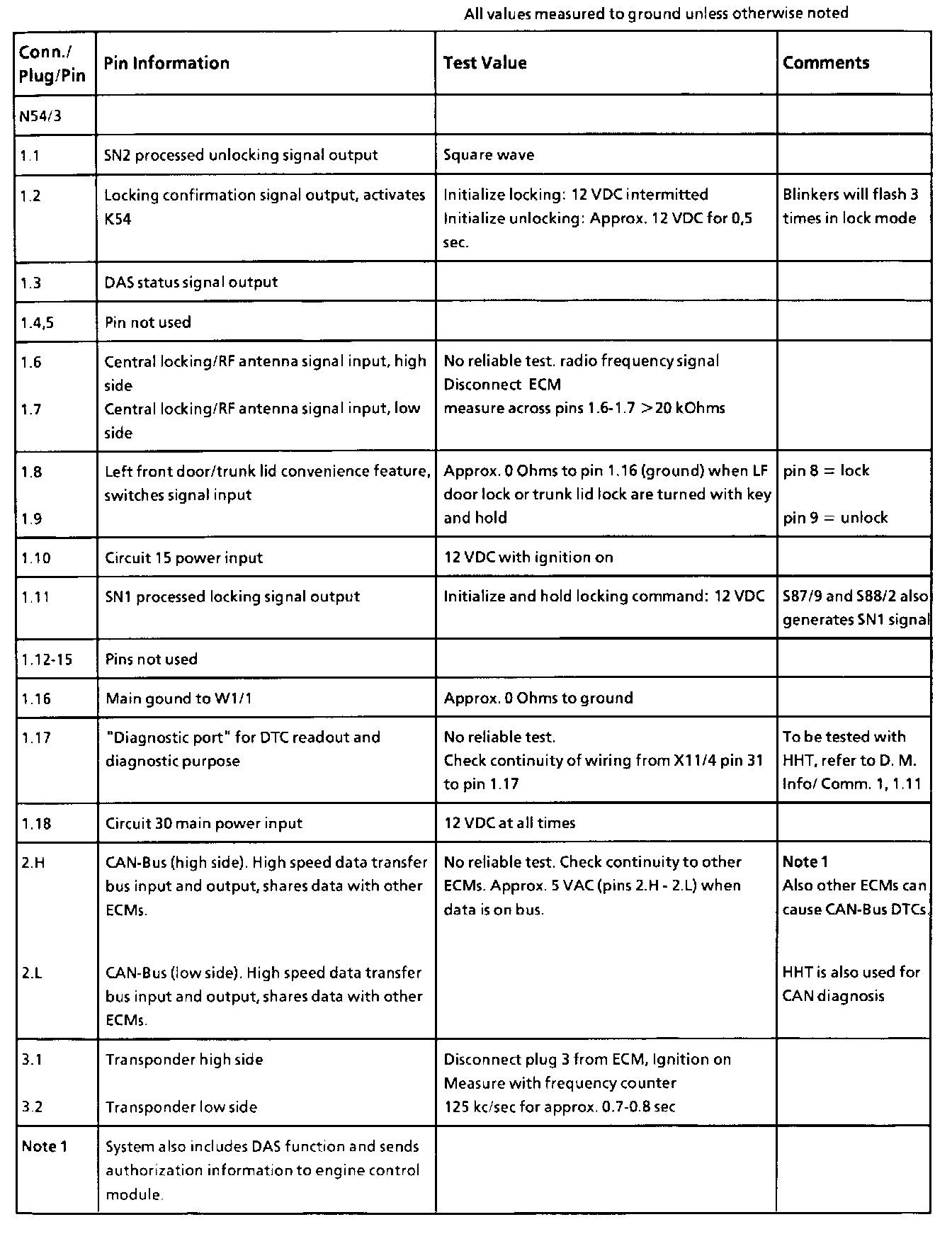

Pin-Out Testing - Component: A37
Connector 1 - Pin 1 Through 3 - Pin 2:

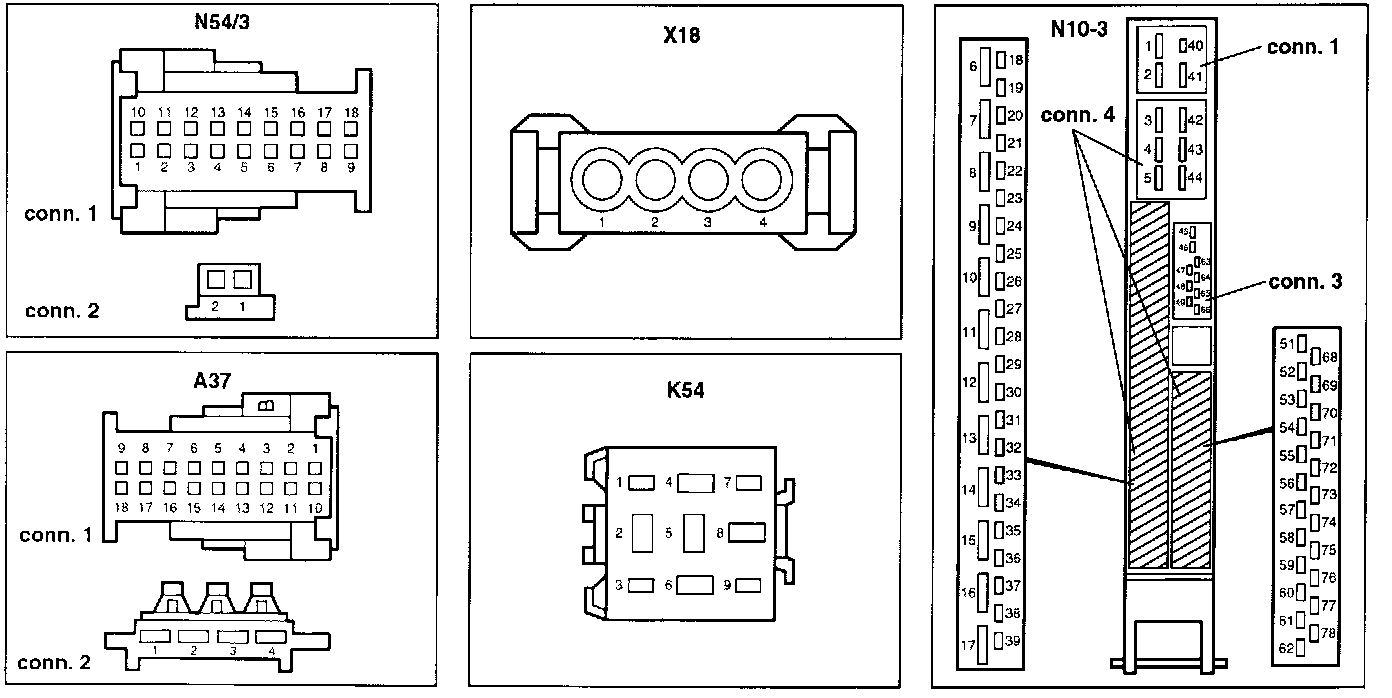

Connector Views:
