Anti-Theft Alarm System (ATA) PE80.50-U-2000T
Anti-Theft Alarm System (ATA) PE80.50-U-2000T
Anti-Theft Alarm
System (
ATA
)

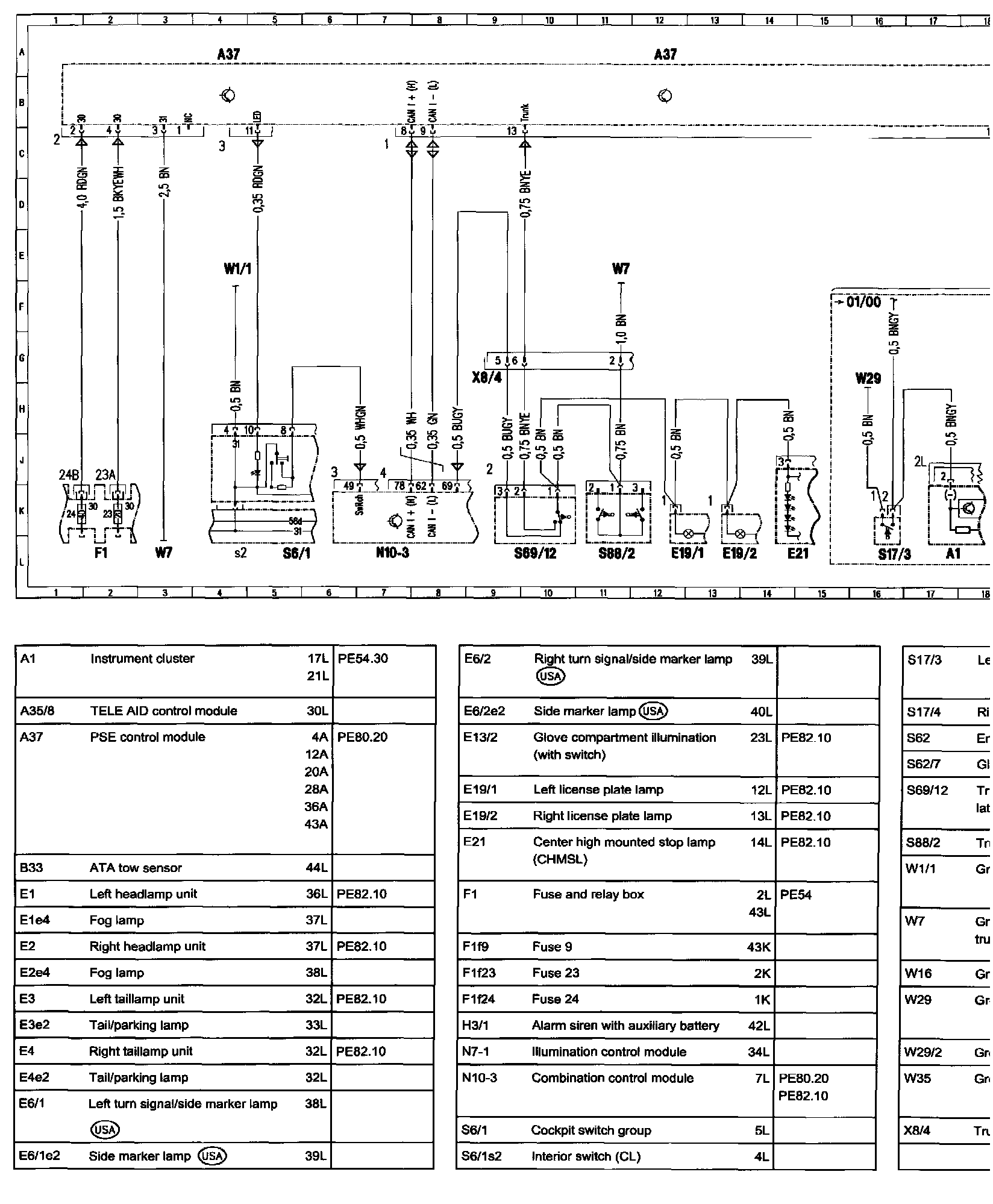

"'8�x'8Wiring Diagram:

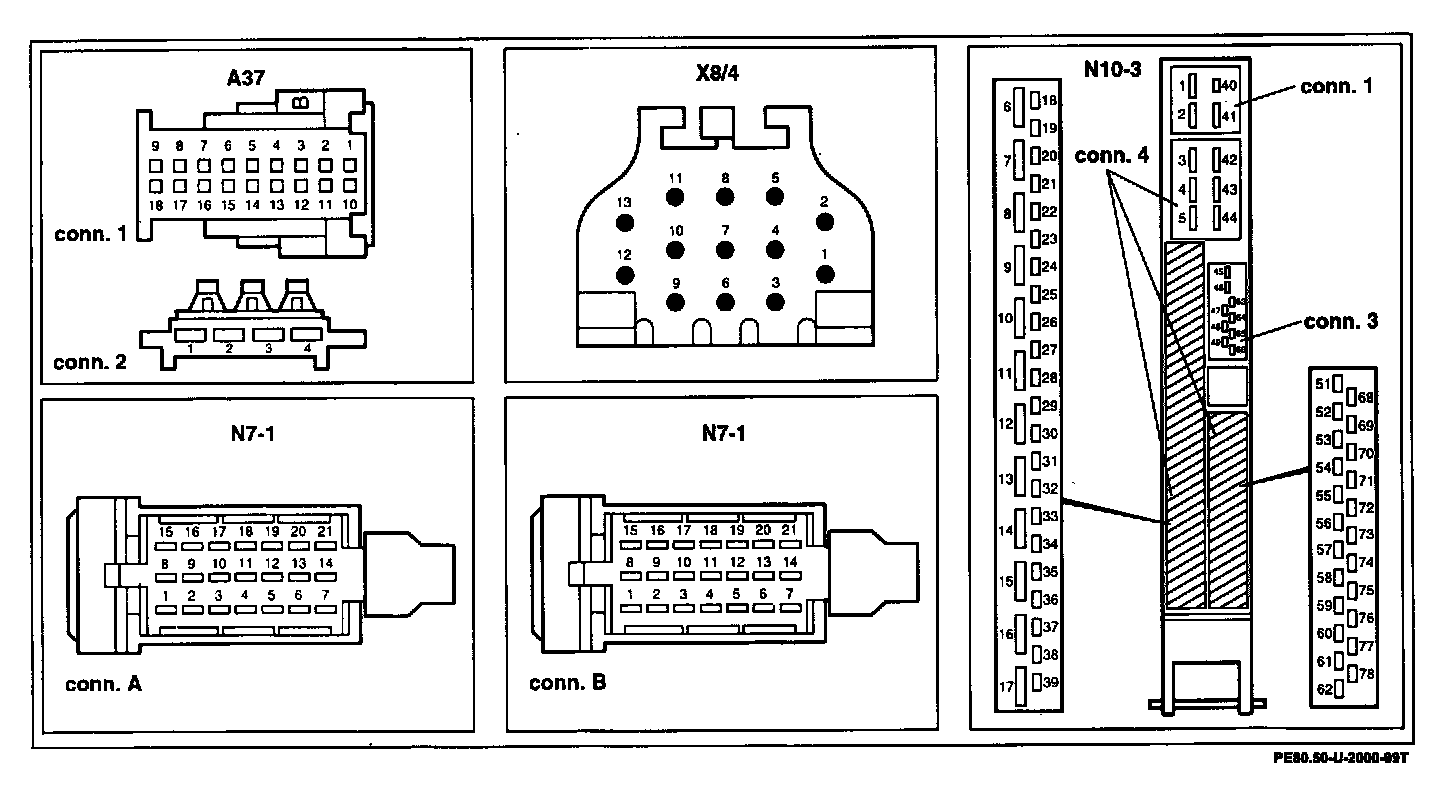

Connector Assignment:

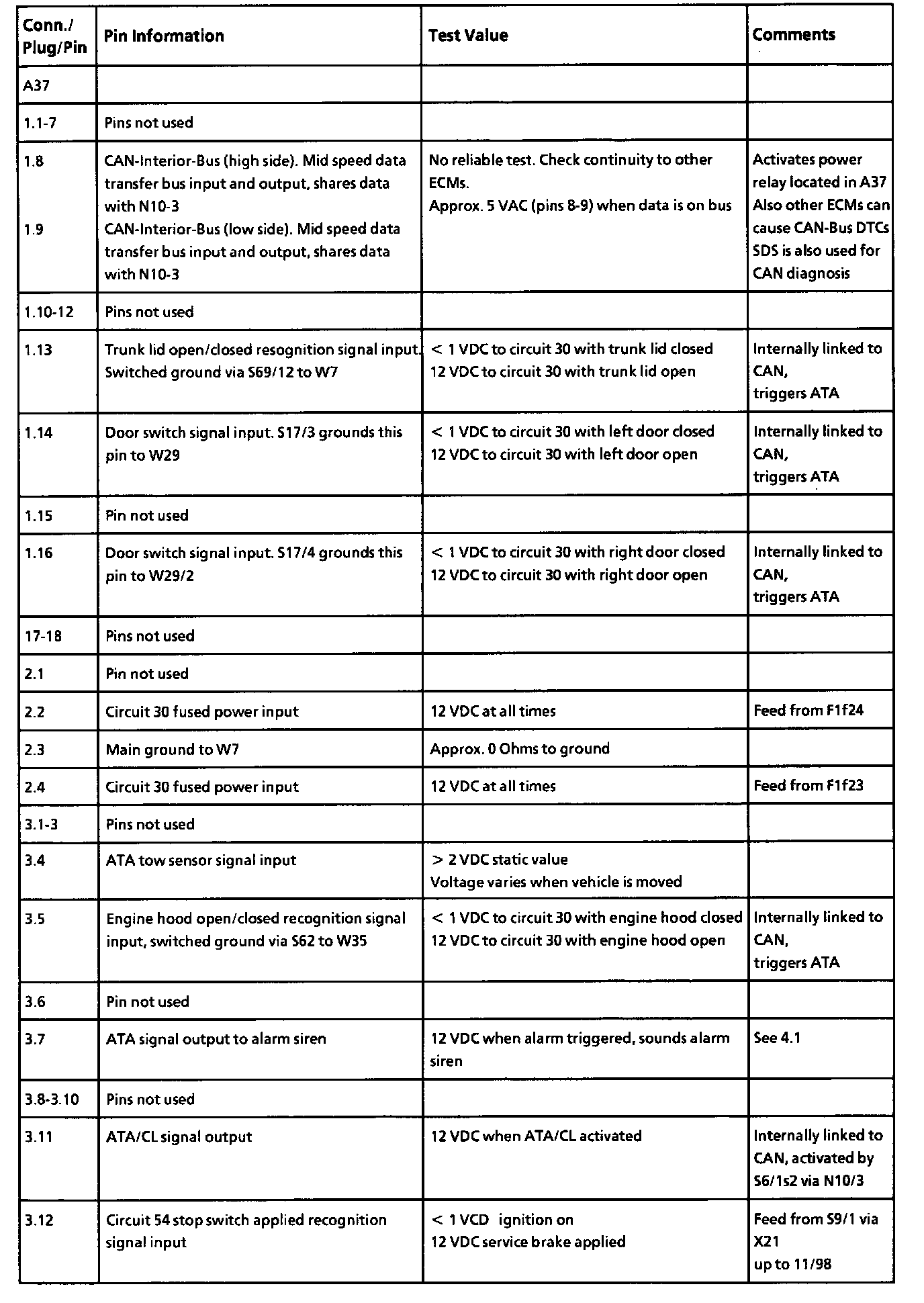

Pin Information, Part 1:

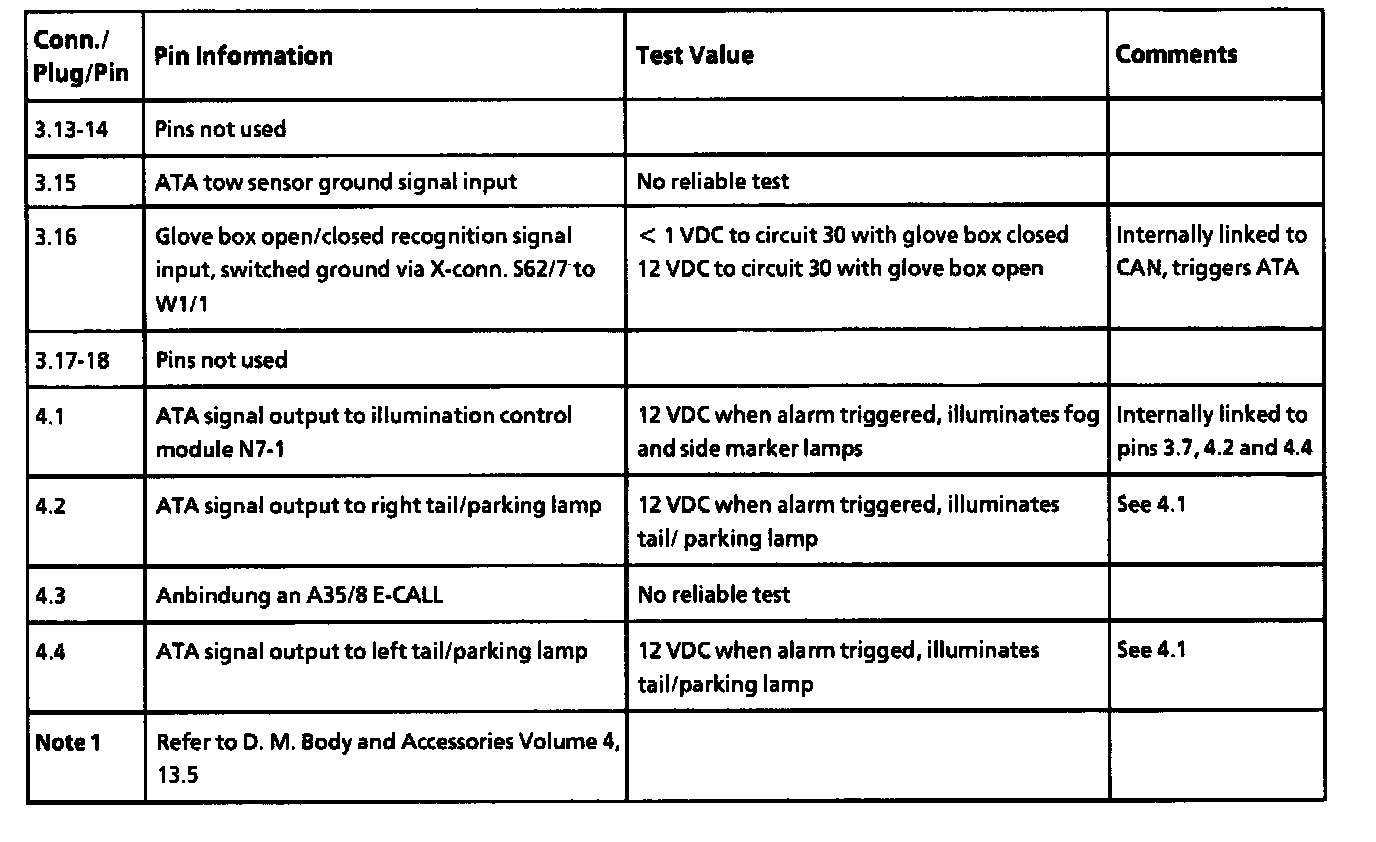

Pin Information, Part 2:
