Electronic Stability Program (ESP) PE42.45-U-2000RA
Electronic Stability Program (ESP) PE42.45-U-2000RA
Electronic Stability Program (ESP)

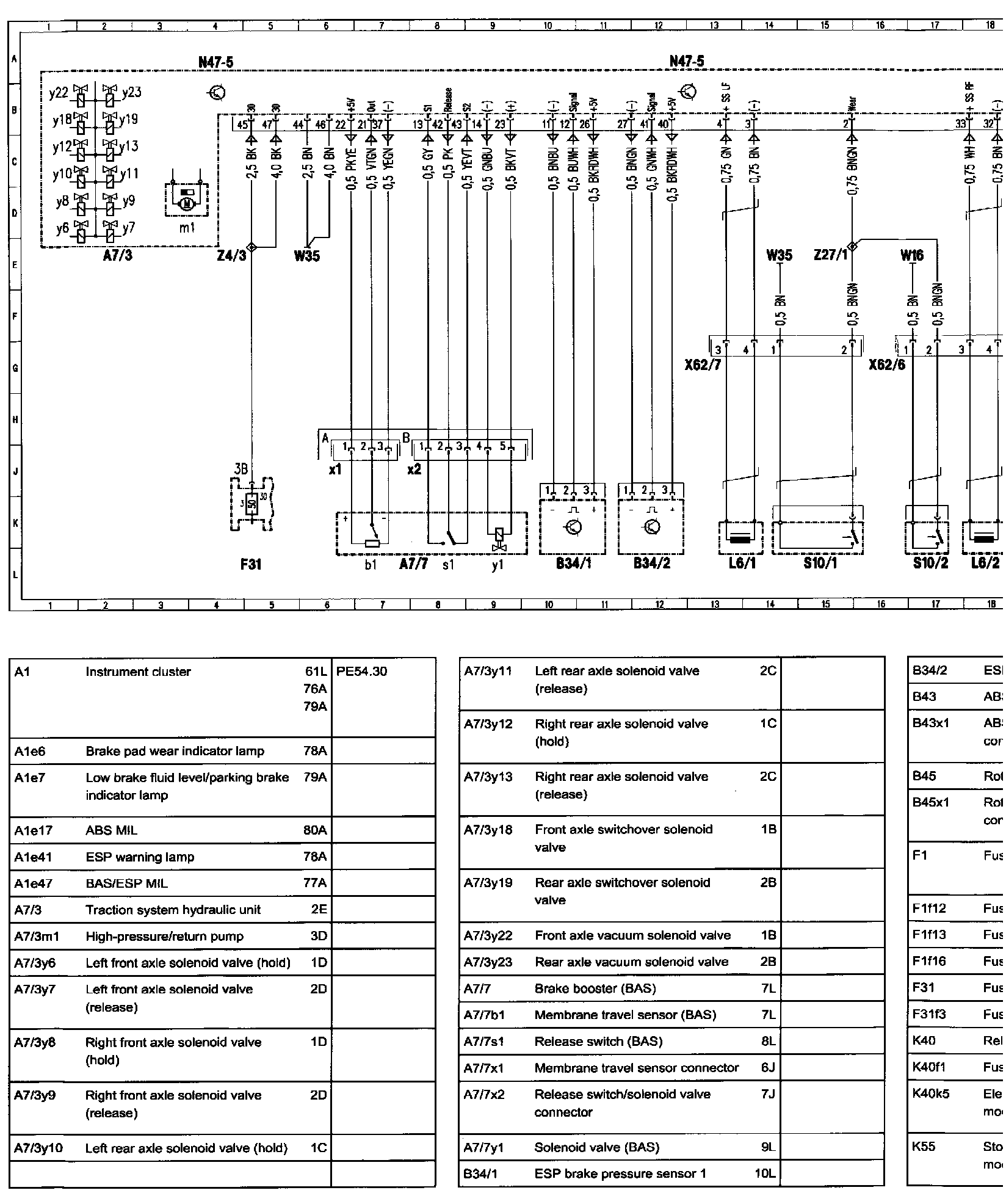

y��%�[�%��%M��%Wiring Diagram:

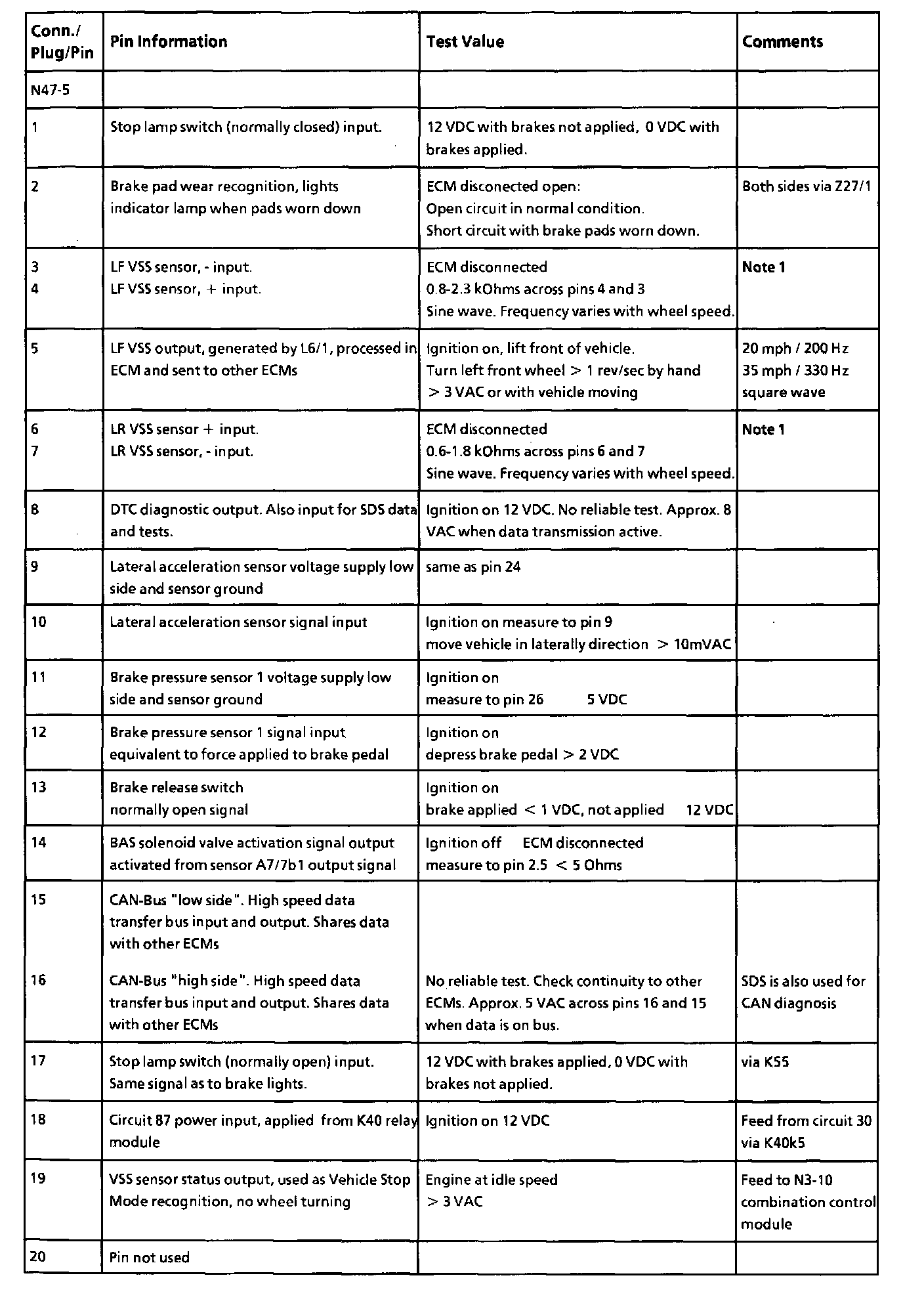

Pin Information, Part 1:

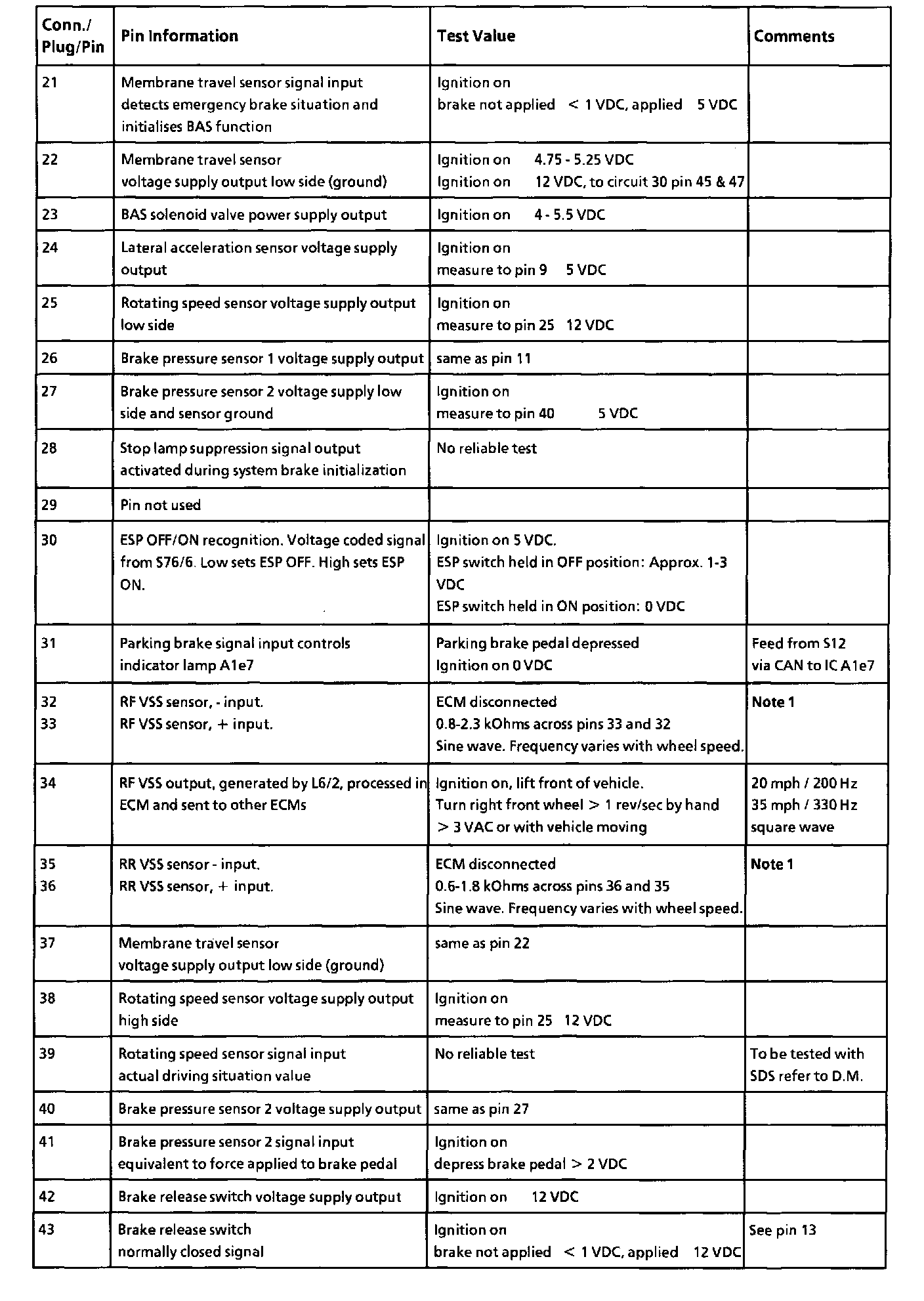

Pin Information, Part 2:

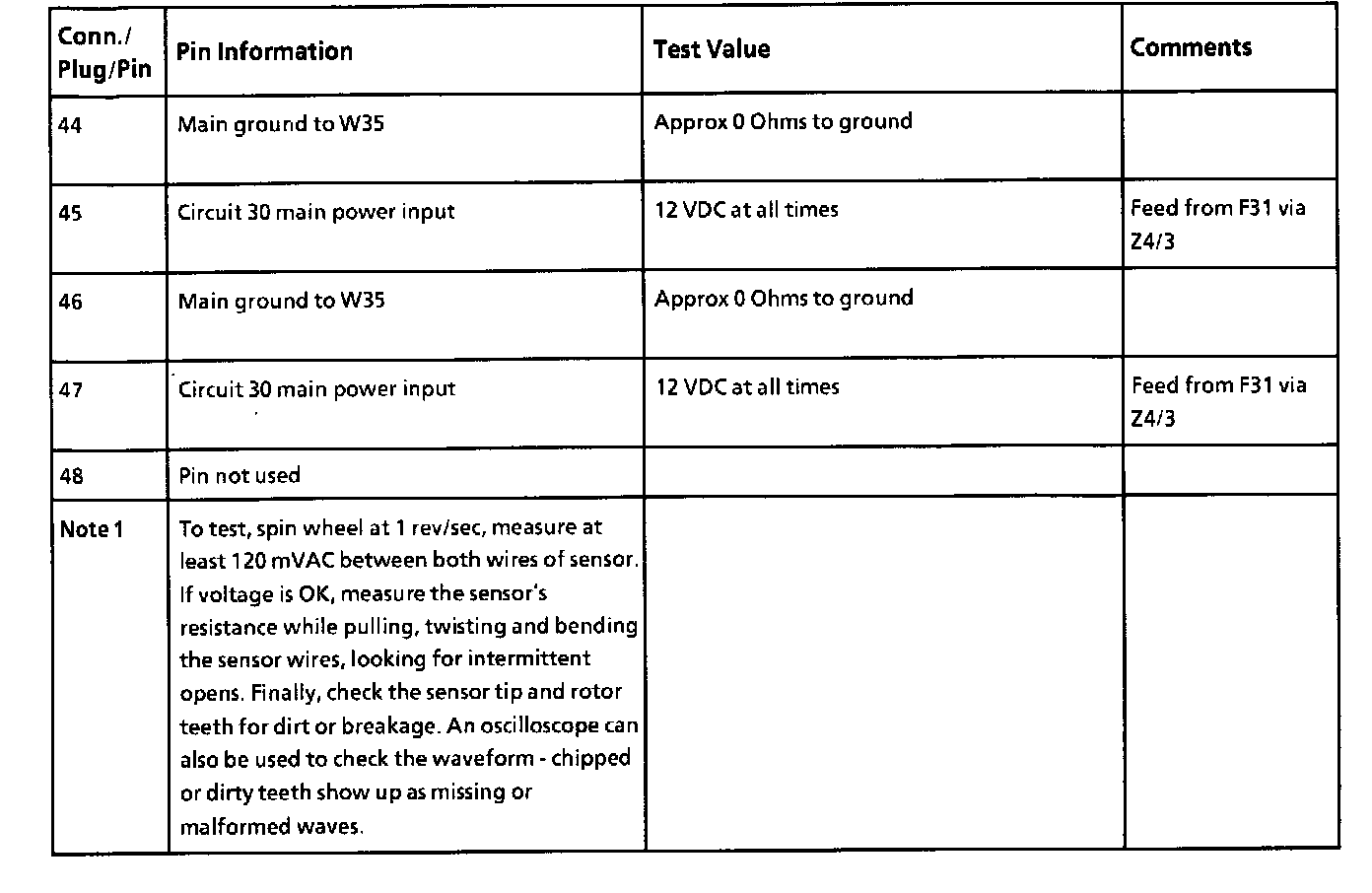

Pin Information, Part 3:
