Switching Off

Models 170, 202, 210






Model 210

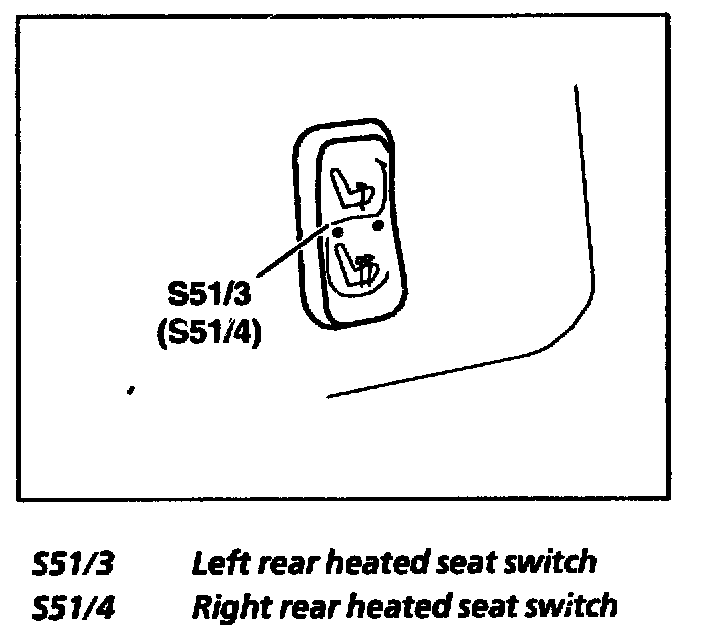

Switching off with switch

Function sequence
1 Function prerequisites
- Heated seats switched on to heating stage I or II.
2 For heating stage I press heated seat switch once to heating stage I.
For heating stage II press heated seat switch once to heating stage II.

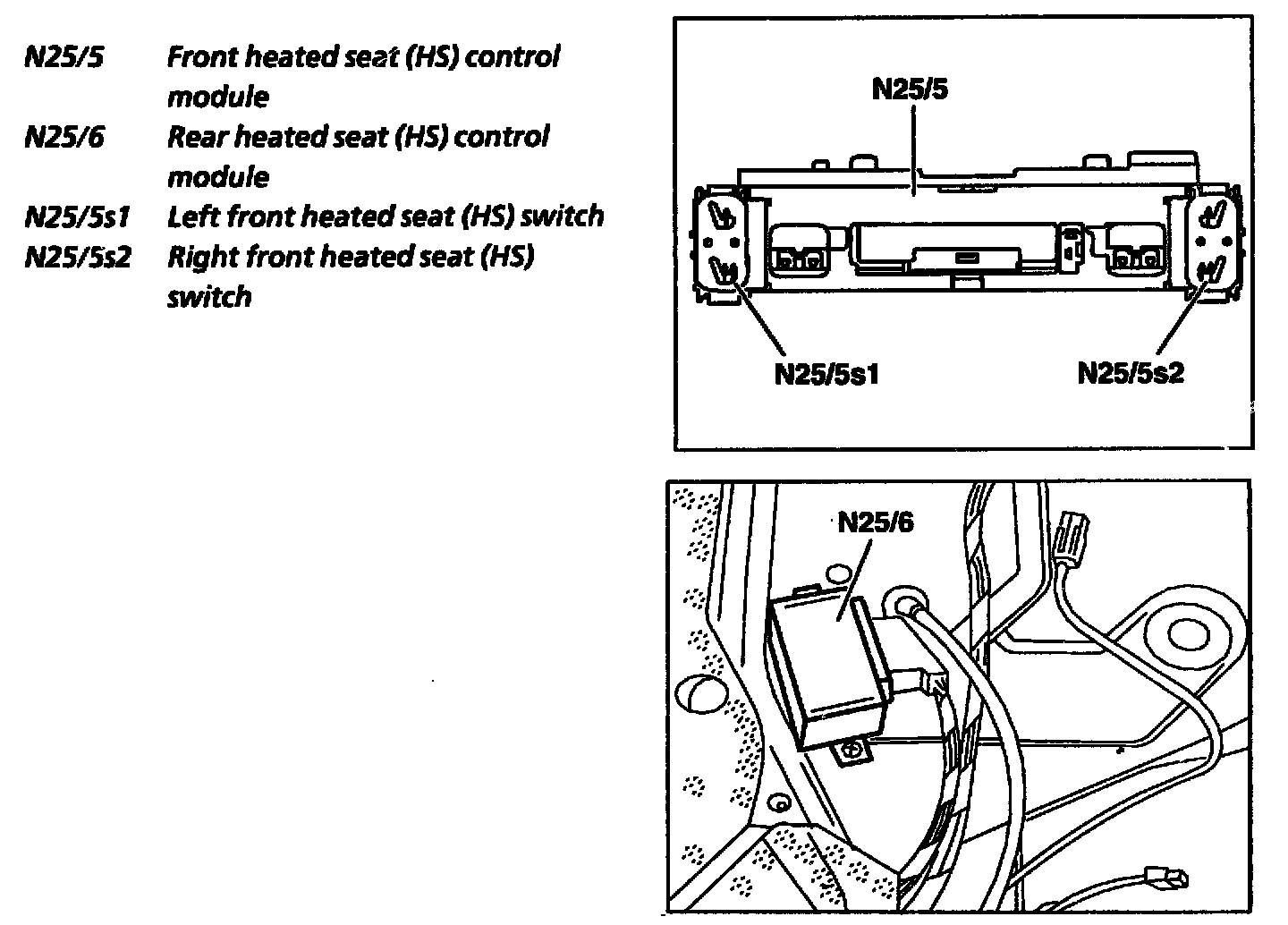

3 The heated seat control module switches the heated seats off.
4 The LED('s) in the switch goes out.

Automatic switch-off when ignition is switched off (C. 15).

Function sequence
1 Function prerequisites
- Heated seats switched on to heating stage I or II.
2 Turn key in ignition lock to position 0.
3 The heated seats are switched off by the heated seat control module.
4 The LED('s) in the switch go(es) out.


Automatic switch-off after expiration of maximum heating time

Function sequence
1 Function prerequisites
- Heated seats switched on to heating stage I.
2 After approx. 30 ± 5 min. the heated seat control module switches off the heated seats.
3 The LED in the switch goes out.

Automatic switch-off when battery voltage is <= 11 V

Function sequence
1 Function prerequisites
- Heated seats switched on to heating stage I or II.
2 When the battery voltage drops below <= 11 V the heated seat control module switches off the heated seats.
3 The LED's in the heated seat switch flash.
