AR77.50-P-3300G Remove/Install Roof Kinematics

AR77.50-P-3300G Remove/Install Roof Kinematics

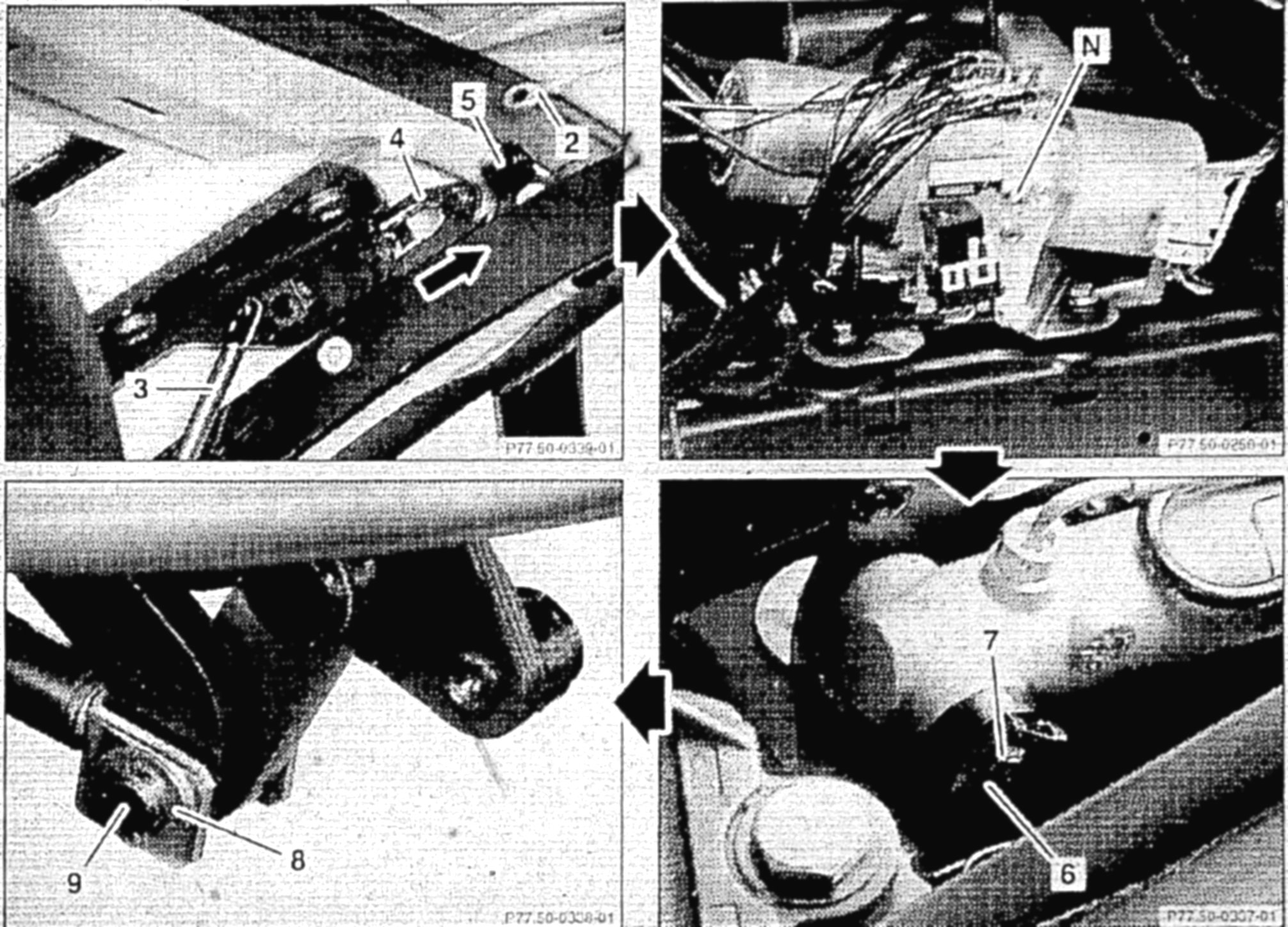

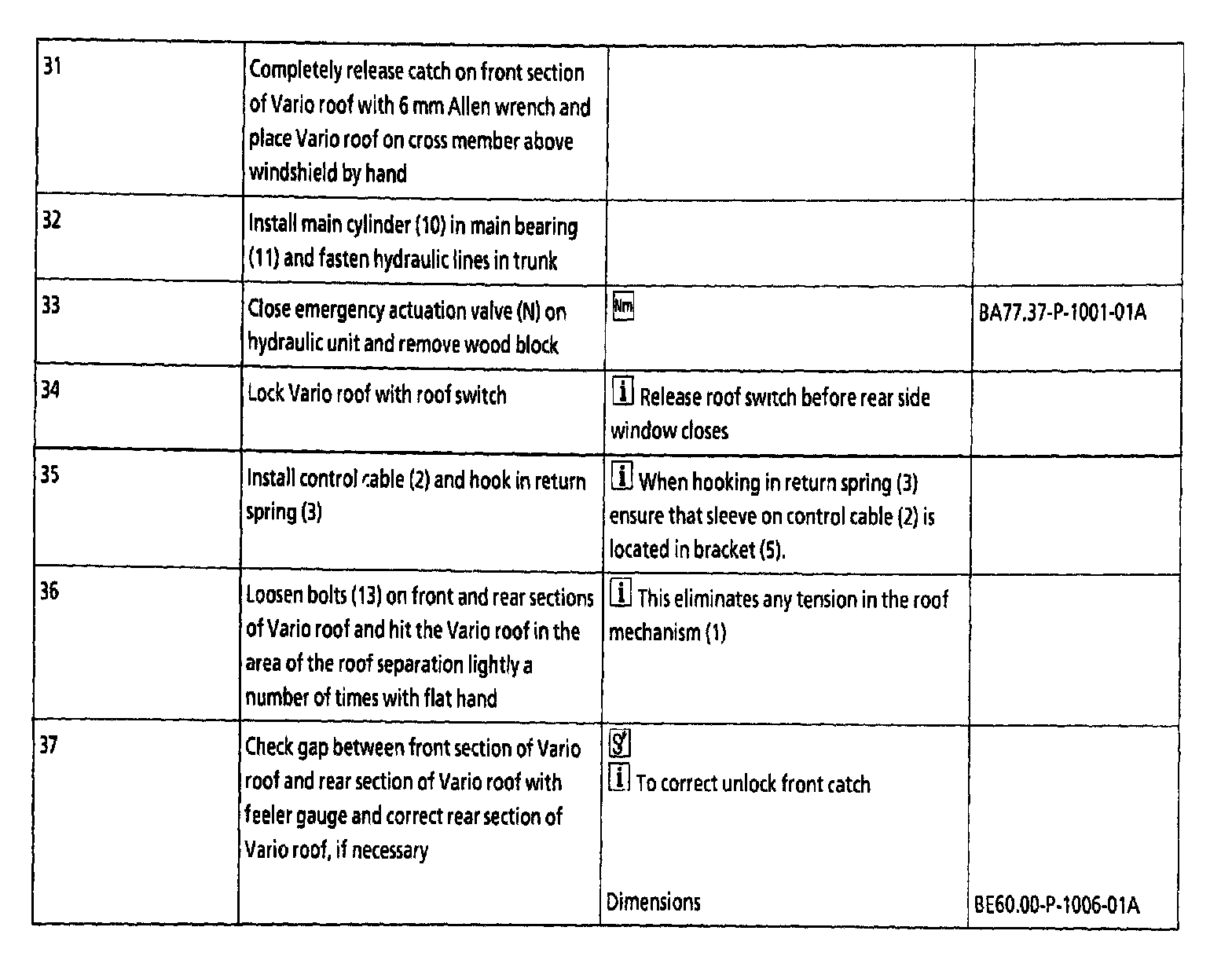

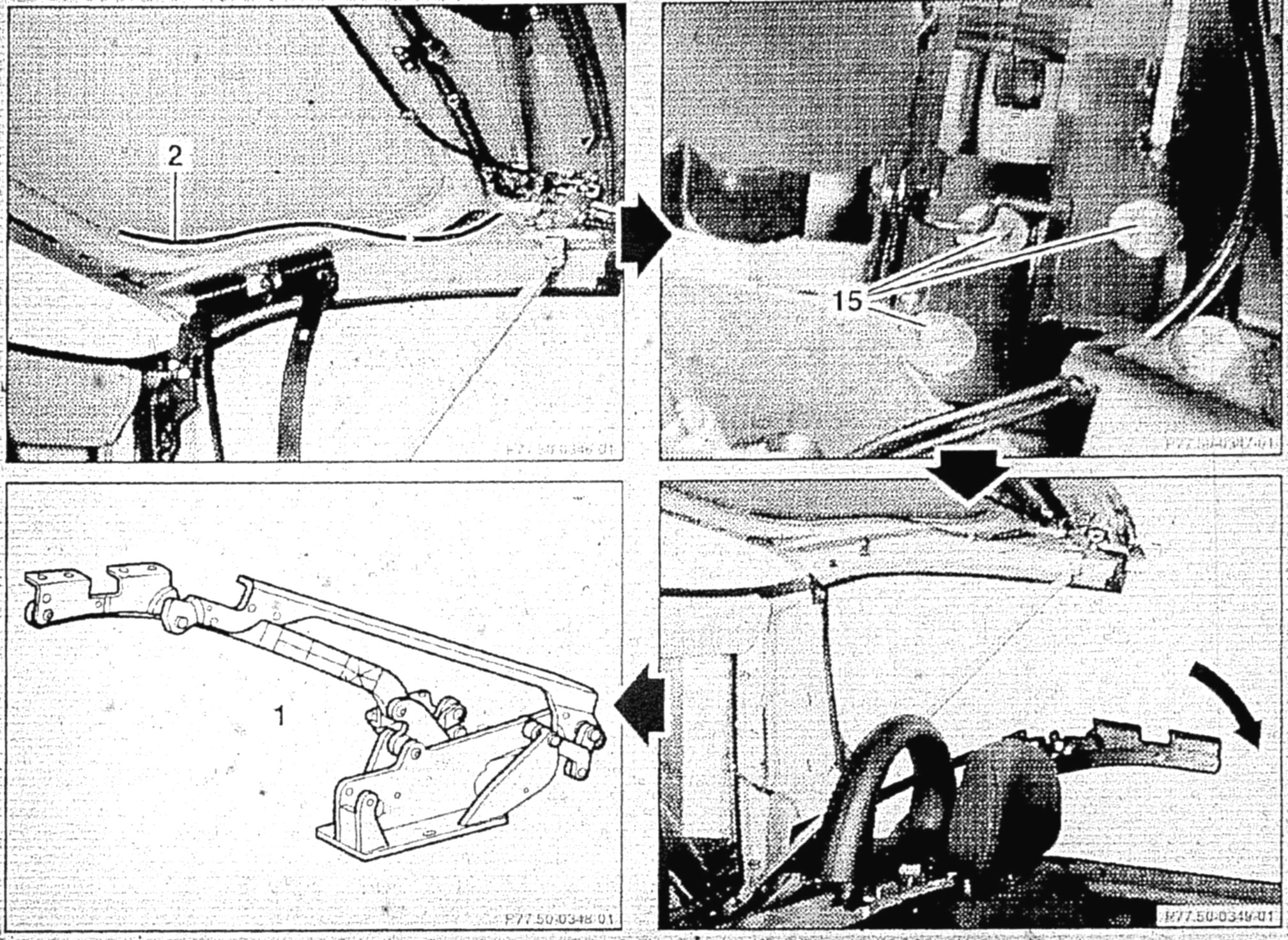

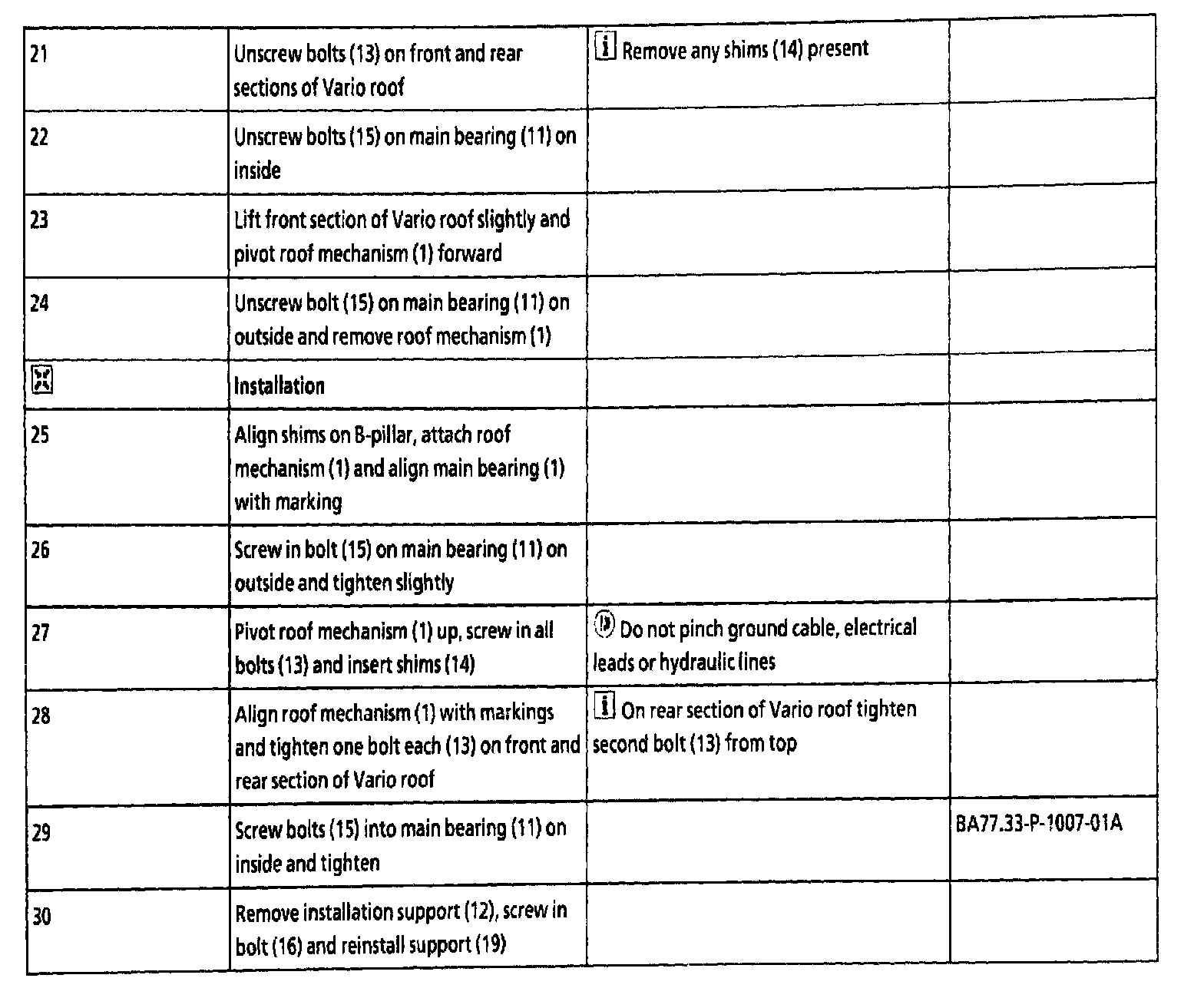

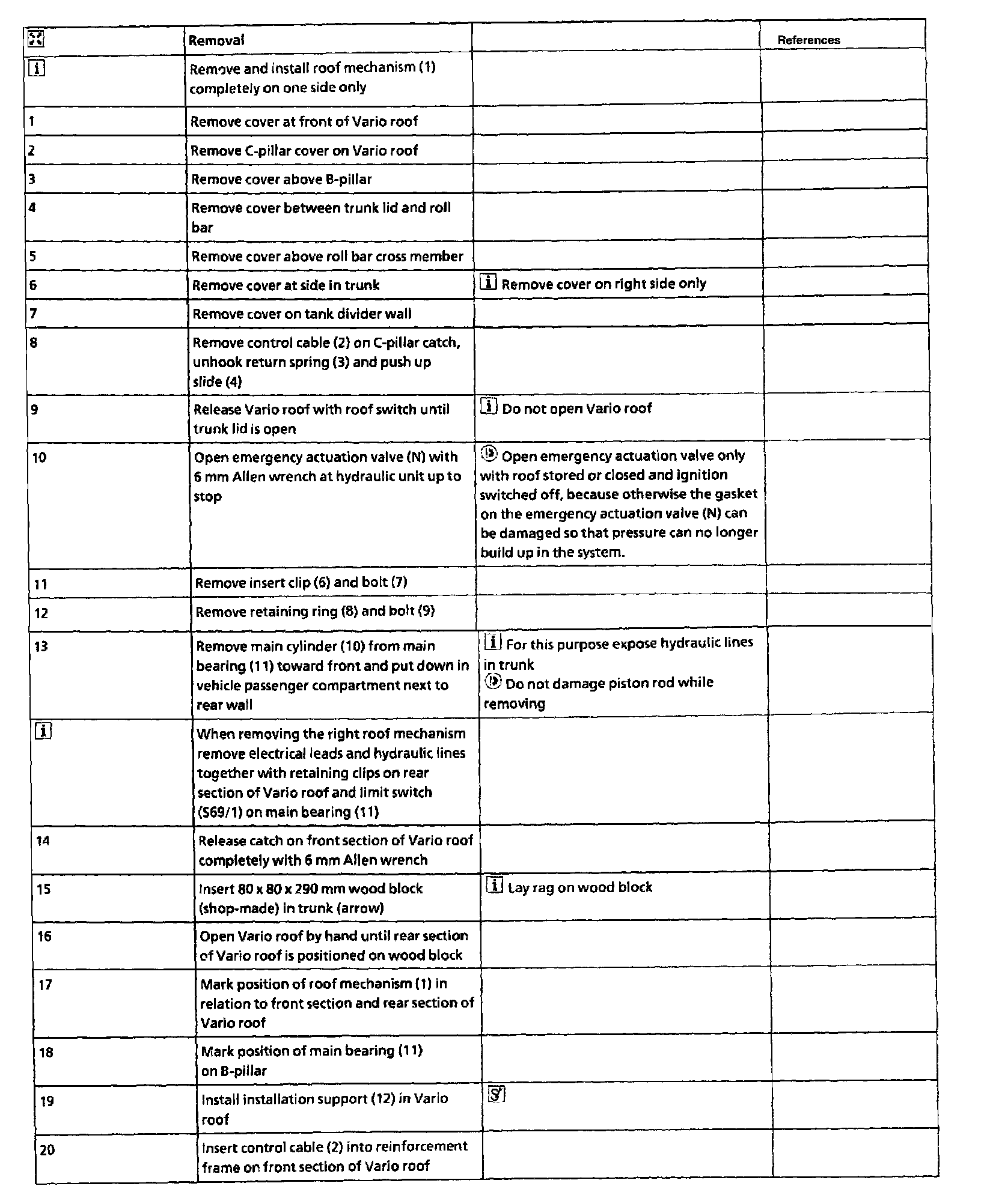

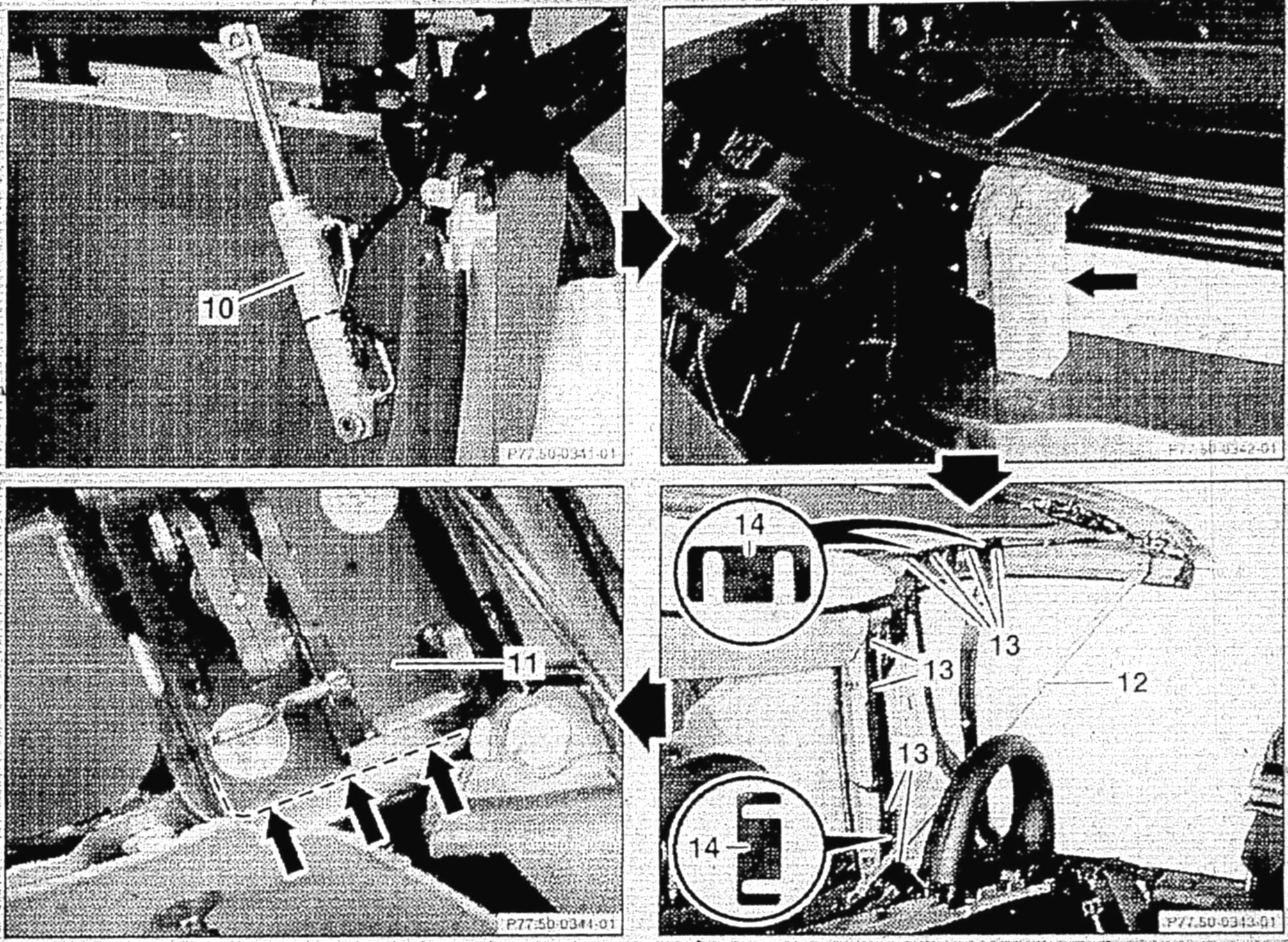

Removal, Installation





Part 1 of 4





Part 2 of 4





Part 3 of 4





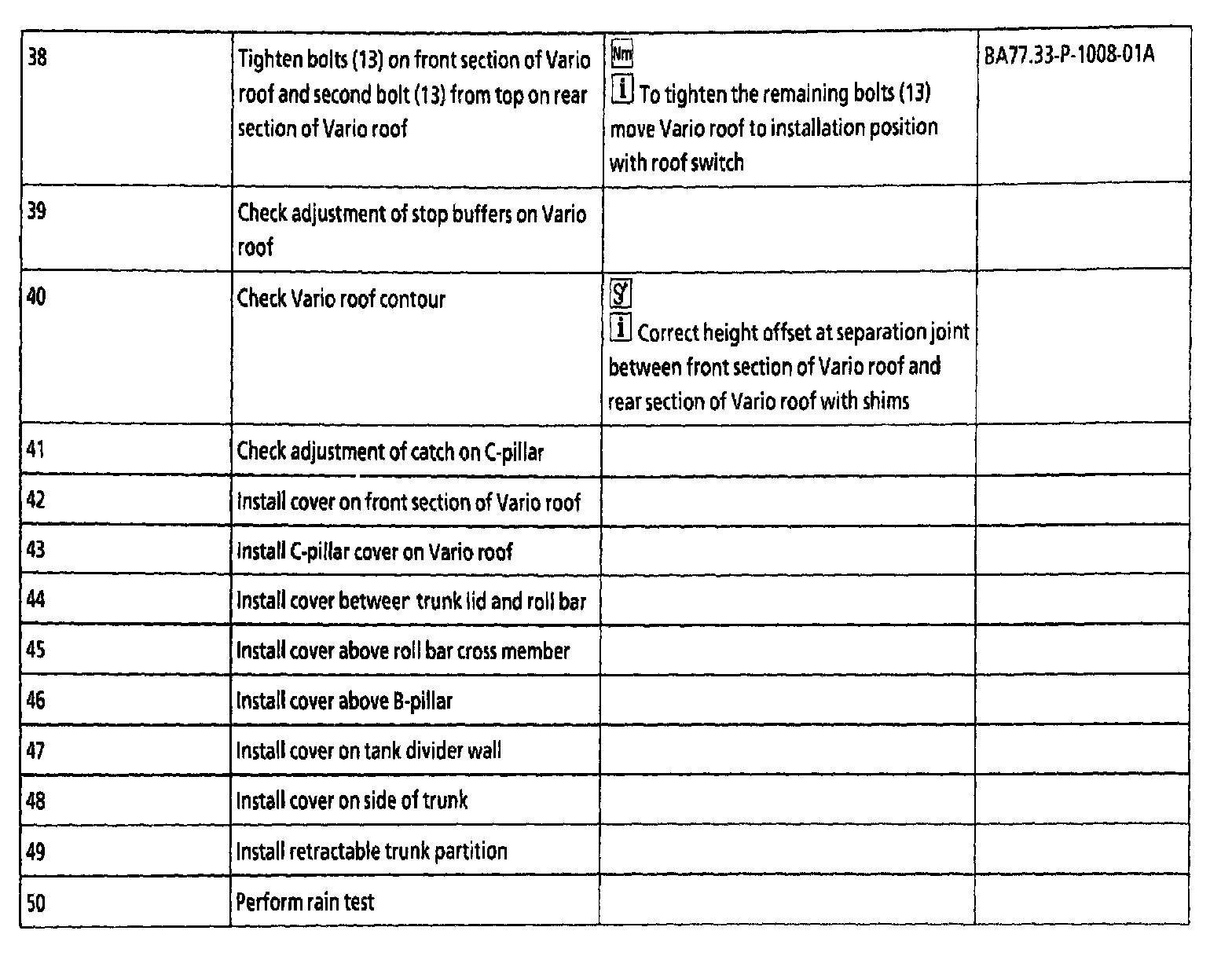

Part 4 of 4

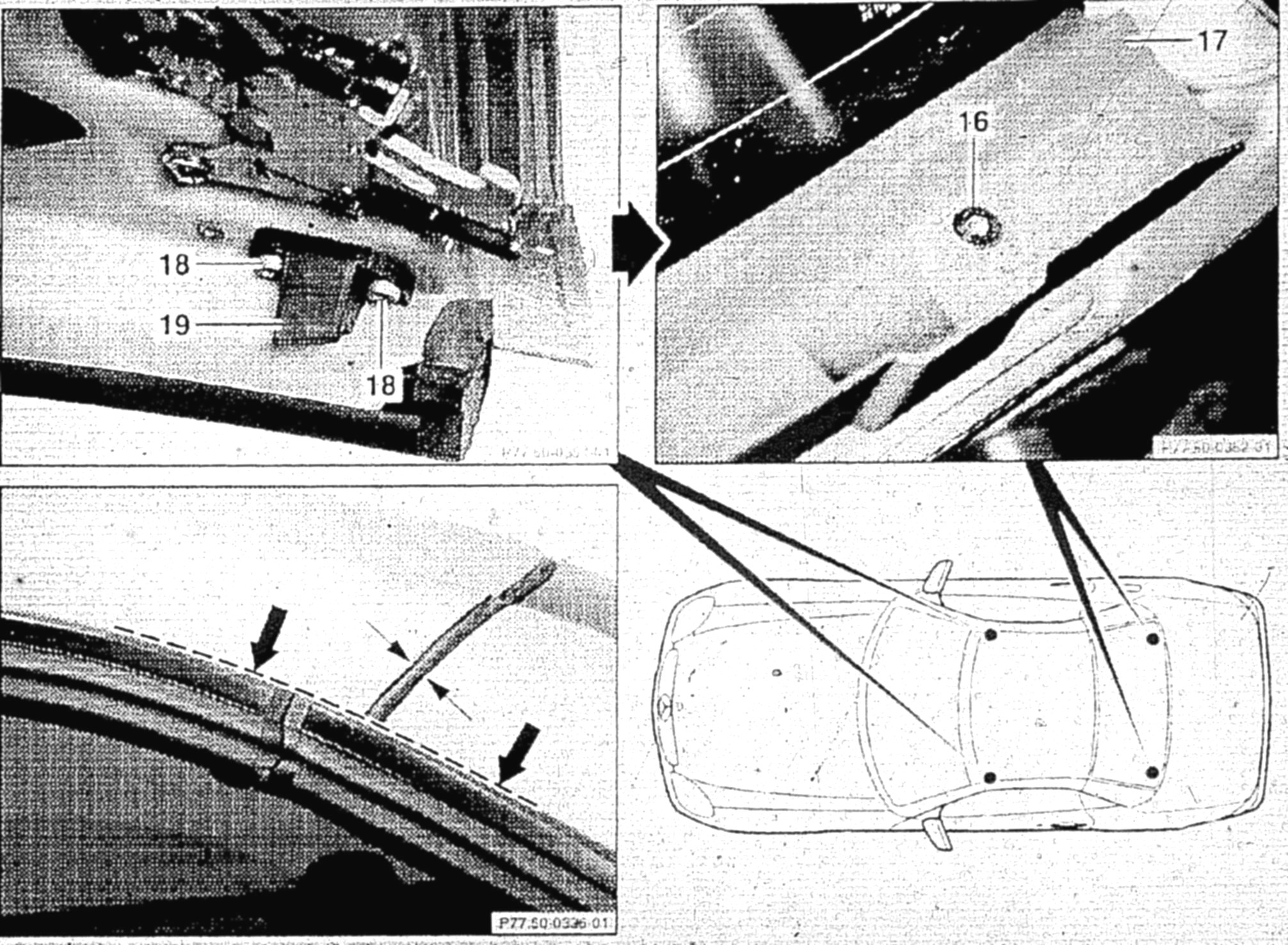

NOTE: Adjust hood, doors and trunk lid according to drawings. The gaps should not be wedge shaped or narrower at spots. Deviations from parallel should not be greater than max. 0.5 mm over entire length. If width of opening is too wide or too narrow the movable body parts must be centered accordingly. The guide values apply for all repair work to bodies damaged in accidents.

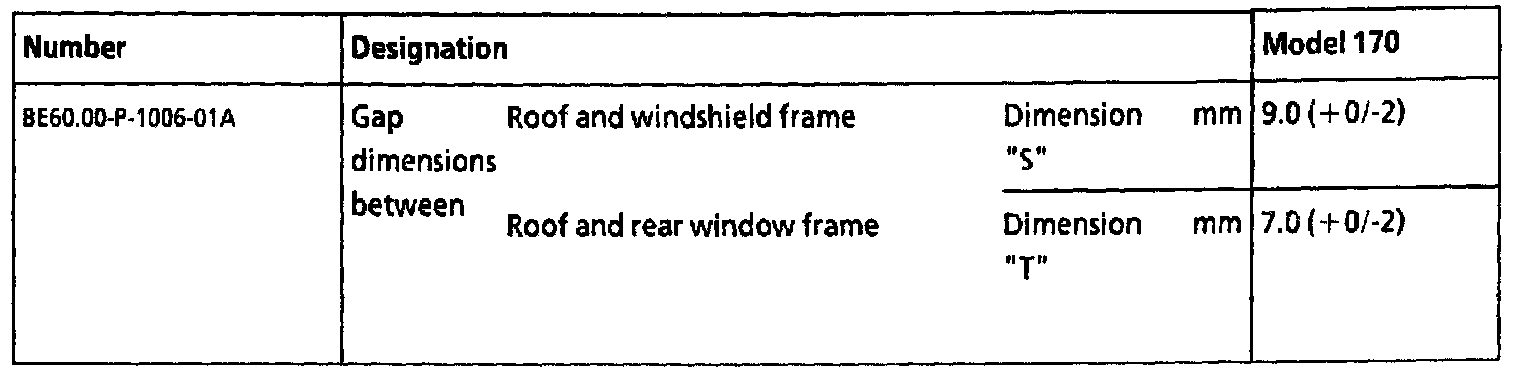

References (BE), Test and adjustment values, gap dimensions on hoods, doors and covers





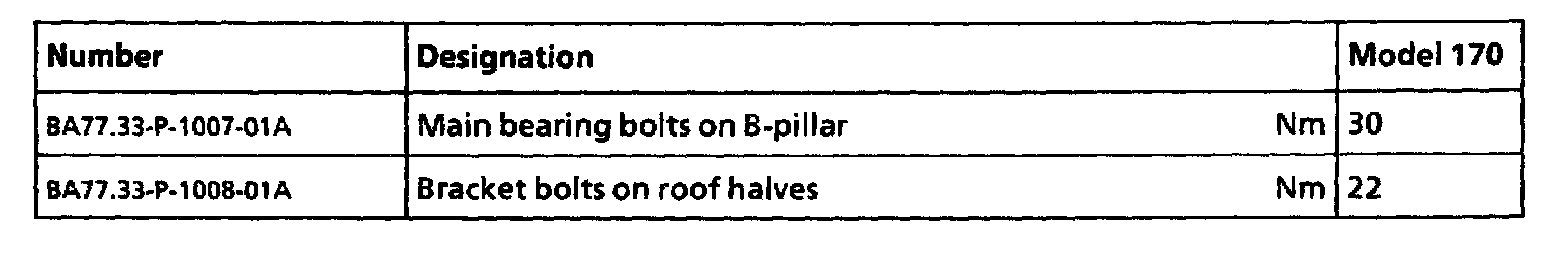

References (BA), Roof mechanical system





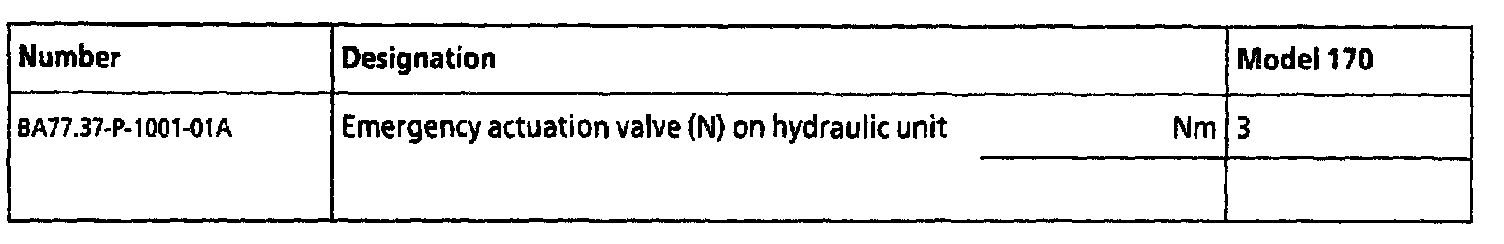

References (BA), Roof hydraulic system

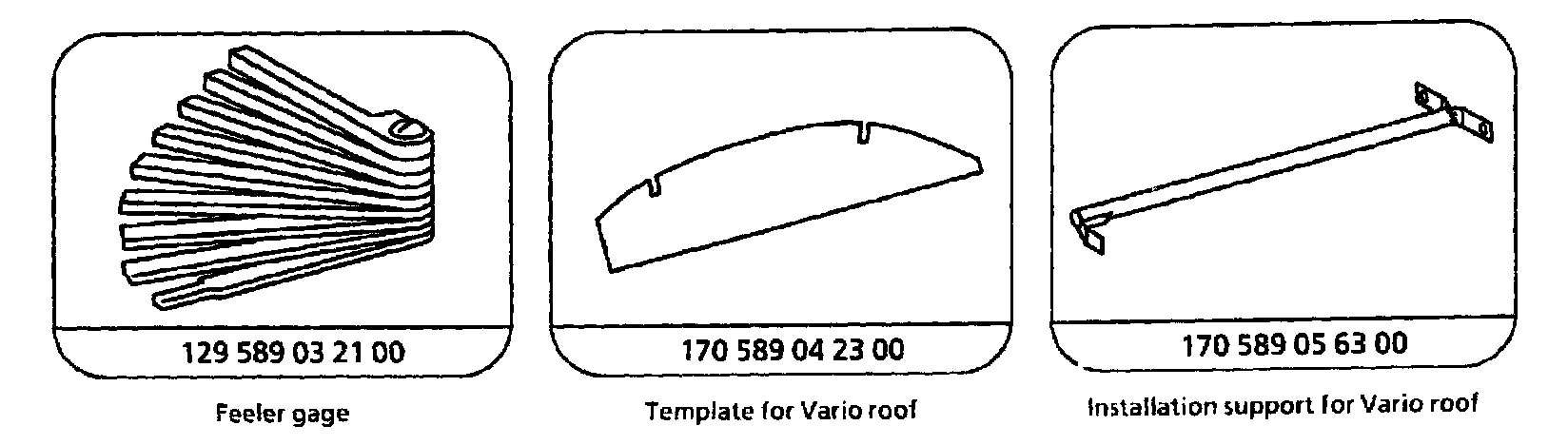

References, Special tools
