AR77.50-P-3200G Remove/Install Rear Section of Vario Roof

AR77.50-P-3200G Remove/Install Rear Section of Vario Roof

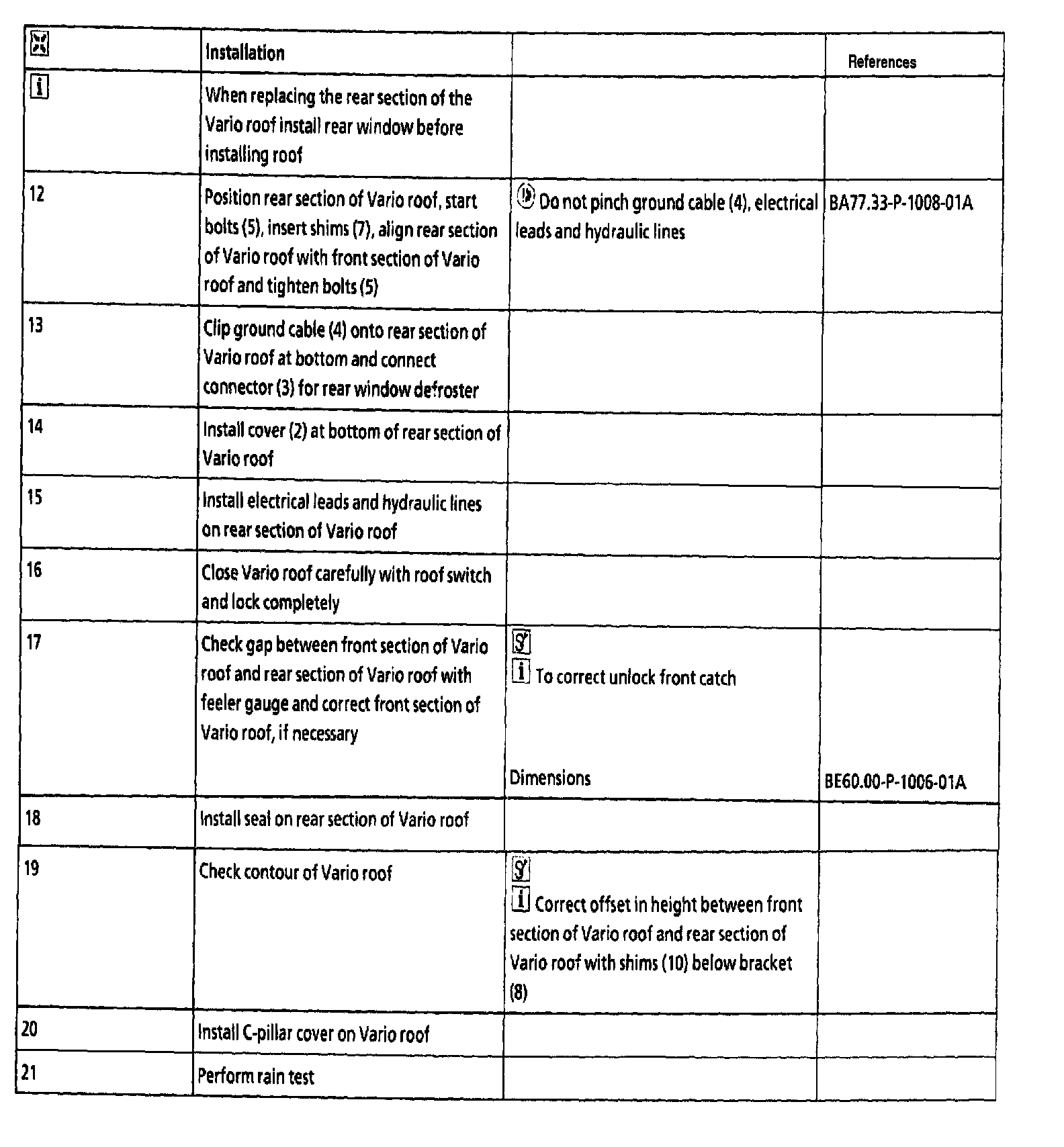

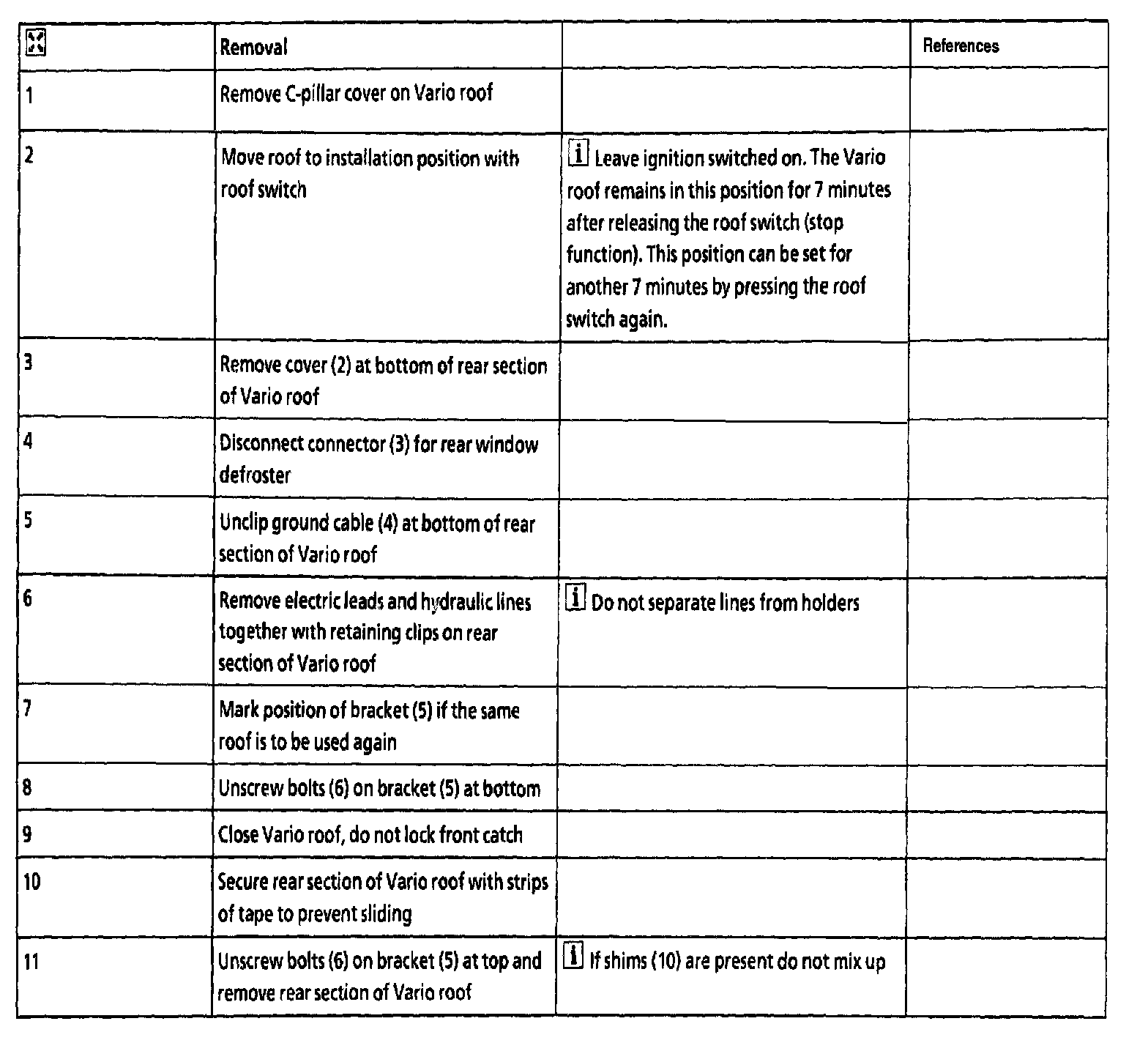

Removal, Installation

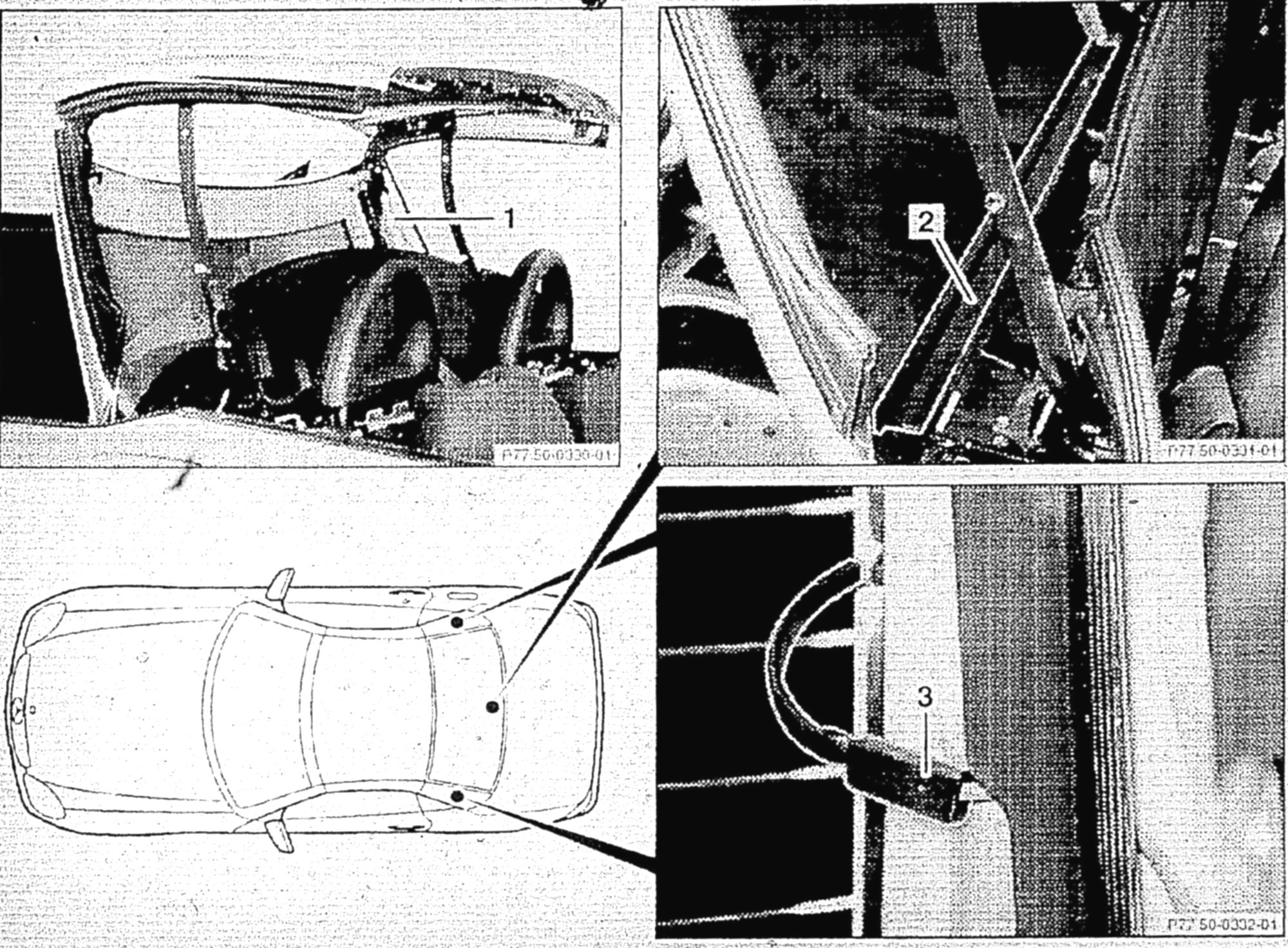

Part 1 of 2

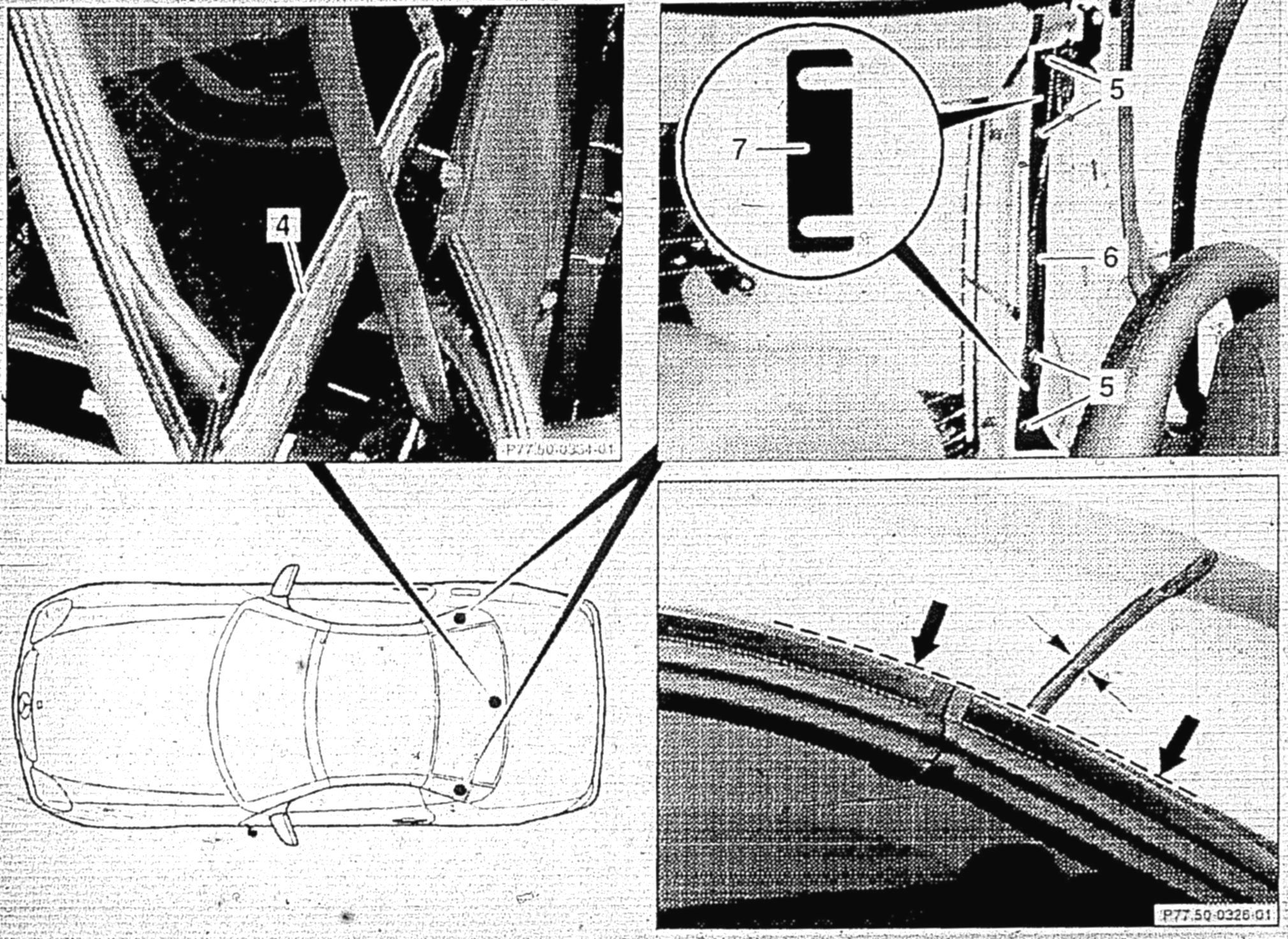

Part 2 of 2

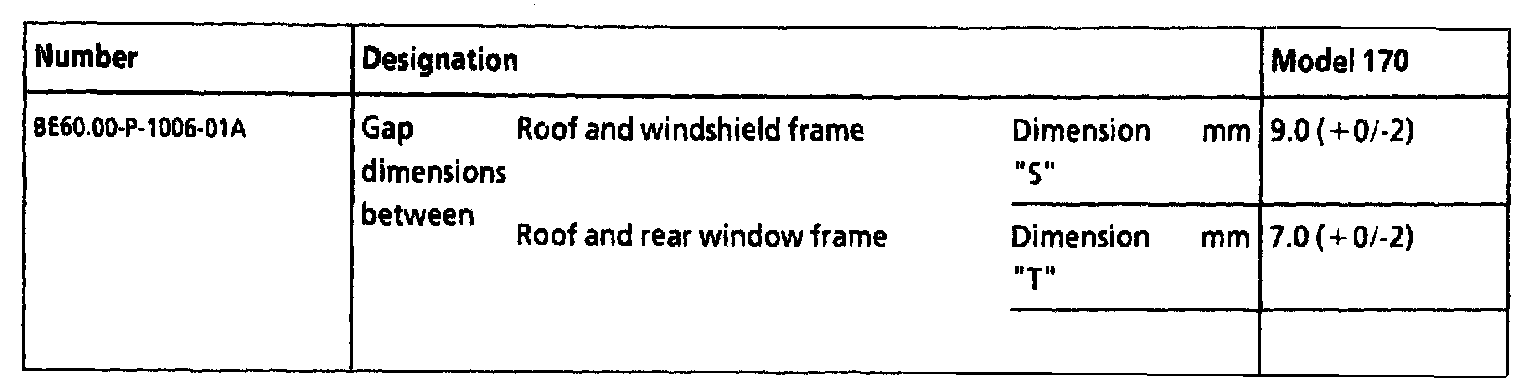

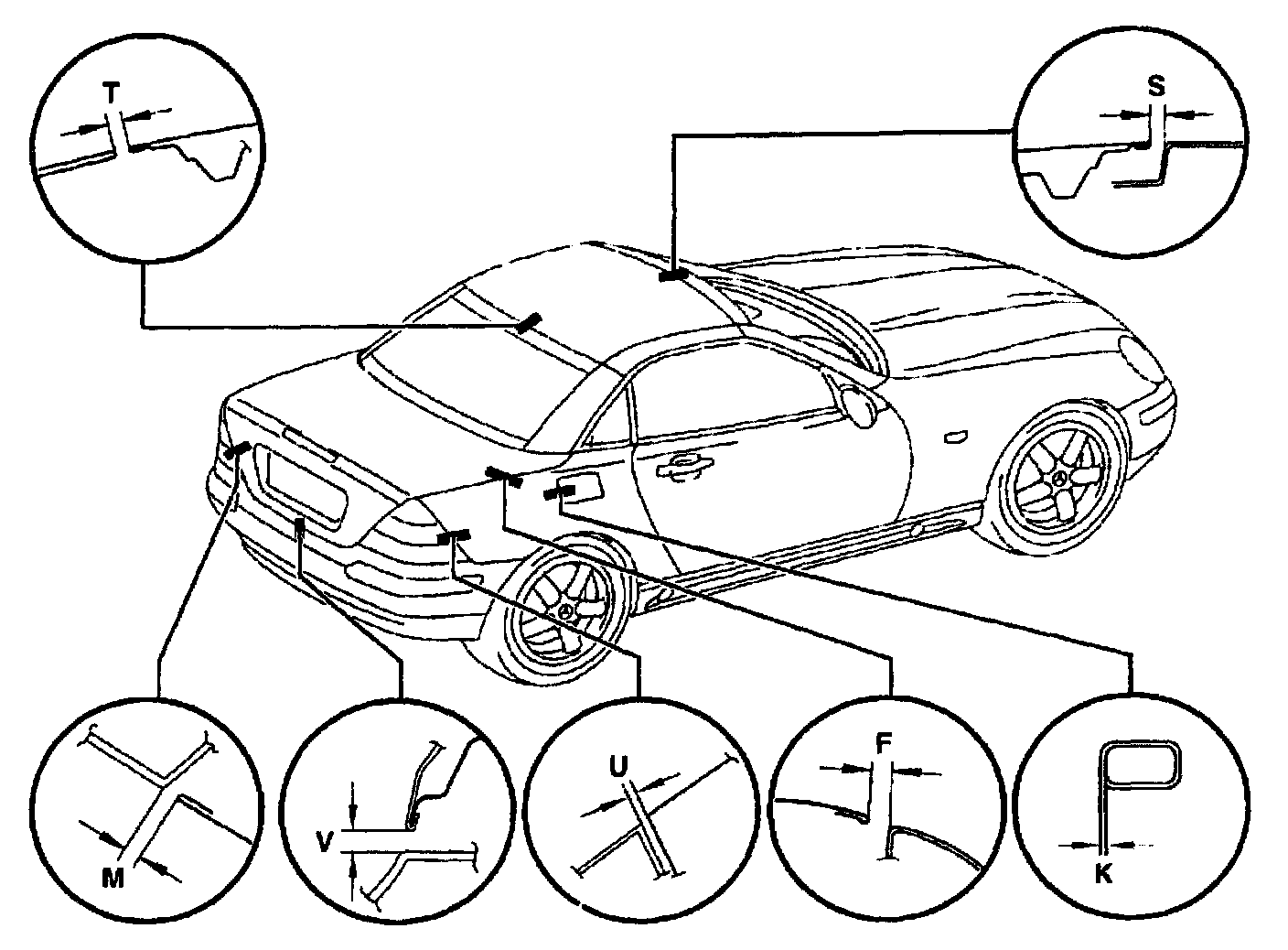

NOTE: Adjust hood, doors and trunk lid according to drawings. The gaps should not be wedge shaped or narrower at spots. Deviations from parallel should not be greater than max. 0.5 mm over entire length. If width of opening is too wide or too narrow the movable body parts must be centered accordingly. The guide values apply for all repair work to bodies damaged in accidents.
