AR77.50-P-3000G Remove/Install Vario-Roof



AR77.50-P-3000G Remove/Install Vario-Roof

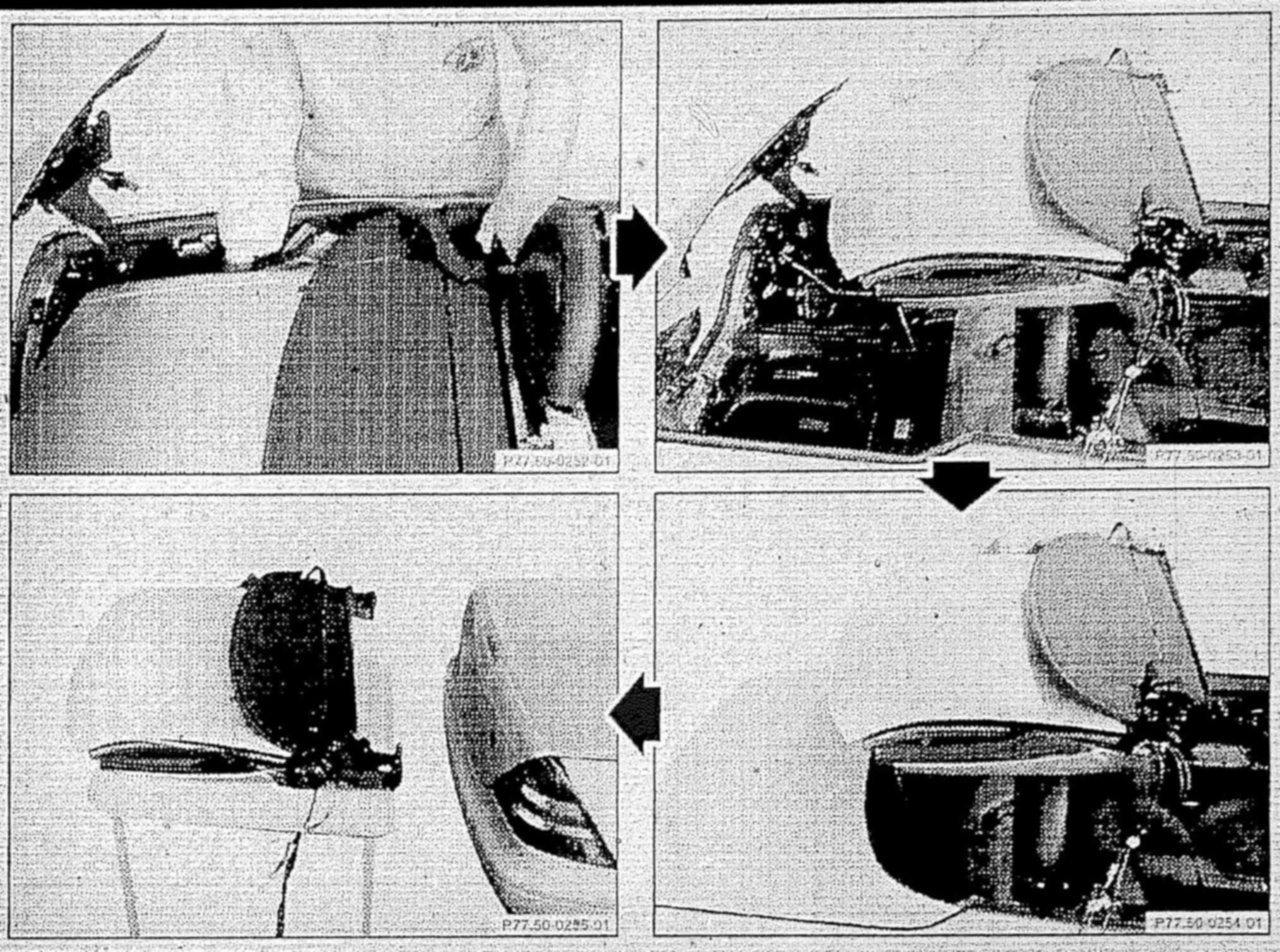

Assembly sequence, lifting out vario-roof

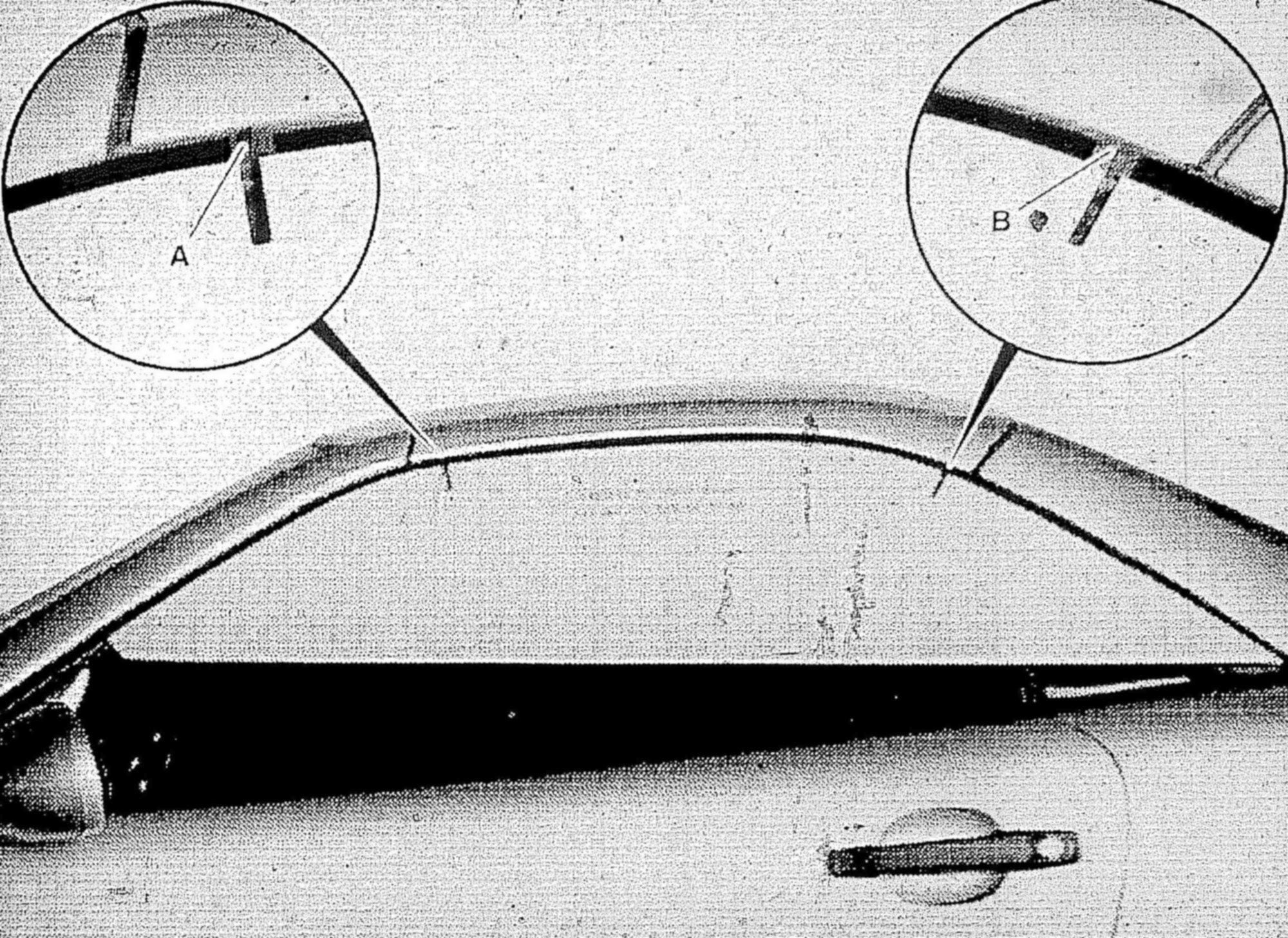

Checking roof contour. Use of template on vario-roof

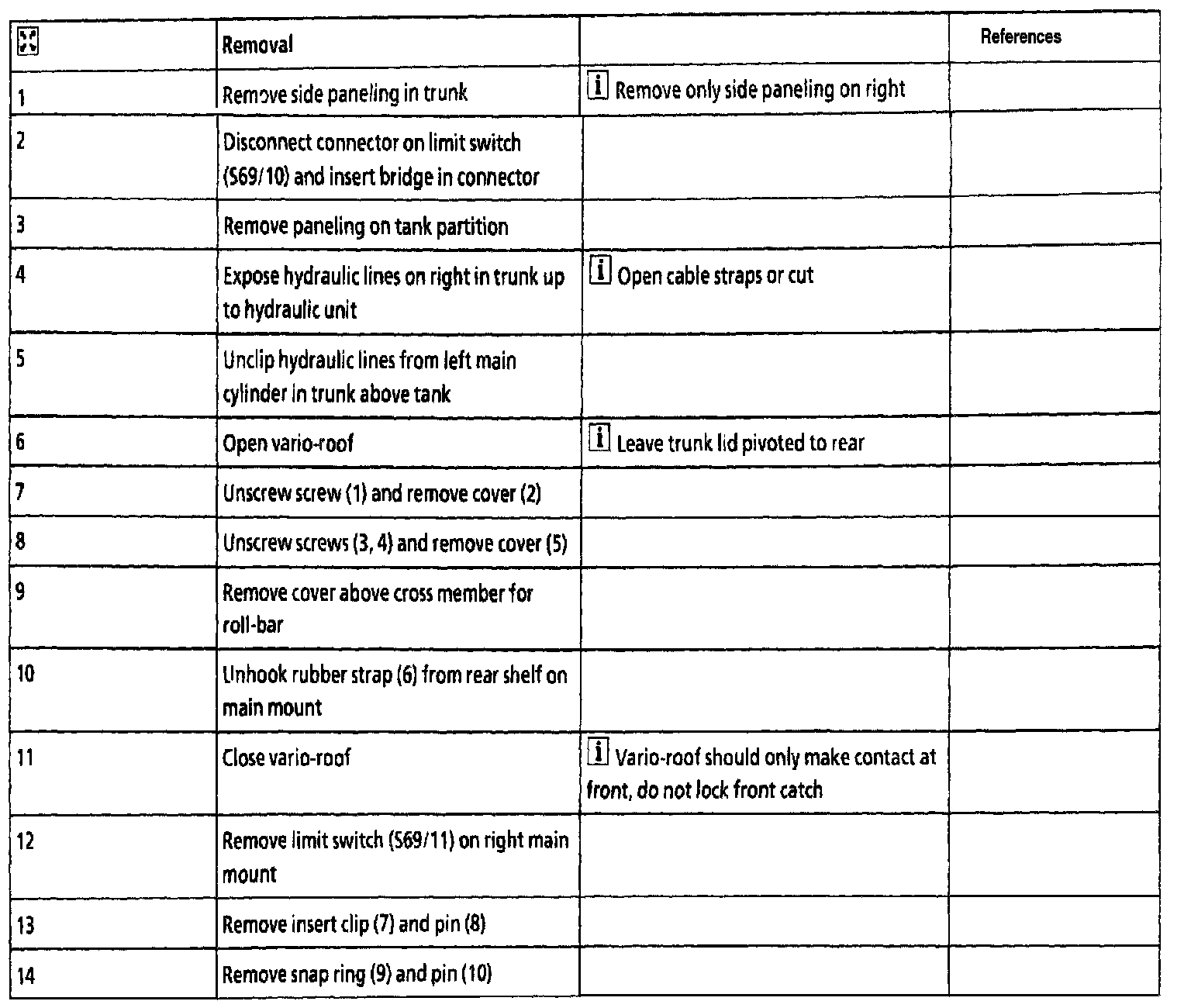

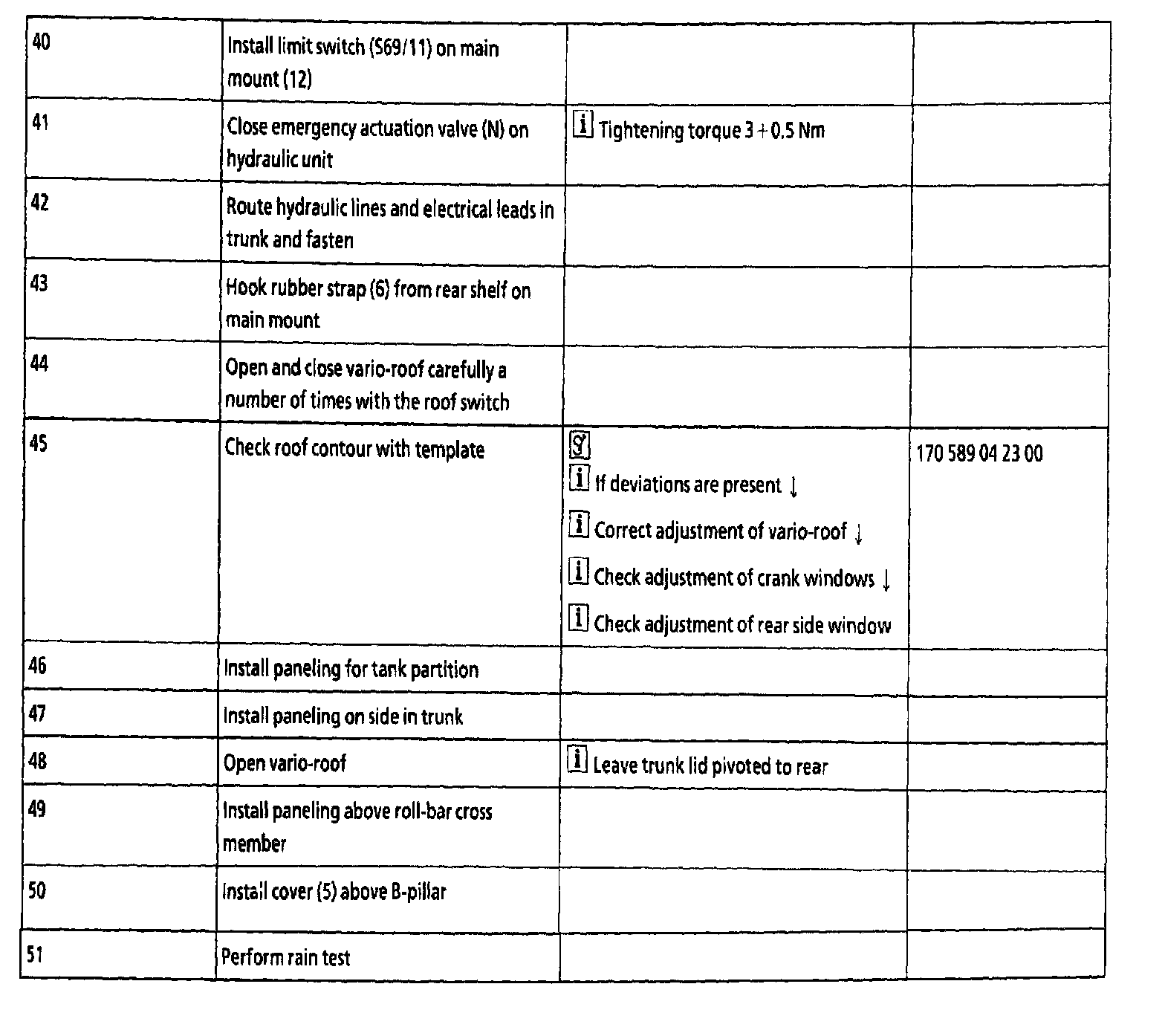

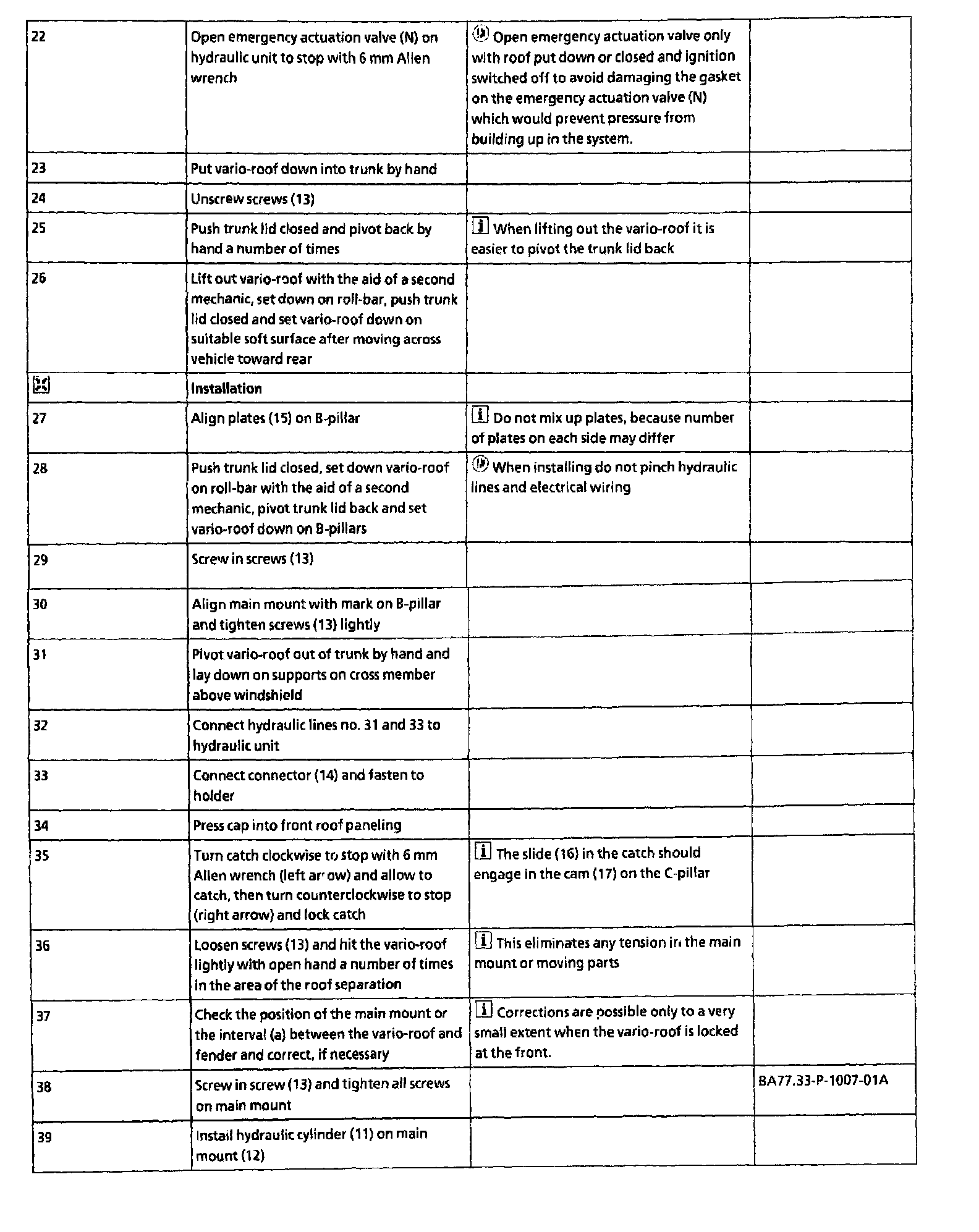

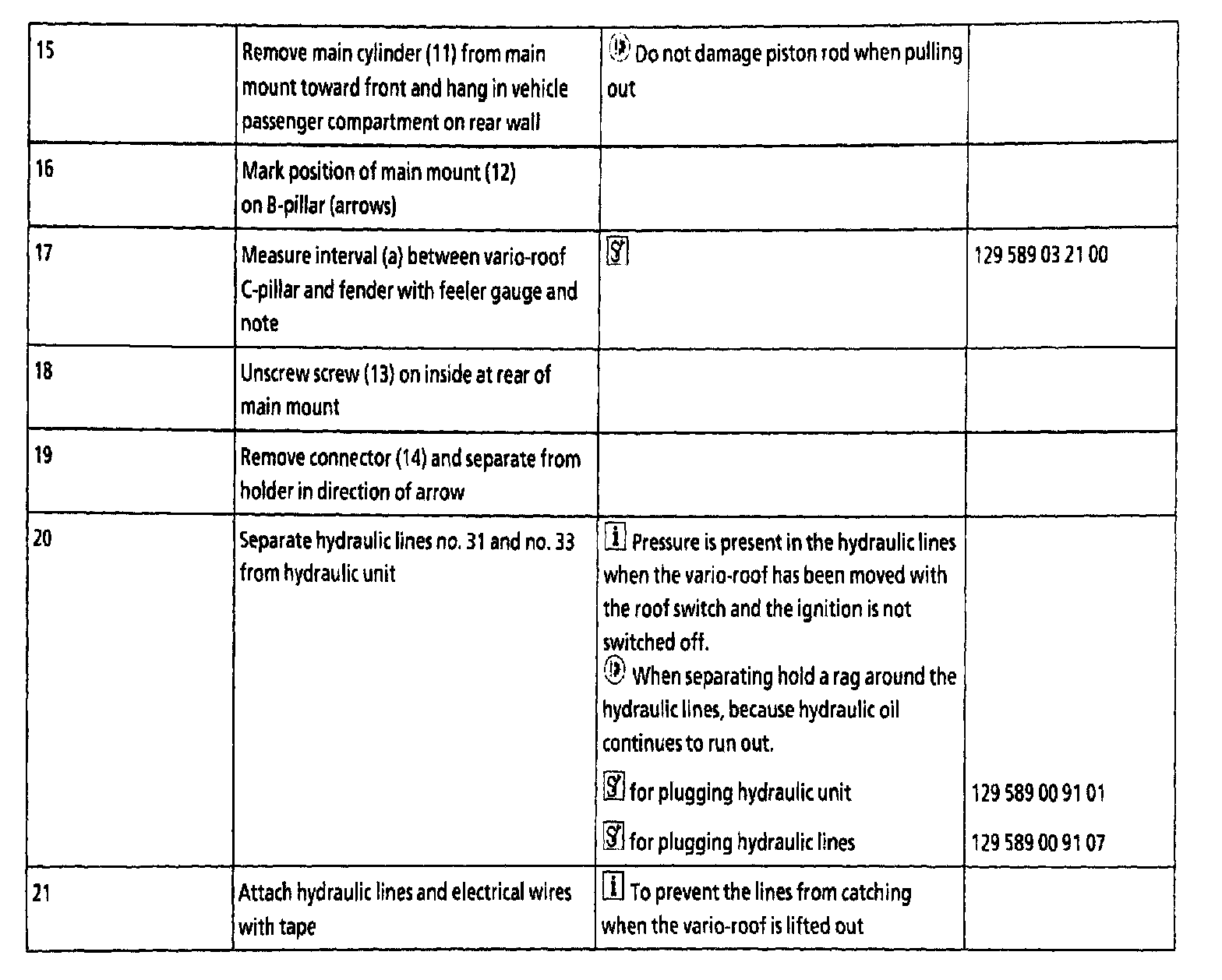

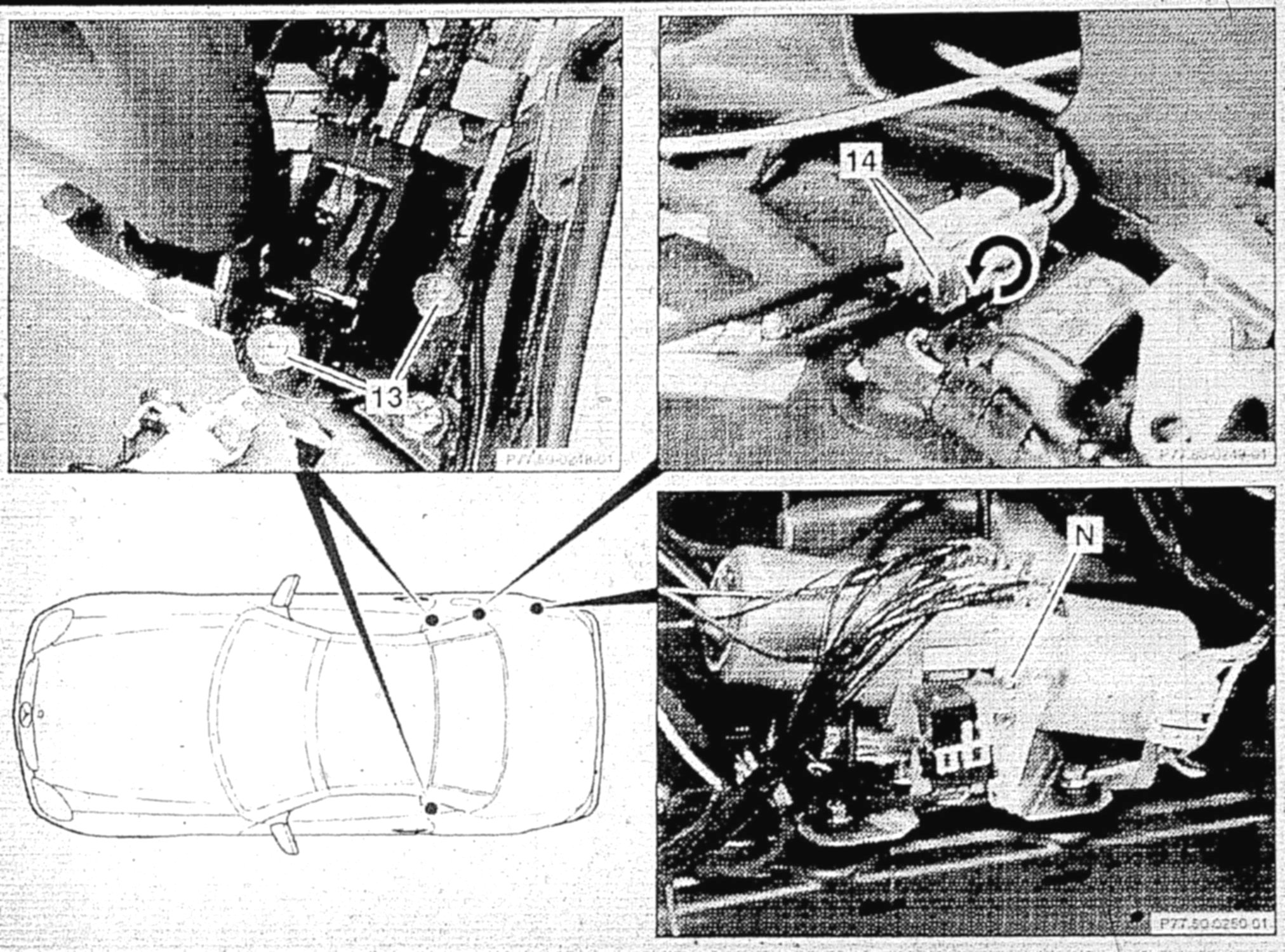

Removal, Installation
