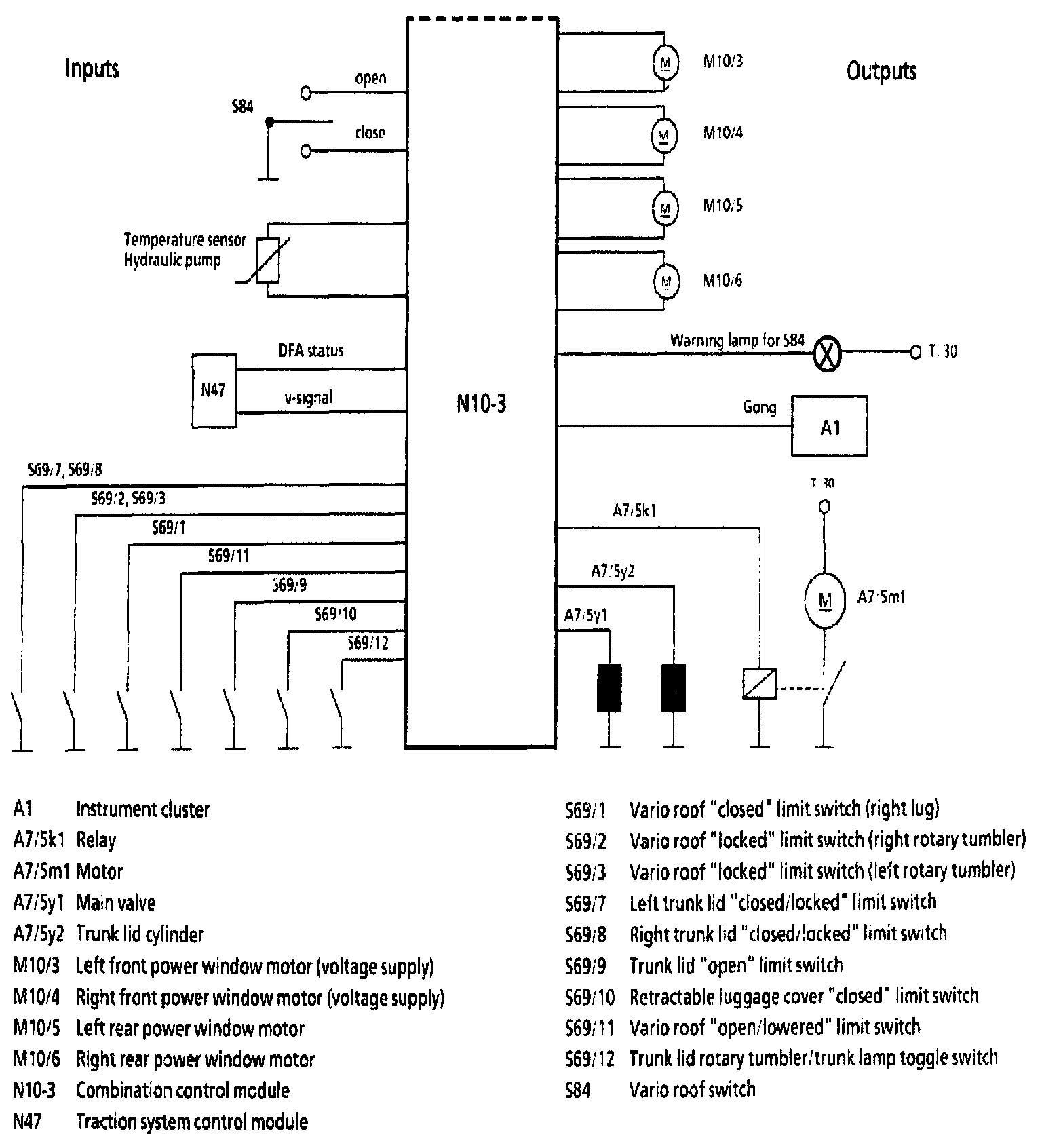

Vario Roof, Overall System

The vario roof is controlled by an electro-hydraulic system. The system consists of the following main components:
One hydraulic unit with two solenoid valves and five hydraulic cylinders as well as nine limit switches, four power window motors, one control module and one control switch.
