Vario Roof Catches For Tubular Frame In Trunk, Location/Purpose

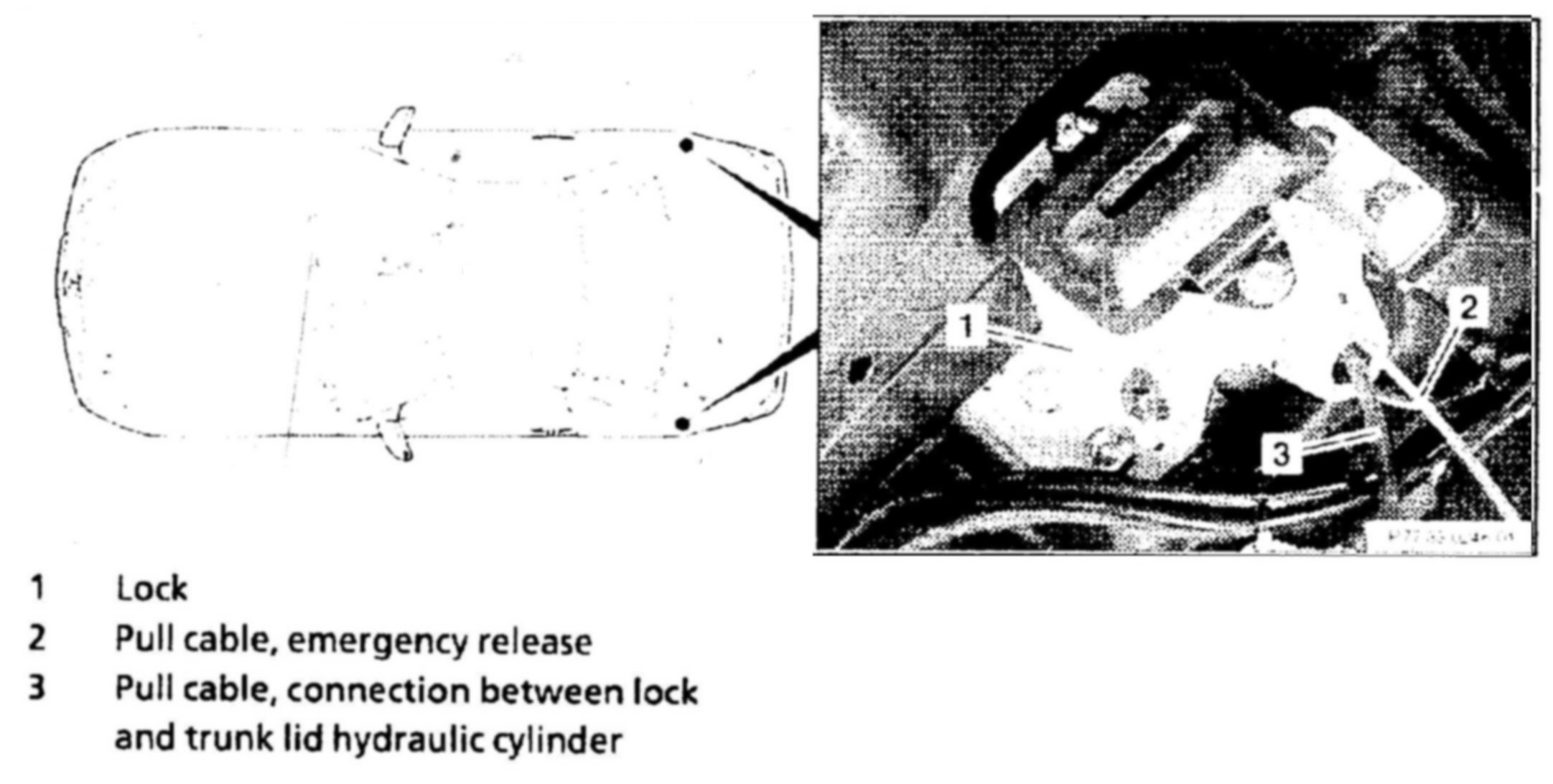

Location
In wheel houses in trunk behind left and right side paneling

Purpose
To lock and unlock tubular frame for roof actuation
