AR77.37-P-3501-01G Correct Oil Level of Hydraulic Unit

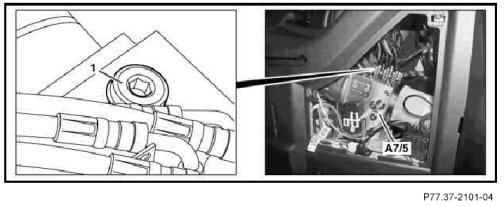

1. Unscrew oil filler screw (1) from soft top actuation hydraulic unit (A7/5).

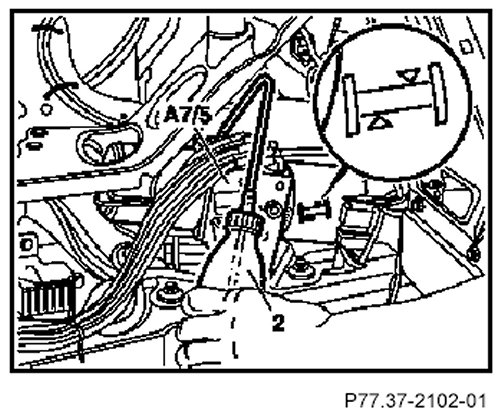

2. Refill hydraulic oil with spray bottle (2)
- The oil level must be located between the two triangular markings on the oil reservoir for the soft top actuation hydraulic unit (A7/5)



3. Screw oil filler screw (1) into soft top actuation hydraulic unit (A7/5).
