Pump: Service and Repair

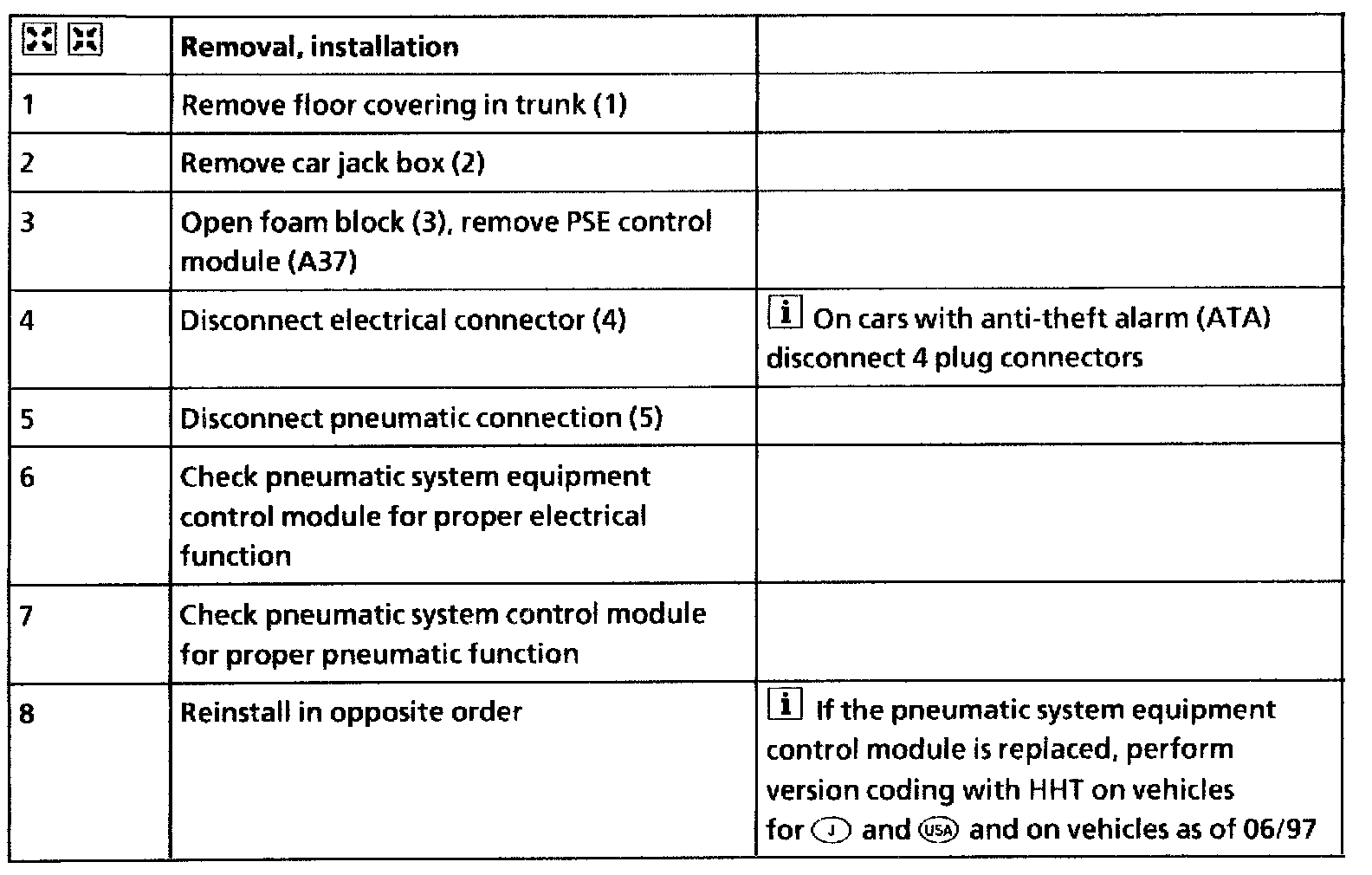

Removing and installing pneumatic system equipment (PSE) control module (A37/2-A37/5)

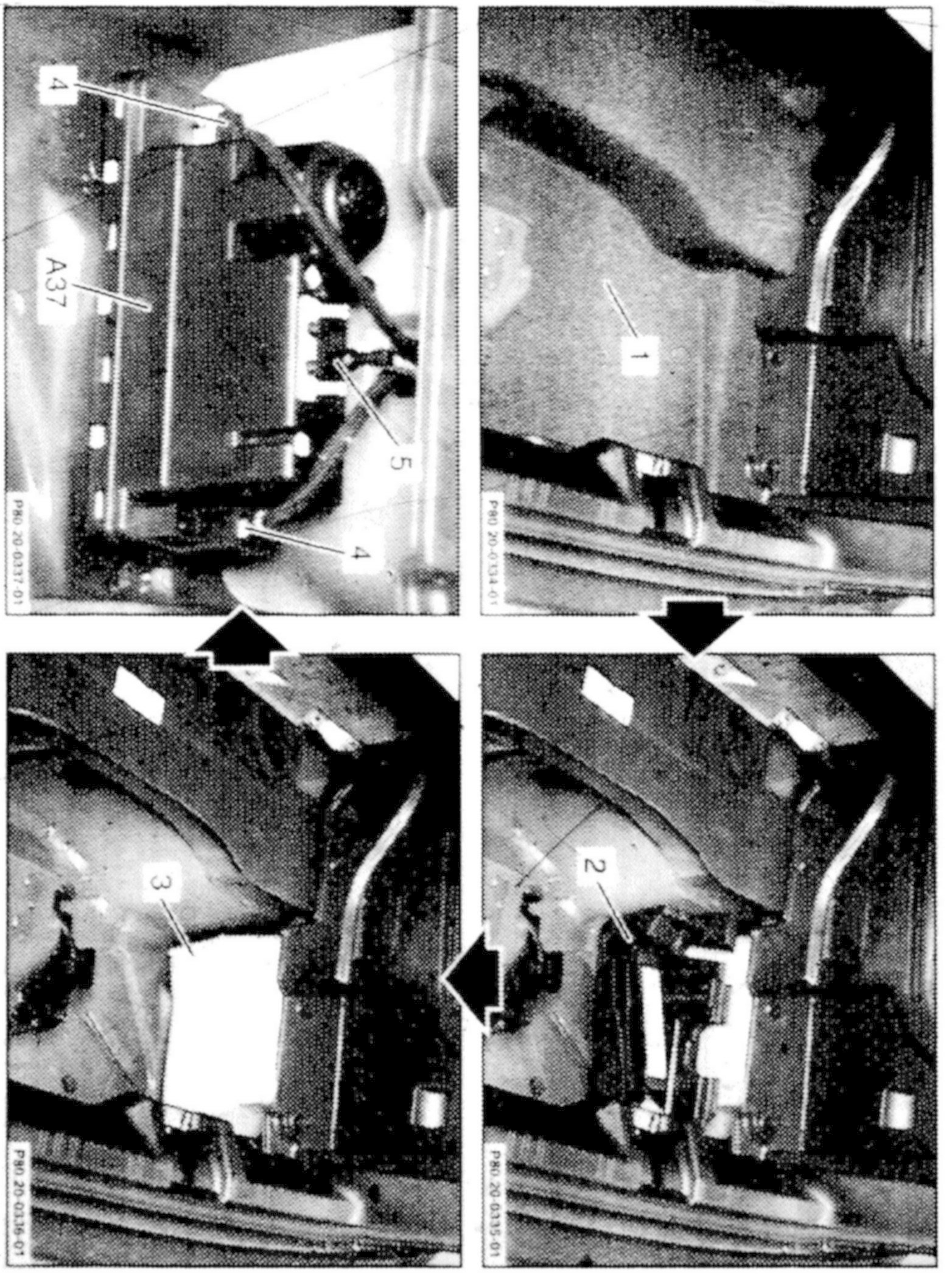

1 Floor covering in trunk
2 Car jack box
3 Foam block
4 Electrical connector
5 Pneumatic connection
A37 Pneumatic system equipment control module
