Home >> Mercedes Benz >> 2000 >> SLK 230 (170.447) L4-2.3L SC (111.973) >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Console >> Service and Repair >> Overhaul

Overhaul

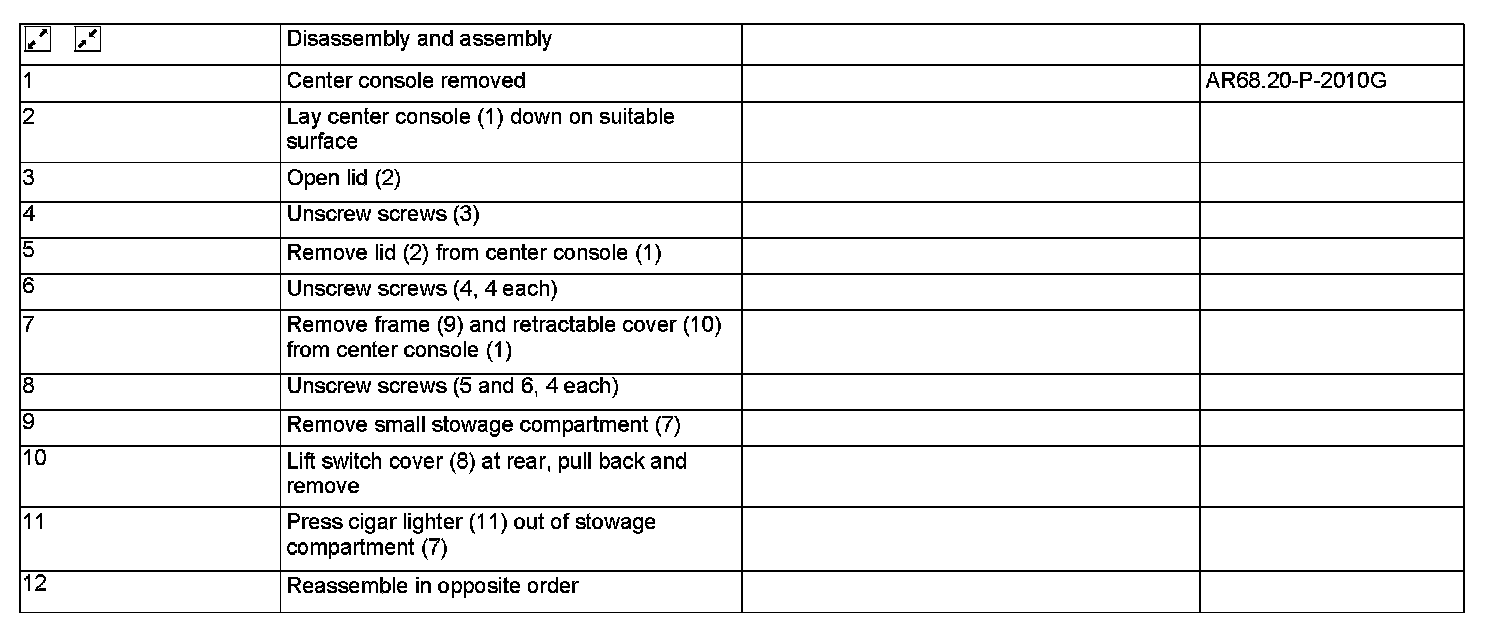

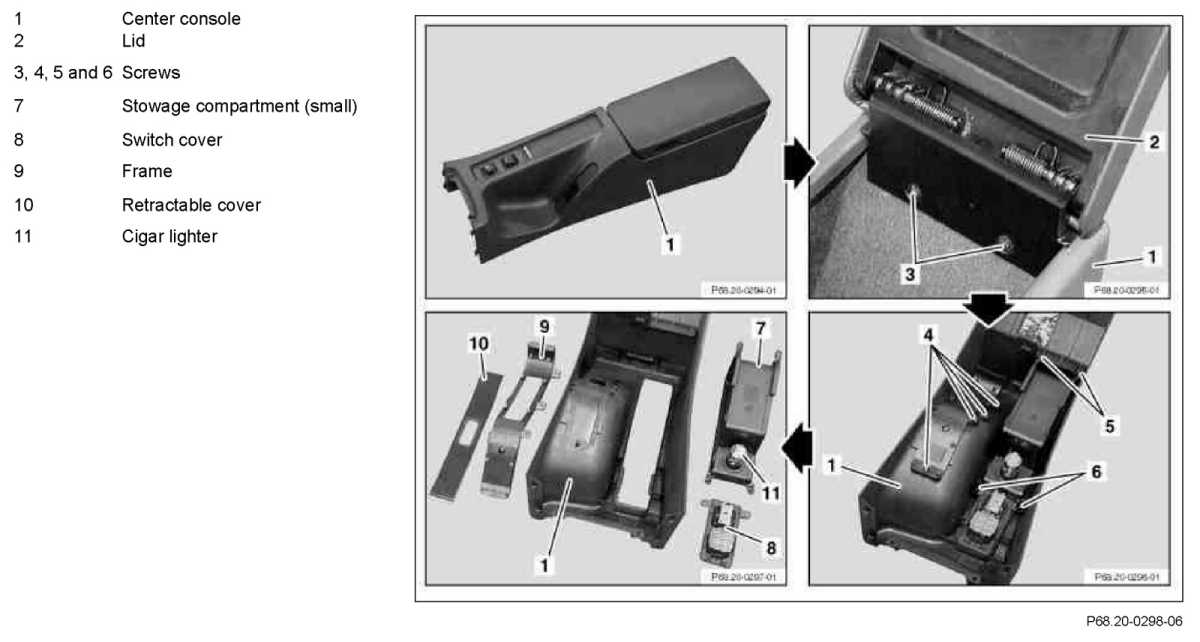

AR68.20-P-2150G Disassemble/Reassemble Center Console
