AR88.50-P-5020GA Remove/Install and Adjusting Trunk Lid Lock and Striker Eye



AR88.50-P-5020GA Removing, Installing and Adjusting Trunk Lid Lock and Striker Eye

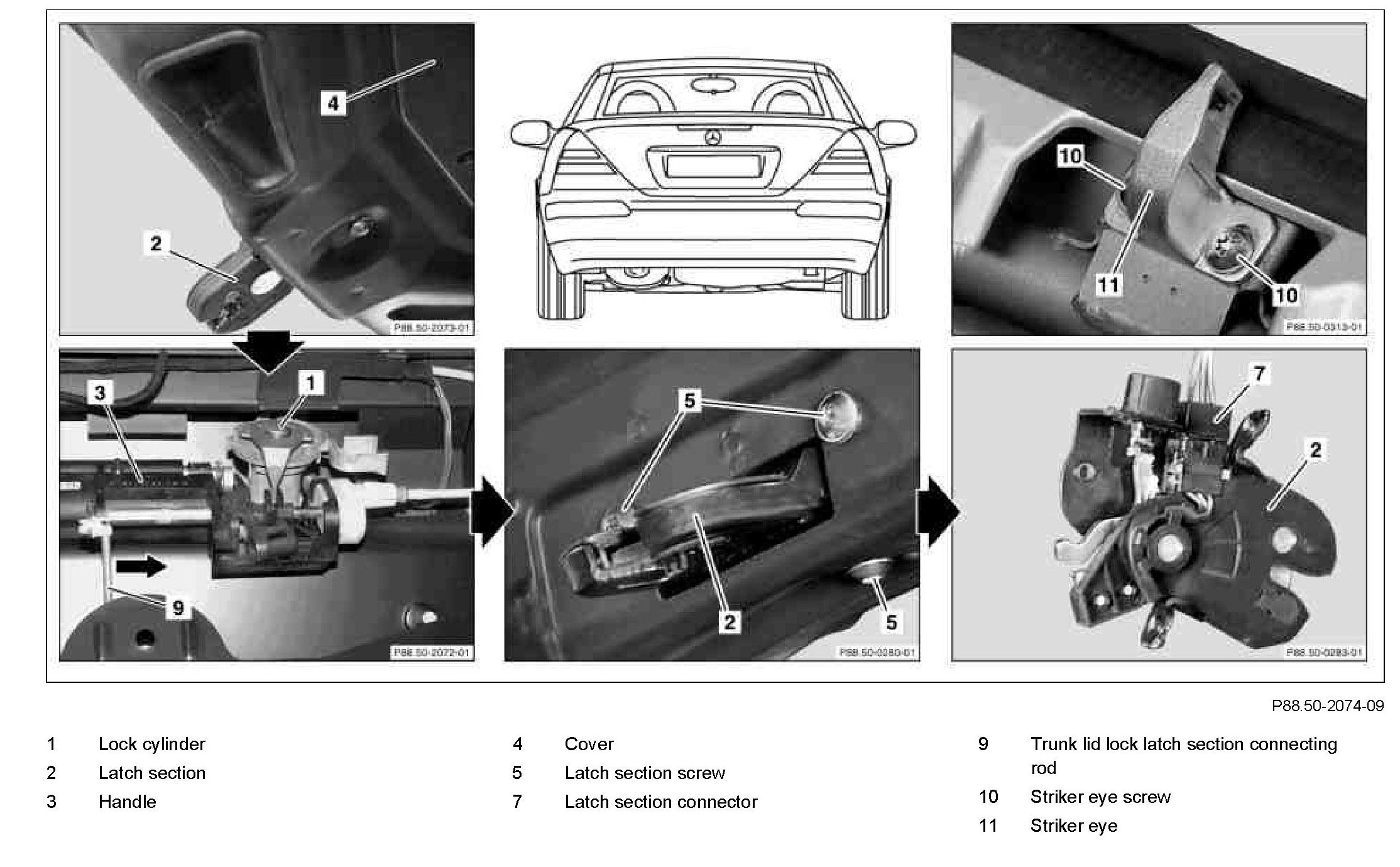

Component Identification:

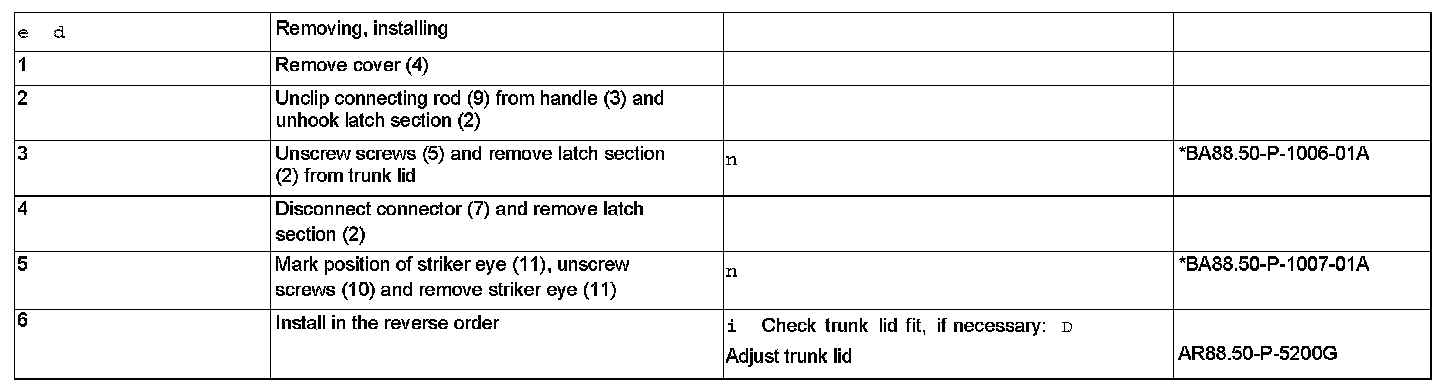

Steps 1 - 6:

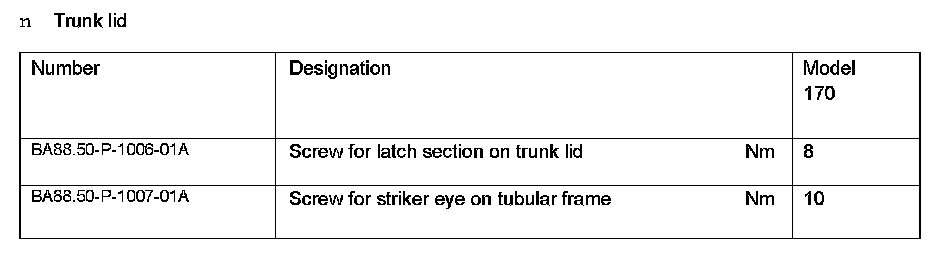

Trunk Lid:
