AR88.50-P-5020G Remove/Install/Adjust Trunk Lid Lock and Striker Eye



AR88.50-P-5020G Remove/Install/Adjust Trunk Lid Lock and Striker Eye

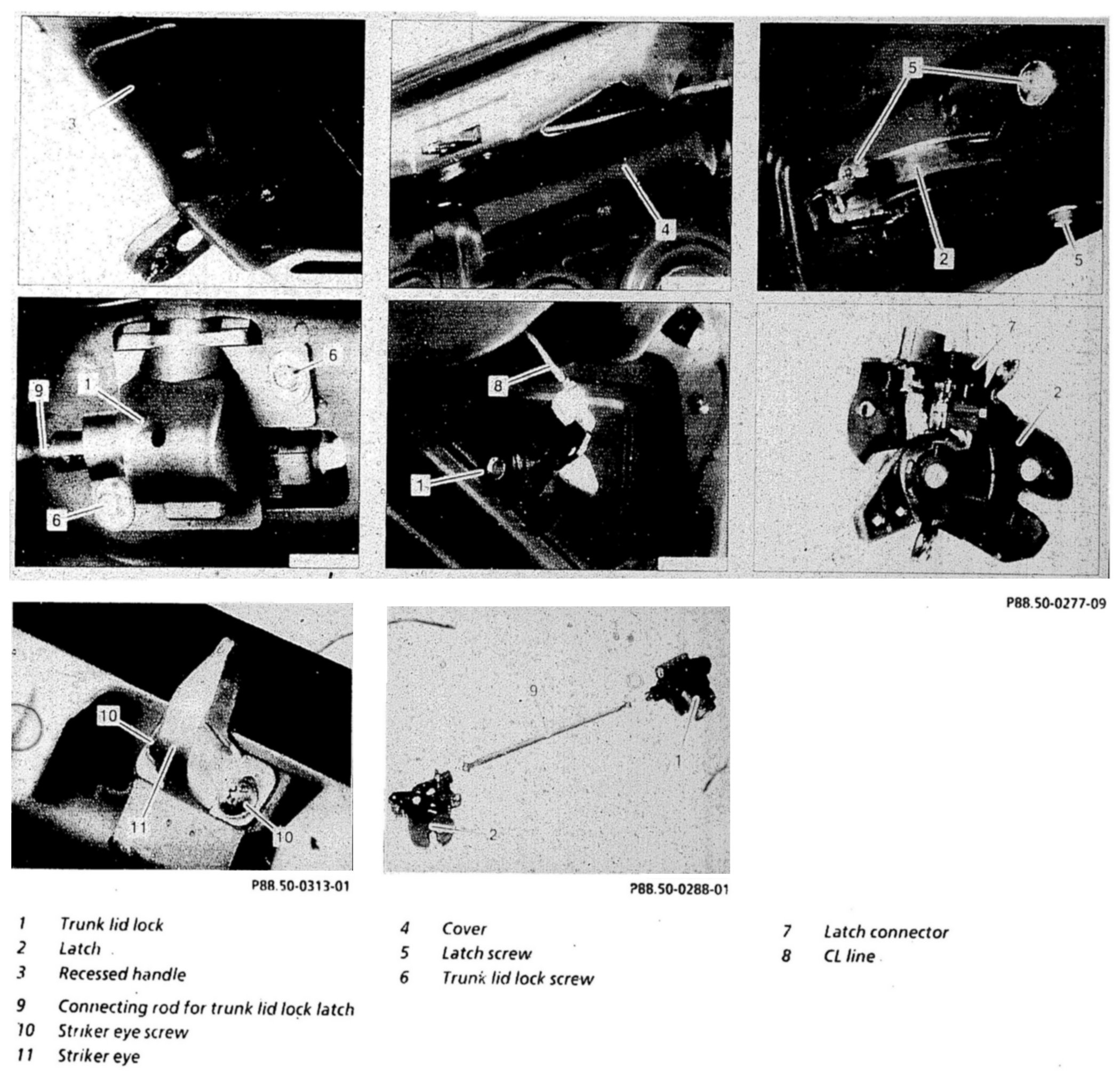

Component Identification:

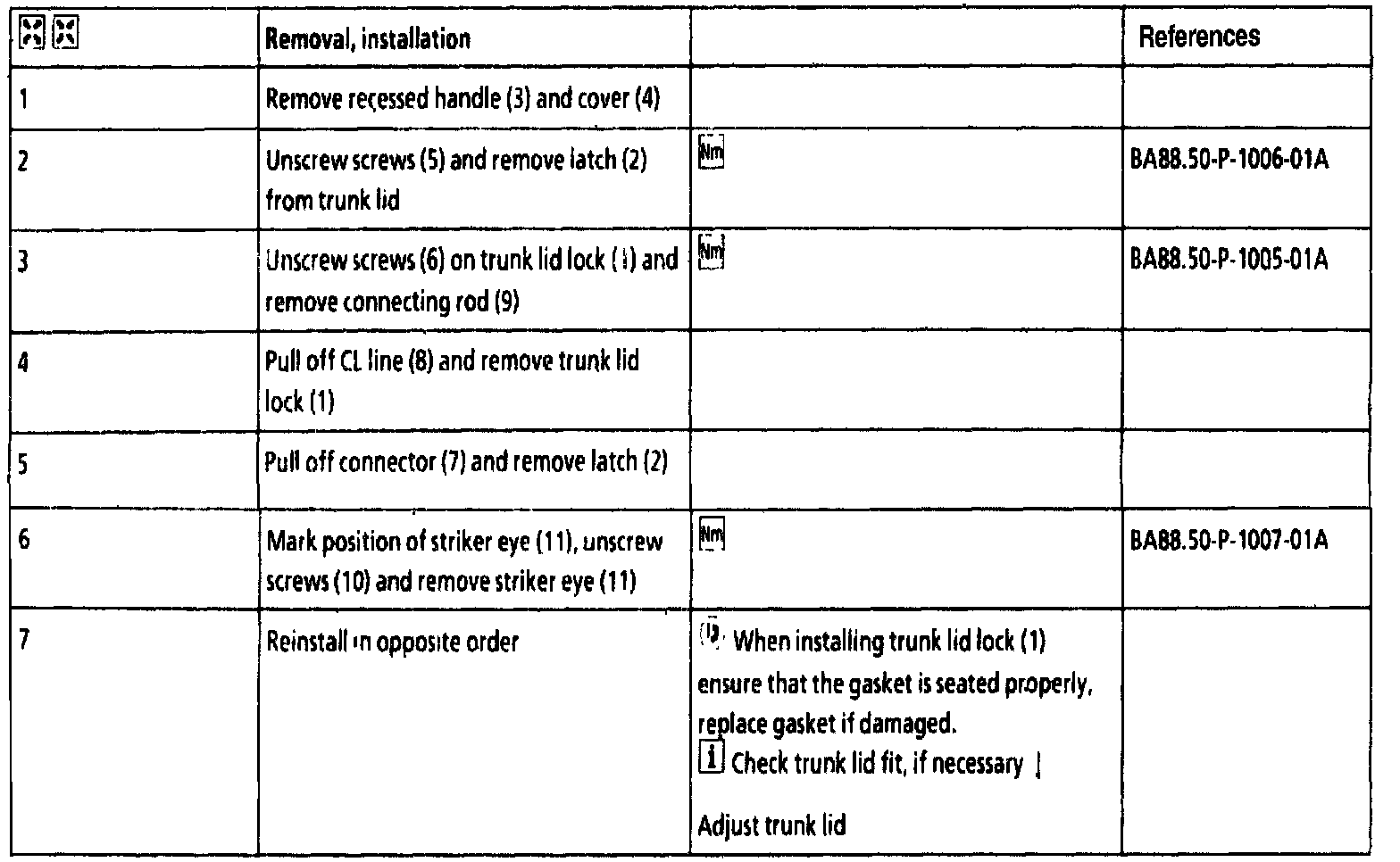

Removal/Installation:

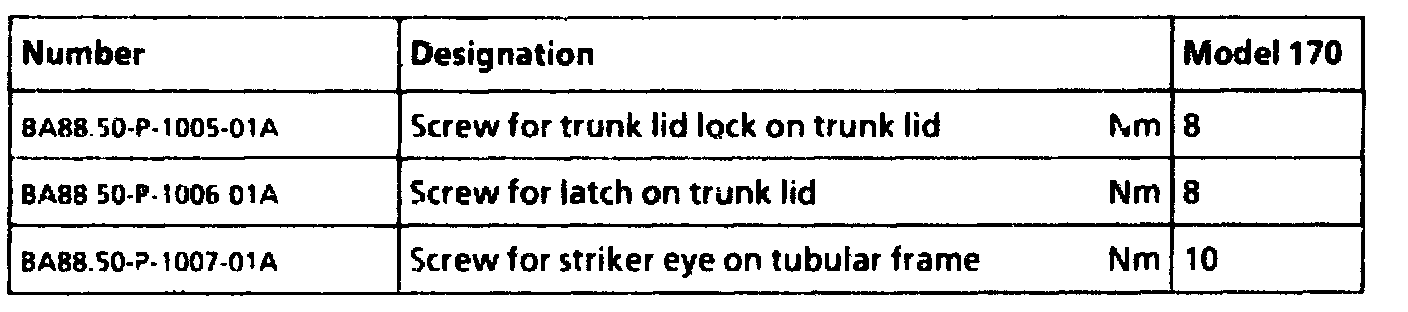

References (BA), Trunk Lid:
