AR88.40-P-3000G Remove/Install Engine
Hood

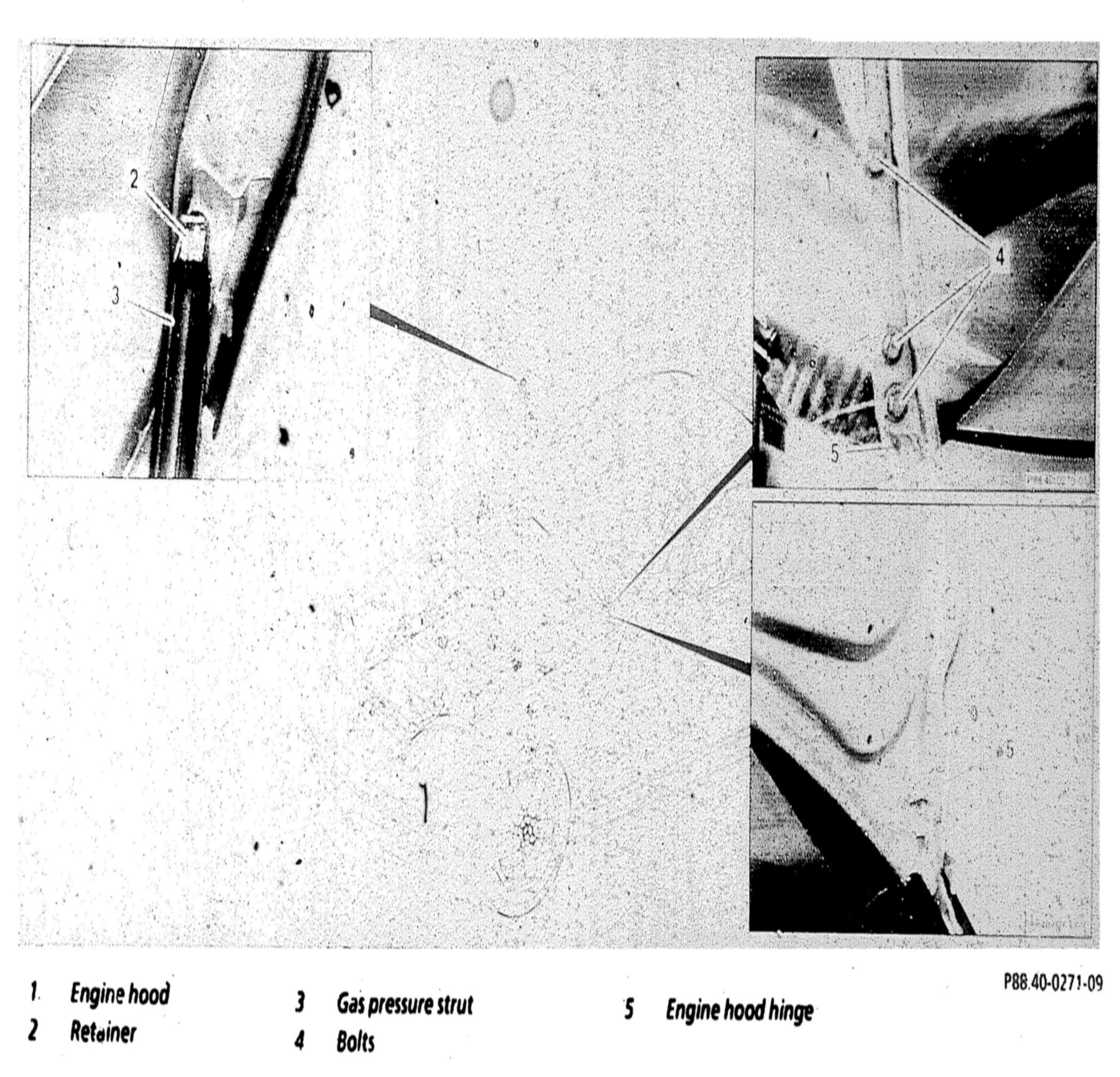

Component Identification:

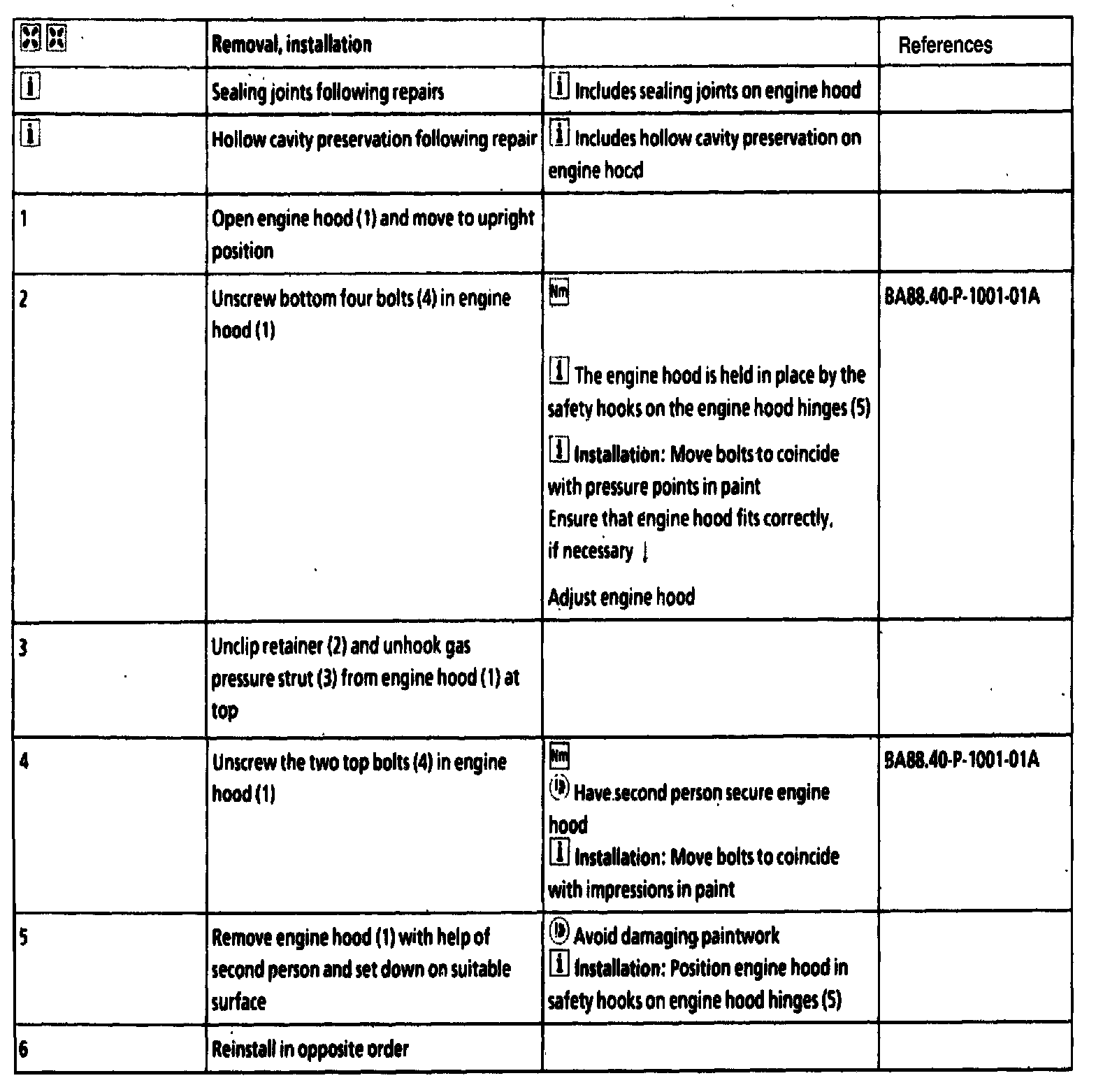

Removal/Installation:

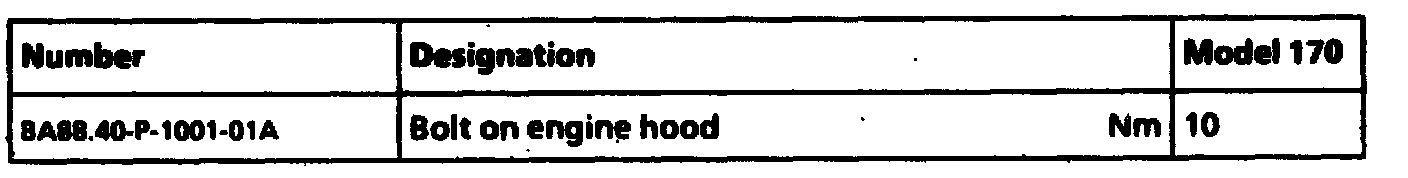

References (BA), Engine Hood:
