Survey of Electrical Valve Actuation

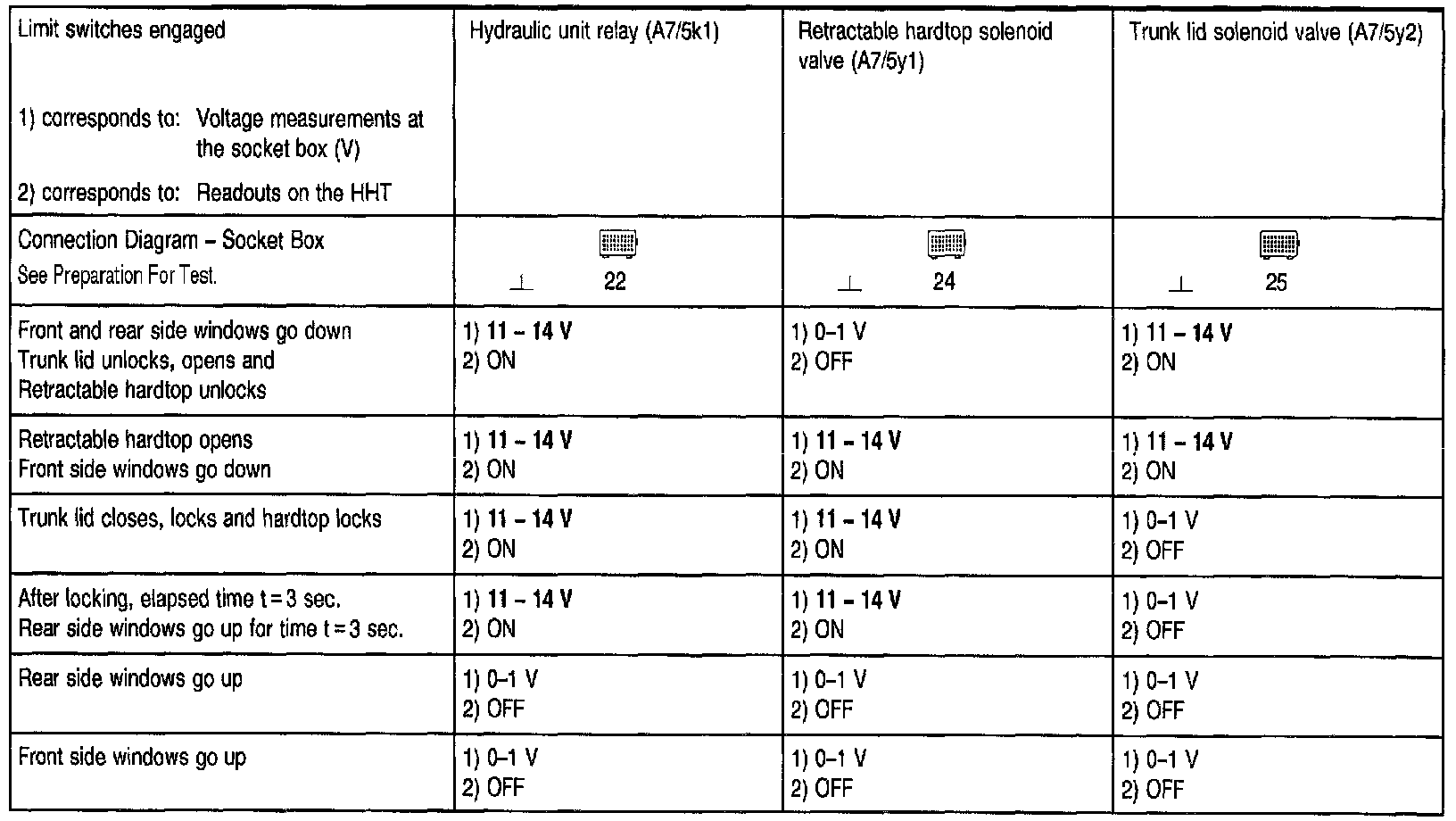

Operational Sequence, Retractable Hardtop Opening

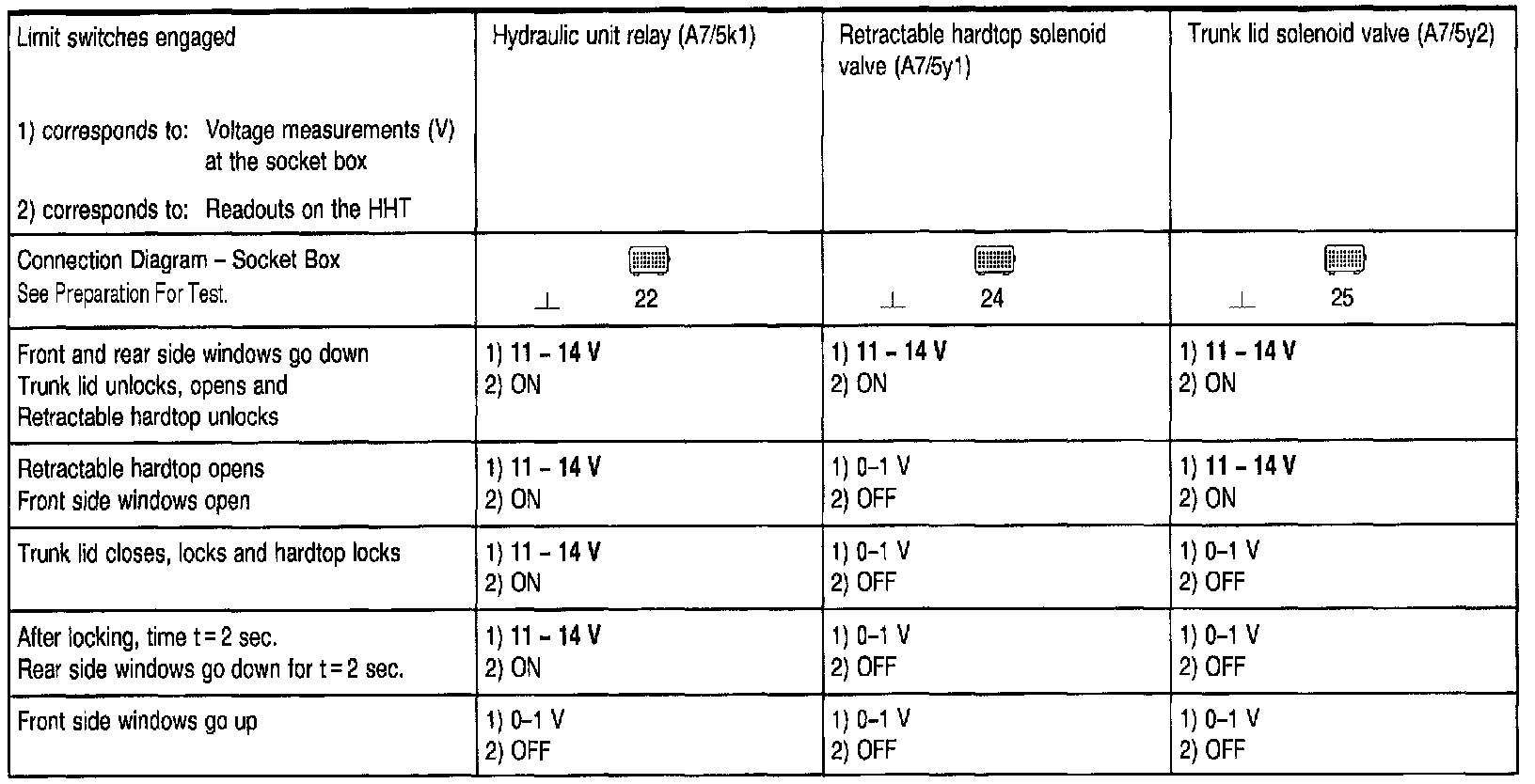

Operational Sequence, Retractable Hardtop Closing
