FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2000
>>
SLK 230 (170.447) L4-2.3L SC (111.973)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Body Control Systems
>>
Testing and Inspection
>>
Electric Mirror, Steering Column Adj., Heated Mirrors (EMSC)
>>
ETP - Electrical Test Program
>>
Test Steps
Test Steps

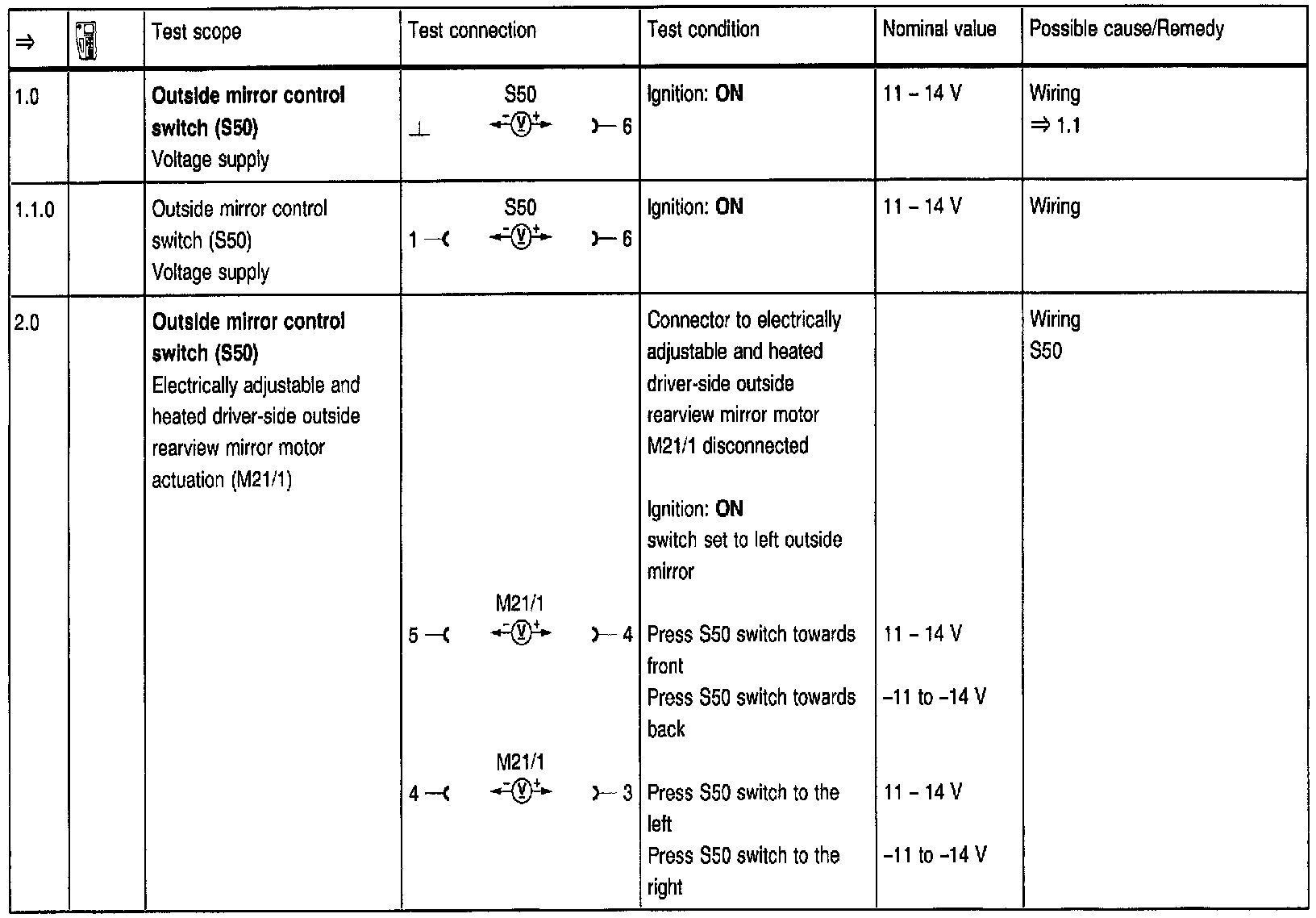

Test Steps 1.0 - 2.0:

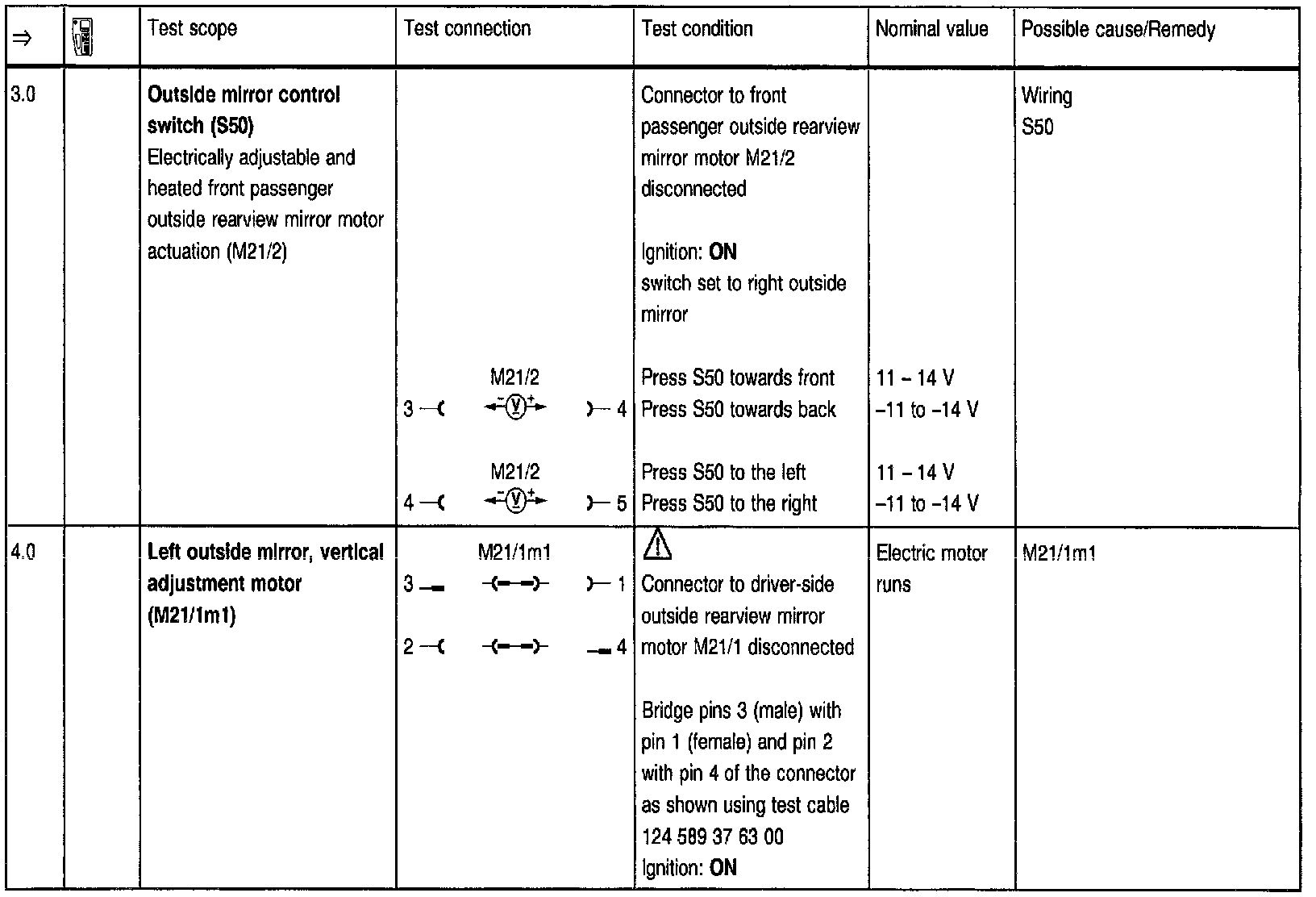

Test Steps 3.0 - 4.0:

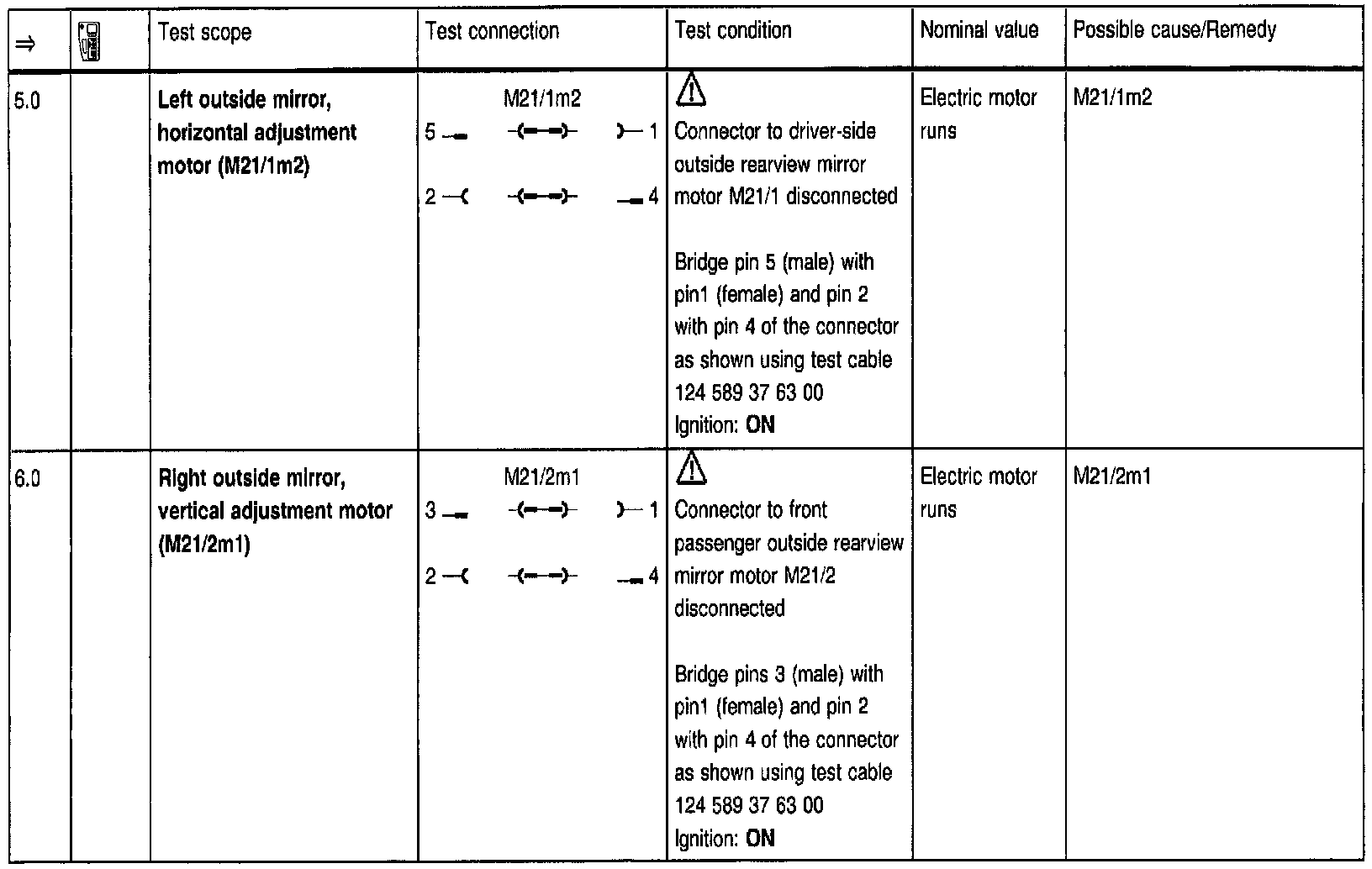

Test Steps 5.0 - 6.0:

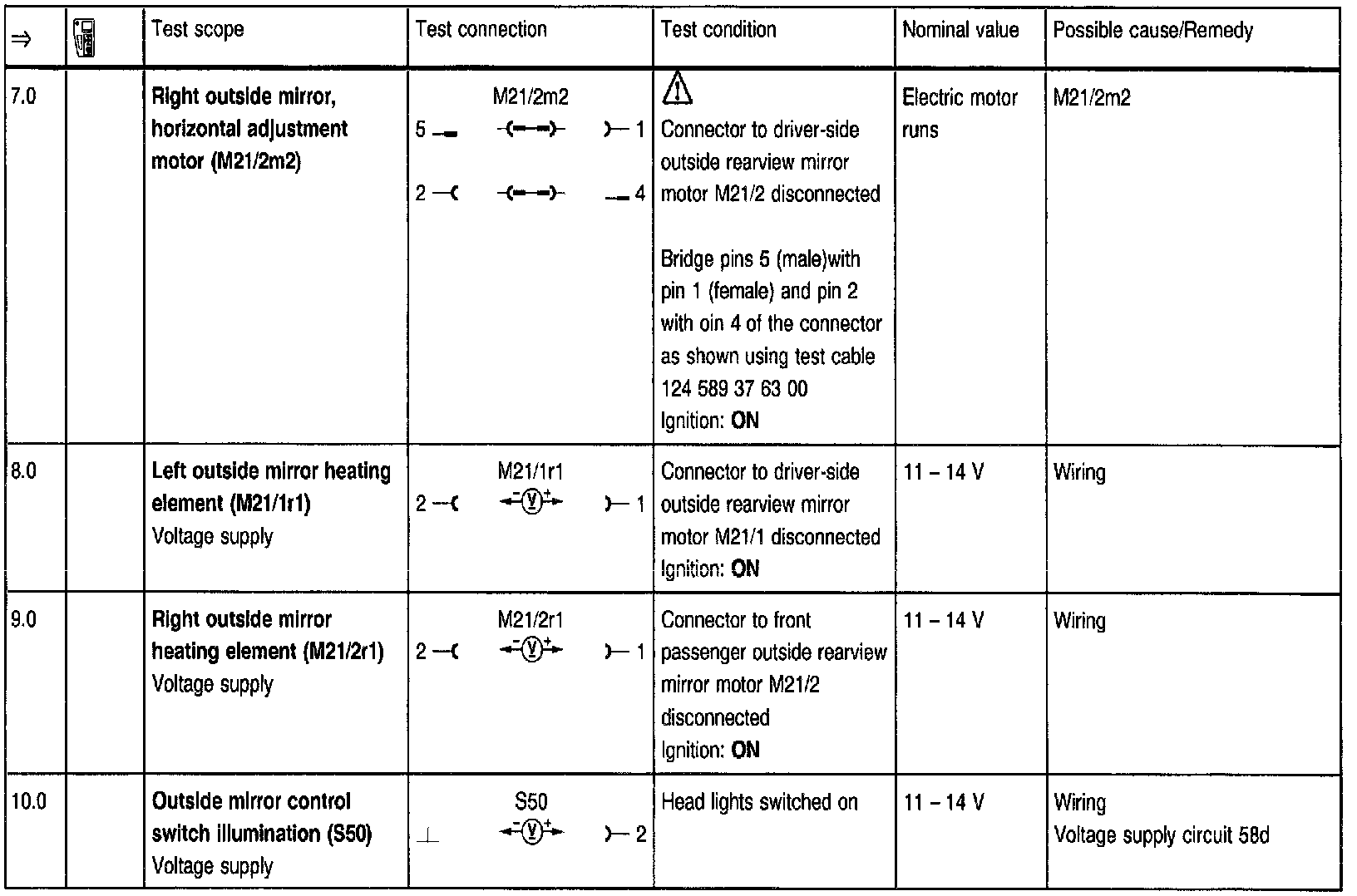

Test Steps 7.0 - 10.0:
