Preparation For Test

Preparation For Test:
1. Battery voltage 11 - 14 V,
2. Fuses OK,
3. Disconnect battery negative cable prior to disconnecting or connecting any connectors on the combination control module (N10-1 or N10-3) (fault codes will be otherwise stored in DTC memory in error).

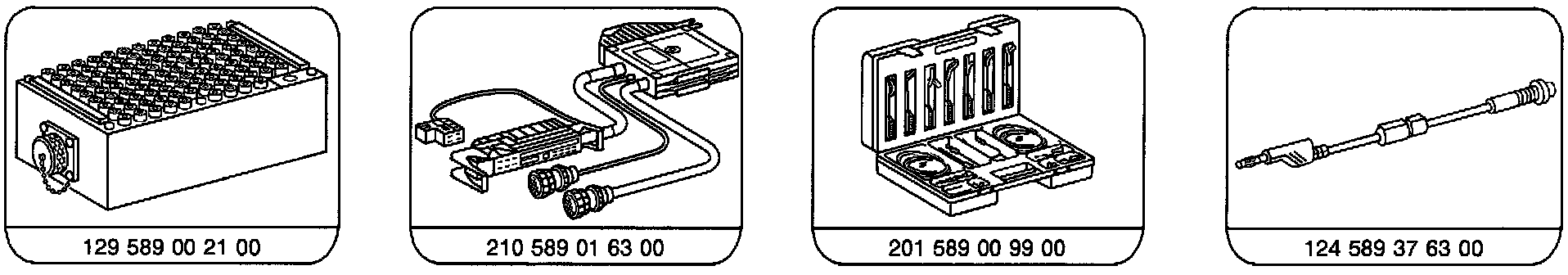

Special Tools:

Conventional Tools, test equipment
Description Brand, model, etc.
Multimeter 1) Fluke models 23, 83, 85, 87

1) Available through the MBNA Standard Equipment Program.


Connection Diagrams - Socket Box

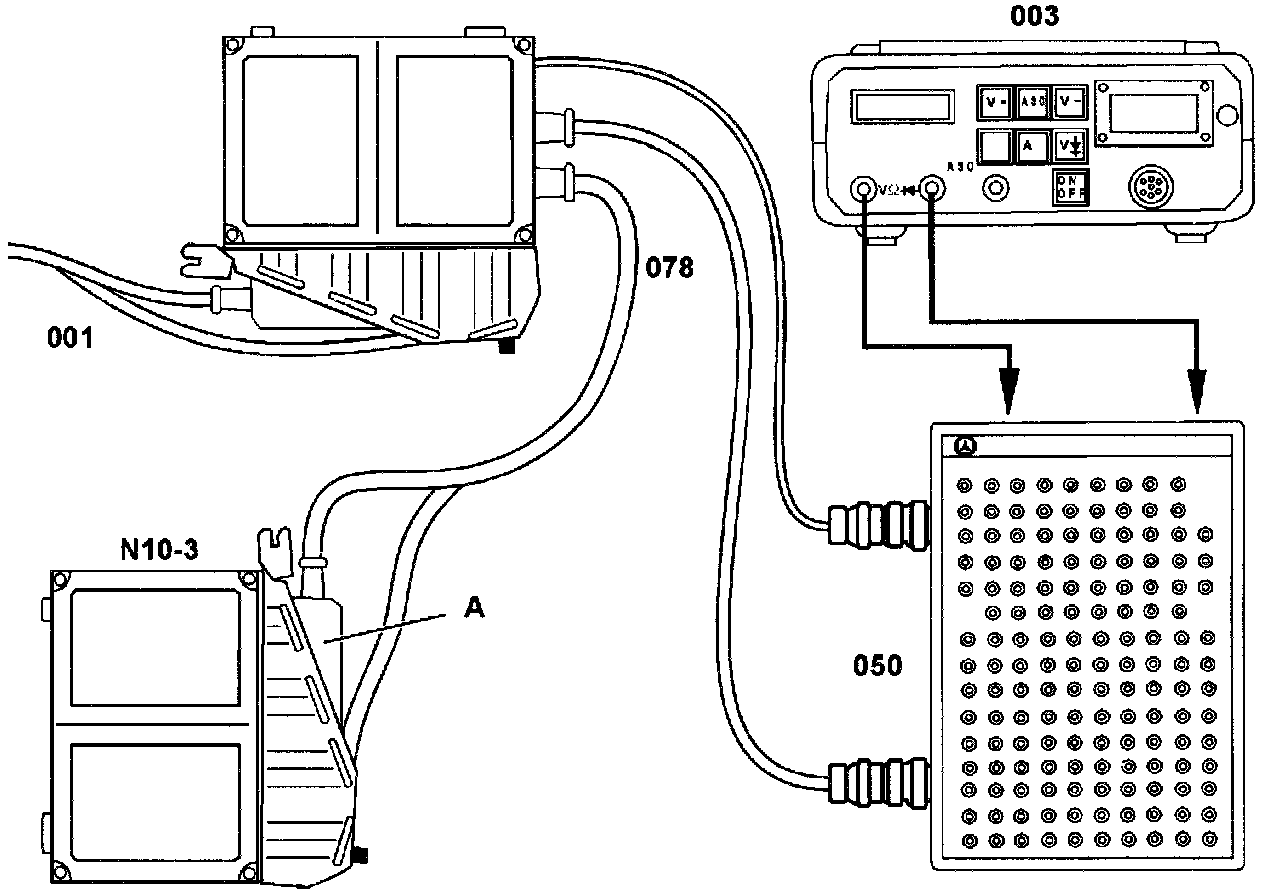

Model 170:

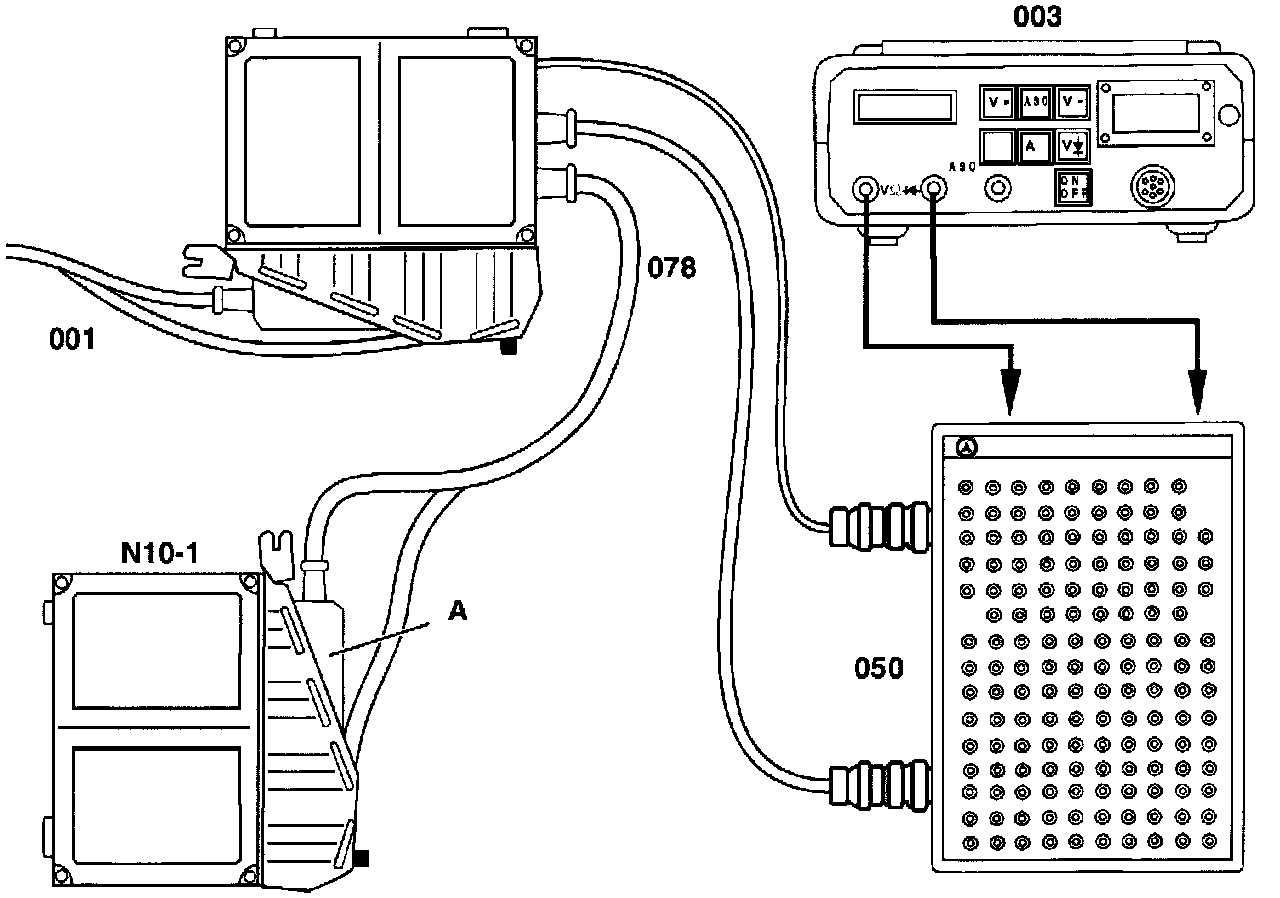

Model 210:

001 Vehicle harness
003 Multimeter
050 Socket box (126-pole)
078 Test cable 210 589 01 63 00
A Coupling (63 pole)
N10-1 Combination control module (model 210)
N10-3 Combination control module (model 170)
