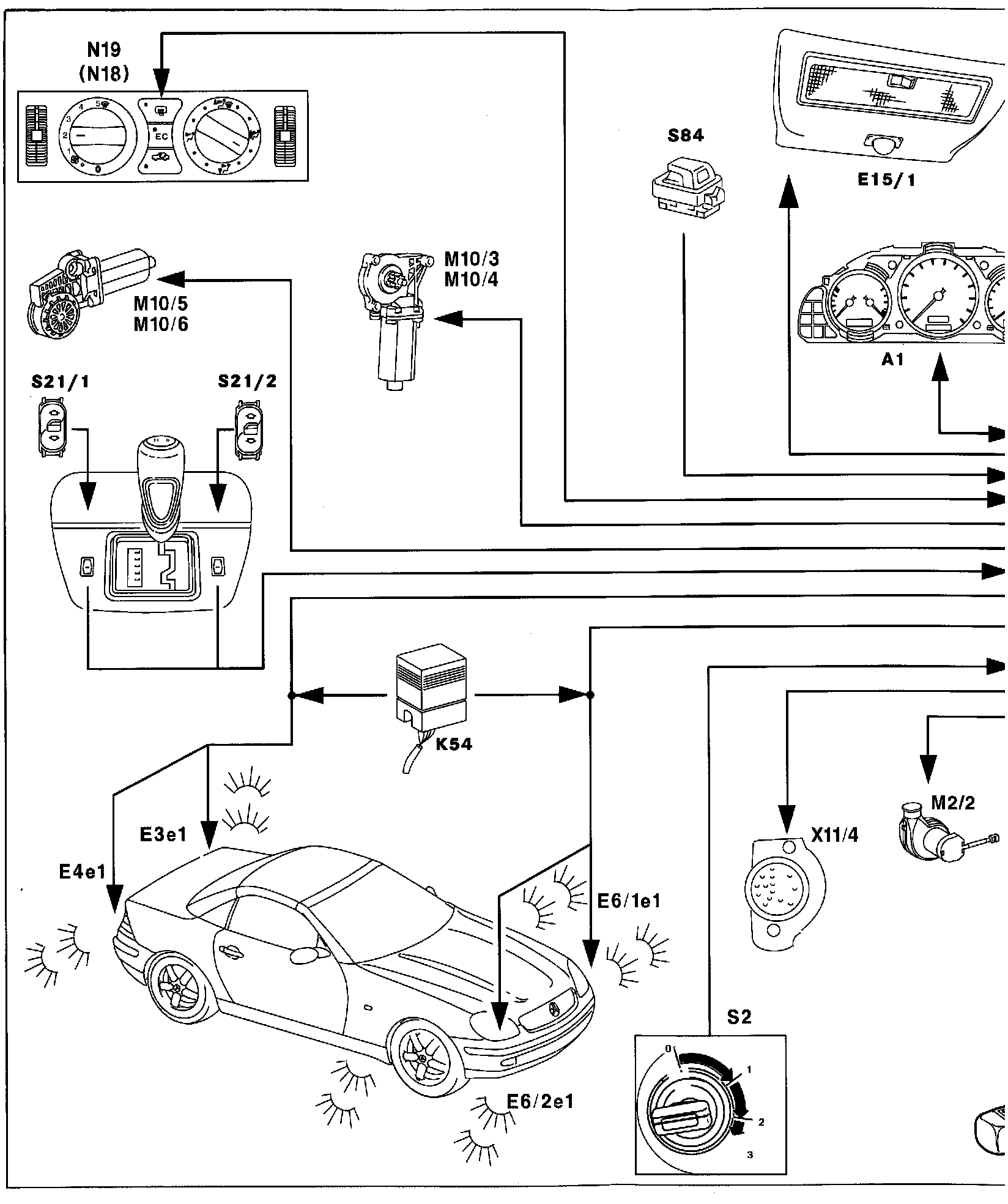

Connections of Components

%�<�I�<ȕ�<:

A1 Instrument cluster
A7/5 Retractable hardtop hydraulic unit
A26/9 RCL receiver (roof frame)
A37 PSE control module, combined functions
E3e1 Turn signal lamp
E4e1 Turn signal lamp
E6/1e1 Turn signal
E6/2e1 Turn signal
E15/1 Front dome light (with switch)
E18/1 Trunk lamp
H3 Alarm horn
K54 Locking confirmation relay module
L6/1 Left front axle VSS sensor
L11 Transponder coil
M2/2 Module box blower motor
M6/1 Wiper motor
M10/3 Left front power window motor (voltage supply)
M10/4 Right front power window motor (voltage supply)
M10/5 Left rear power window motor
M10/6 Right rear power window motor
N7 Exterior lamp failure monitoring module
N10-3 Combination control module
N19/1 A/C pushbutton control module (Tempmatic)
N47 Traction systems control module
N54 RCL control module
R1 Rear window defroster element
S2 Starter switch
S4 Combination switch
S6/1s2 Interior switch (CL)
S9/1 Stop lamp switch (4-pole)
S17/3 Left front door switch
S17/4 Right front door switch
S17/8 Trunk lamp switch
S21/1 Left front power window switch (front center console )
S21/2 Right front power window switch (front center console)
S62 Engine hood switch (ATA)
S69/1 Retractable hardtop closed limit switch (right pin)
S69/2 Retractable hardtop locked limit switch (right rotary switch)
S69/3 Retractable hardtop locked limit switch (left rotary switch)
S69/7 Trunk lid closed/locked left limit switch
S69/8 Trunk lid closed/locked right limit switch
S69/9 Trunk lid open limit switch
S69/10 Trunk divider closed limit switch
S69/11 Retractable hardtop open/stored limit switch
S69/12 Rotary latch selector switch, trunk lock/trunk illumination
S84 Power soft top switch
S85/3 ATA status/towing protection switch
S86/1 Left front door lock switch (CF) (USA)
S88/2 Rotary tumbler/trunk lid microswitch (USA)
X11/4 Data link connector (DTC readout)

A CAN-version
SN1 Lock switch circuit 1 (disarm)
SN2 Lock switch circuit 2 (arm)
1 Engine control module
2 IR transmitter key
