Drive Authorization System (DAS) PE80.57-U-2000RA (As of 03/00)
Drive Authorization System (DAS) PE80.57-U-2000RA (As of 03/00)
Drive Authorization System (DAS) From 3/1/00

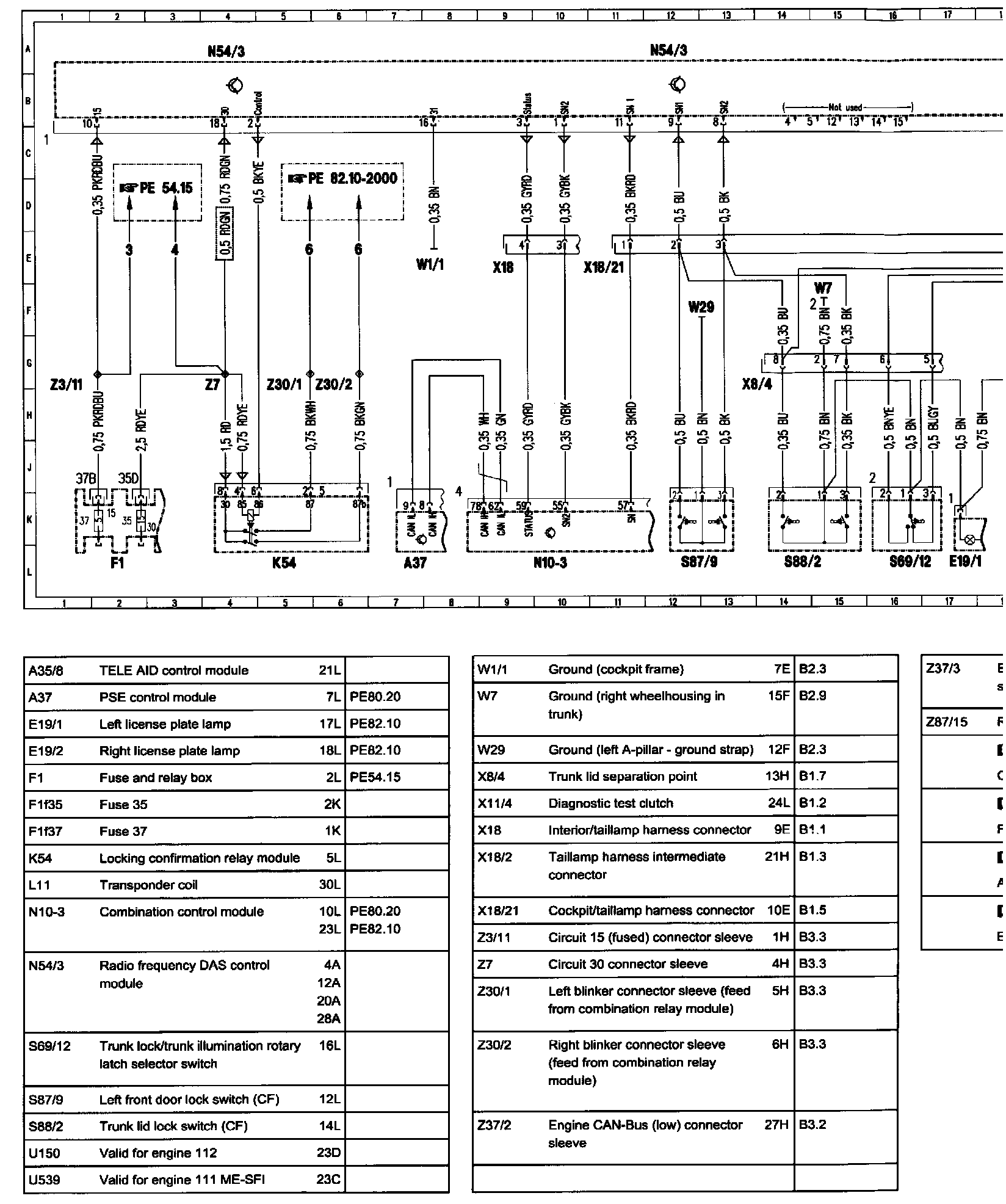

)8Wiring Diagram:

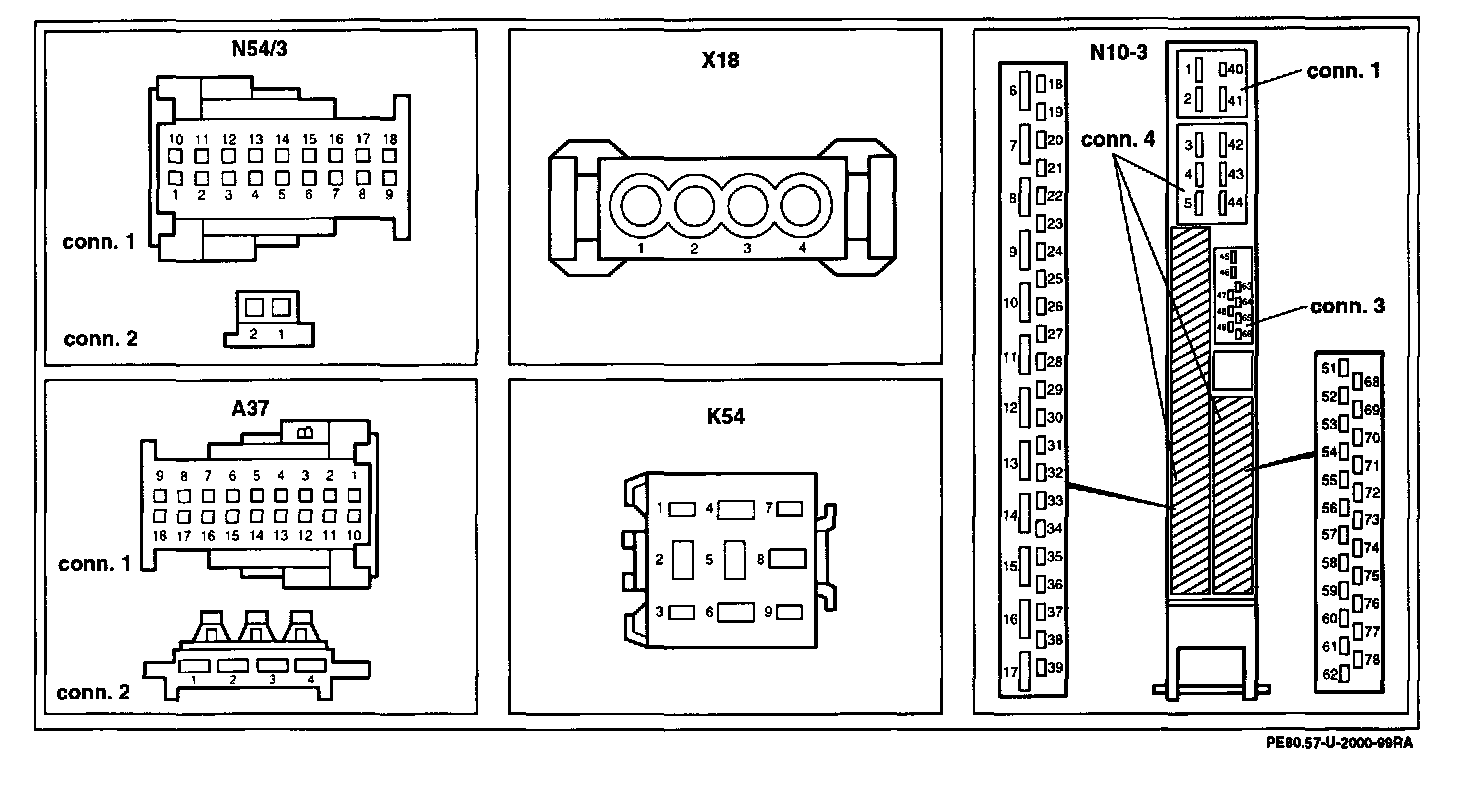

Connector Assignment:

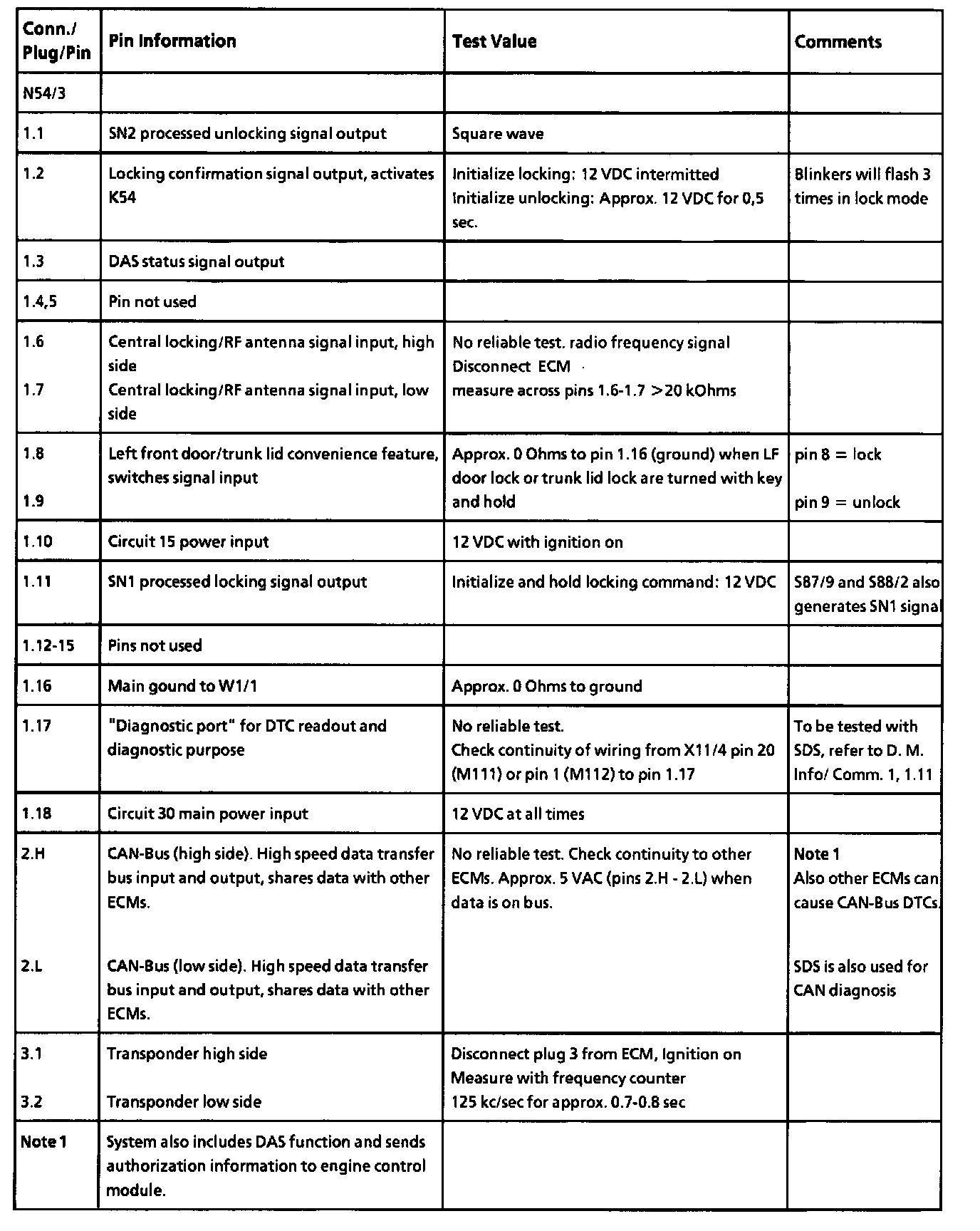

Pin Information:
