Window Track: Service and Repair

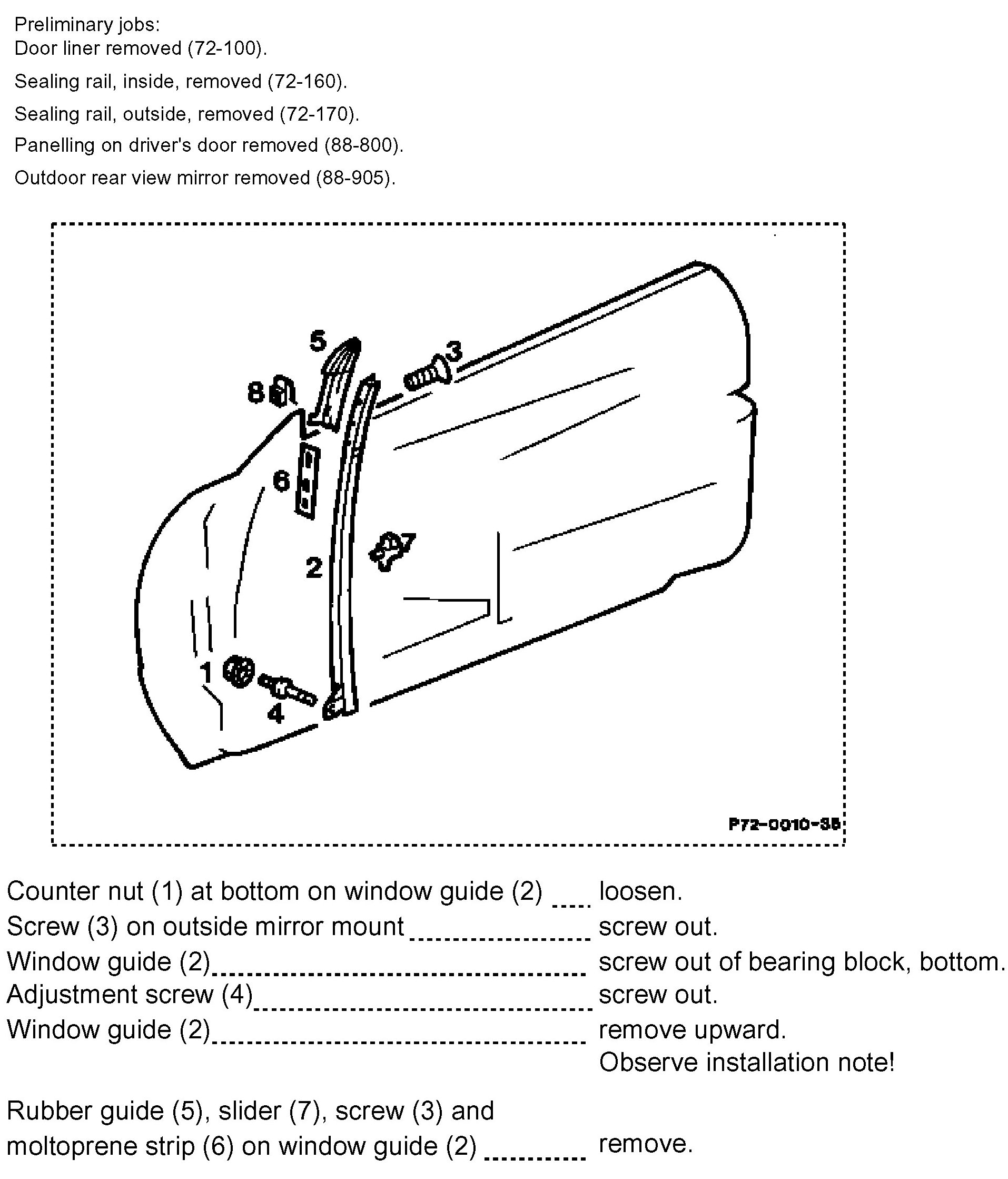

72-200 Removal And Installation Of Window Guide, Front










Installation note
After installing the window guide adjust the bottom adjustment screw so that the window is located in the center of the door recess opening.
Check window adjustment (72-195).
Coat window guides and sliding jaws with MB lubricant paste, part no. 001 989 14 51.
