AR67.20-P-2000-04CA Aligning Rear Window In Body Opening

AR67.20-P-2000-04CA Aligning Rear Window In Body Opening
(Model 129 with CODE 415a Glass Roof)

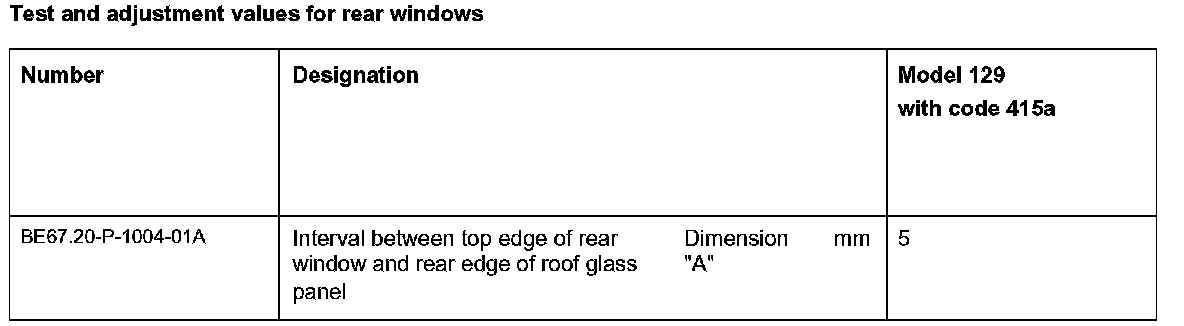

Test And Adjustment Values For Rear Windows:

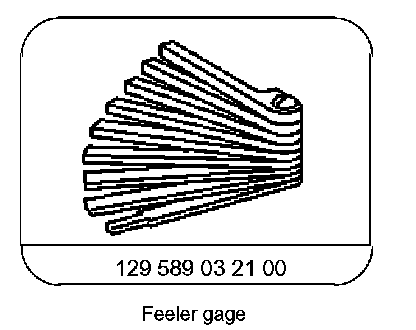

Special Tools:

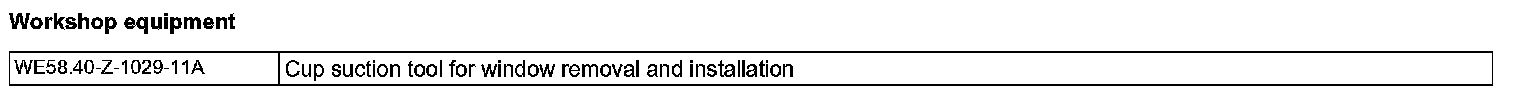

Workshop Equipment:

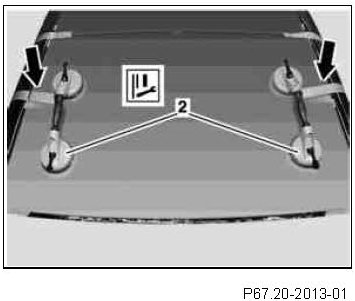

1. Attach suction cups (2) to rear window.

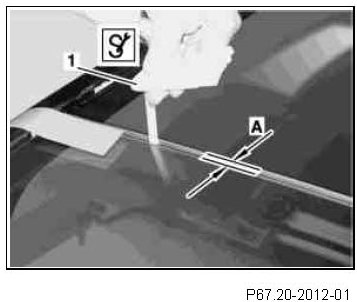

2. Position rear window on gluing flange, center and adjust interval to roof glass panel with feeler gage (1).

Measure dimension "A" between top edge of rear window and rear edge of roof glass panel, whereby the rear window and the roof glass panel should be flush at the side.

3. Attach strips of tape (arrows), cut through at side edge of window and remove window.
