AR67.20-P-2000-03C Replacing Rubber Spacers

AR67.20-P-2000-03C Replacing Rubber Spacers
(Model 129 with CODE 415a Glass Roof)

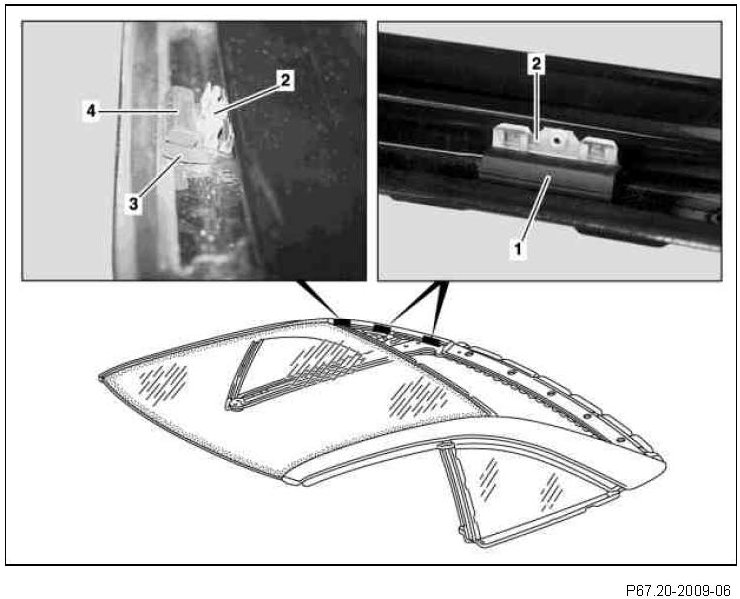

1. Replace rubber spacers (1) on insert clips (2).
2. Cut through rubber spacers for top of windshield at separation point, remove upper section (4) and insert bottom section (3) next to insert clip (2).
