Adjust Shift Lock Play

ADJUSTMENT

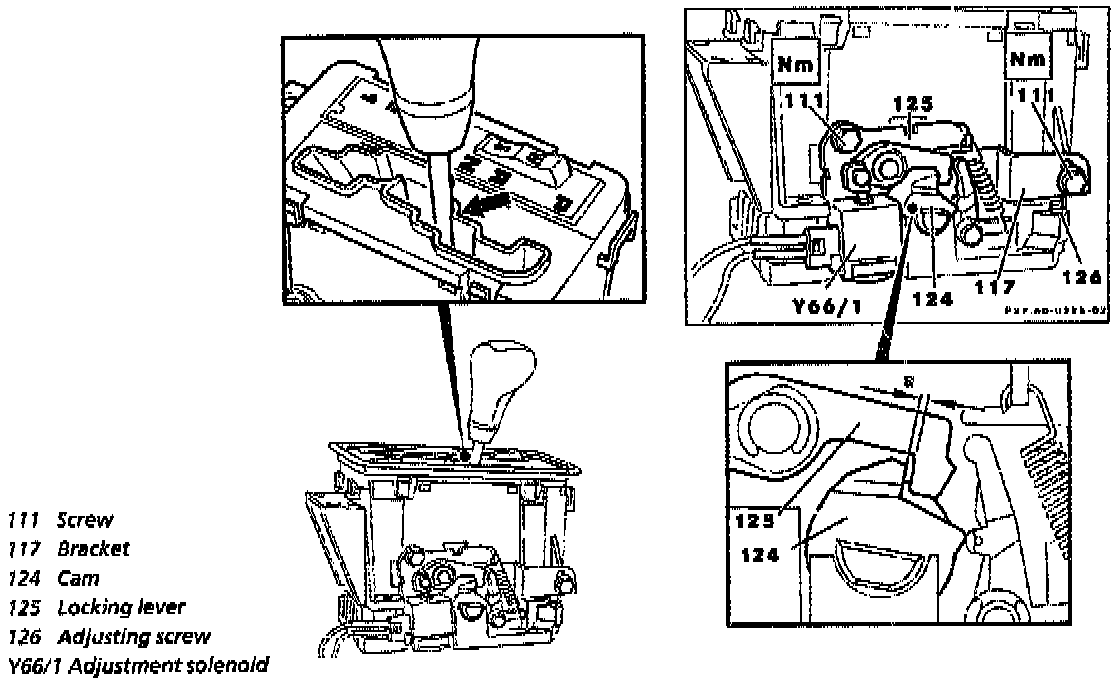

1. Place selector lever in position N
2. Using electrical connection set tool No. 201 589 00 99 00, or equivalent, apply battery voltage of 11-14V to adjustment solenoid (Y66/1)
3. Loosen screw (111)
4. Adjust gap dimension "a" between locking lever (125) and cam (124) using adjusting screw (126)
- Dimension "a" specification: 0.20 mm
5. Tighten screw (111)
