Preparation For Test - Section 22

1. Ignition: OFF

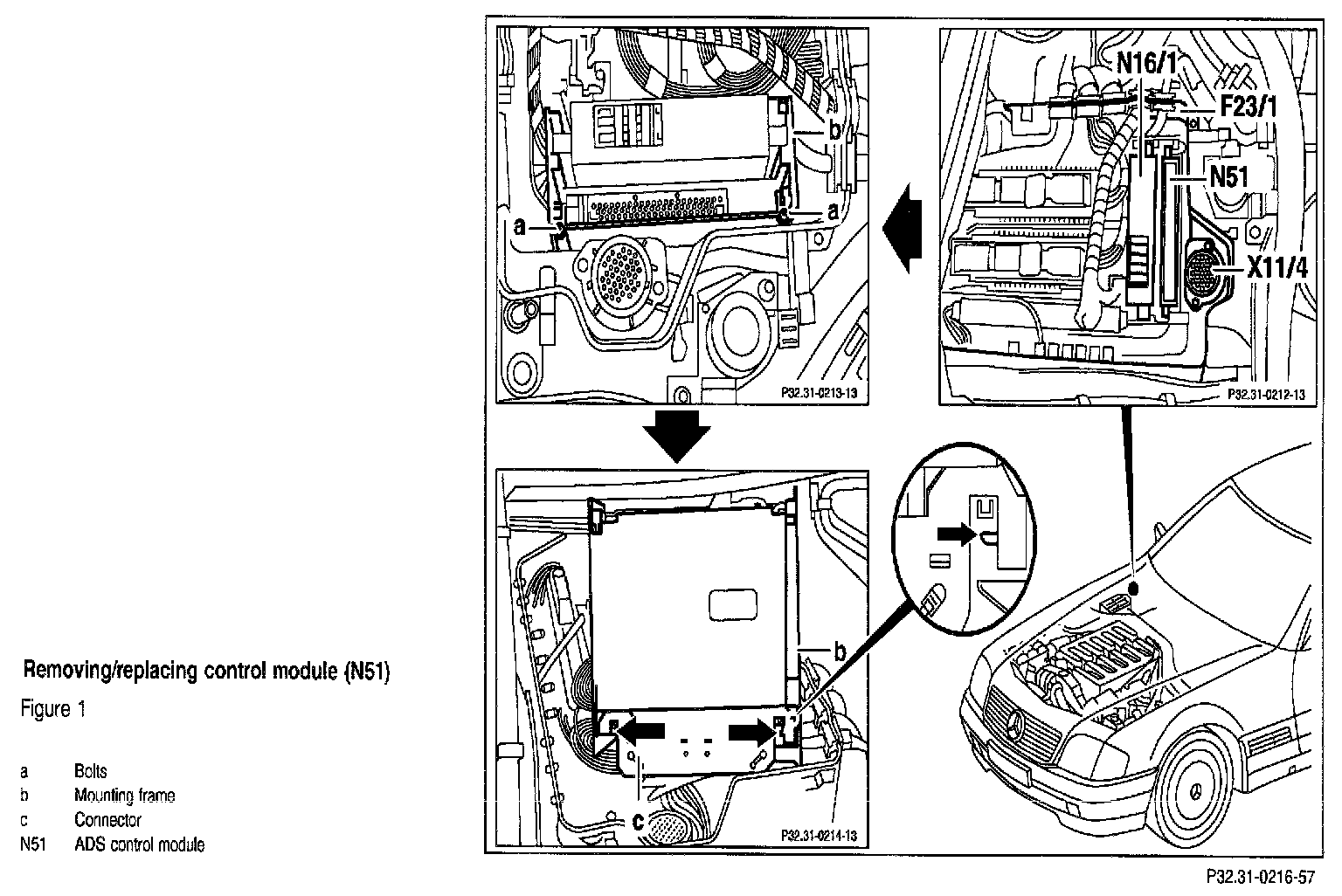

2. Remove ADS control module (N51) (Figure 1).
3. Remove bolts (a) and frame (b).

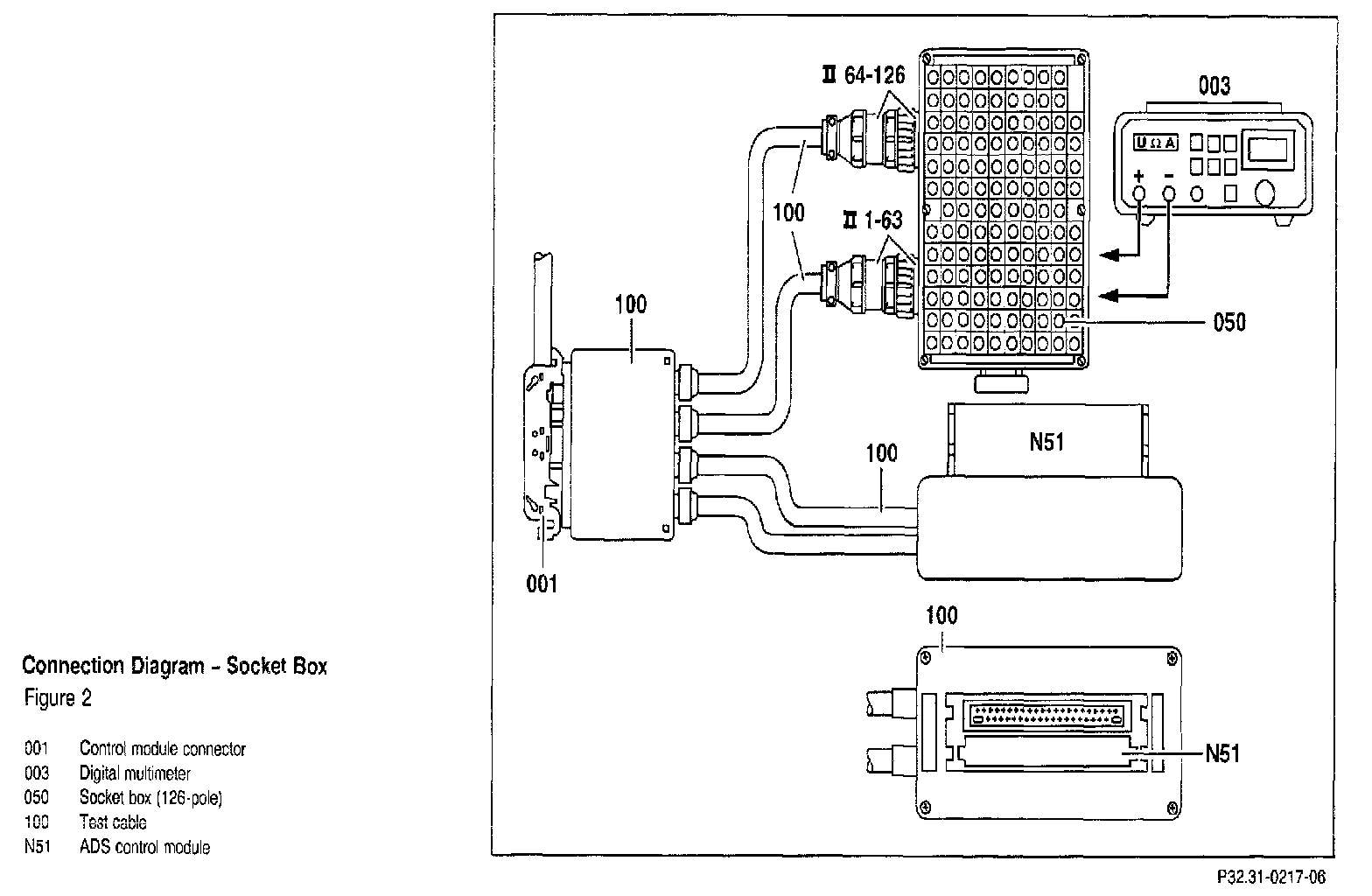

4. Unclip electrical connector (c, arrows) at frame (b) and remove.
5. Connect socket box and test cables (Figure 2).

NOTE: An ADS control module (N51) marked with a red paint dot has been reprogrammed. Upon replacement, the level must be checked, adjusted, and new control module must be reprogrammed using the HHT (refer to Section 11 and HHT menu selection "Programming"). After reprogramming control module, mark control module with red paint dot for identification purposes.

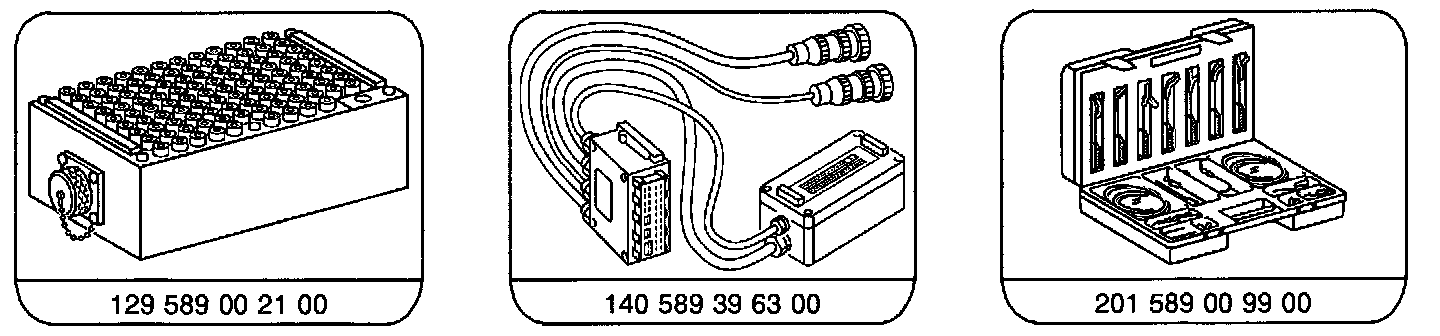

Special Tools:

Test equipment:
Description Brand, model, etc.
Digital multimeter Fluke models 23, 77 III, 83, 85, 87

Figure 1:

Figure 2:
