Complaint Related Diagnostic Chart - Section 13

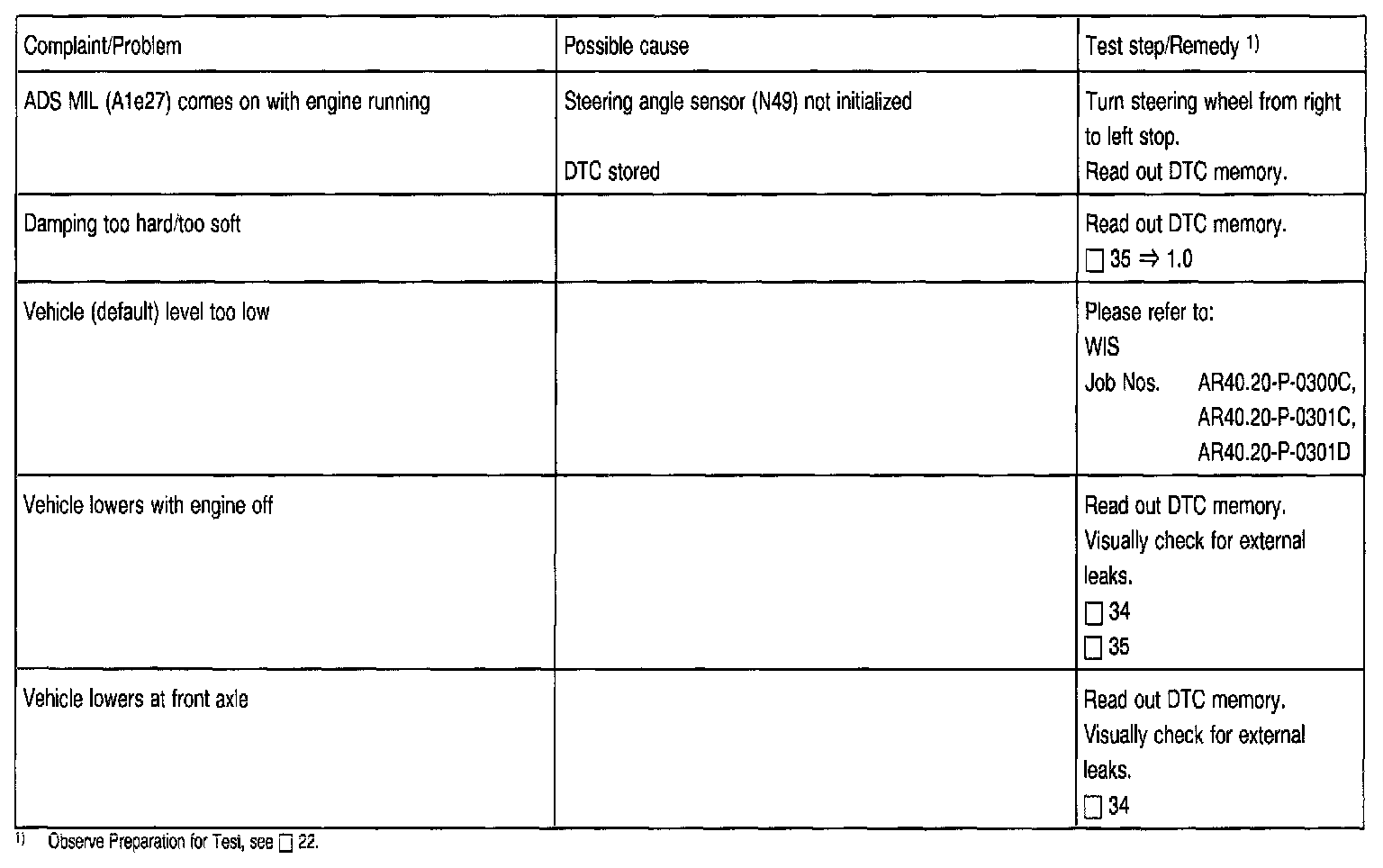

Chart 1:

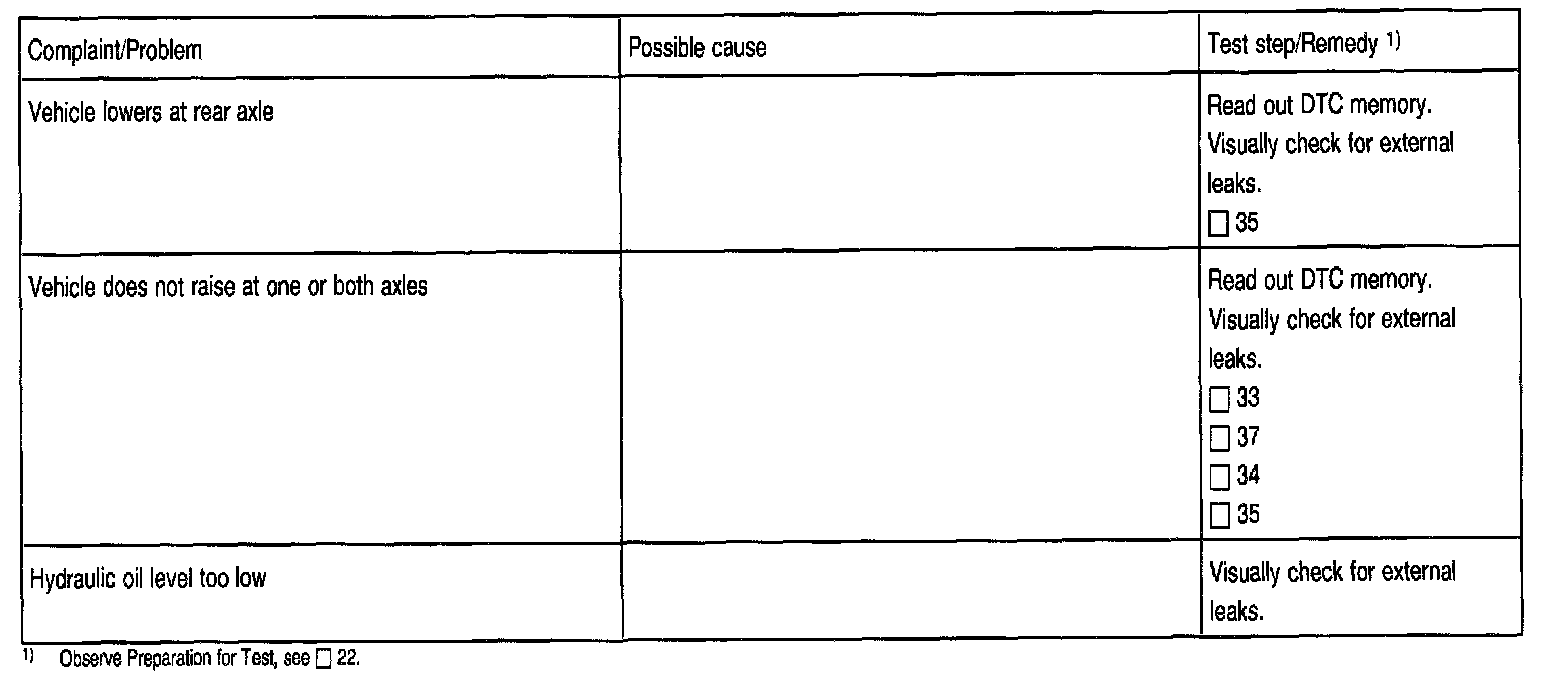

Chart 2:

Please refer to the Alldata equivalent for the Procedures below.

References to WIS:
Job Nos. Description
AR40.20-P-0301D Checking vehicle level at front and rear axles with electronic clinometer and adjusting if necessary. Models 210.08 /28 /6

AR40.20-P-0301C Checking vehicle level at front and rear axles with electronic clinometer and adjusting if necessary. Models 210.00 /01 /02 /03 /04 /05 /06 /07 /20 /21 /22 /23 /24 /26 /27

AR40.20-P-0300C Checking vehicle level at front and rear axles. Models 210.00 /01 /02 /03 /04 /05 /06 /07 /20 /21 /22 /23 /24 /26 /27
