Replace Level Control Valve

Replace Level Control Valve

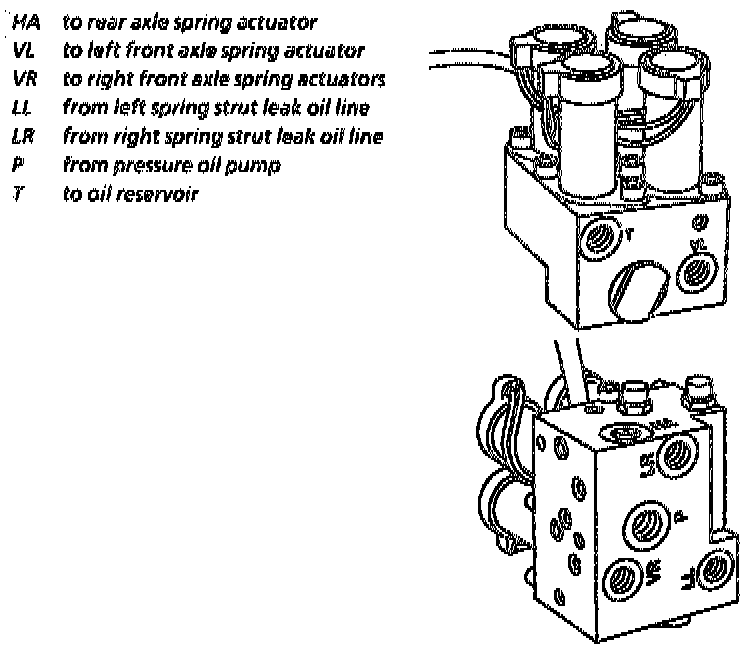

Level Control Valve View

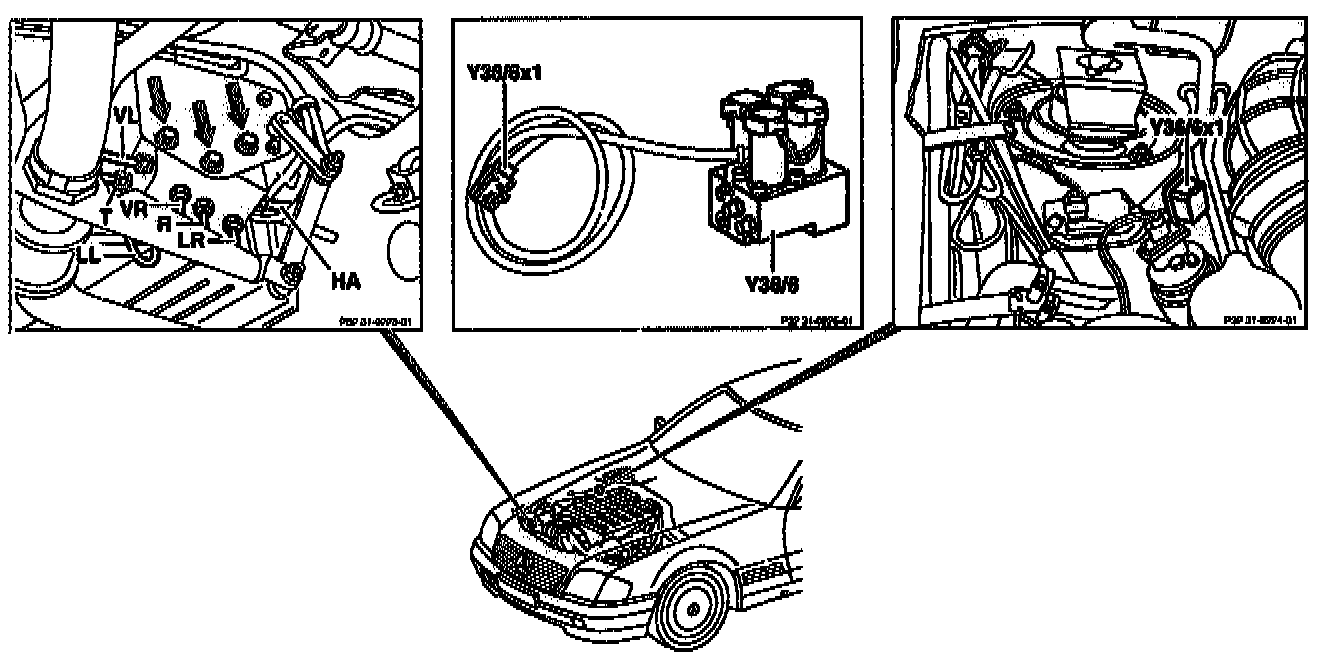

Vehicle View


NOTE: Numbers in parentheses ( ) indicate a component or tool in the associated illustration.

WARNING:
^ Risk of Injury to skin or eyes due to hydraulic fluid spraying out under high pressure.
^ Risk of poisoning due to consuming hydraulic fluid.

NOTE:
^ Before starting work on the hydraulic system, depressurize the system.
^ Wear protective clothing and safety gasses.

REMOVAL
1. Empty pressure oil system of front and rear axle.
2. Disconnect pressure lines (HA, VR, VL, LL, LR, P and T) at rear axle height reduction valve
3. Disconnect electric cable (Y36/6x1) in right of engine compartment
4. Unscrew bolts (arrows) from bracket

INSTALLATION
Reverse procedure to install, noting the following:
- Tighten pressure lines to level control on valve unit as follows:
- 10 x 1 mm to: 14 Nm
- 12 x 1 mm to: 20 Nm
- Bolts for attaching valve unit to bracket to: 10 Nm
