Installing/Aligning Upper Bracket

NOTE: Numbers in parentheses ( ) indicate a component or tool in the associated illustration.

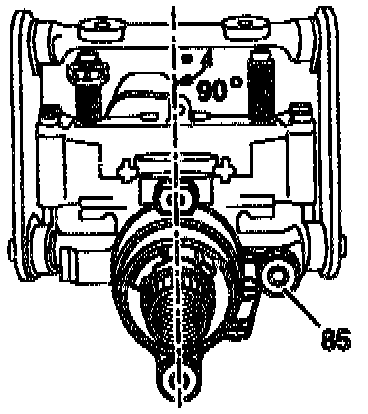

1. Install bracket (85) as shown and install at an angle of 90° to the jacket tube unit.

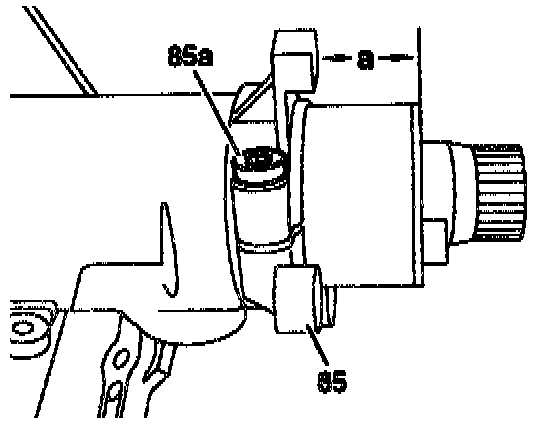

2. Adjust dimension "b" to: 30.0-30.5 mm.
3. Tighten bolt (85a) to: 5 Nm.
