Fuse and Fusible Link Locations

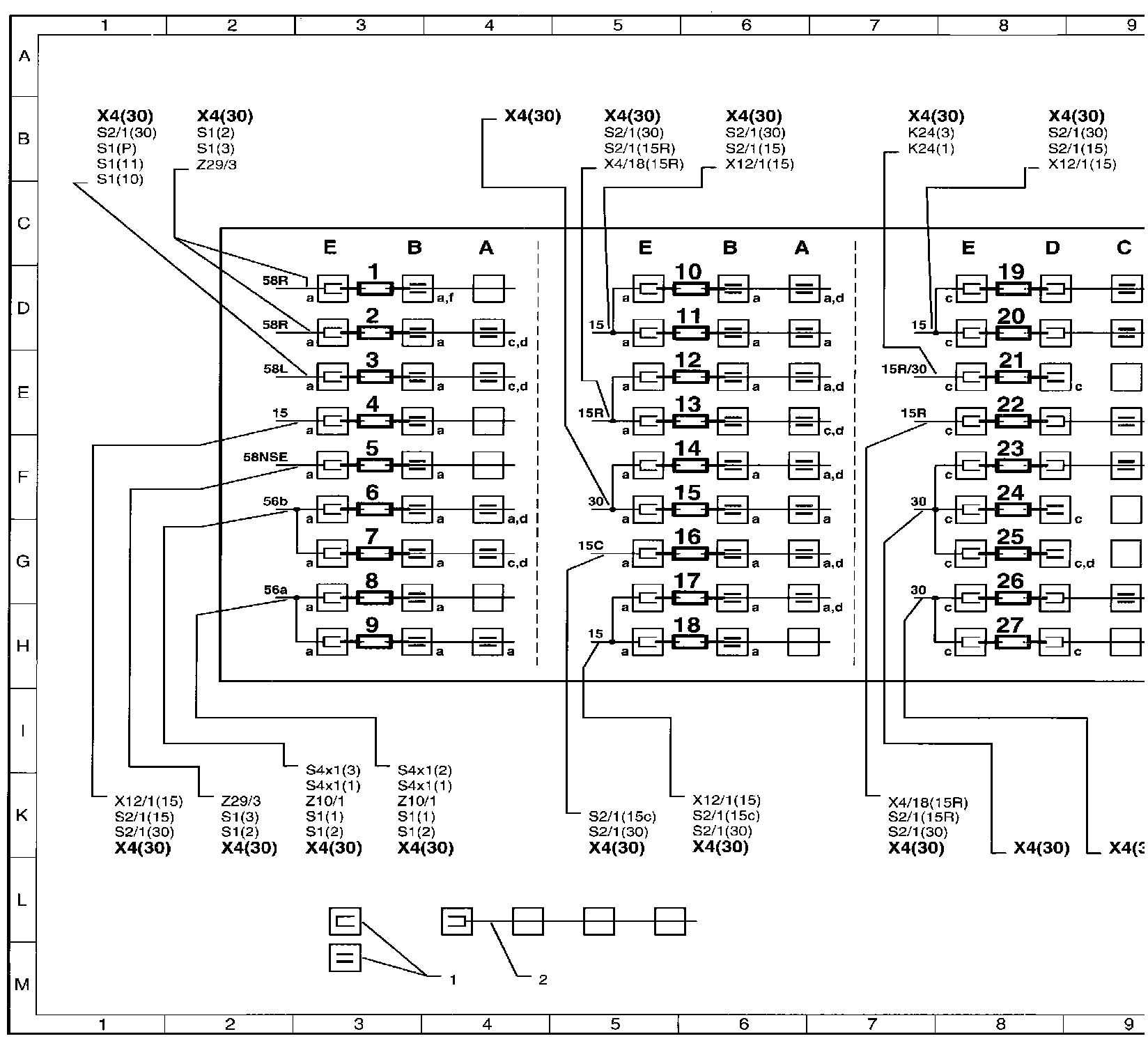

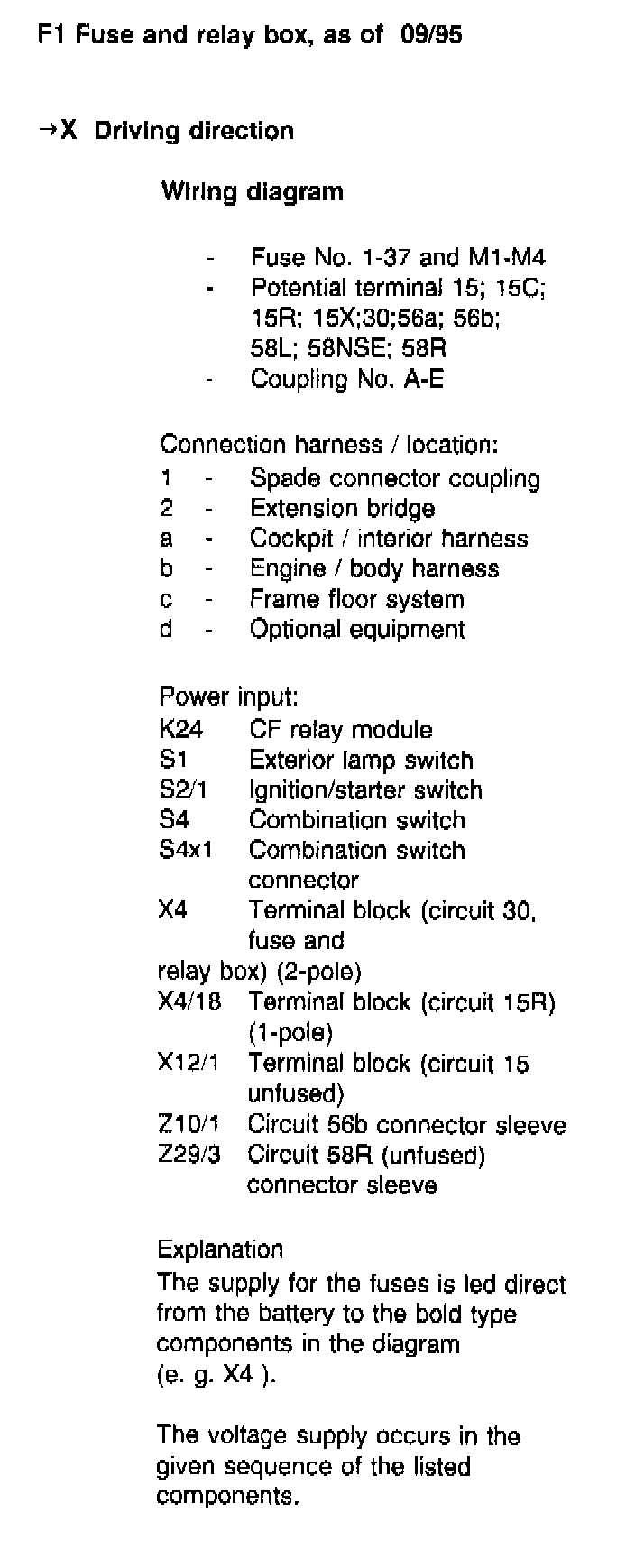

F1 - Fuse and Relay Box (In Engine Compartment)
'_�Part 1:
Part 2:

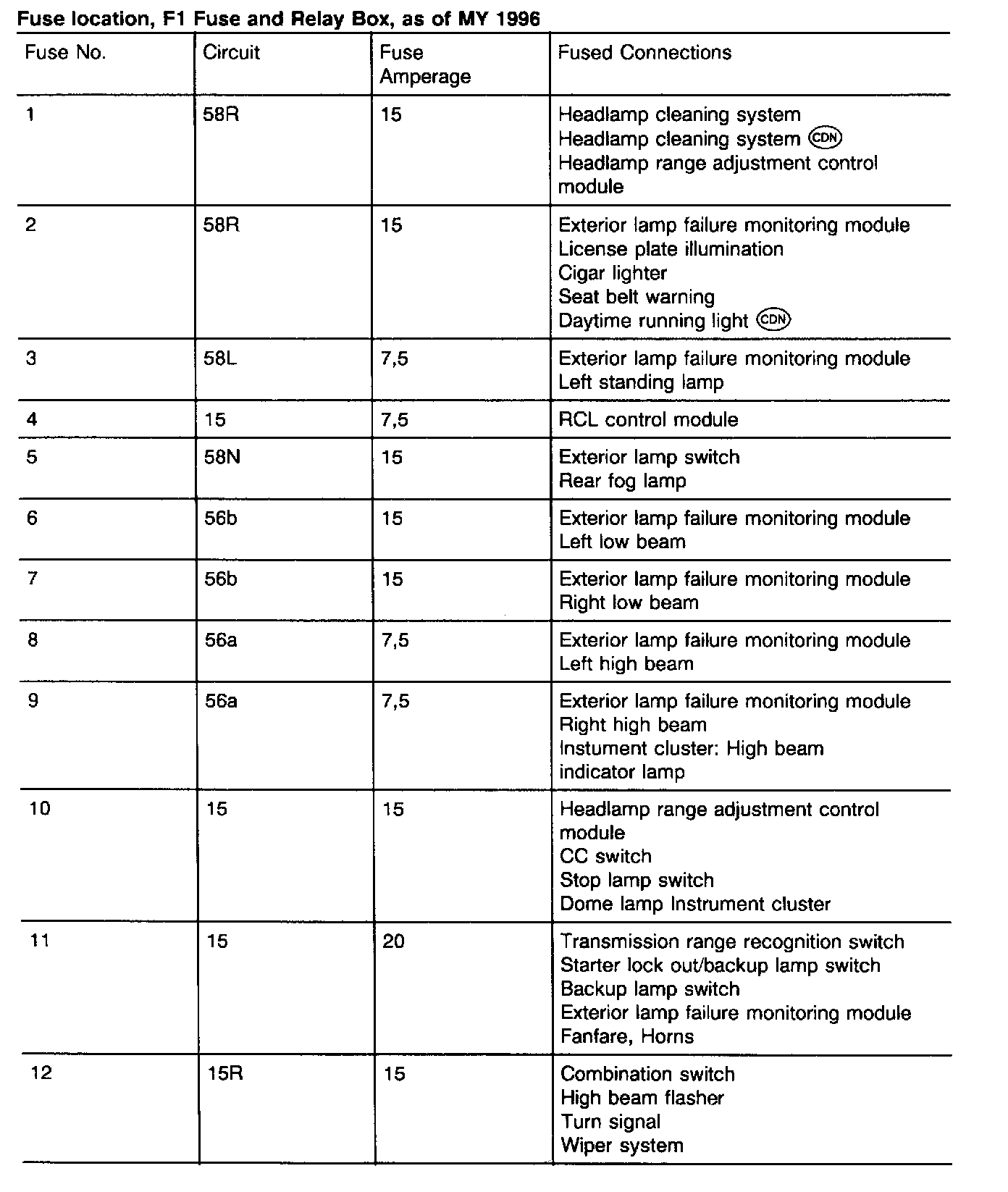

Fuse 1 - 12:

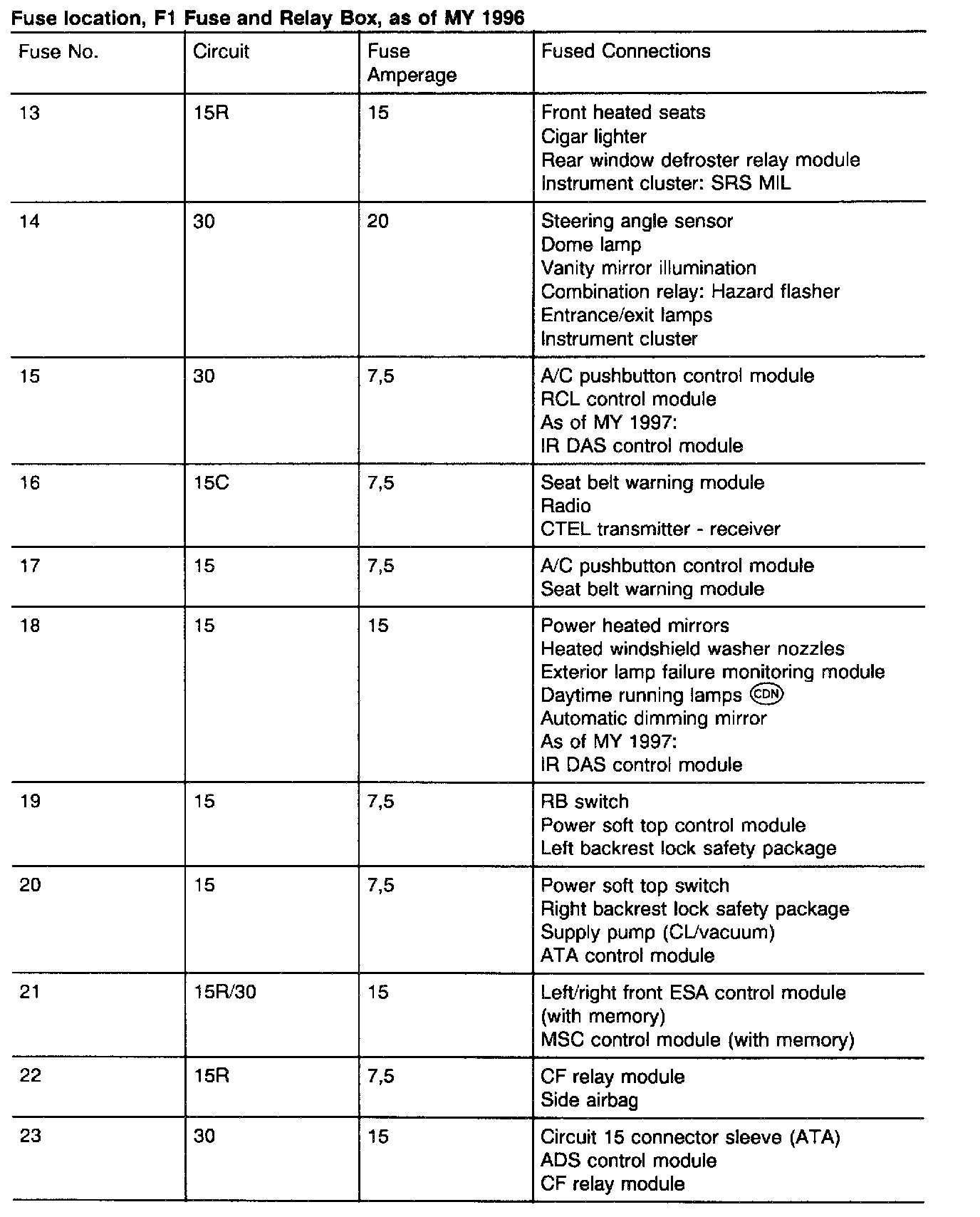

Fuse 13 - 23:

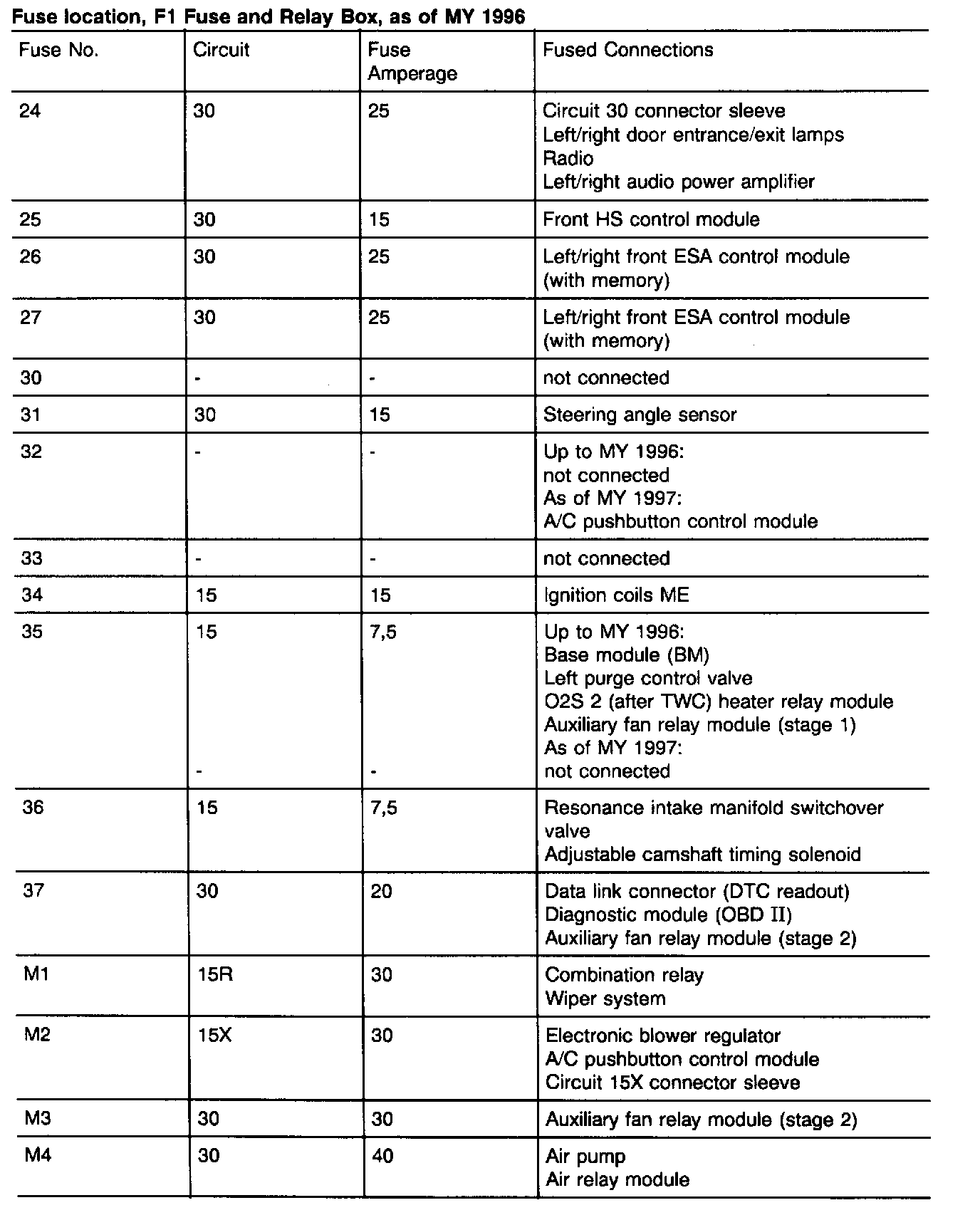

Fuse 24 - 37, M1 - M4:

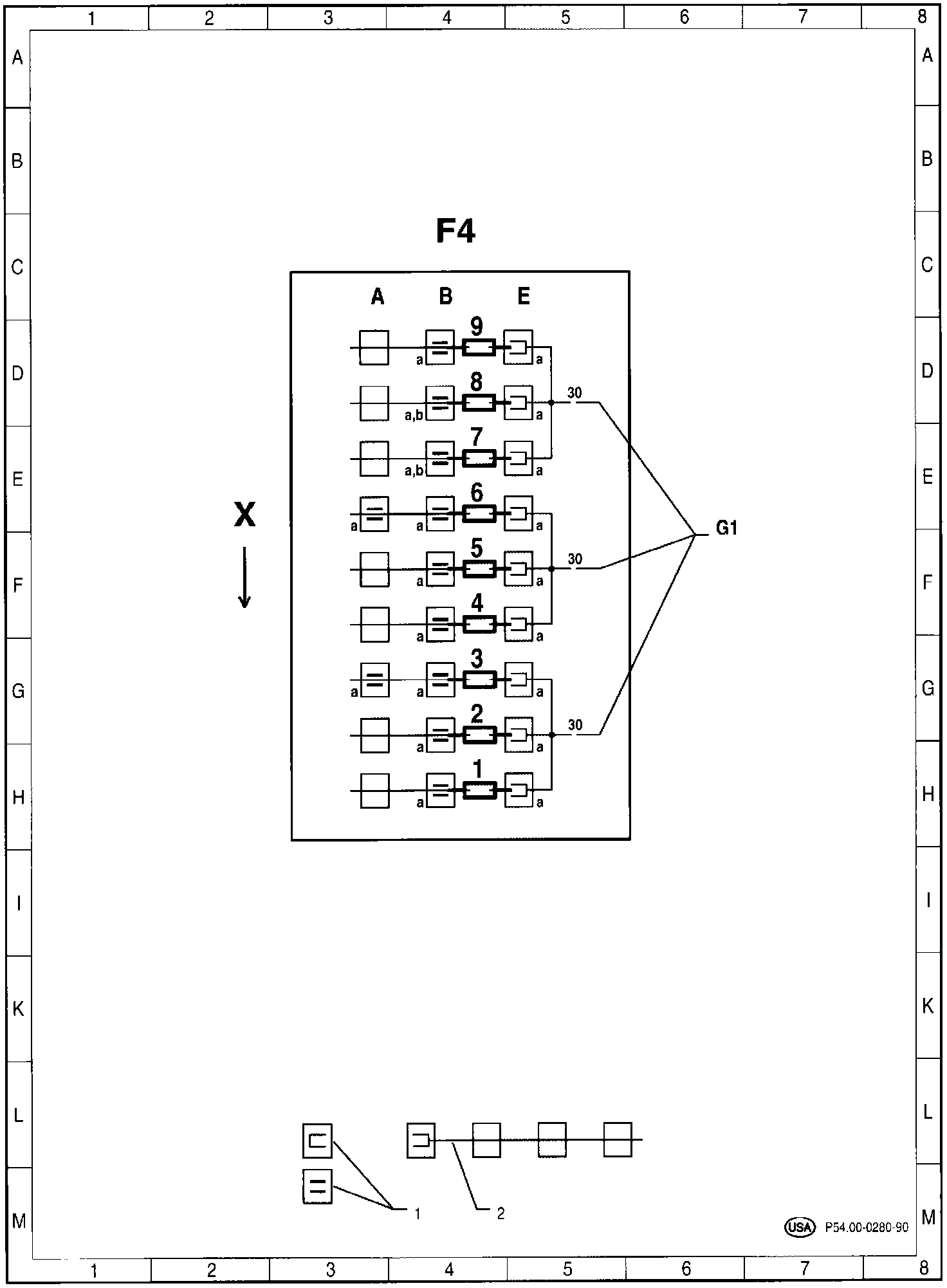

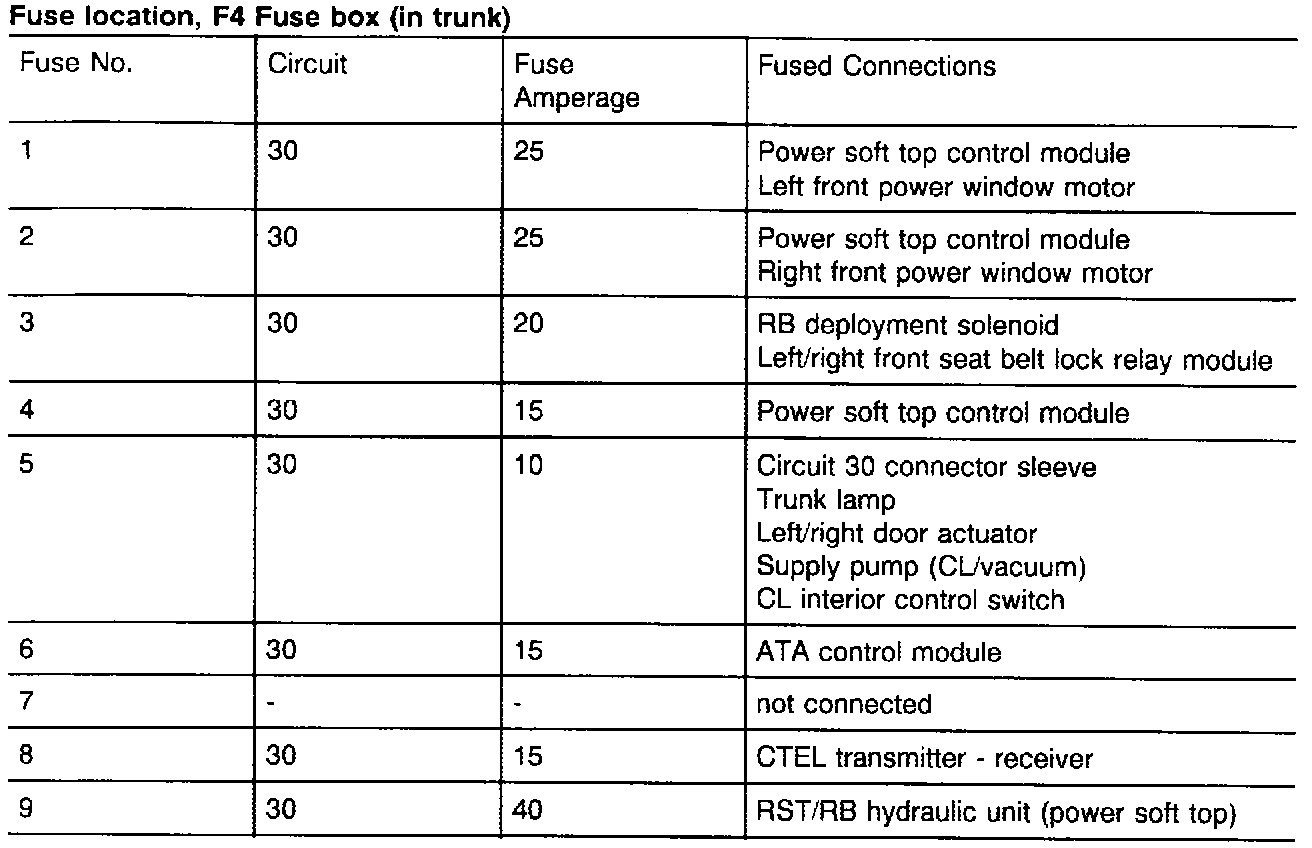

F4 - Fuse and Relay Box (In Trunk)

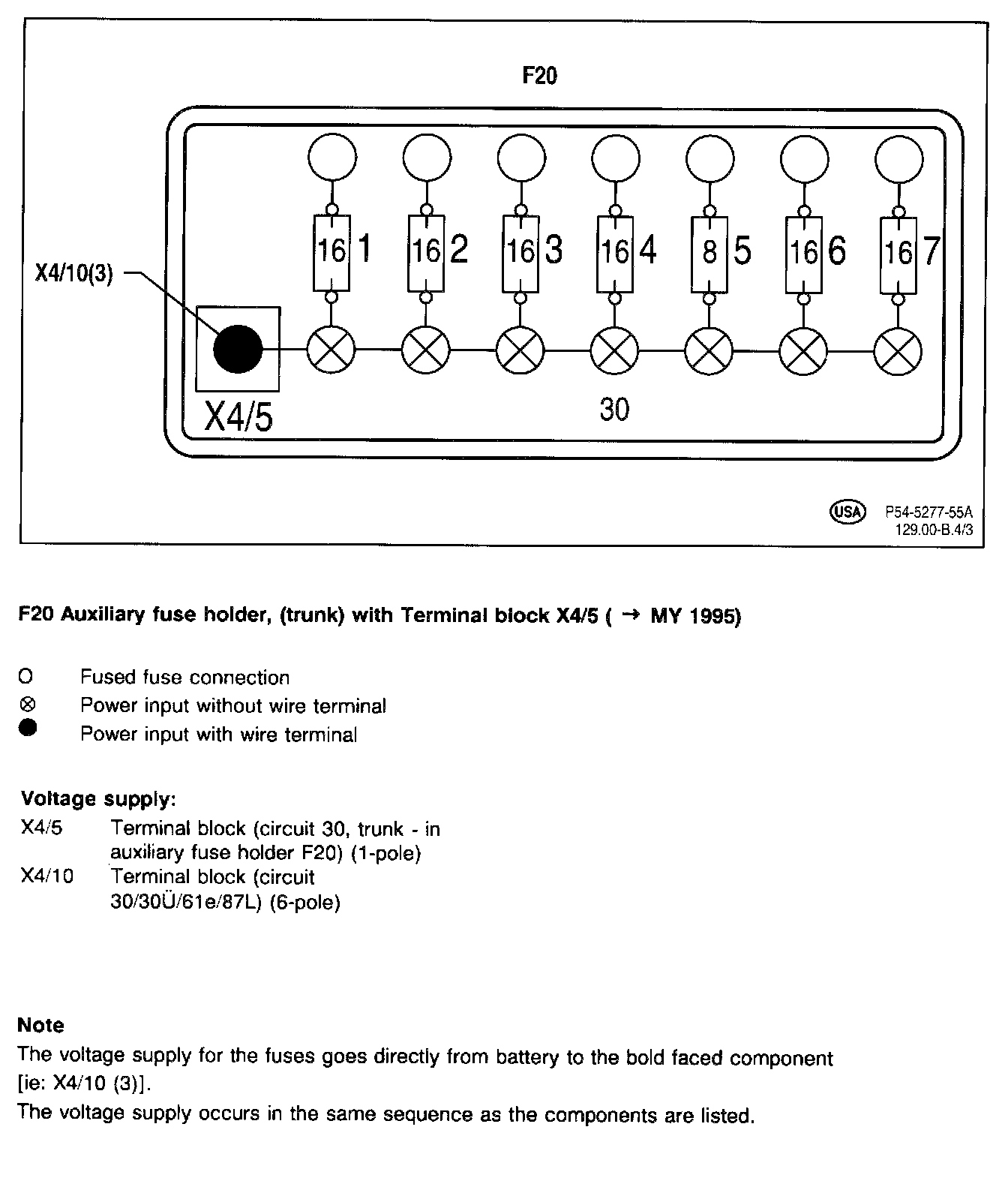

F20 Auxiliary Fuse Holder (Trunk)
F20 Auxiliary Fuse Holder:

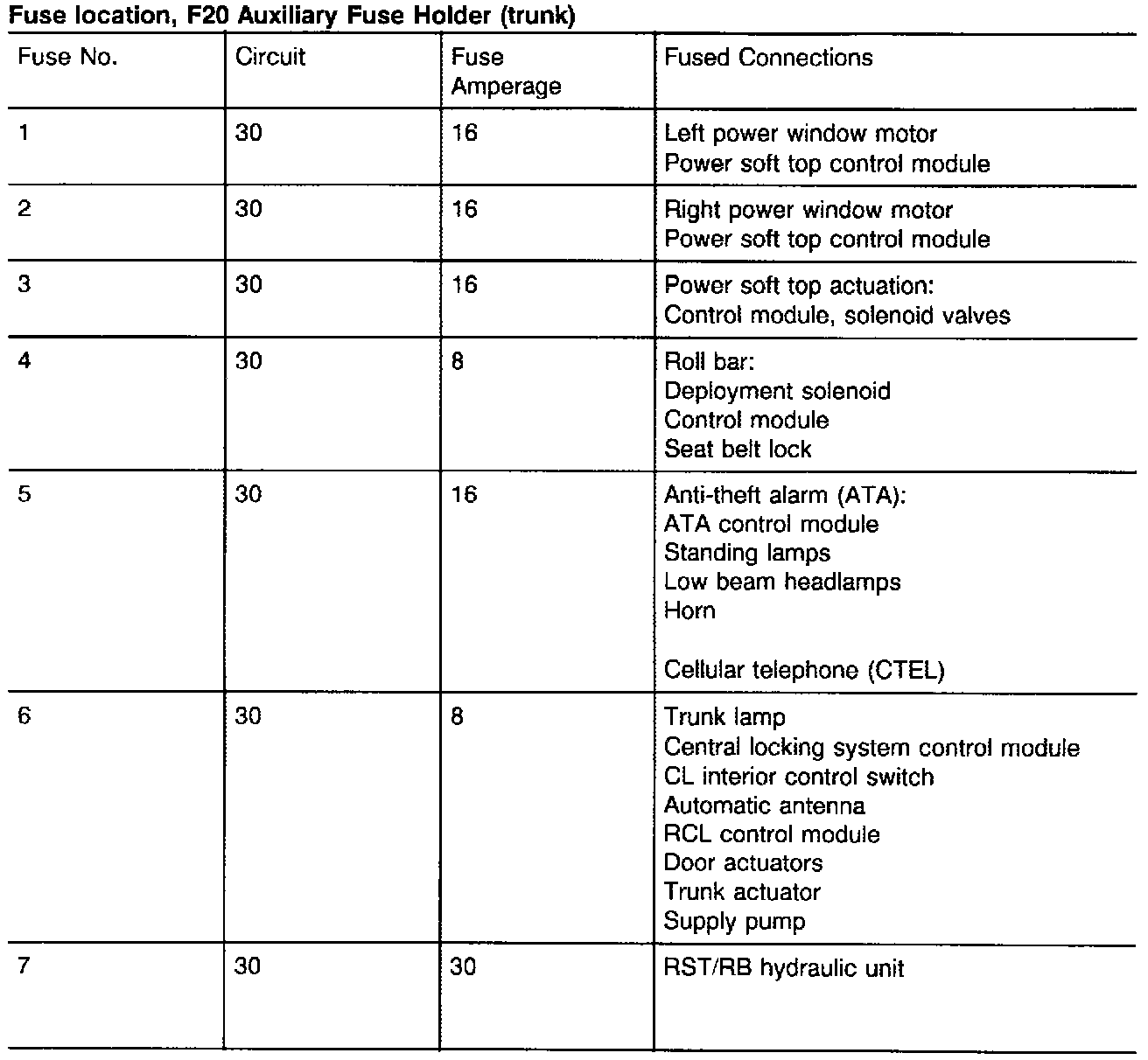

Fuse Location, F20 Auxiliary Fuse Holder:

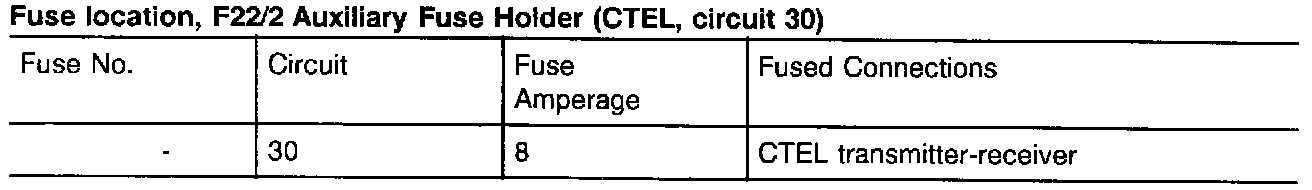

F22/2 Auxiliary Fuse Holder (CTEL, Circuit 30)
Connection:

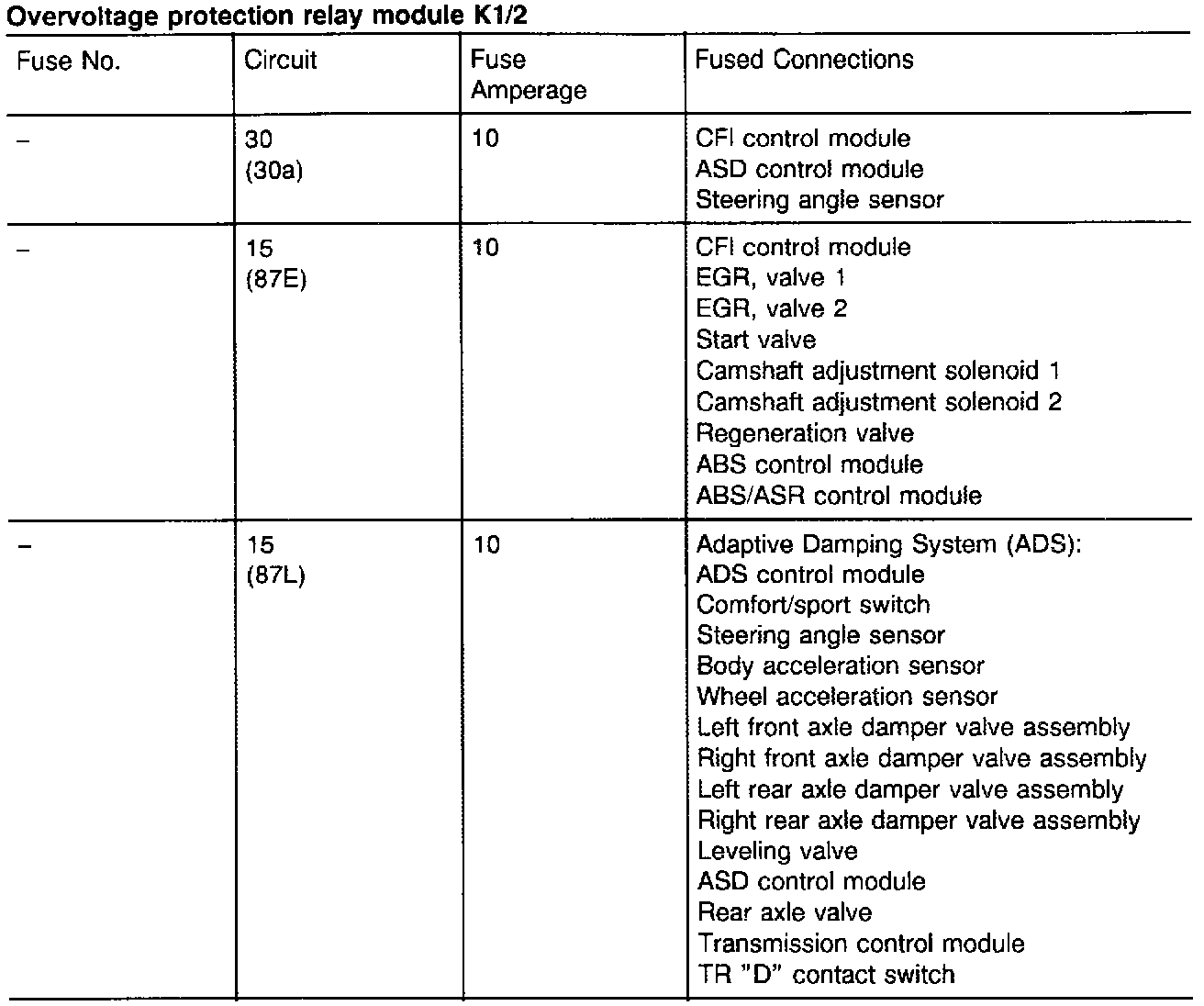

Overvoltage Protection Relay Module K1/2
Engines with CFI Only:
