Refrigerant Pressure Sensor / Switch: Locations

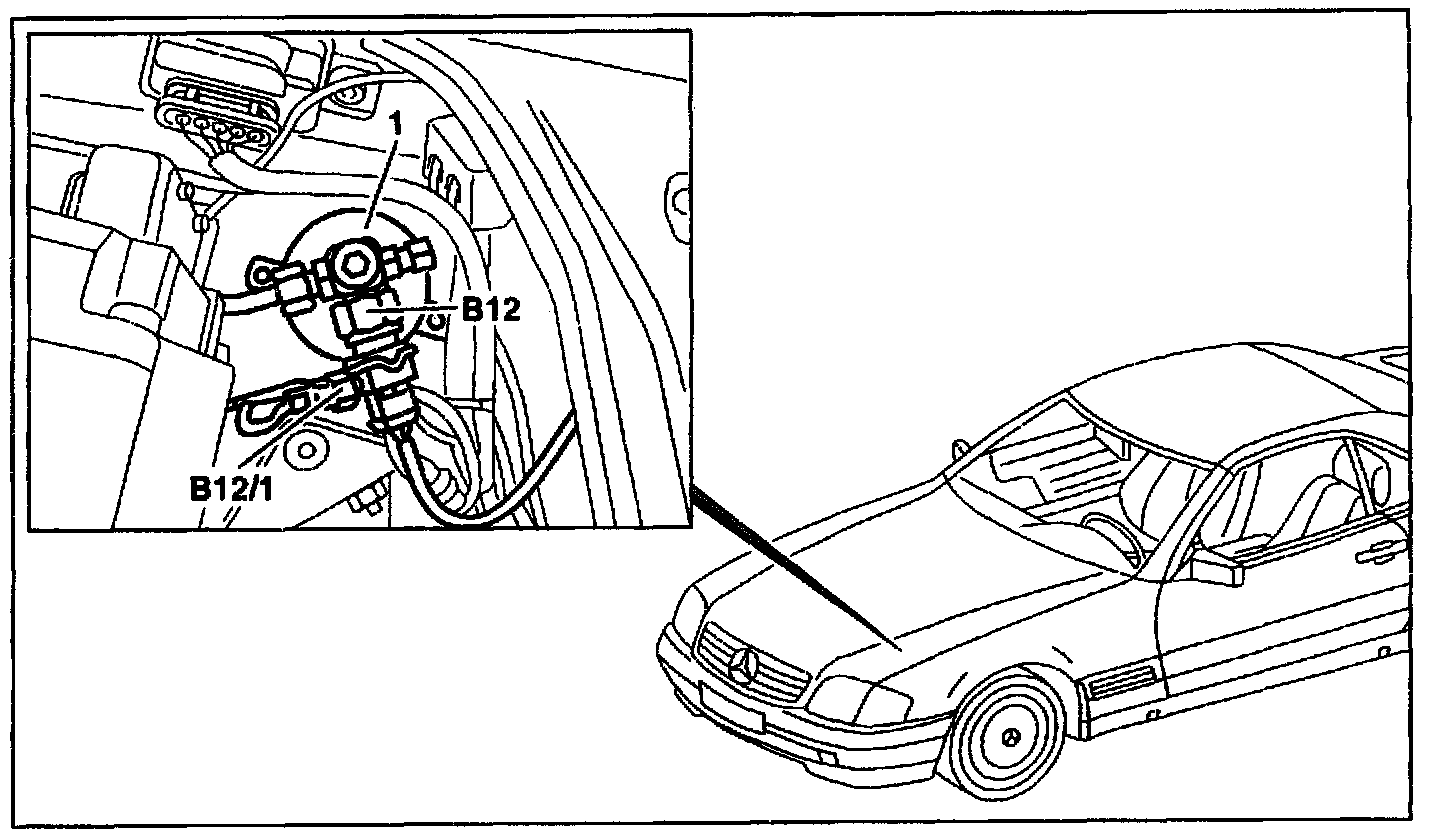

The refrigerant pressure sensor (B12) is located at the left front in the engine compartment and is attached to the receiver/drier (1).
