Heater Core Temperature Sensor / Switch: Locations

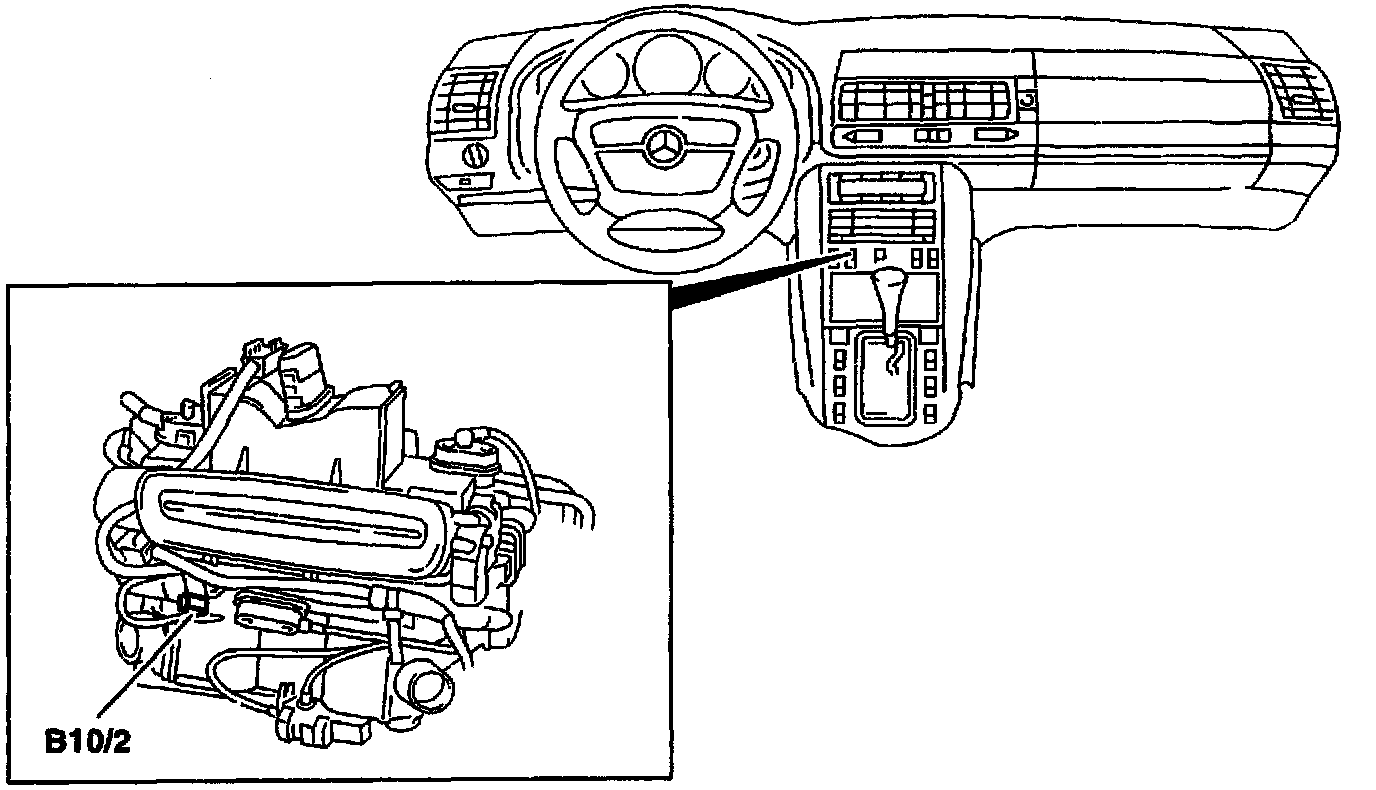

The heater core temperature sensor (B10/2) is located on the left on the A/C housing.
