Home >> Mercedes Benz >> 2000 >> SL 500 (129.068) V8-5.0L (113.961) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Wheel Speed Sensor >> Specifications >> Rotor Tooth/Gear Ratio Matching Table

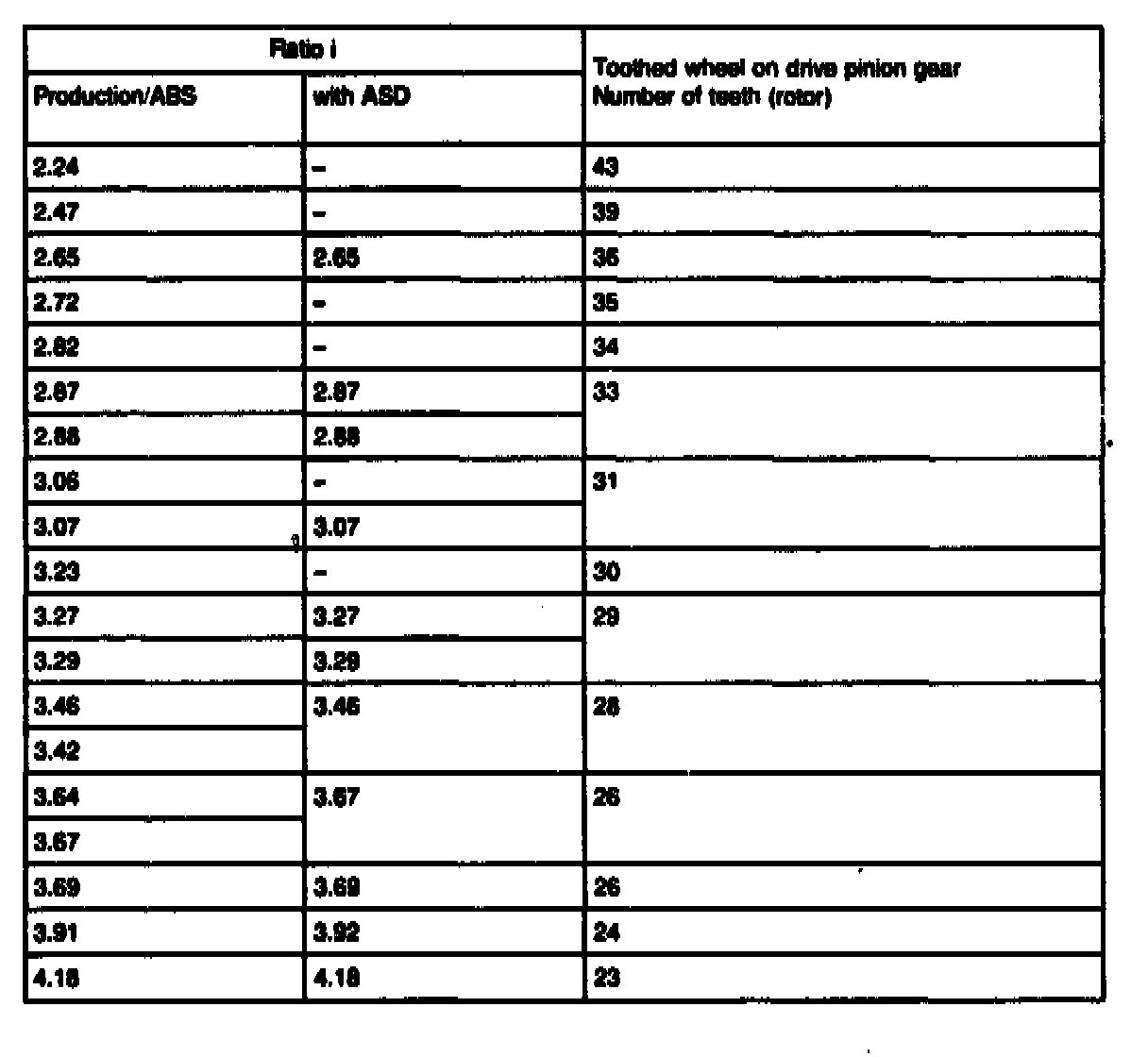

Rotor Tooth/Gear Ratio Matching Table
