Limit Switch, Side Window Down

Door liner removed. Removal and Replacement






Removal
Side window
close

Plug connector for loudspeaker
disconnect

Loudspeaker
screw off together with bracket (6 screws)

Air duct
screw off (4 screws)

Plug connector (S21/8x/9x)
disconnect

Door foil
carefully remove in front and rear area

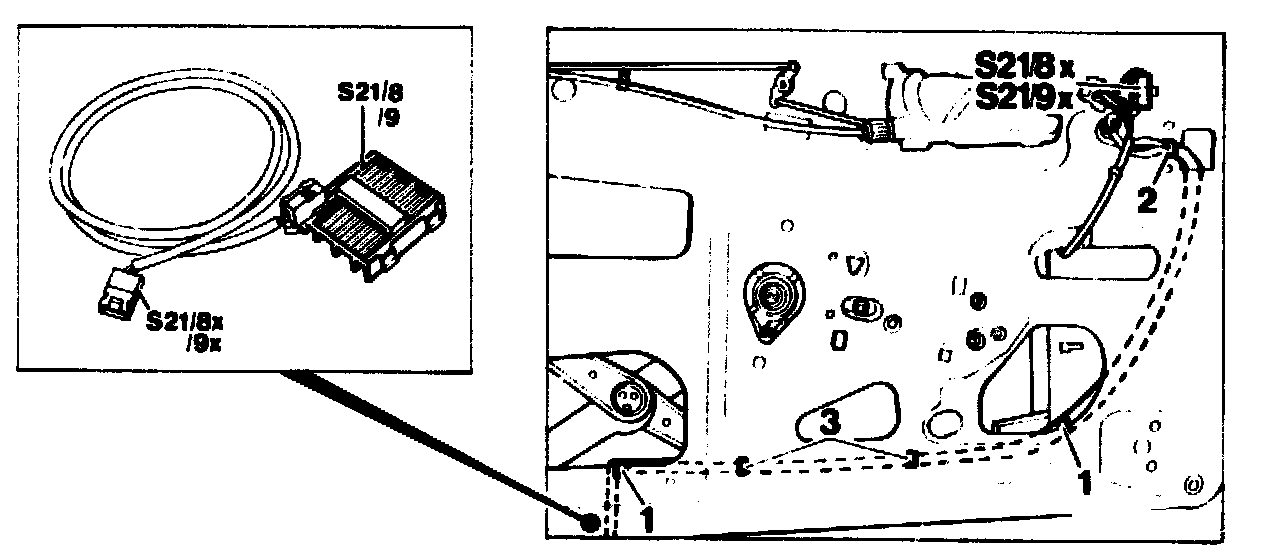

Cable straps (1) and clips (2) for cable
open

Cable duct with clip connection (3)
unclip

Limit switch (S21/819)
unclip from bottom of door

Limit switch (S21/8/9)
remove together with cable

Installation
Install in opposite order
Replace door foil if damaged
