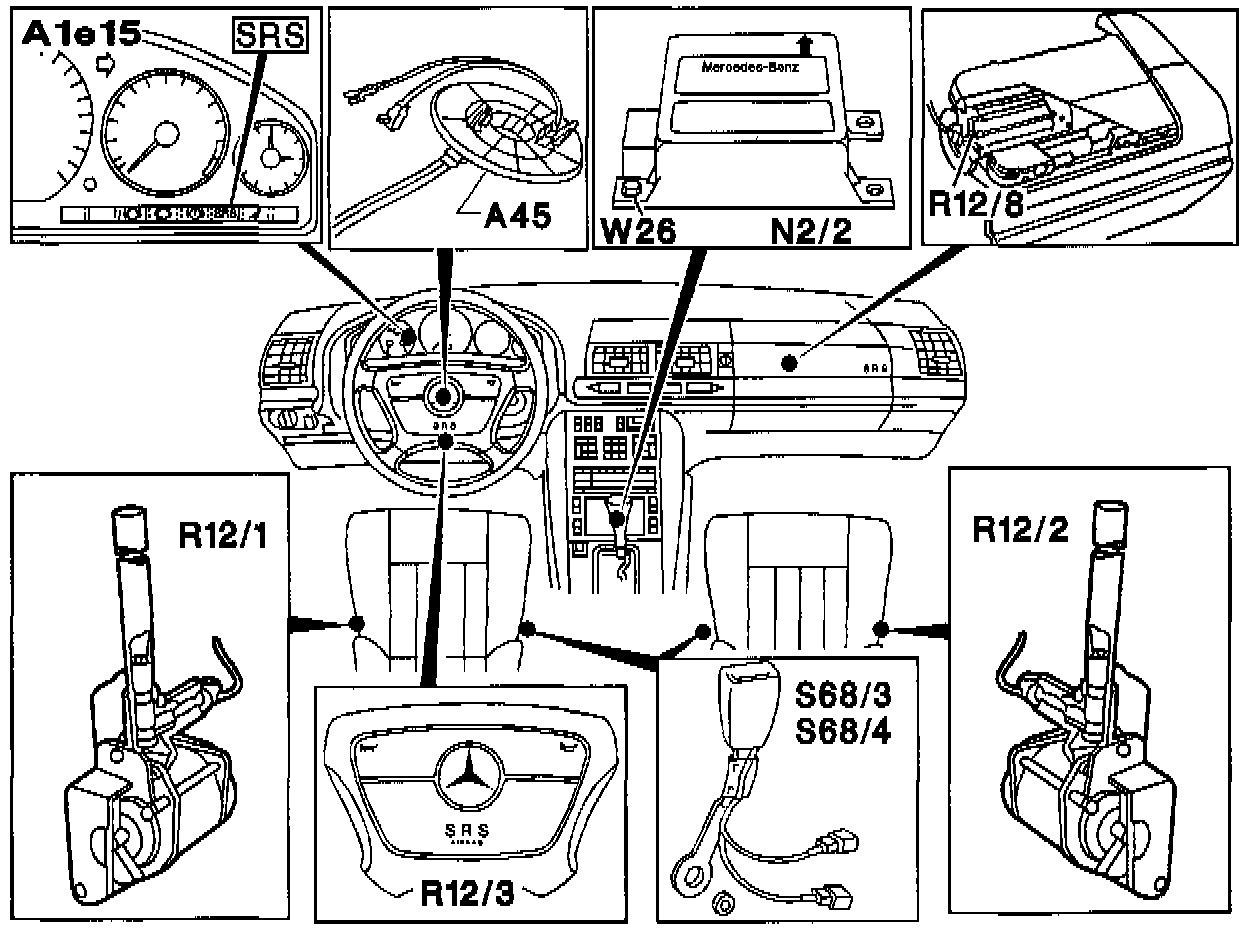

Component Locations

Driver/Passenger-side Airbag





A1e15 SRS MIL
A45 Horn/airbag clock spring contact
N2/2 SRS control module
R12/1 Left front ETR squib
R12/2 Right front ETR squib
R12/3 Driver airbag squib
R12/8 Front passenger airbag squib
S68/3 Left front seat belt buckle switch (airbag/ETR) (USA)
S68/4 Right front seat belt buckle switch (airbag/ETR) (USA)
W26 Ground (SRS control module)

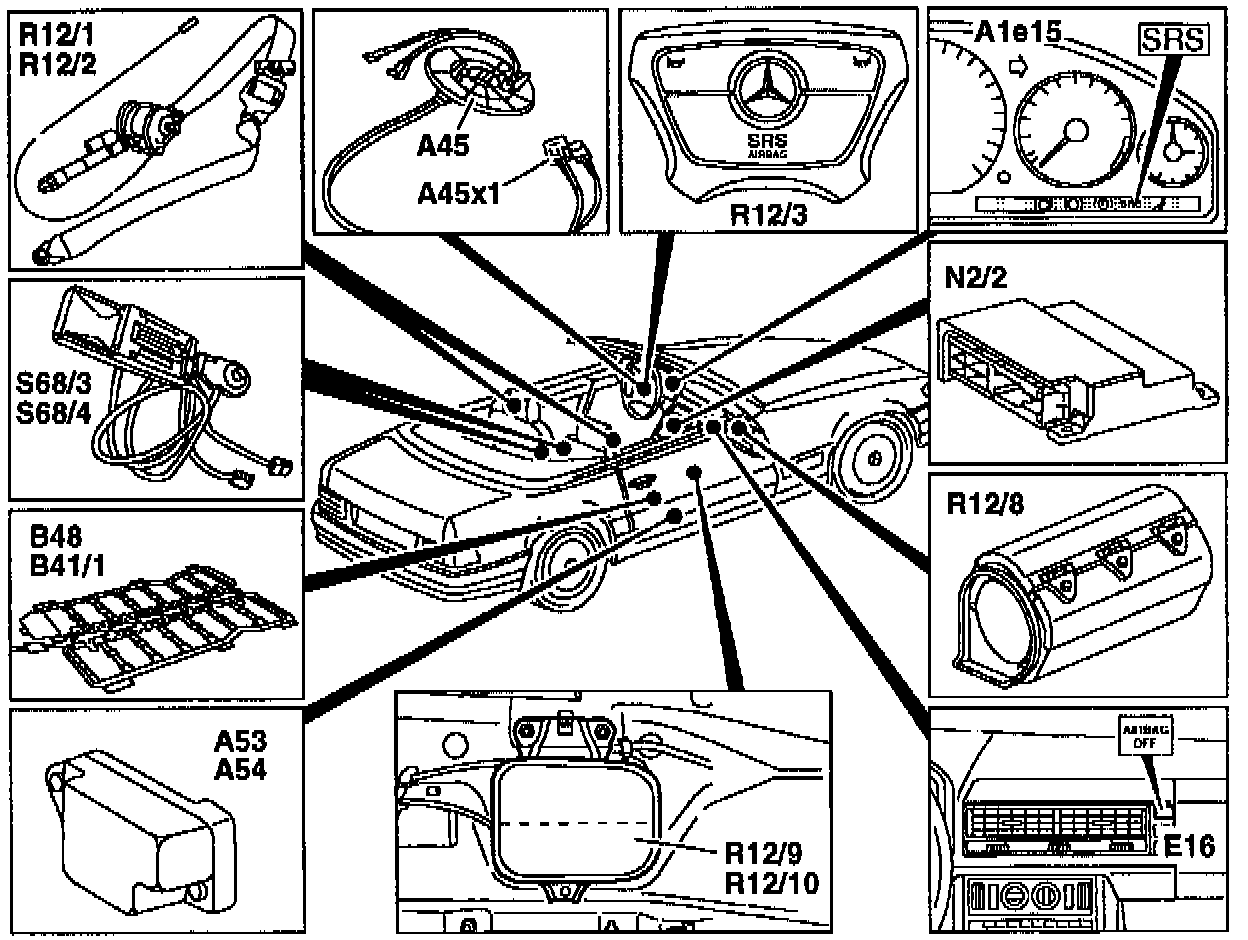

A1e15 SRS MIL
A45 Horn/airbag clock spring contact
A45X1 Horn/airbag clock spring contact connector
A53 Left side airbag sensor
A54 Right side airbag sensor
B41/1 Front passenger seat occupied recognition sensor
B48 Front passenger seat occupied recognition with automatic child seat recognition (ASCR)
E16 Automatic child seat recognition (ASCR) indicator lamp
N2/2 SRS control module
R12/1 Left front ETR squib
R12/2 Right front ETR squib
R12/3 Driver airbag squib
R12/8 Front passenger airbag squib
R12/9 Left side airbag squib
R12/10 Right side airbag squib
S68/3 Left front seat belt buckle switch (airbag/ETR) (USA)
S68/4 Right front seat belt buckle switch (airbag/ETR) (USA)
