Airbag Indicator and Warning Lamp

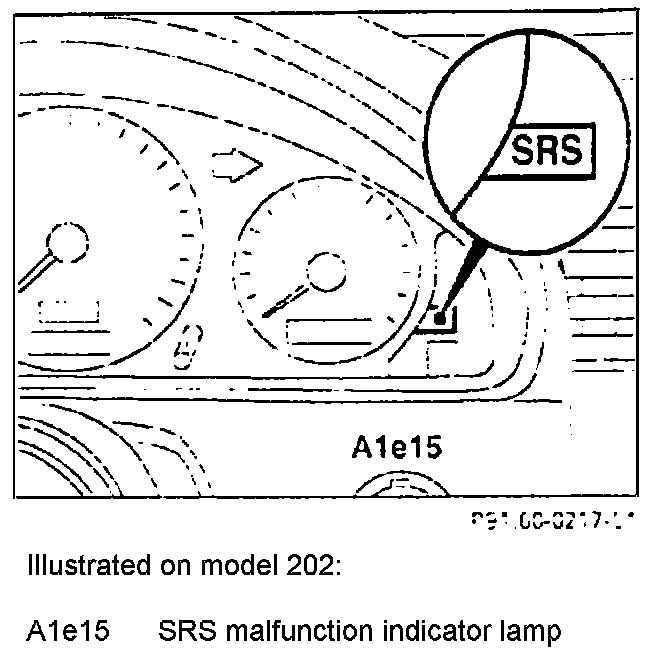

Illustrated On Model 202::






The SRS malfunction indicator lamp is located in the instrument cluster (on left or right depending on model).
