Variable Induction Control Actuator: Description and Operation

Purpose

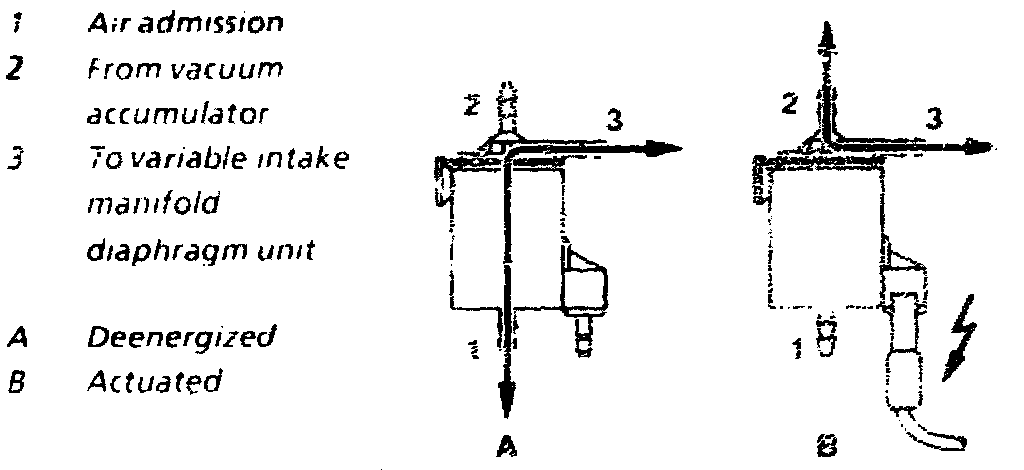

Pressurizing variable intake manifold diaphragm unit with vacuum or admitting air

Design/function

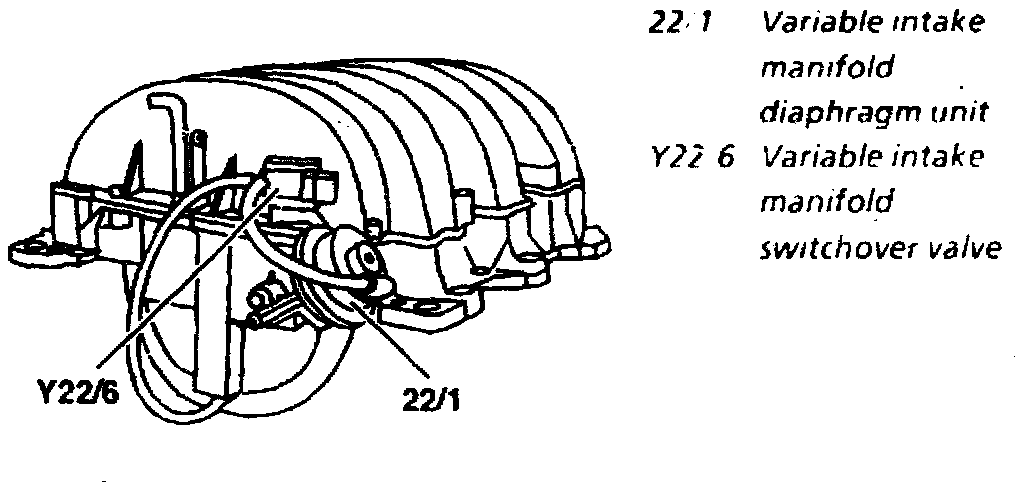

The variable intake manifold switchover valve is actuated at the ground side by the engine control module through its own output stage. The voltage is supplied by circuit 87.
