Home >> Mercedes Benz >> 2000 >> SL 500 (129.068) V8-5.0L (113.961) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Service and Repair >> Remove/Install Headlamp Unit (Non-Xenon)

Remove/Install Headlamp Unit (Non-Xenon)

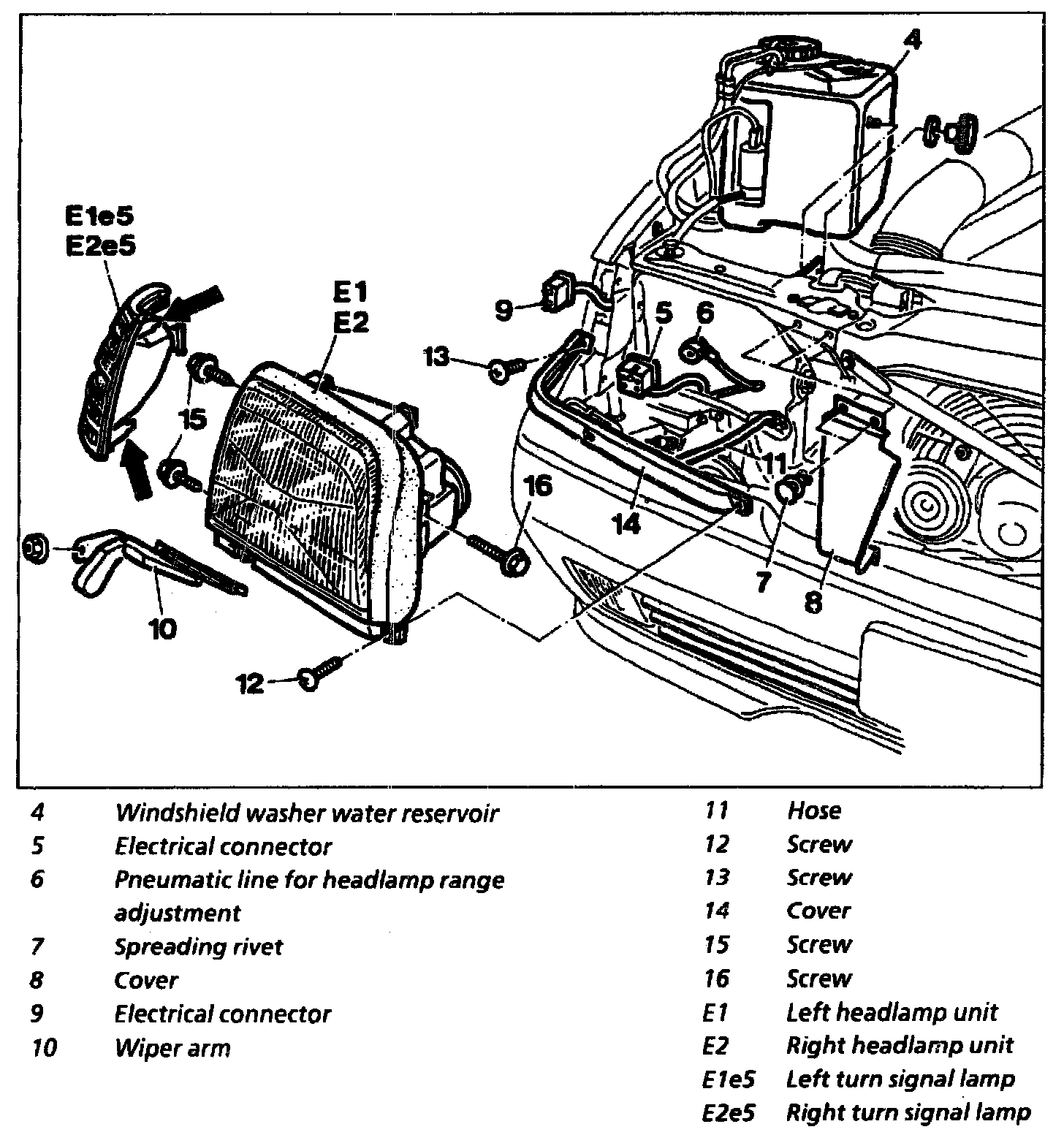

Component Identification:

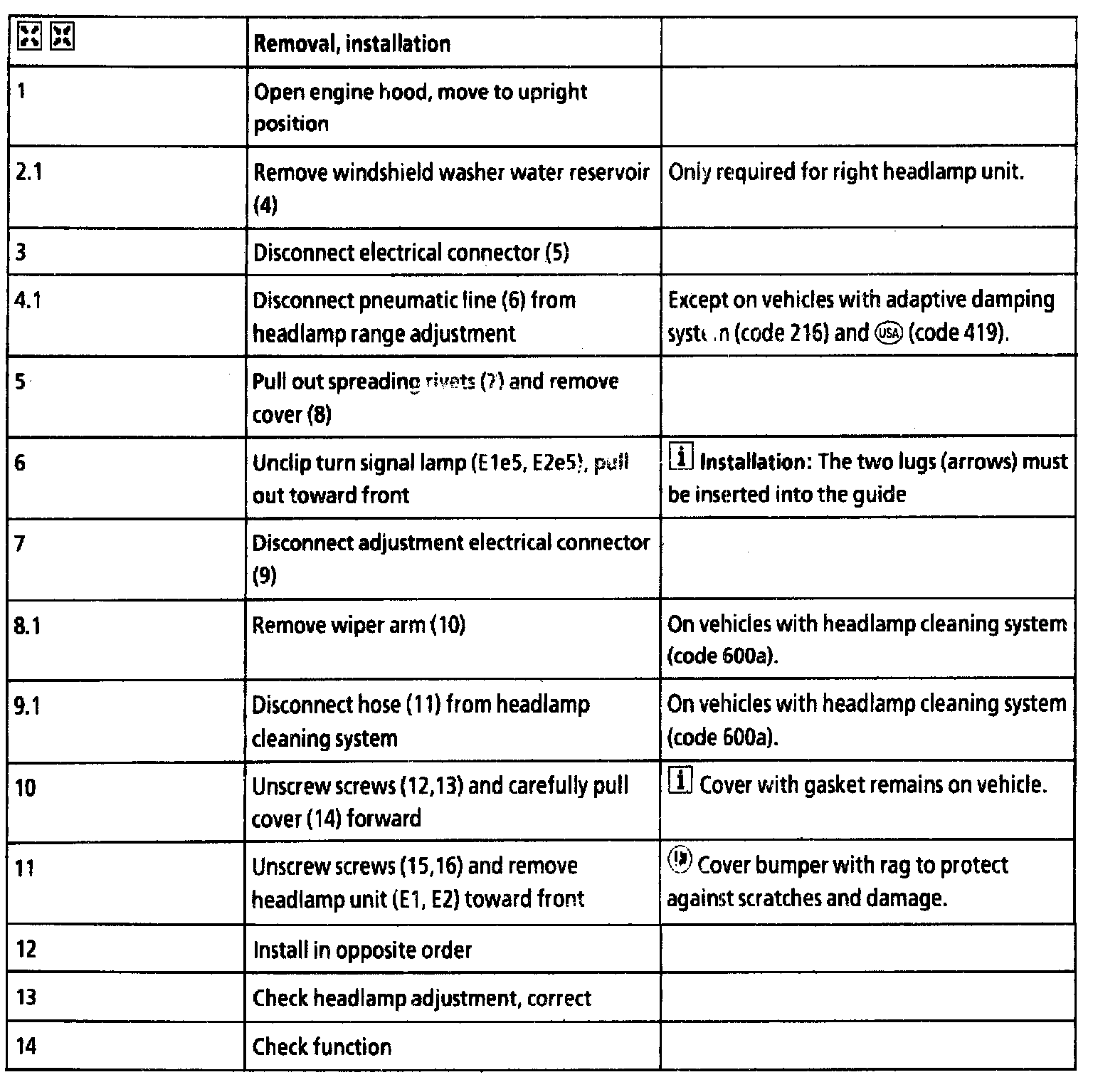

Removal/Installation:
