Home >> Mercedes Benz >> 2000 >> SL 500 (129.068) V8-5.0L (113.961) >> Repair and Diagnosis >> Lighting and Horns >> Fog/Driving Lamp >> Service and Repair >> Replacing Fog Lamp Reflector

Replacing Fog Lamp Reflector

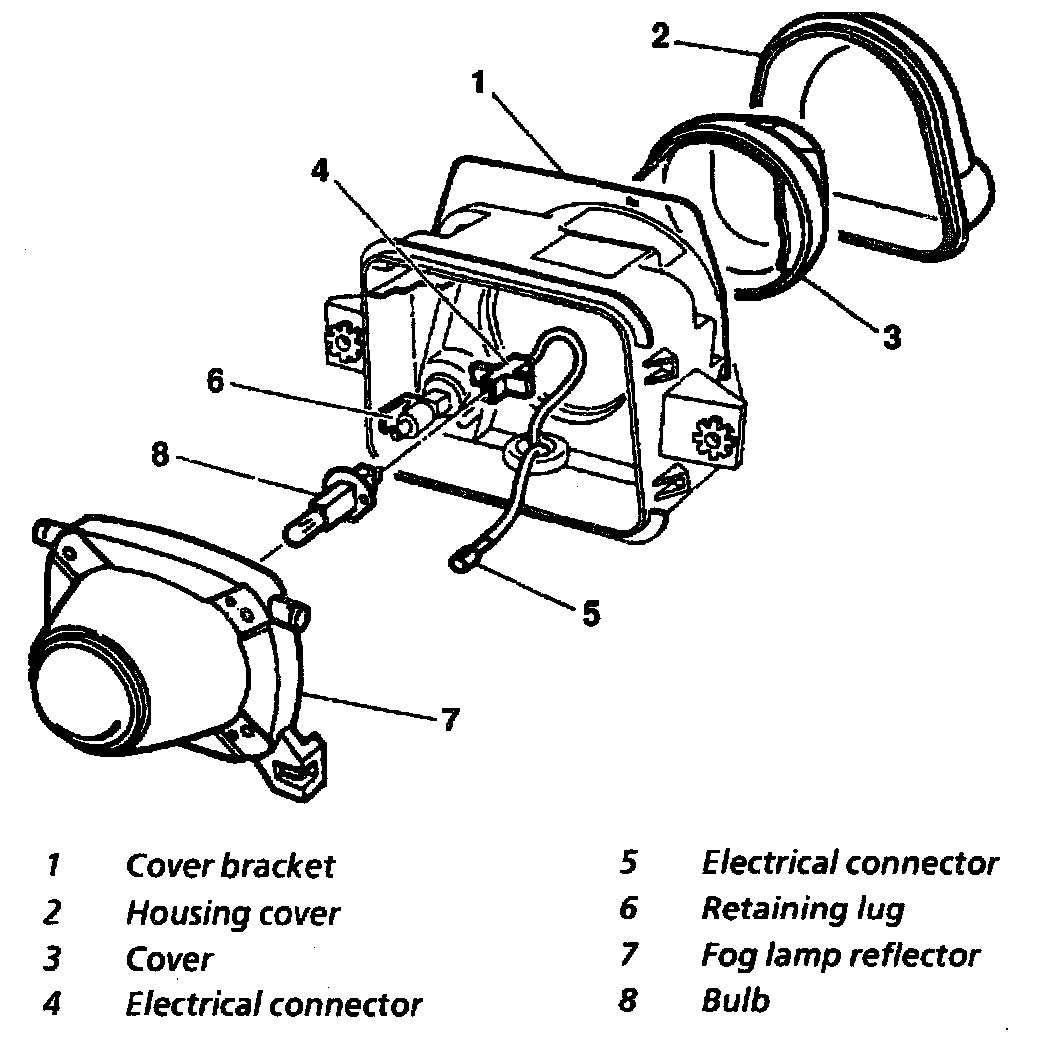

Component Identification:

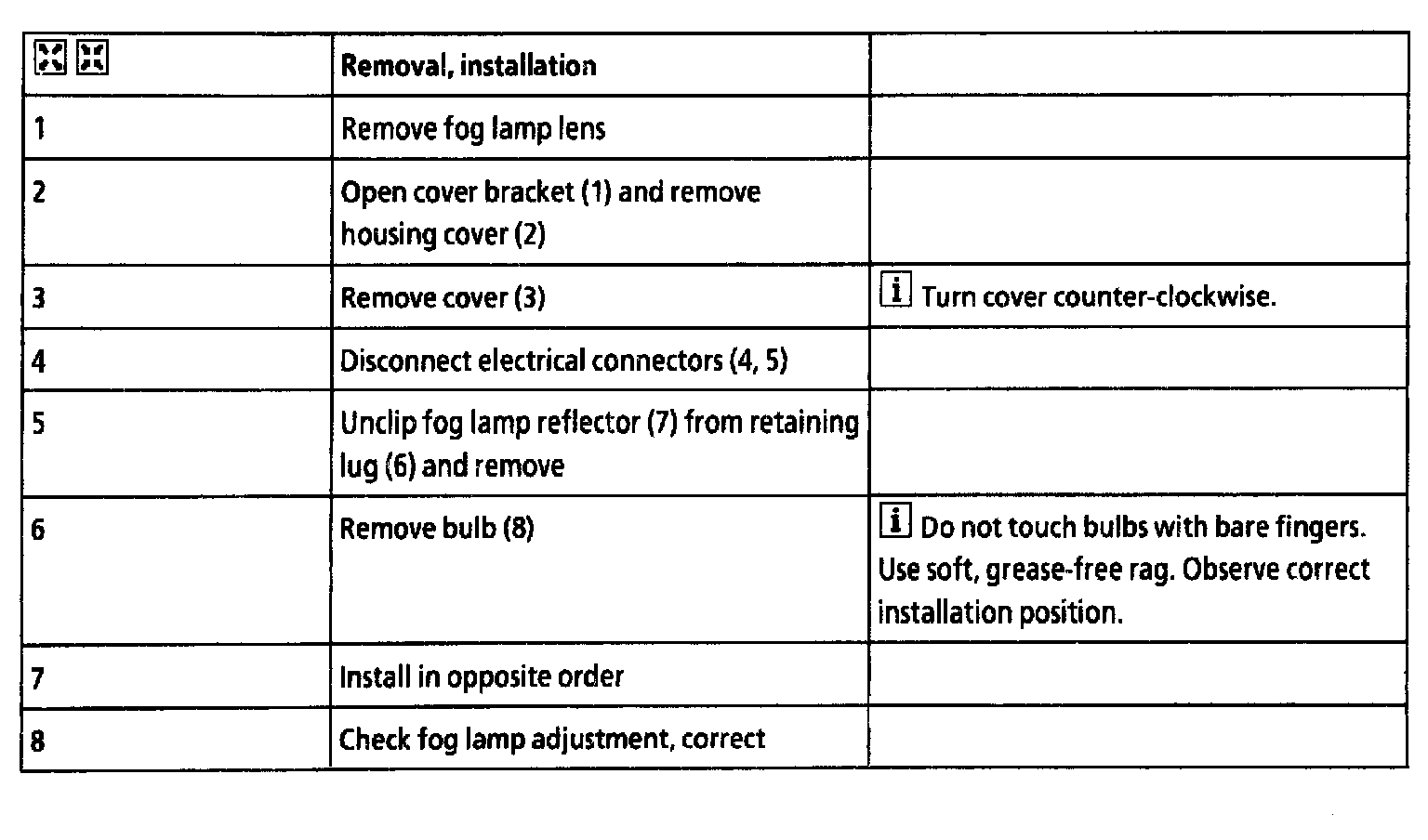

Removal/Installation:
