Component Locations - Section 21

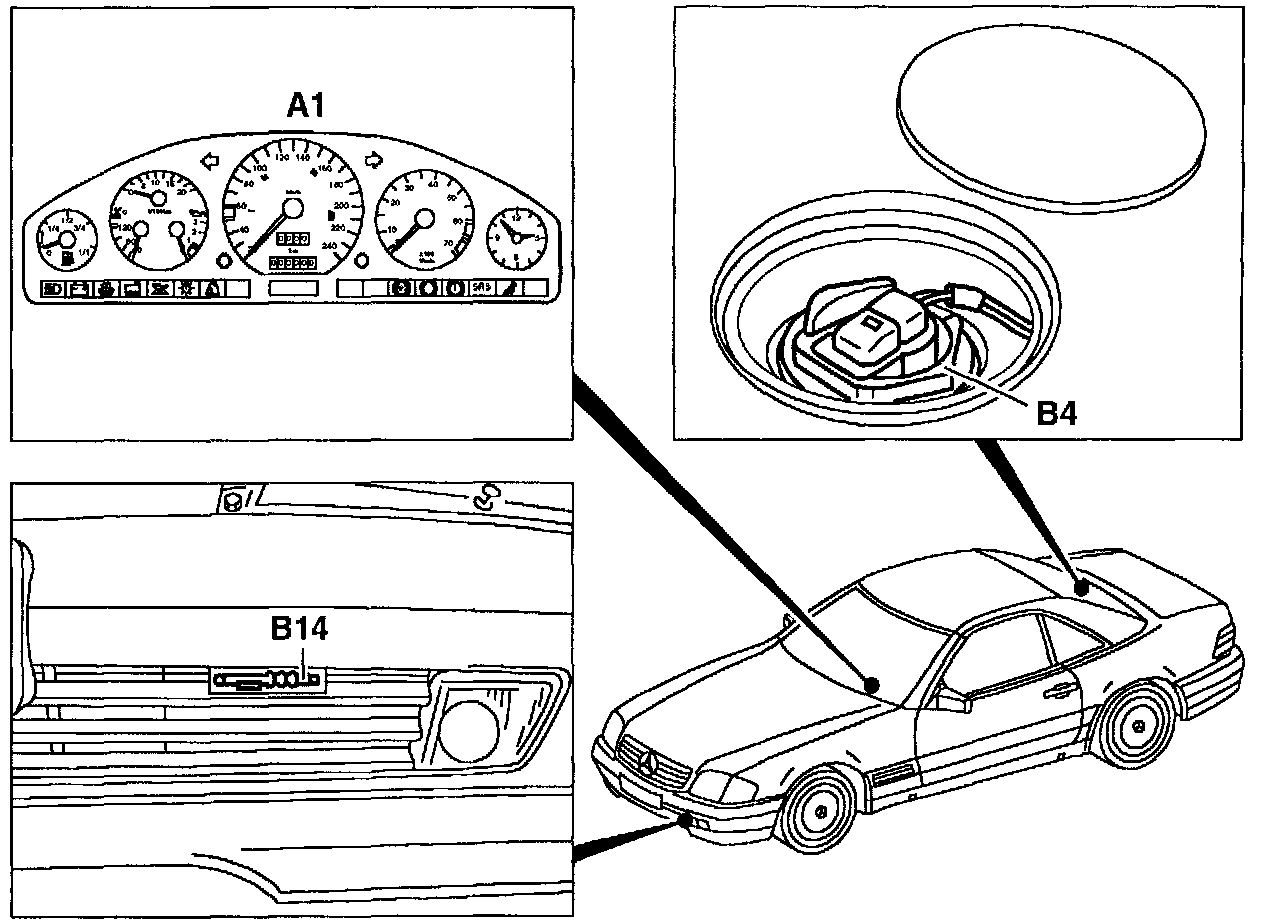

A1 Instrument cluster
B4 Fuel level sensor
B14 Outside temperature indicator temperature sensor




B5 Oil pressure sensor
(Engine 119: right front;
engine 104, 120: left rear)
B13 ECT sensor
F23/1 Control module box
N3/11 Left engine control module (ME-SFI)
N3/12 Right engine control module (ME-SFI)
N16/1 Base module
N47-5 ESP - SPS control module
N51 ADS control module
S43 Oil level switch
(Engine 119: right side of oil pan;
engine 104, 120: left side of oil pan)
X11/4 Data link connector
