SL 500 (129.068) V8-5.0L (113.961)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
With FSS
>>
Electrical Test Program
>>
Test - Section 23
>>

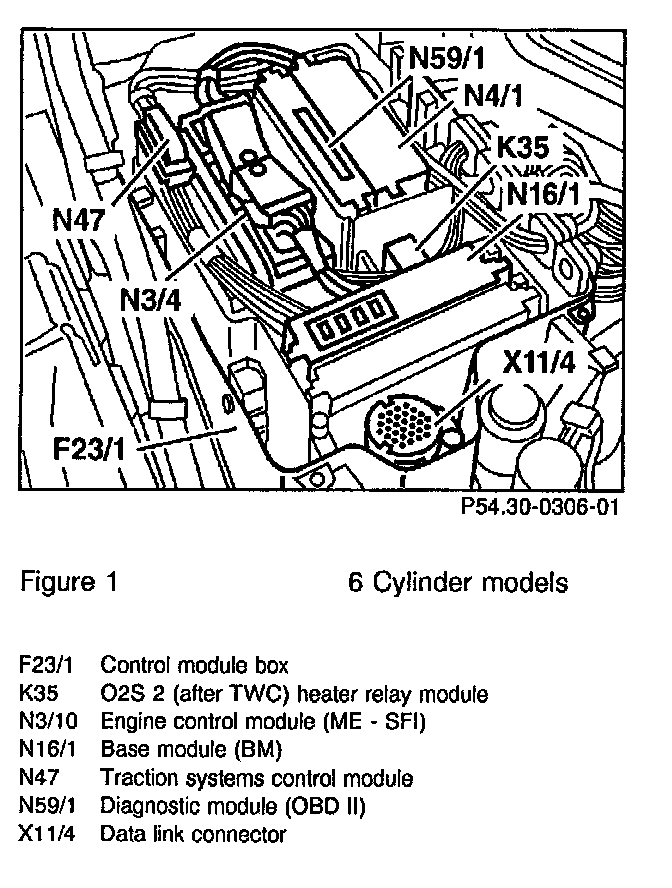

Figure 1 - 6 Cylinder Models
Figure 1 - 6 Cylinder Models
